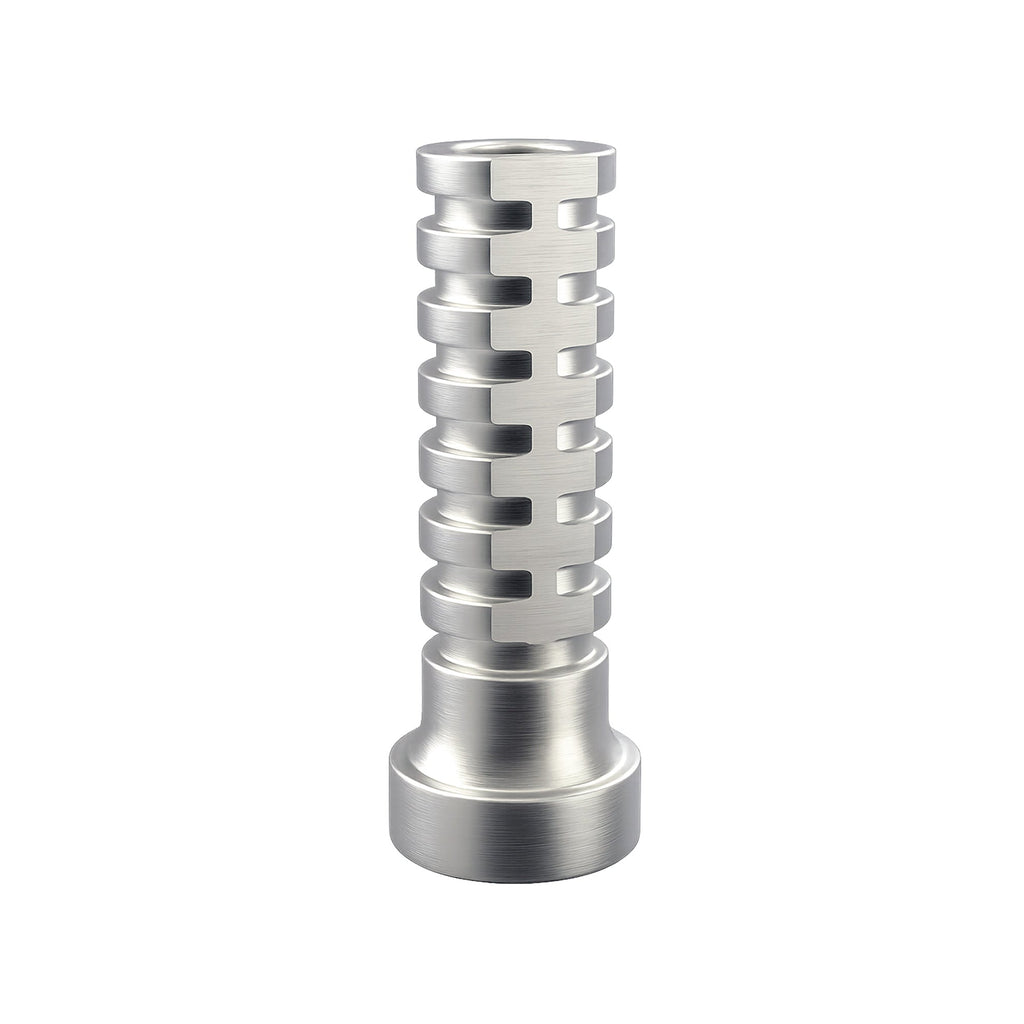

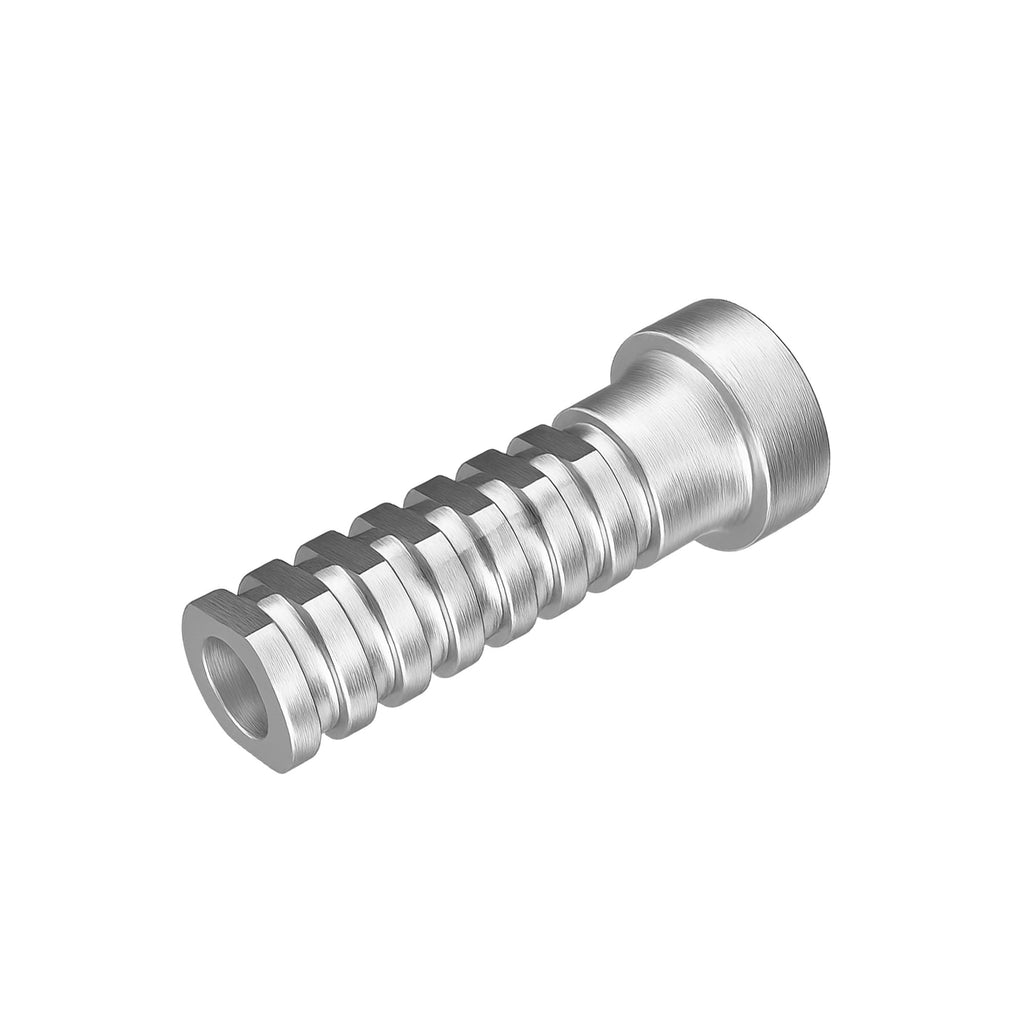

DSI Titanium Sleeve for Premium Multi-Unit Abutment M1.4 is used as a temporary restoration solution. The sleeve is compatible with Nobel Biocare® and other multi-unit systems with the MUA-level connection of M1.4 thread-type.
This Titanium Sleeve has an enlarged diameter and thicker walls. Due to these features, it is suitable for welding and for use in connection to a metal bar (Dolder/Hader Bar).
The sleeve makes a solid connection with the multi-unit abutment. It is made out of high-quality Titanium alloy Ti-6Al-4V grade 23 ELI which gives an adequate combination of biocompatibility and durability.
The sleeve can be installed using a regular hexagonal abutment driver Ø.050 (1.25mm).
Features and benefits:
- Excellent biocompatibility, no risk of abruption
- Precise, non-rotational, functional
- Simple, fast, and accurate positioning
- Outstanding stability for the crowns and bridges
Technical information:
- Material: Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
- Diameter: 3.78mm
- Length: 12mm
- Wall thickness: 0.93 mm
- Platform: Upper hexagon multi-unit abutment connection 1.4M
- Compatibility: DSI®, Nobel Biocare®

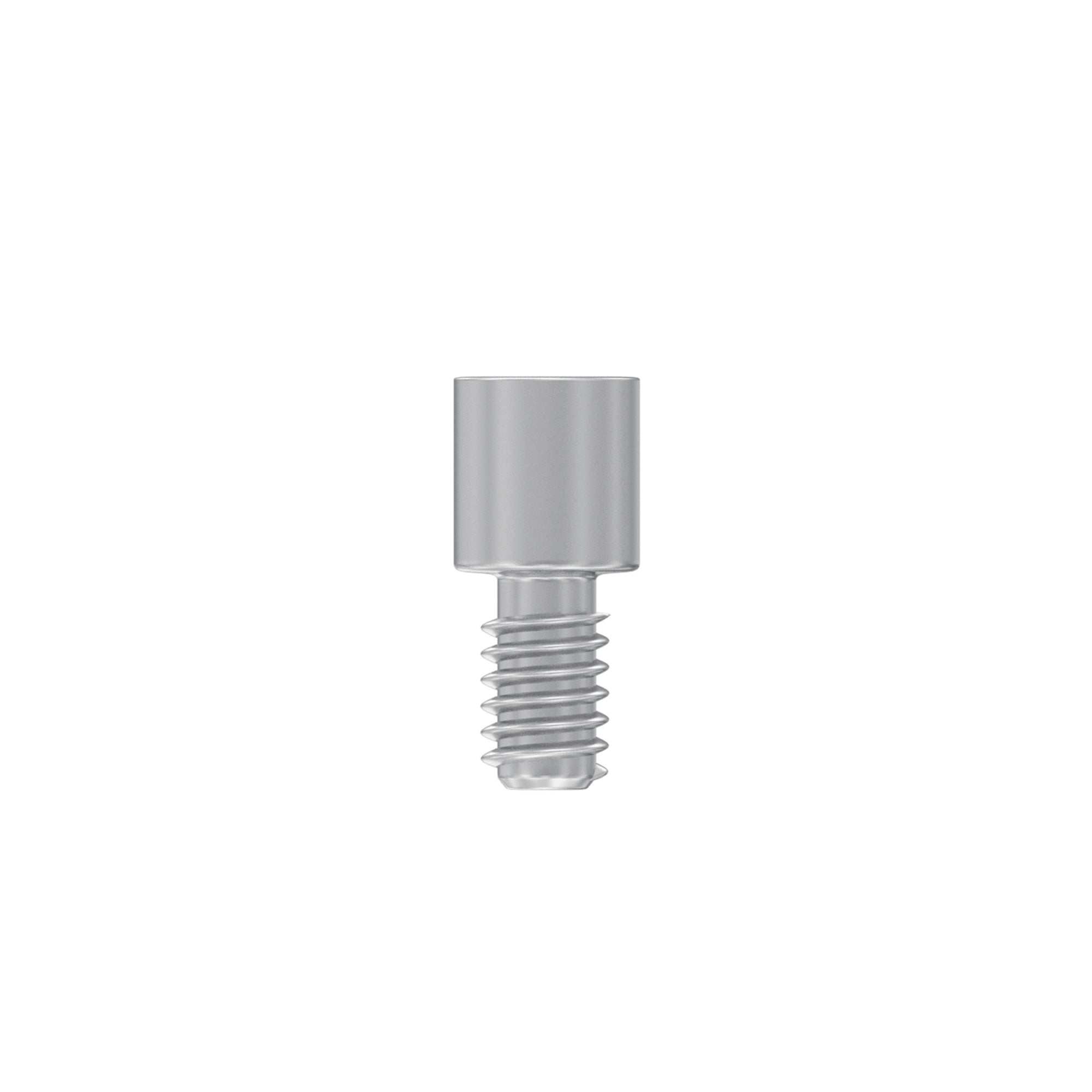

- Titanium fixation screw included with every abutment
