DSI-LOCK is a revolutionary dental solution developed by DSI.
It is a low-profile hybrid attachment that combines the versatility and pivoting capacity of ball attachments with the strength and stability of lock-type cap attachments. The DSI-LOCK offers high aesthetics, ease of use, and exceptional functionality for overdenture restorations.
With years of intensive research and development, DSI has created the DSI-LOCK based on feedback and recommendations from leading dentists in the industry. This innovative solution provides dental professionals with a superior option for overdenture restorations, offering improved patient comfort and satisfaction.
Once a dentist tries the DSI-LOCK, they will likely find it difficult to return to old-fashioned overdenture restoration options. The DSI-LOCK is designed to enhance the overall treatment experience for both the dentist and the patient.

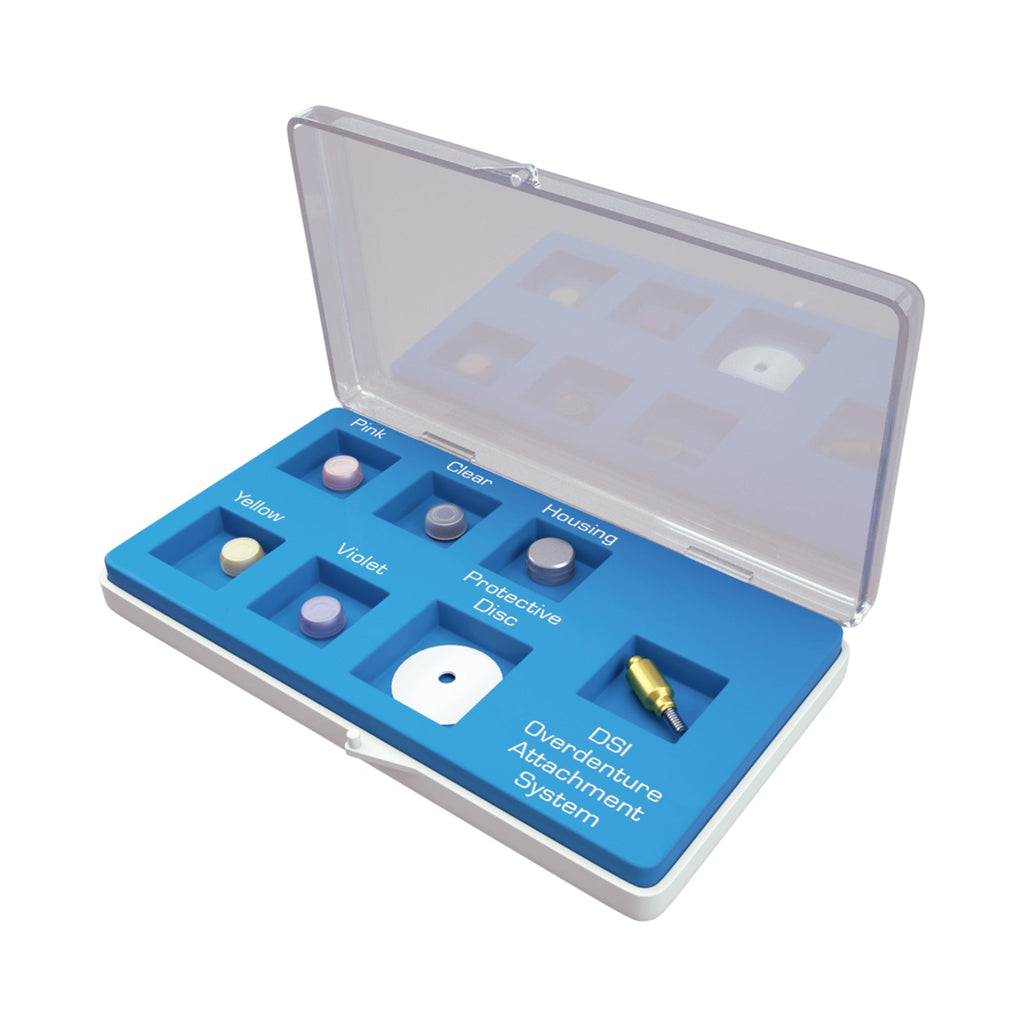

The most commonly used and versatile is the FULL SET, which includes:
- Straight DSI-LOCK Abutment 4.2mm 0.5-6mm x1

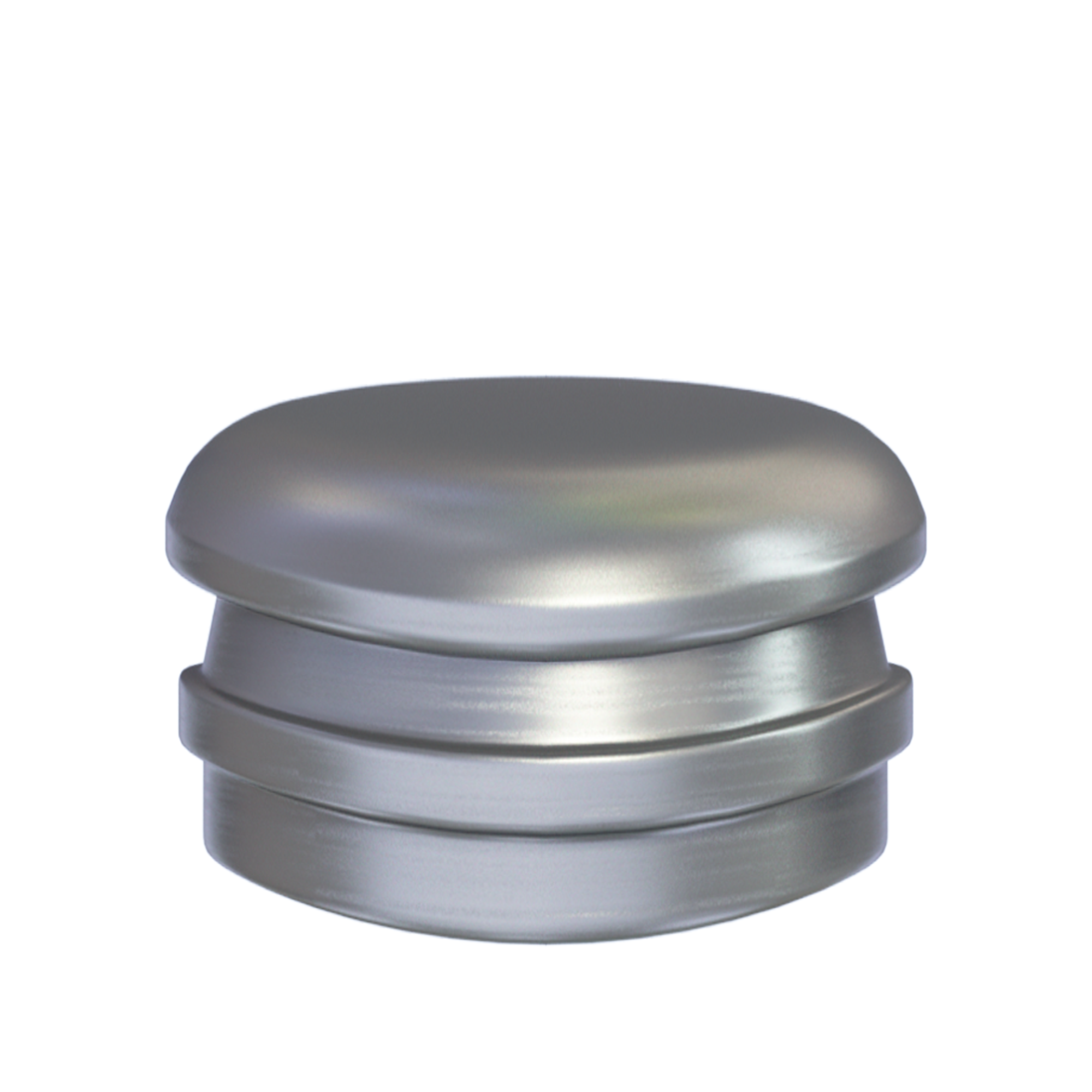

- Silver Metal Housing (height 2.0mm) -Ø 5.6mm x 1

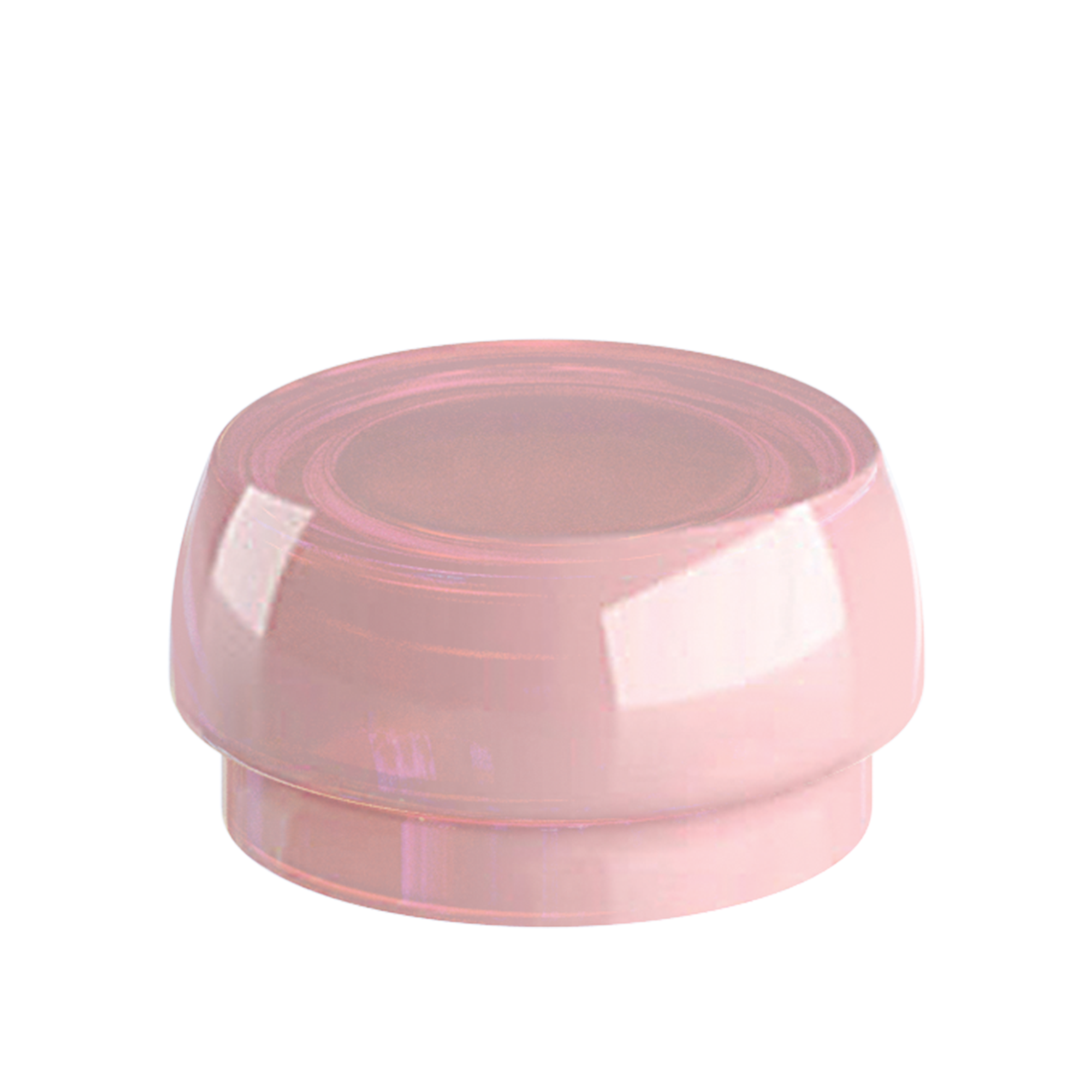

- Pink Soft Cap 1.2kg/2.6lbs retention x 1

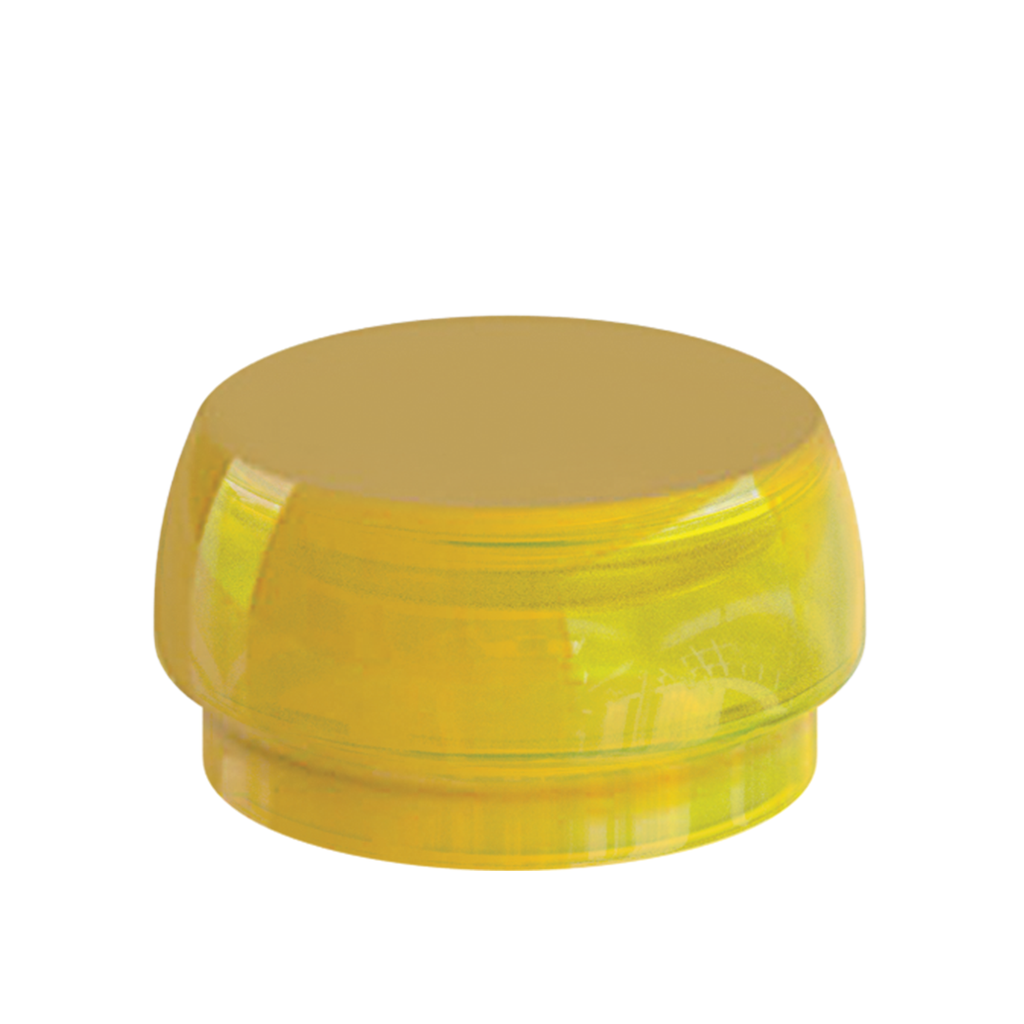

- Yellow Extra-Soft Cap 0.6kg/1.3lbs retention x 1

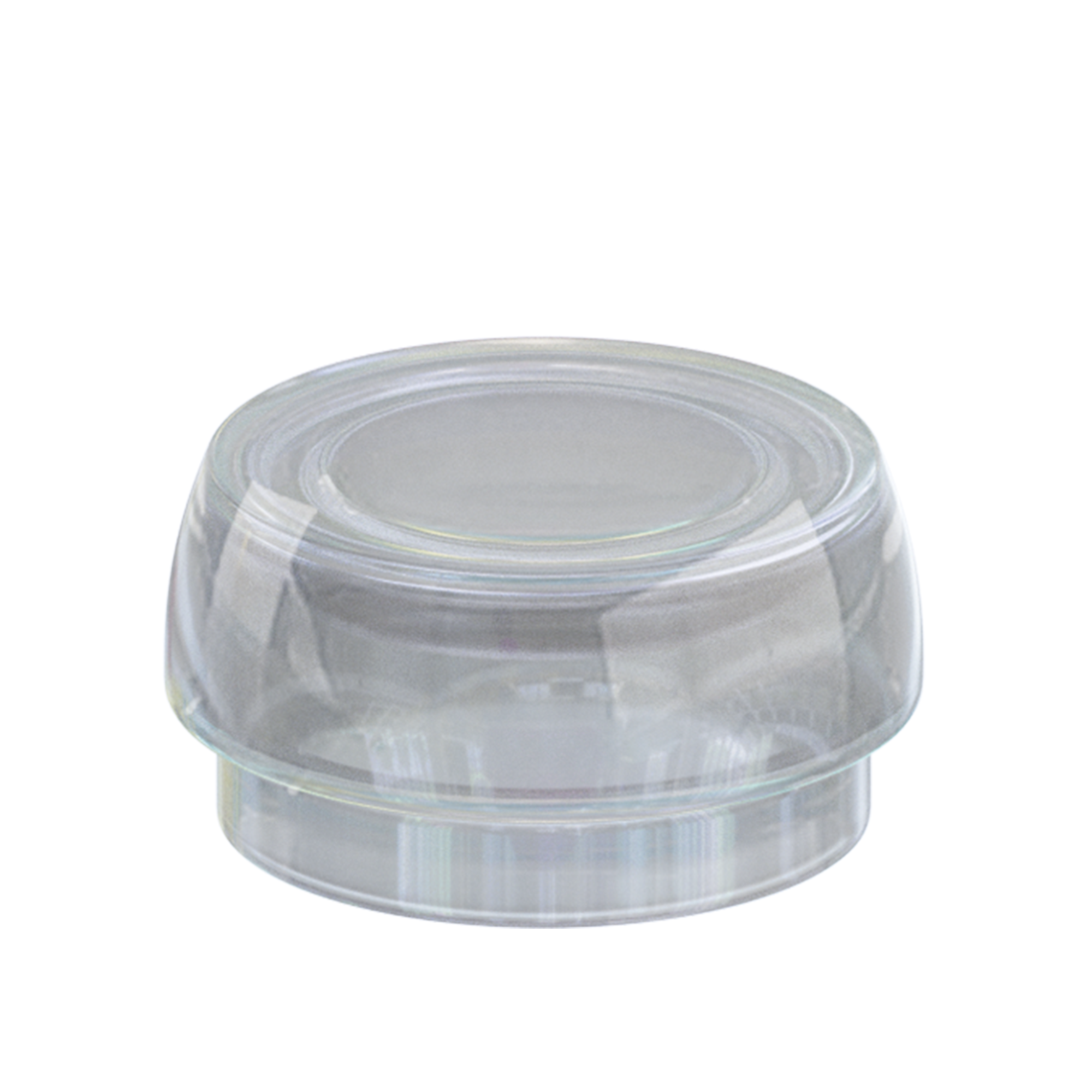

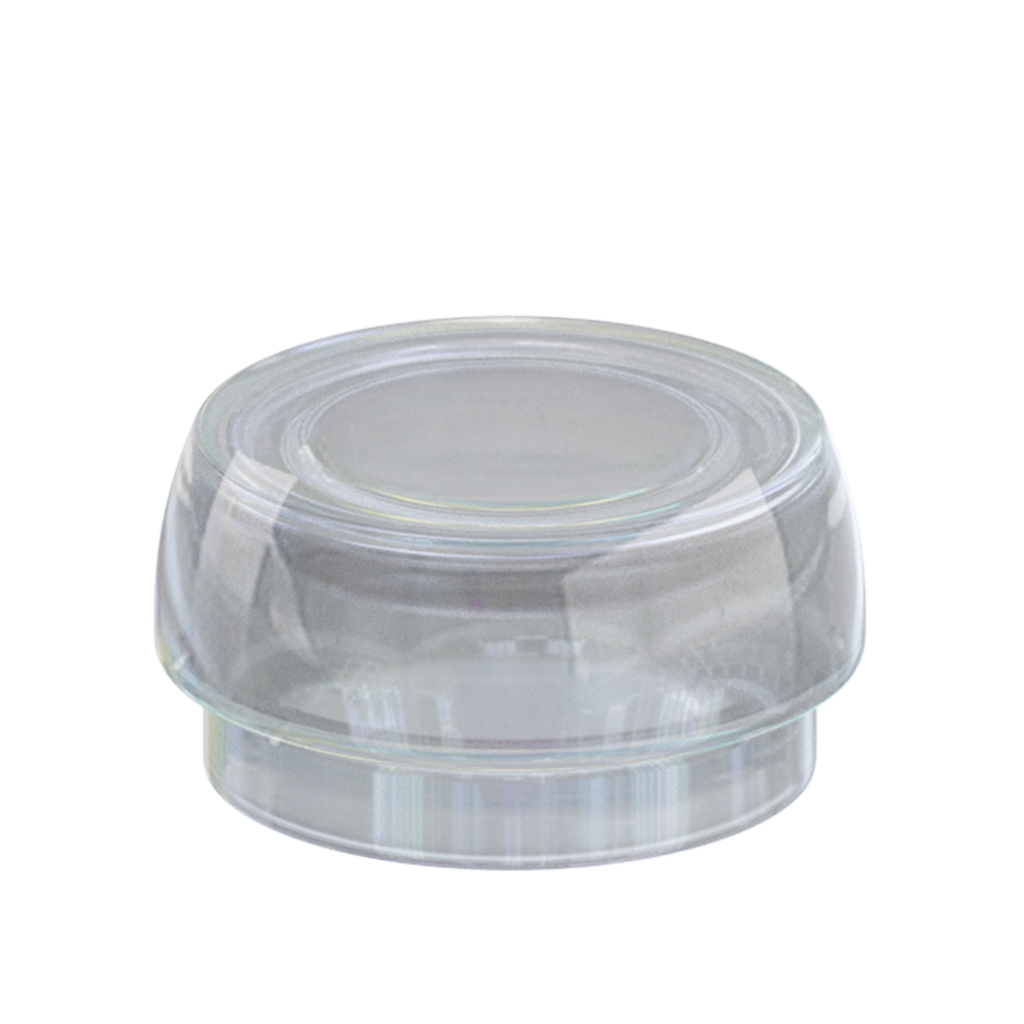

- Clear Standard Cap 1.8kg/4.5lbs retention x 1

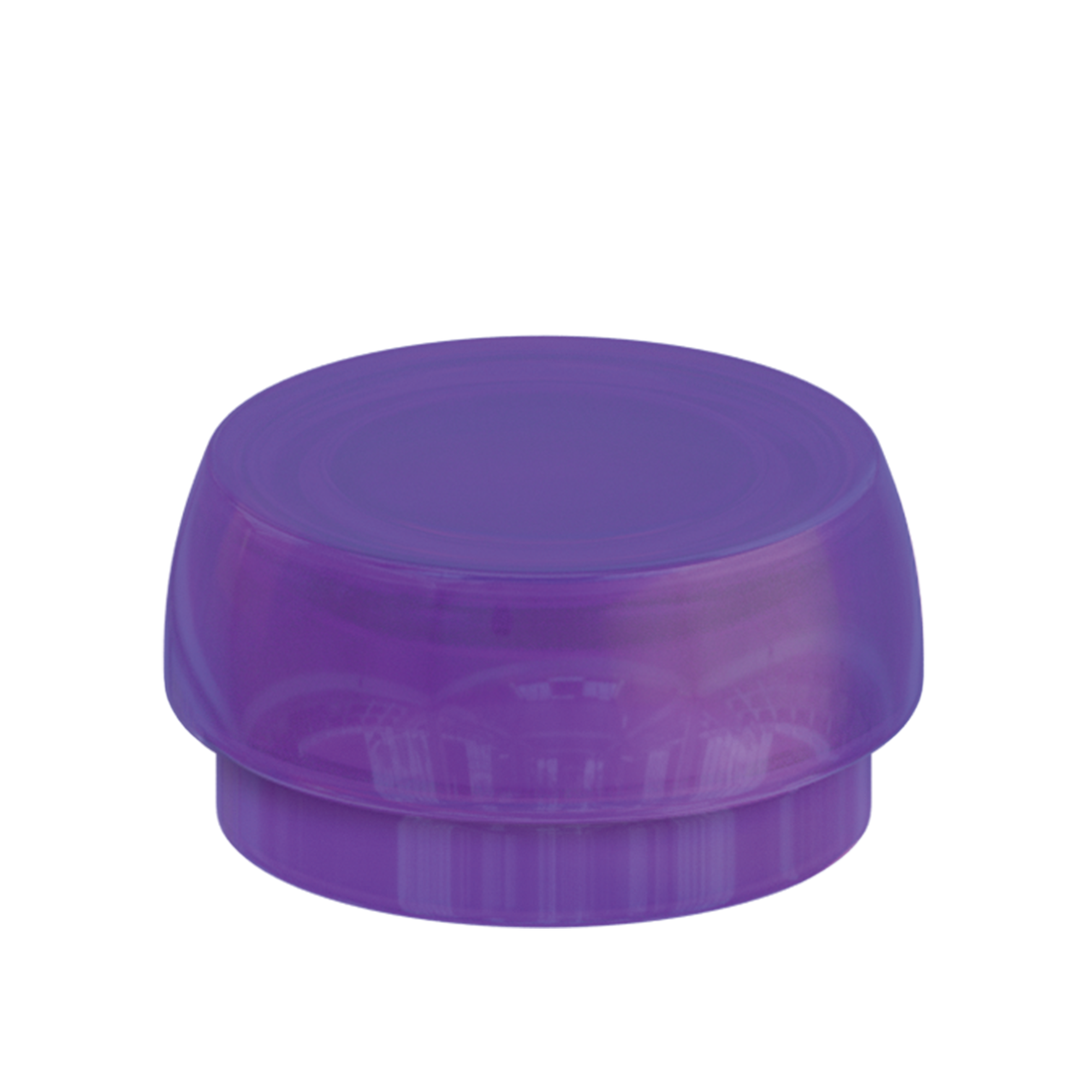

- Violet Strong Cap 2.7kg/5.5lbs retention x 1
- White Protective Disc Ø 14.0mm/Internal Ø1.6mm
Indications:
- Partial and full dentures
- All-on-4, All-on-6
- Denture conversion
- Single tooth restoration (very rare )
Features:
- Internal hex connection is compatible with a major variety of implant brands.
- Available in 7 different collar heights.
- Full solid titanium body.
- Hygiene-friendly construction.
- Excellent biocompatibility.
- Ideal for use in in clinical situations with limited space
- Designed for easy placement
- The lowest vertical profiles available on the market today
- Extra resilient caps, will allow absorbing elevate masticatory forces without creating any damage to the implant
Technical information:
- Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
- Standard platform - Ø4.2mm / height 0.5-6.0mm
- Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
- Titanium fixation screw included with every abutment
