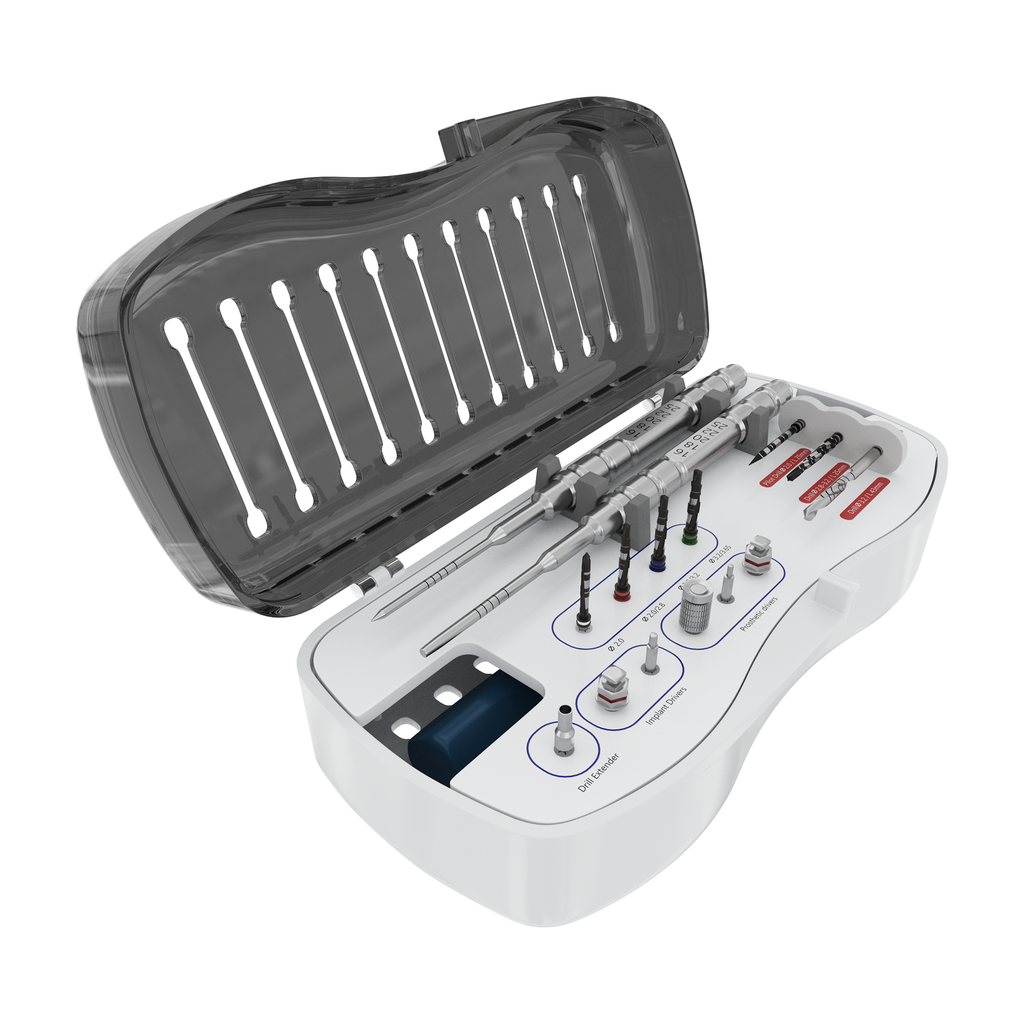

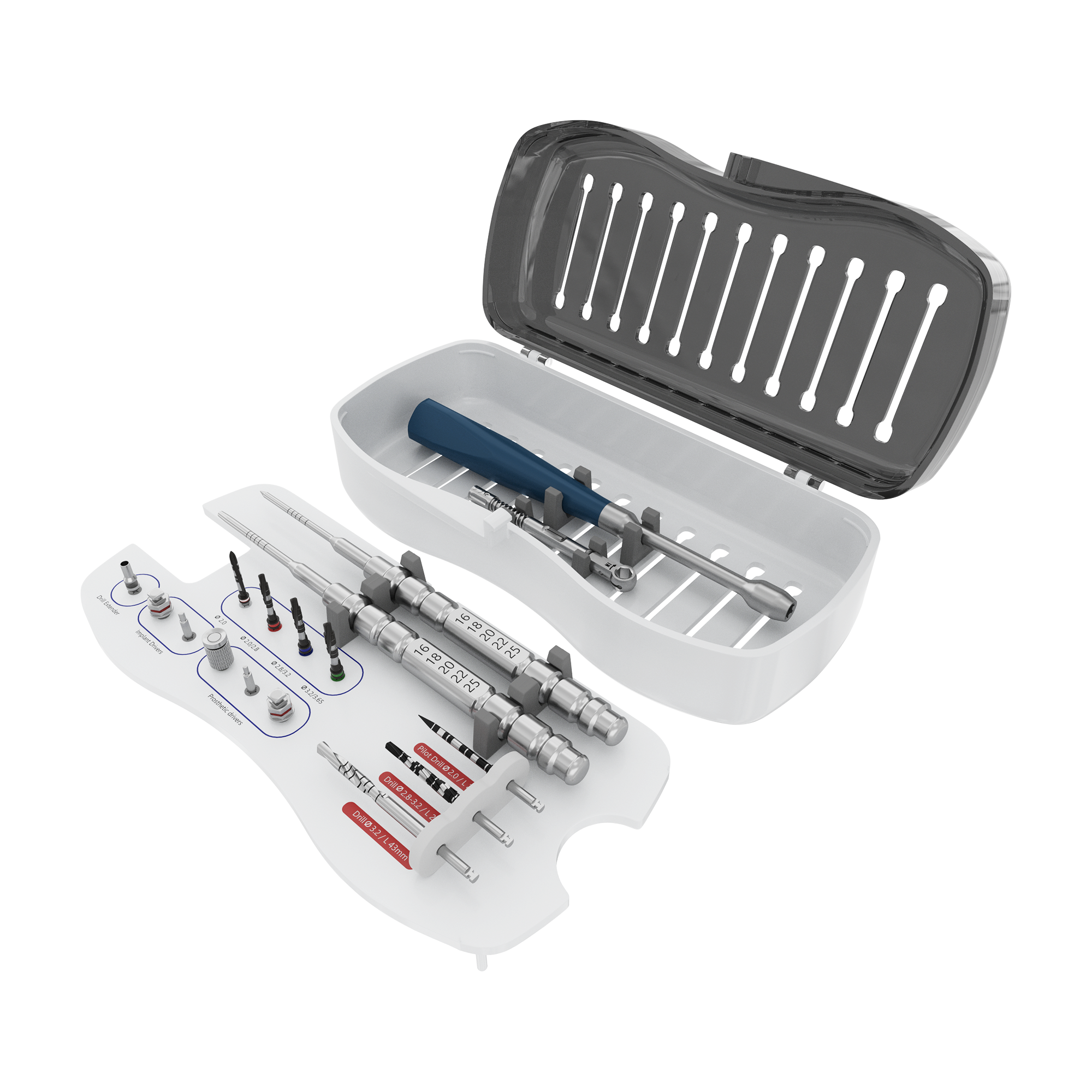

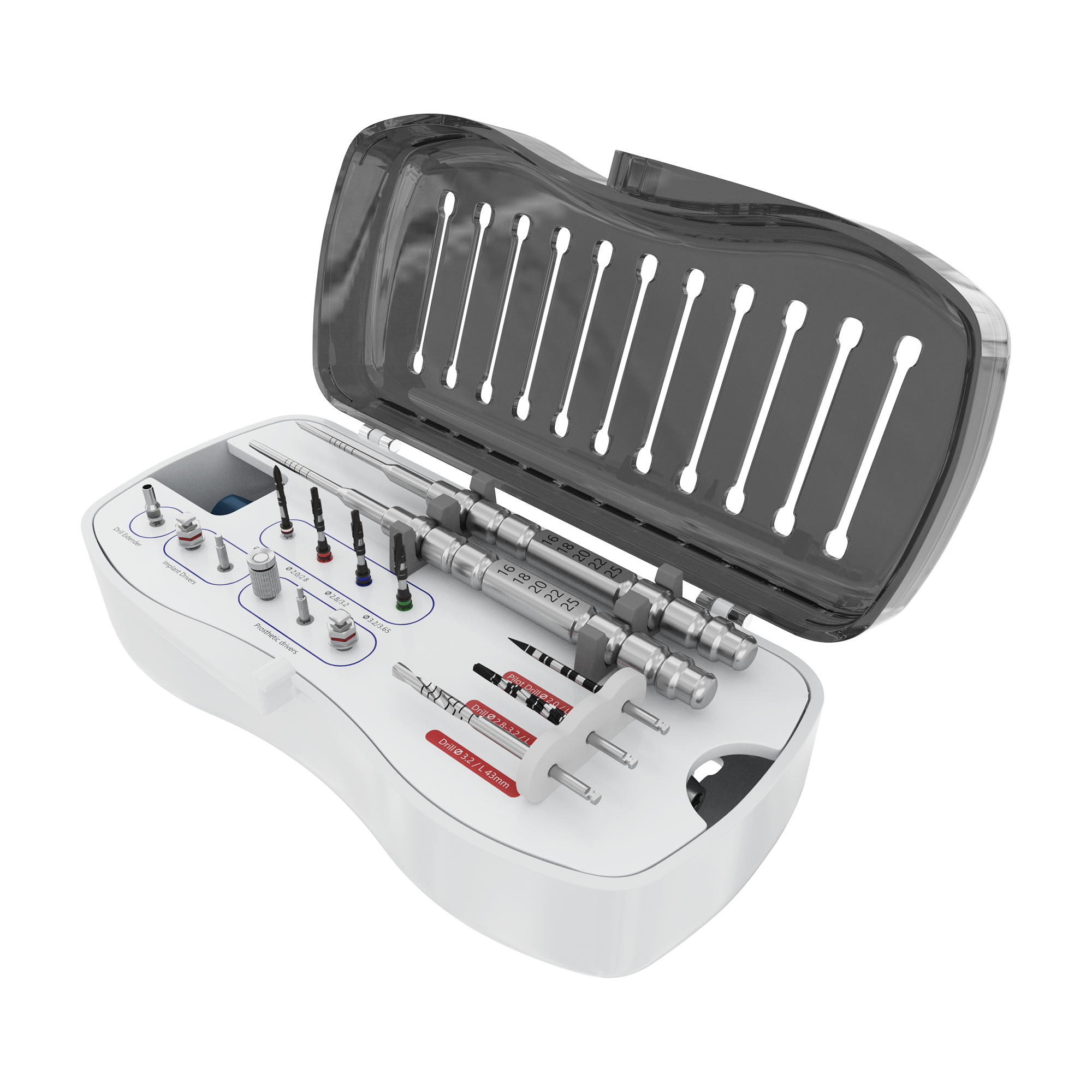

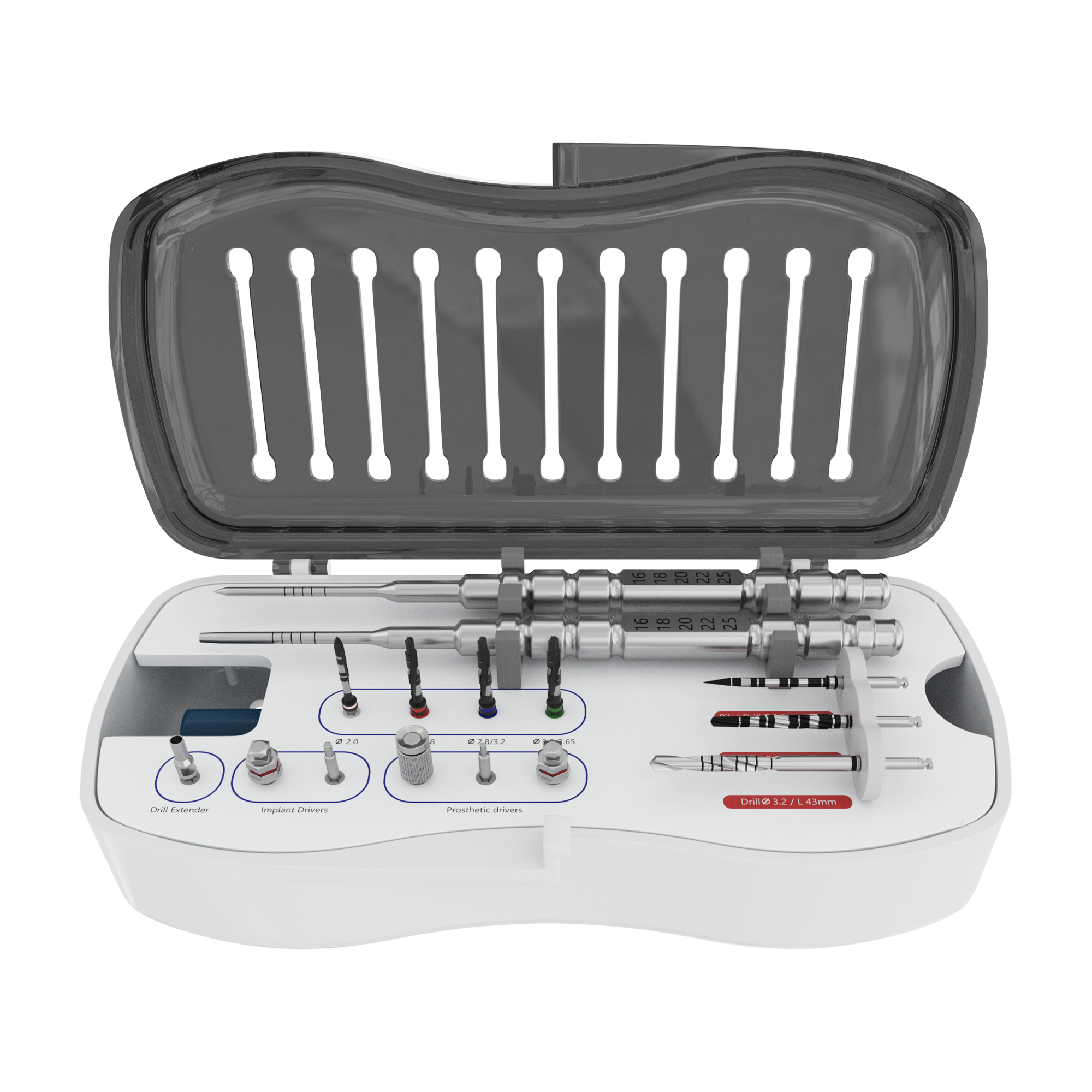

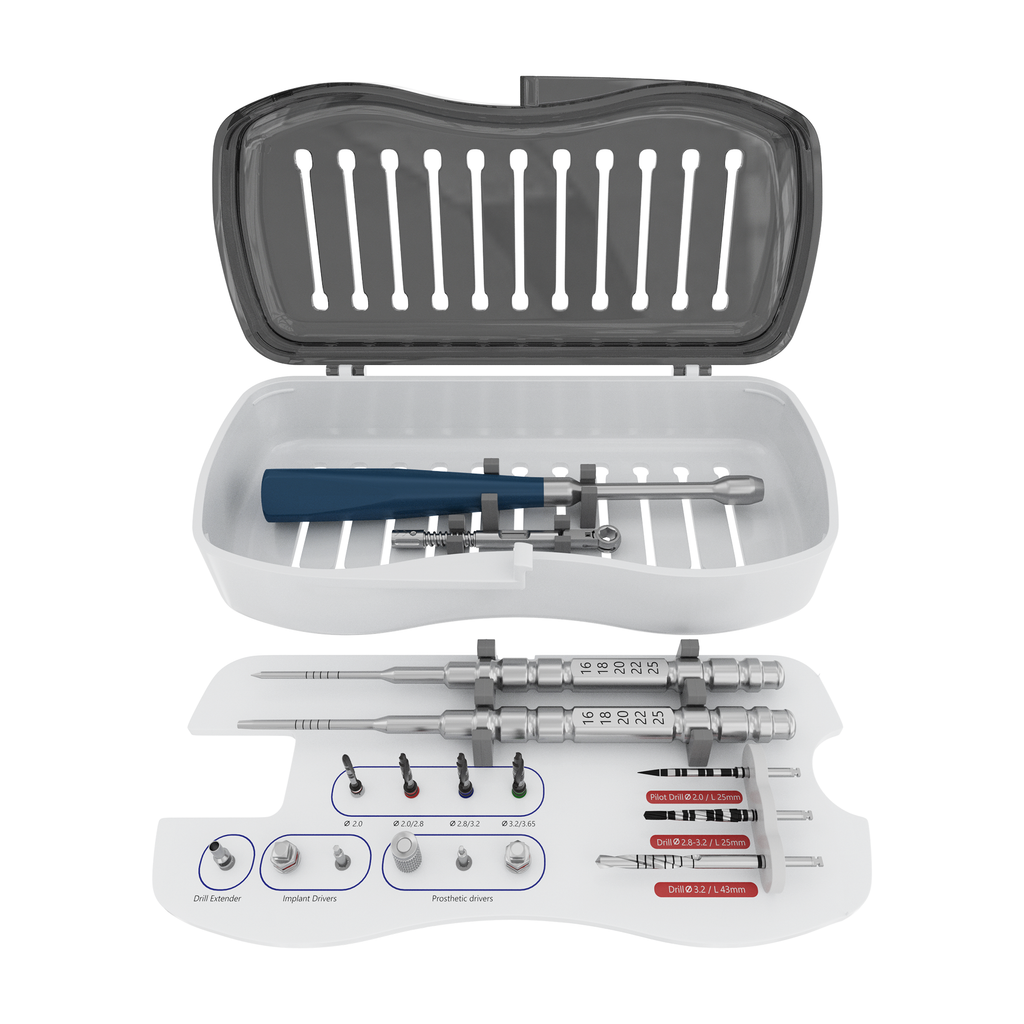

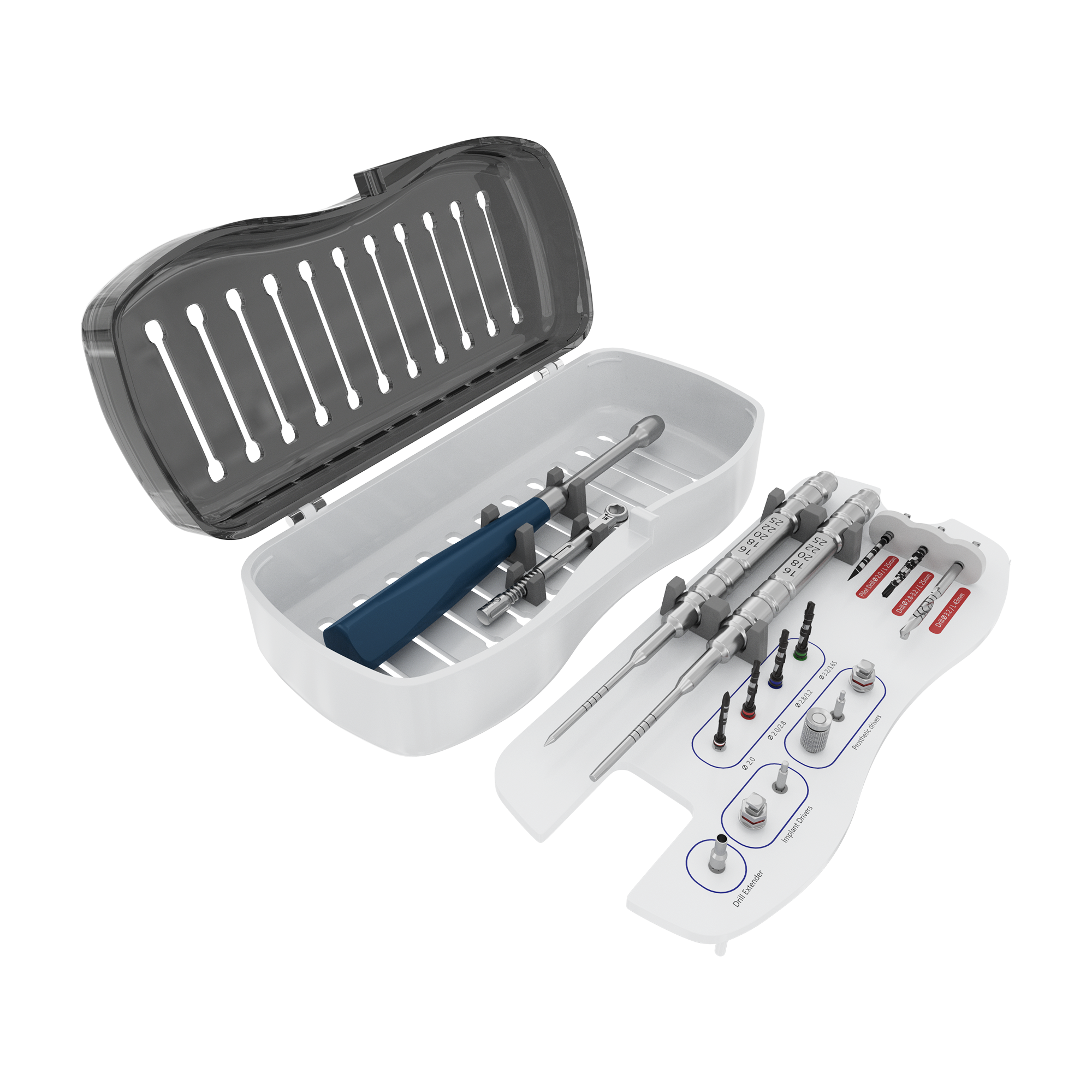

SK-DSY Surgical Kit

The DSI SK-DSY Grip Ptery Surgical Kit is designed for basal compatible systems and includes all the essential tools like osteotomes and surgical drills to create a path for the basal compatible systems. It is especially designed kit that allows compatible systems placement in the pterygoid bone. The main advantage of this kit is the special osteotome that creates a socket in the pterygoid bone for immediate compatible systems. Designed for usage right after drilling with a pilot drill. The osteotome is inserted into the posterior region of the atrophic maxilla and helps pass the cortical bone and reach the pterygoid bone. A perfect tool for placing basal compatible systems.

Features

• Made of the highest quality surgical stainless steel.
• Manufactured on the latest generation of high-precision CNC machines.
• Completely compatible with DSI GRIP compatible systems.
• Standard drills are embedded with Dark Grey coating, with outstanding corrosion resistance and exceptional durability.
• Minimum Drill/Bone heat generation, low vibration, controlled and precise work with confidence.
• Special length marks that stay visible even in the harshest conditions.
• The complete kit does not require additional units.
• Special osteotomes that helps to get to the pterygoid bone.

use cases

This surgical kit is special osteotome that creates a socket in the pterygoid bone for immediate compatible systems.

Benefits

• Essential Tools
  Allows compatible systems placement in the pterygoid bone


• Design
  Designed for usage right after drilling with a pilot drill


• Long Cylindrical Drill
  Made with the highest durability and delivers exceptional functionality


• Surgical tools
  Designed in a very specific manner for basal compatible systems installation


• Protocols
  DSI Grip-compatible systems is available in two types; one is under 20mm and another is over 20 mm. Each of these compatible systems requires different installation protocols for different types of bones, gives a solution for both of these protocols and allows installation of standard DSI compatible systems up to 4.2mm in diameter as well.


What's inside?

GYPD200L25C: Pilot drill DLC Ø2.0mm L 25mm
GYCD2032L25C: Conical Drill Ø2.0-3.0mm L 25mm
GYTD320L43: Long Twist Drill Ø3.2mm L 43mm
RDK24250: compatible systems Ratchet Driver Ø2.42mm L 25mm
MM24028: compatible systems Motor Mount Driver Ø2.42mm L 28mm
RDK125250: Prosthetic Ratchet Driver Ø1.25mm L 25mm
MM12528: Prosthetic Motor Mount Driver Ø1.25mm L 28mm
HDK125250: Prosthetic Manual Driver Ø1.25mm L 25mm
DNP200: Pilot Drill DLC Ø2.0mm L 16mm
SD2028L16C: Step Drill DLC Ø2.0x2.8mm L 16mm
SD2832L16C: Step Drill DLC Ø2.8x3.2mm L 16mm
SD32365L16C: Step Drill DLC Ø3.2x3.65mm L 16mm
TDE: Drill Extender
DS-X200: Osteotome Ø2.0mm L 155mm
DS-X300: Osteotome Ø3.0mm L 155mm
RHD: Surgical Driver Handle Ø6.35mm L 175mm
1000201: Torque Ratchet Wrench Ø6.35mm Torque 10-35 Ncm
