SD-FSR Full Kit

DSI compatible systems & Screw Removal Kit is designed specifically for the extraction of broken, ill-fit, or misplaced compatible systems. As well as removing and extracting a broken or fractured fixation screw from the compatible systems's inner thread. This is not an invasive solution without the need for surgical intervention. The procedure is fast, reliable, and not traumatic for the professional use. When the broken screw is lifted from the compatible systems it then can be replaced by a new prosthetic solution with a new fixation screw.

The kit includes extraction drills that are able to fit most of the platforms and compatible systems sizes available on the dental market. It also includes reverse and tap drills for extracting broken and fractured screws from the compatible systems. The tapered body of the removal drill tools engages with the internal threads of the compatible systems and the screw and allows easy and fast removal. Any sort of compatible systems can be extracted including the ones that are already osseointegrated into a bone structure.

The compatible systems removal drills can be used with a designated ratchet located in the kit, or hand adapter, or can be used with any contra-angle handpiece using the special latch-type RA connection adapter.

The screw removal drills can be used with any contra-angle handpiece and are designed with a universal latch-type RA connection.

The kit includes guides that cover almost all the platforms. These guides will help you to remove the broken screw in an advanced technique when the regular means will not work for some reason. The guides center the reverse drill and stabilize it during the procedure, so you will be able to perform with filigree accuracy. After drilling out the broken screw you can get it out by the regular means using the removal drill.

use cases:

• Removal of failed, misplaced, or broken compatible systems.
• Removal of broken and fractured screws
• Drilling out broken screws that cannot be extracted with a regular removal drill
• Forward engagement with the compatible systems inner thread without surgical intervention.

Features & Benefits:

• Easy and fast removal on any compatible systems, including the ones that are already osseointegrated into a bone structure
• Simple removal of all kinds of fixation screws, broken and fractured alike
• No bone damage or serious trauma for professional use
• No need for surgical intervention, trephine drills, or additional units
• When the broken screw is lifted from the compatible systems it can then be replaced by a new prosthetic solution with a new fixation screw
• Applicable for a large variety of compatible systems types, and diameters
• Removes failed compatible systems without compromising surrounding bone or damaging neighboring structures
• Fast, reliable, and cost-effective solution
• Can be used with a ratchet, hand adapter, or with a contra-angle handpiece

Technical information For compatible systems removal drills:

• Material: Stainless steel
• External device connection type: Ratchet square Ø4.0mm
• Additional adapters: Manual adapter and Latch-type RA connection adapter
• Length of the removal units: 22mm

• Autoclavable and reusable


Compatibility:

• FRD-01: Used for compatible systems with diameters between 3.5-4.5mm

• FRD-02: Used for compatible systems with a diameter larger than 4.5mm

• FRD-03: Used for compatible systems with a diameter smaller than 3.5mm

Technical information For screw removal drills:

• D-REM08: Remove drill - used for grasping and removing the broken screw out of the compatible systems
• D-RED08: Reverse drill - used for drilling out a hole in a broken screw
• TD-08: Tap drill - used for removing a broken screw with a problematic thread
• Material: Stainless steel
• External device connection type: Latch-type RA
• Length of the removal units: 30mm, 32.5mm

• Autoclavable and reusable
• Compatibility: Compatible with any screw system

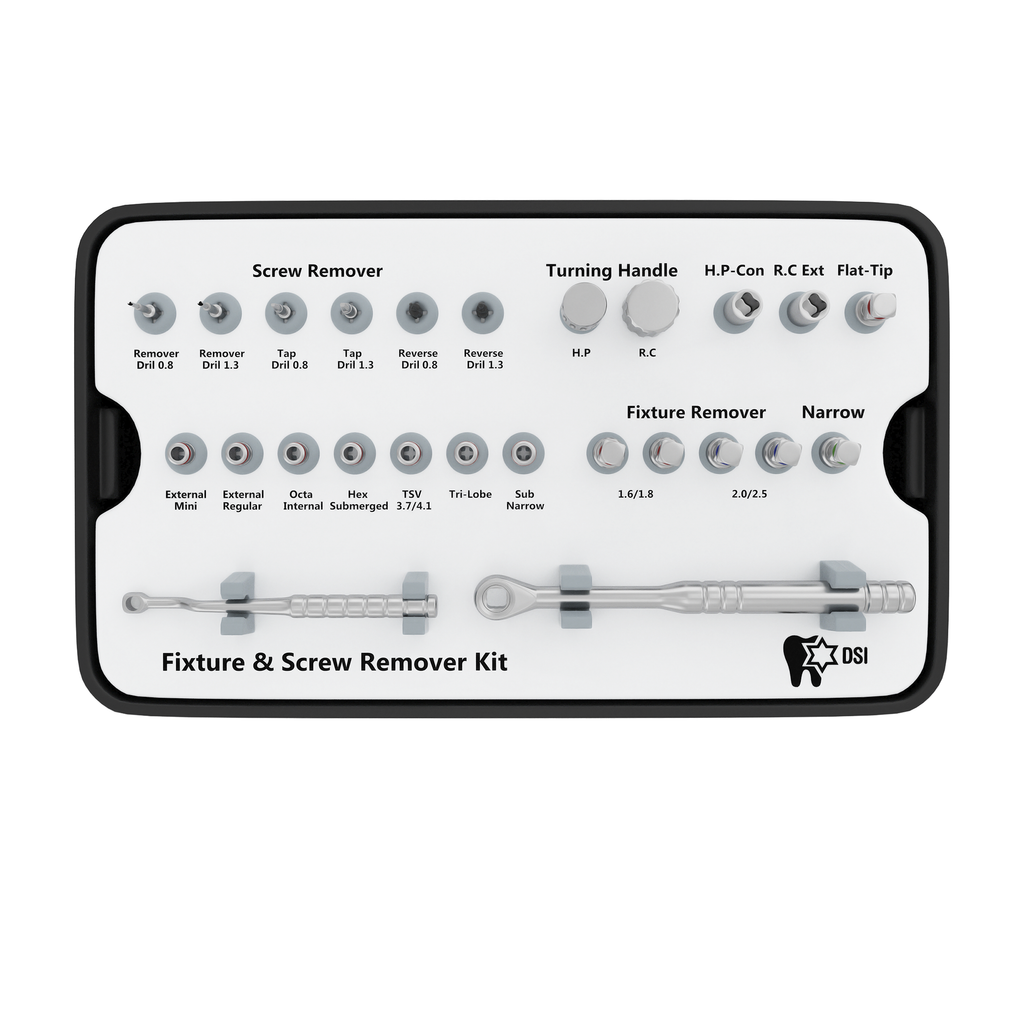

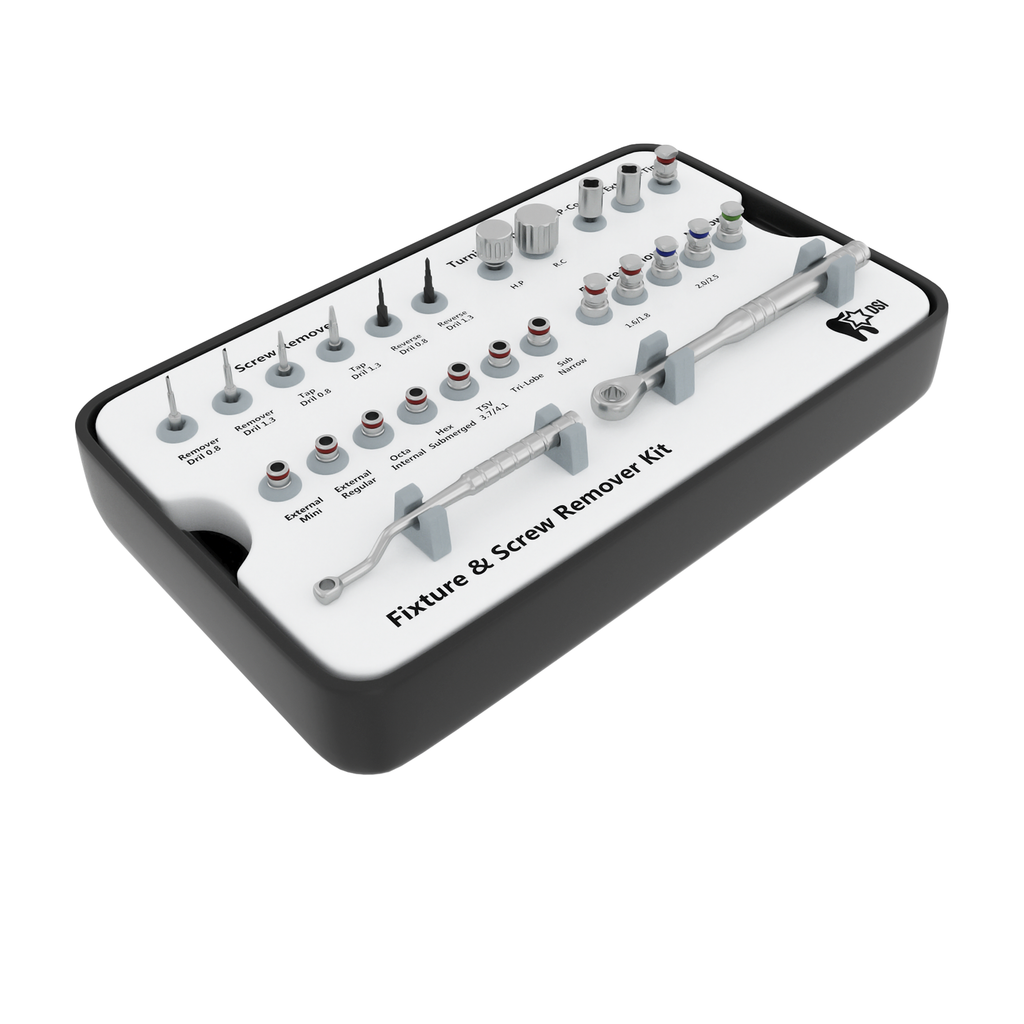

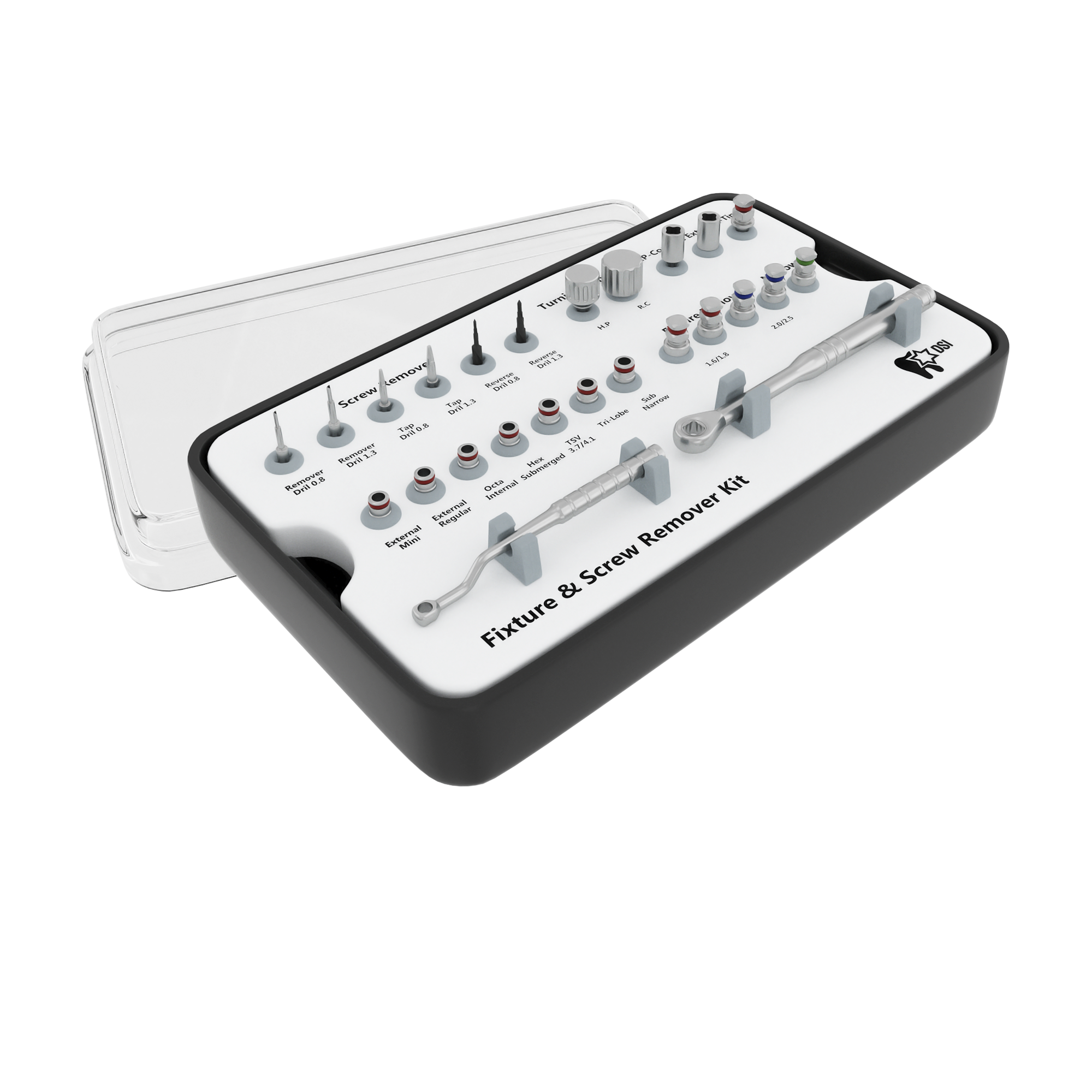

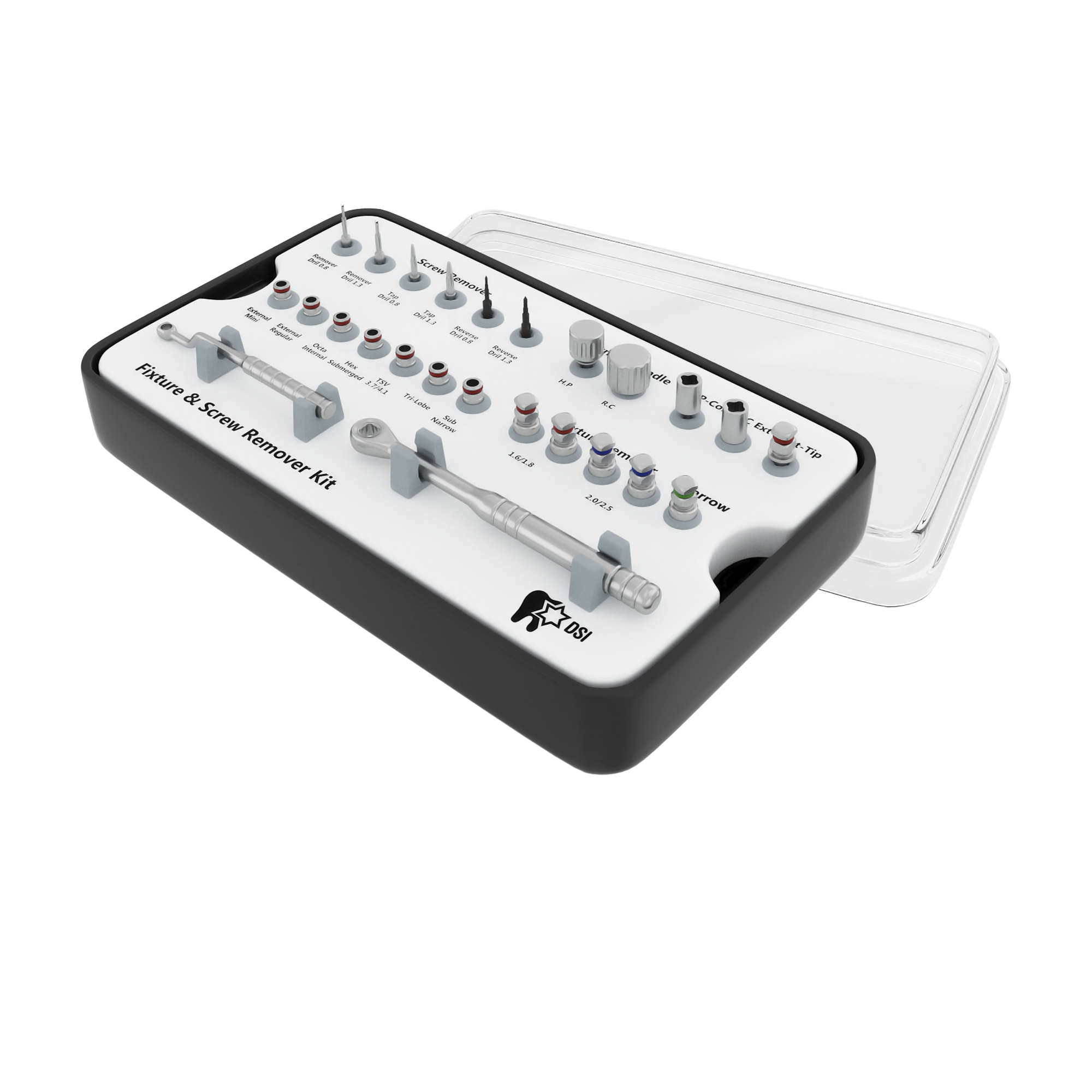

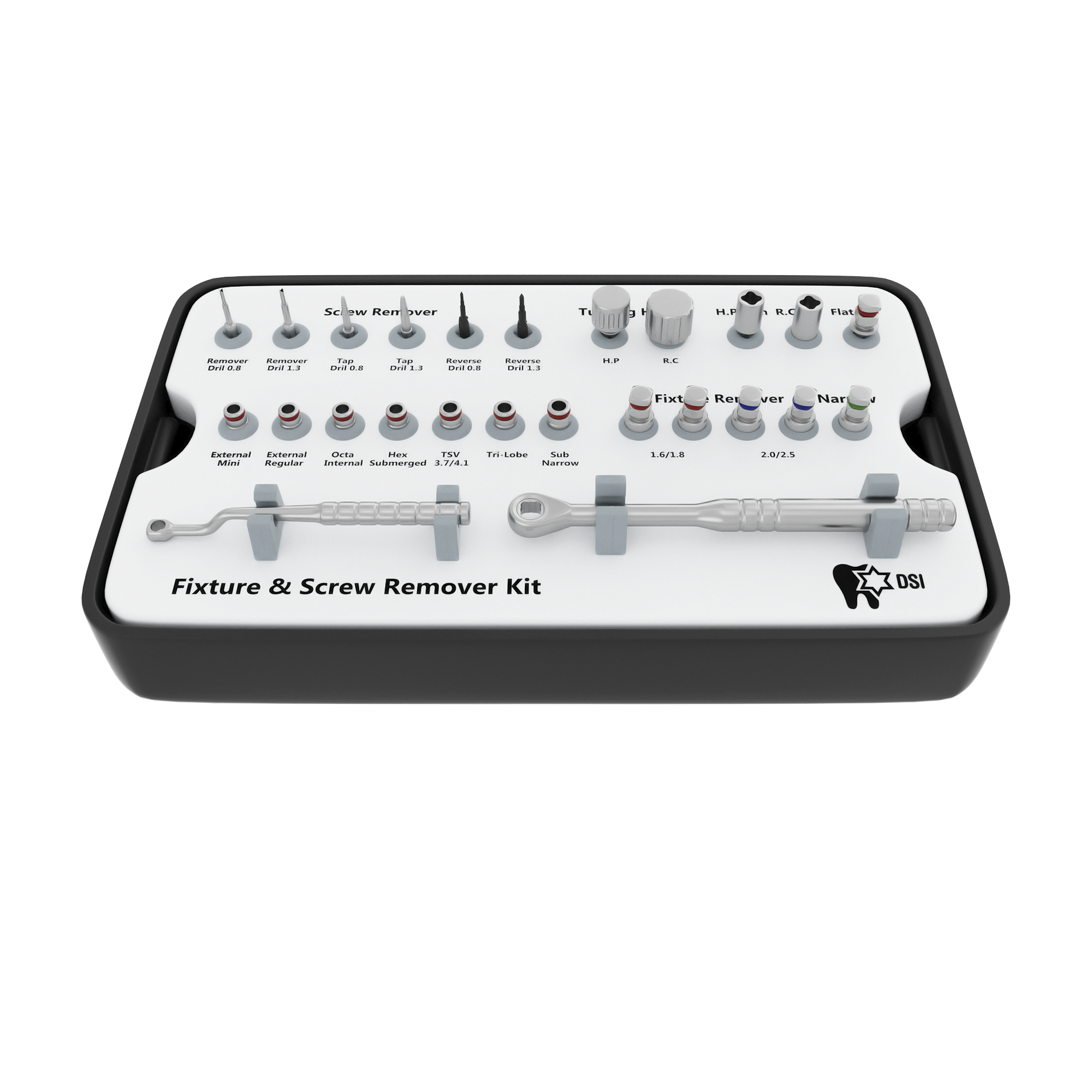

The kit includes all the following items:

• FRD-01: compatible systems remover Ø1.6/1.8mm (2pcs)
• FRD-02: compatible systems remover Ø2.0/2.5mm (2pcs)
• FRD-03: compatible systems remover Narrow (1pcs)
• RE-02: ratchet extension square connection type Ø4.0mm (1pcs)
• SDADP-01: Latch-type RA connector adapter (handpiece condenser) (1pcs)
• SDWRH-02: Wrench ratchet - length 110mm (1pcs)
• TH-03: Manual adapter (turning handle) (1pcs)
• D-REM08: Remove drill Ø0.8mm L 32.5mm (1pcs)

• D-REM13: Remove drill Ø1.3mm L 32.5mm (1pcs)
• D-RED08: Reverse drill Ø0.8mm L 30mm (1pcs)
• D-RED13: Reverse drill Ø1.3mm L 30mm (1pcs)

• TD-08: Tap drill Ø0.8mm L 30mm (1pcs)
• TD-13: Tap drill Ø1.3mm L 30mm (1pcs)
• TH-03: Manual adapter (turning handle) (1pcs)
• FTD-01: Flat tip driver Ø2.5mm L 26mm (1pcs)
• GH-01: Guide holder (1pcs)
• SDWRH-02: Wrench ratchet - length 110mm (1pcs)
• G-EM: External mini (1pcs)
• G-ER: External regular (1pcs)

• G-OI: Octa internal (1pcs)

• G-HS: Hex submerged guide (1pcs)

• G-TSV: TSV 3.7/4.1 guide (1pcs)

• G-TRI: Tri-lobe guide (1pcs)

• G-SN: Submerged narrow guide (1pcs)

Guides compatibility:

• G-EM: External mini - Hi-Tec Summit®, Nobel Branemark® NP

• G-ER External regular - Nobel Branemark® RP

• G-OI: Octa internal - Straumann® ITI TL, compatible systems Direct® SwishPlant
• G-HS: Hex submerged - Nobel Active® / DSI Conical®
• G-TSV: TSV 3.7/4.1 - Zimmer® TSV / Biohorizons® / MIS® / compatible systems Direct® Legacy / DSI® Hex
• G-TRI: Tri-lobe - Nobel® TriLobe
• G-SN: Submerged narrow - Hiossen® / Osstem®
