SD-FR Implant Fixture Extraction Kit

DSI compatible systems Removal Kit is designed specifically for the extraction of broken, ill-fit, or misplaced compatible systems. This is not an invasive solution without the need for surgical intervention. The procedure is fast, reliable, and not traumatic for the professional use.

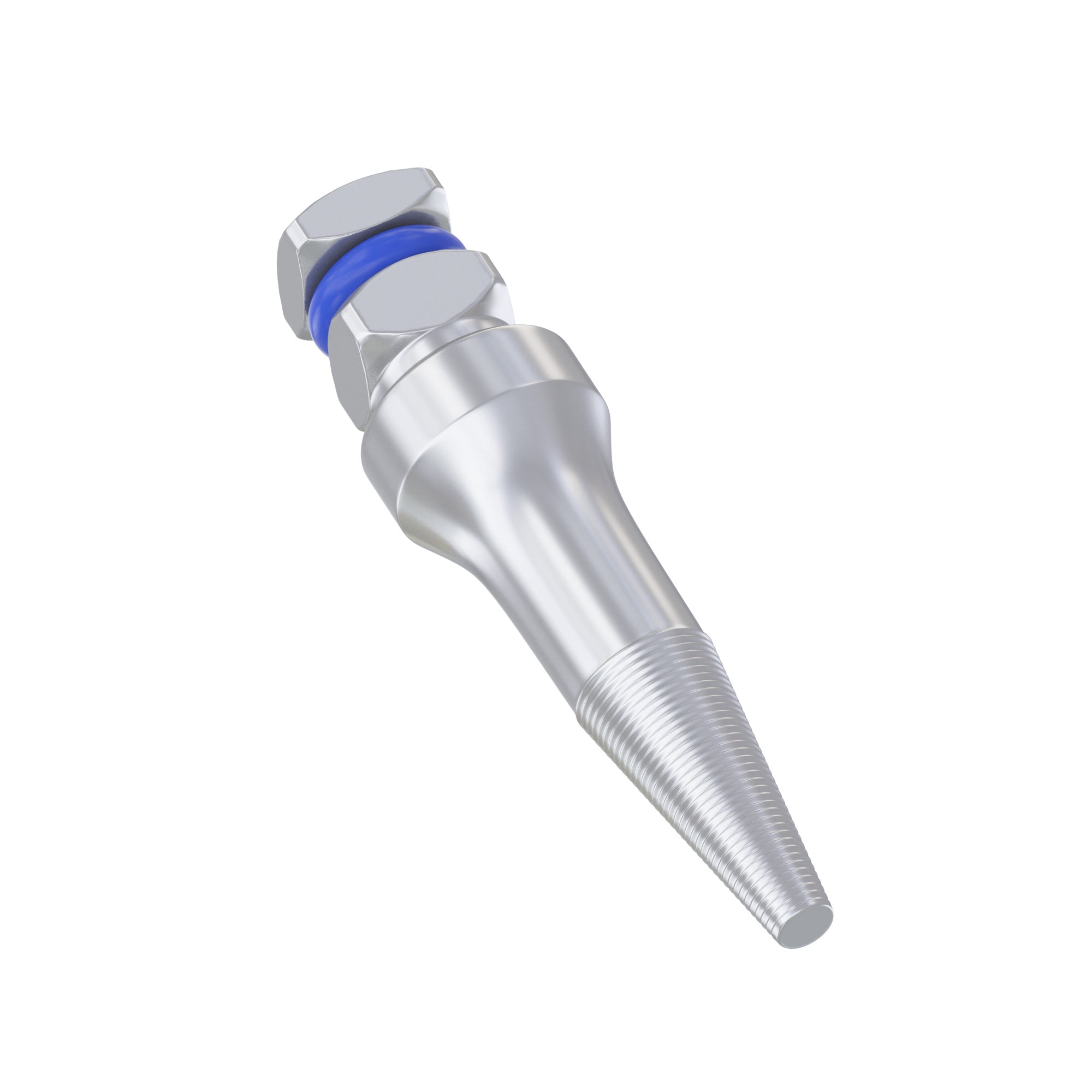

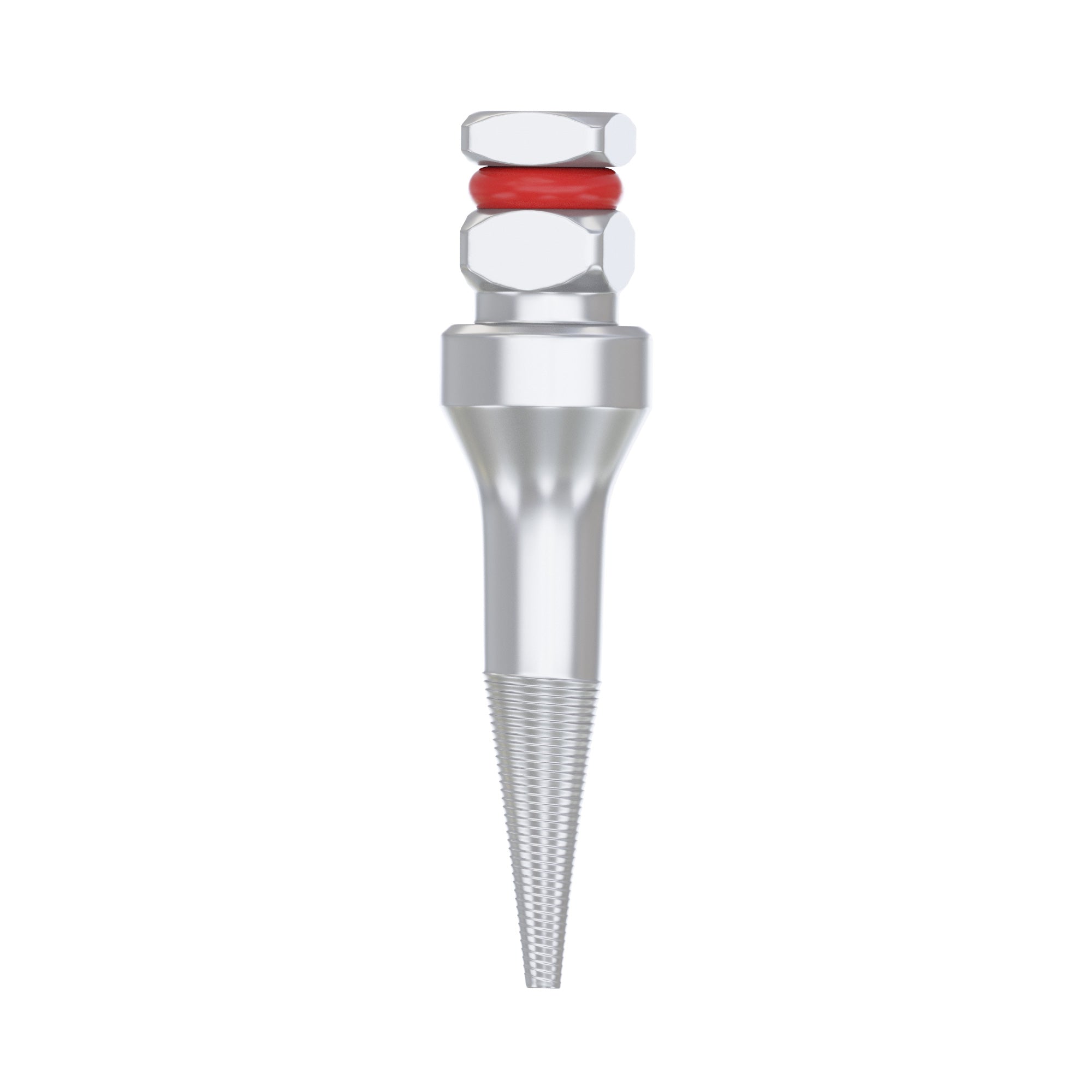

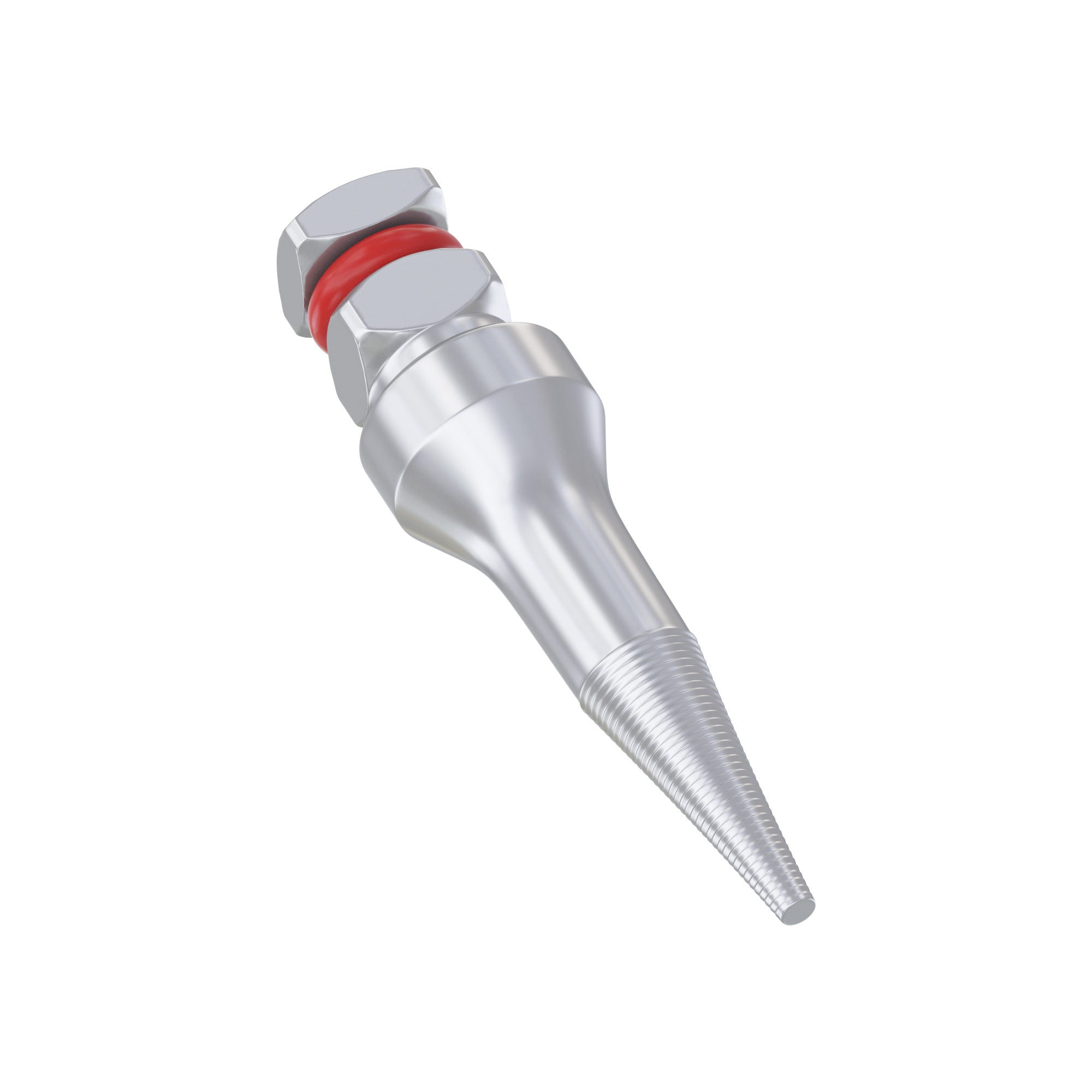

The kit includes extraction drills that are able to fit most of the platforms and compatible systems sizes available on the dental market. The tapered body of the removal drill tools engages with the internal threads of the compatible systems and allows easy and fast removal on any compatible systems, including the ones that are already osseointegrated into a bone structure.

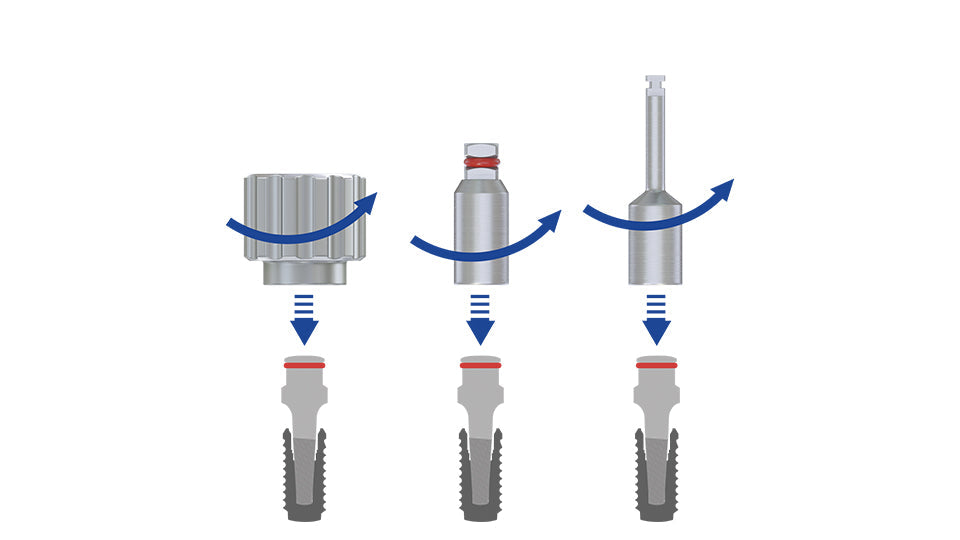

The drills can be used with a designated ratchet located in the kit, or hand adapter, or can be used with any contra-angle handpiece using the special latch-type RA connection adapter.

use cases:

• Removal of failed, misplaced, or broken compatible systems.
• Forward engagement with the compatible systems inner thread without surgical intervention.

Features & Benefits:

• Easy and fast removal on any compatible systems, including the ones that are already osseointegrated into a bone structure
• No bone damage or serious trauma for professional use
• No need for surgical intervention, trephine drills, or additional units
• Applicable for a large variety of compatible systems types, and diameters
• Removes failed compatible systems without compromising surrounding bone or damaging neighboring structures
• Fast, reliable, and cost-effective solution
• Can be used with a ratchet, hand adapter, or with a contra-angle handpiece

Technical information:

• Material: Stainless steel
• External device connection type: Ratchet square Ø4.0mm
• Additional adapters: Manual adapter and Latch-type RA connection adapter
• Length of the removal units: 22mm

• Autoclavable and reusable


Compatibility:

• FRD-01: Used for compatible systems with diameters between 3.5-4.5mm
• FRD-02: Used for compatible systems with a diameter larger than 4.5mm

• FRD-03: Used for compatible systems with a diameter smaller than 3.5mm

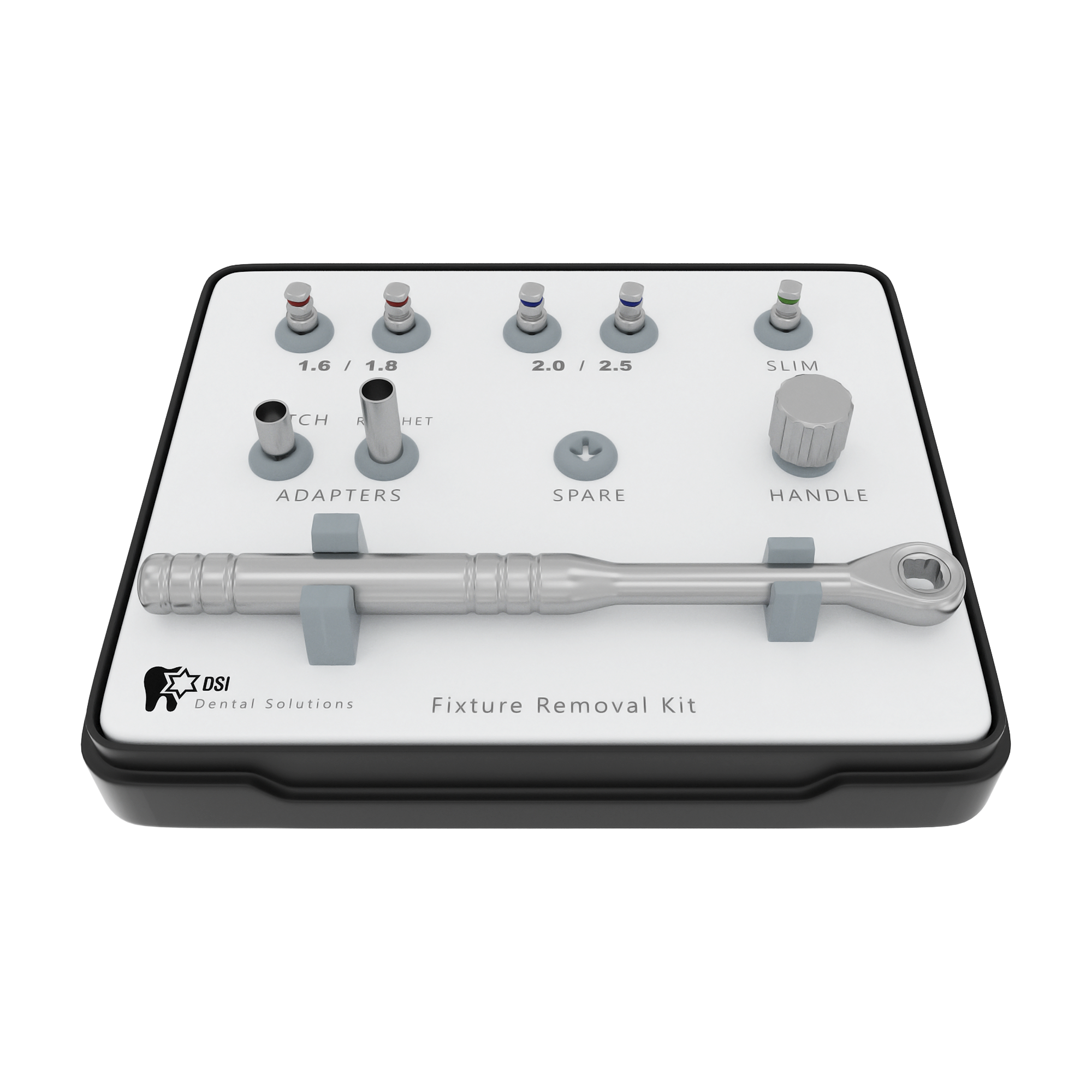

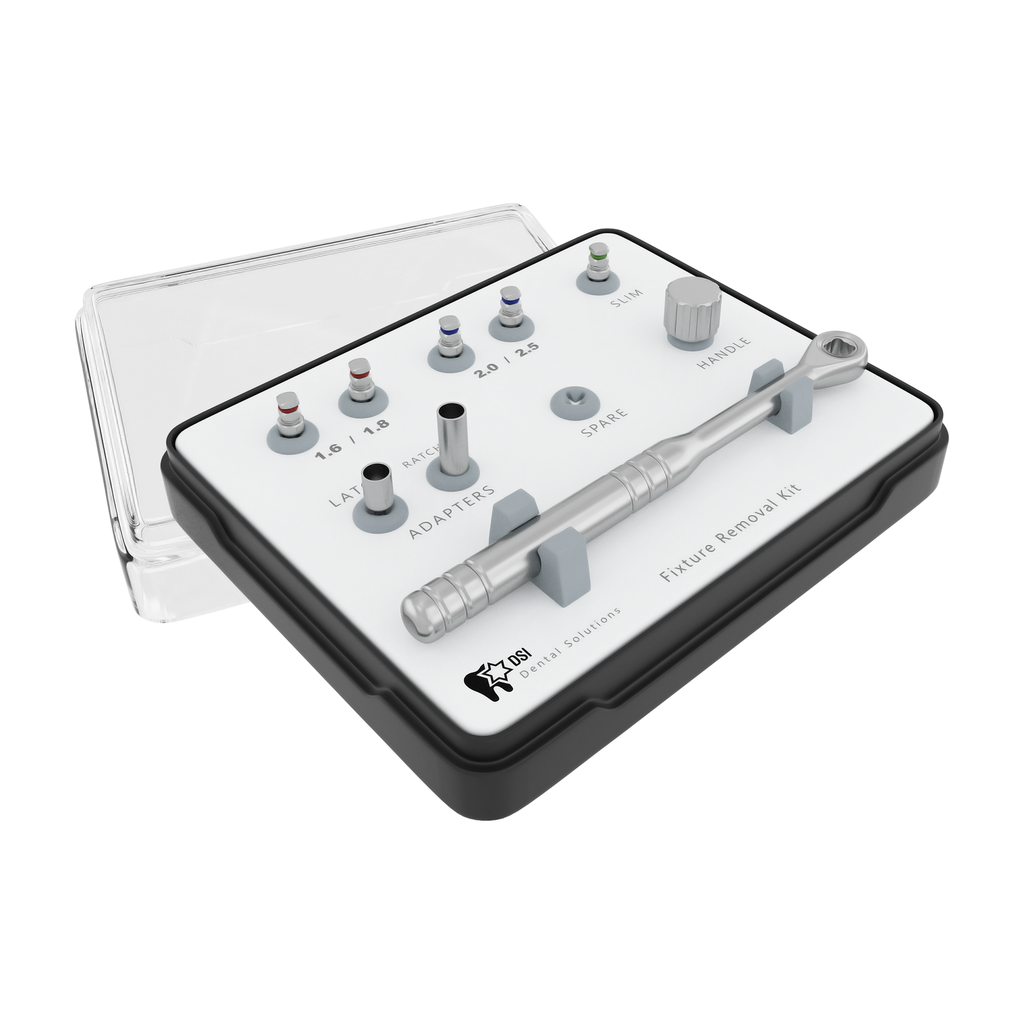

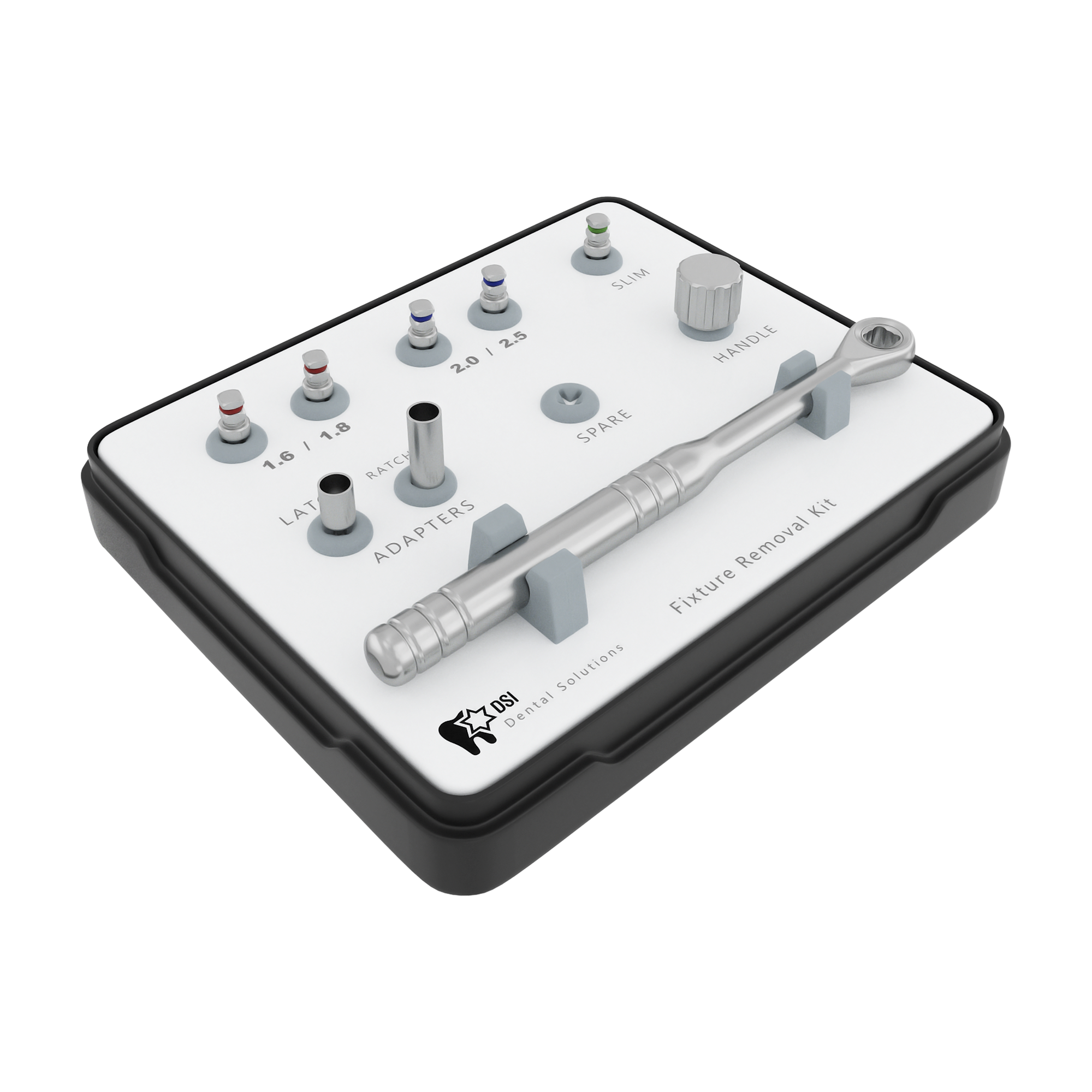

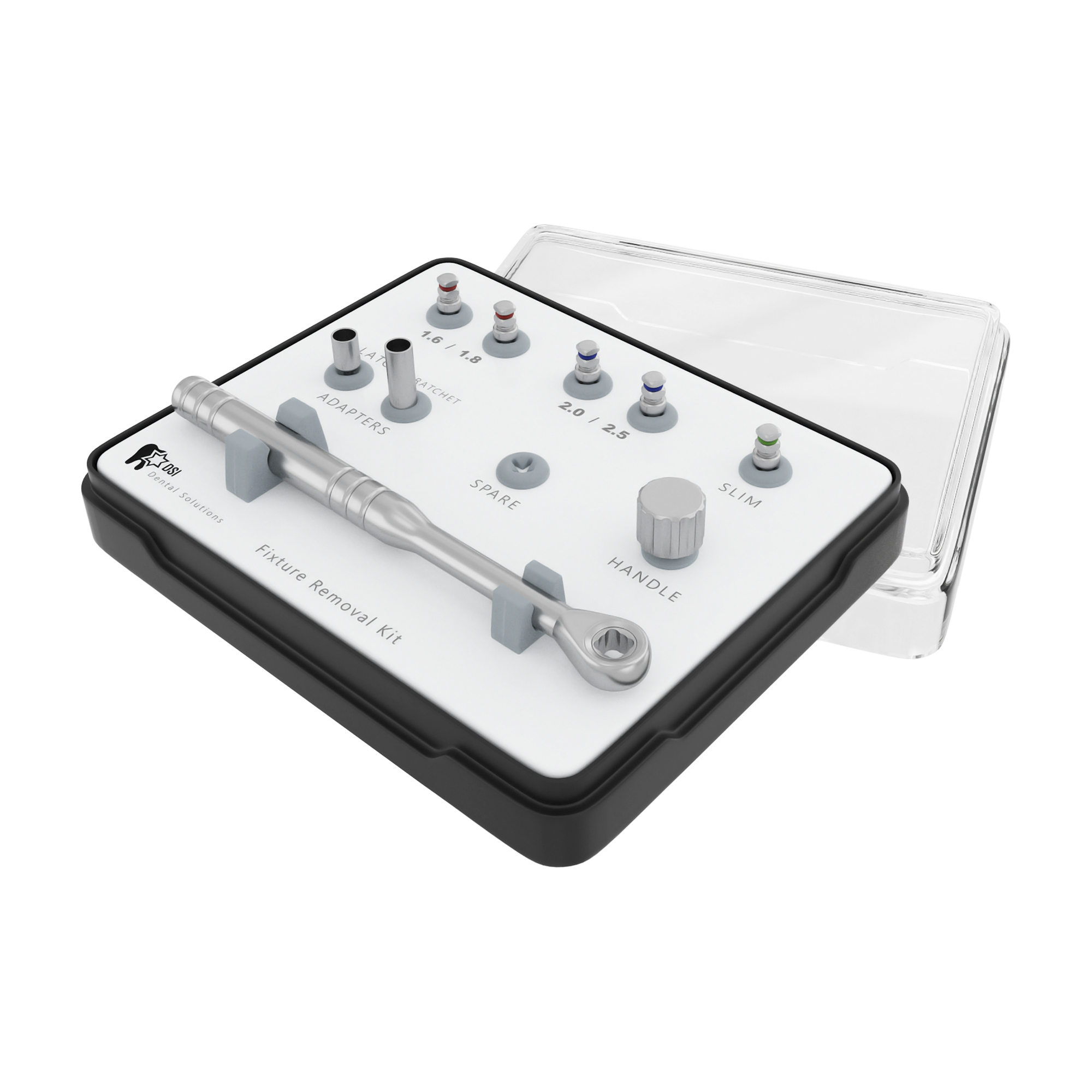

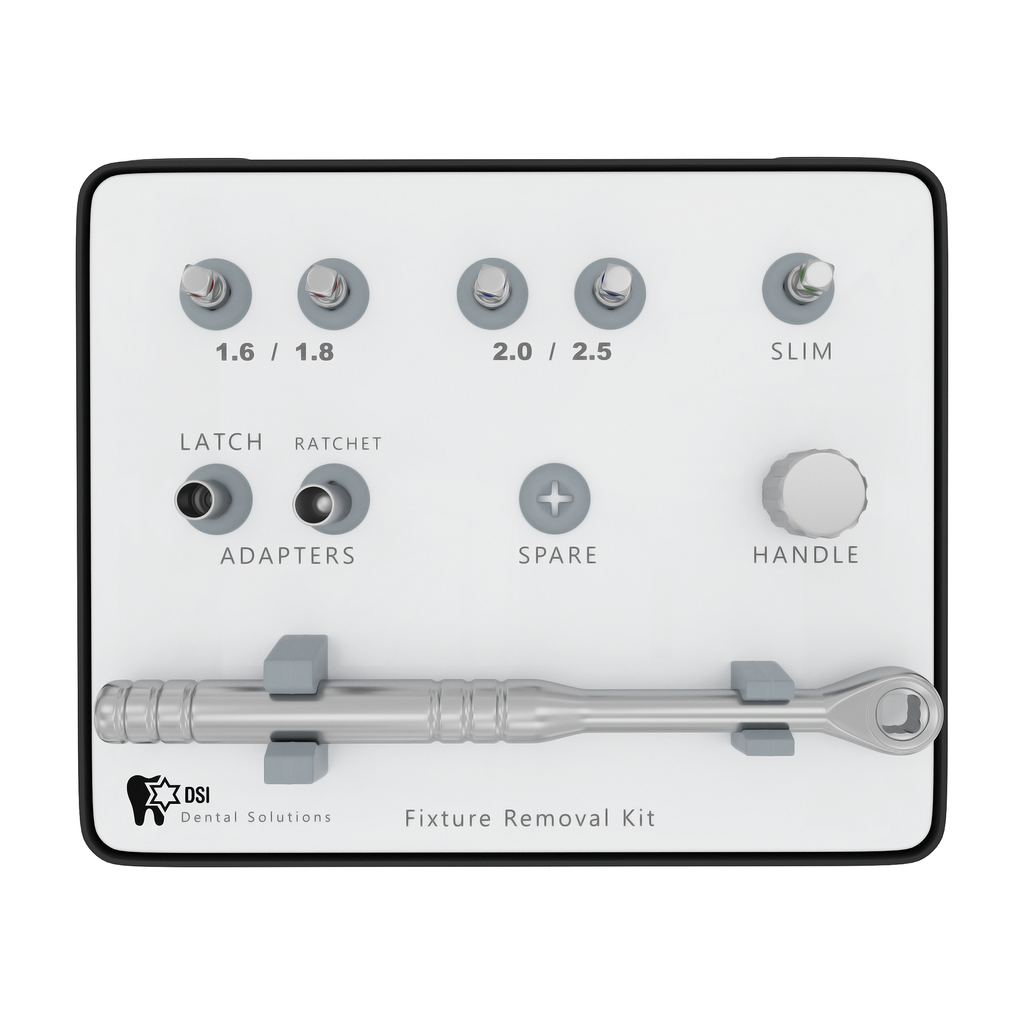

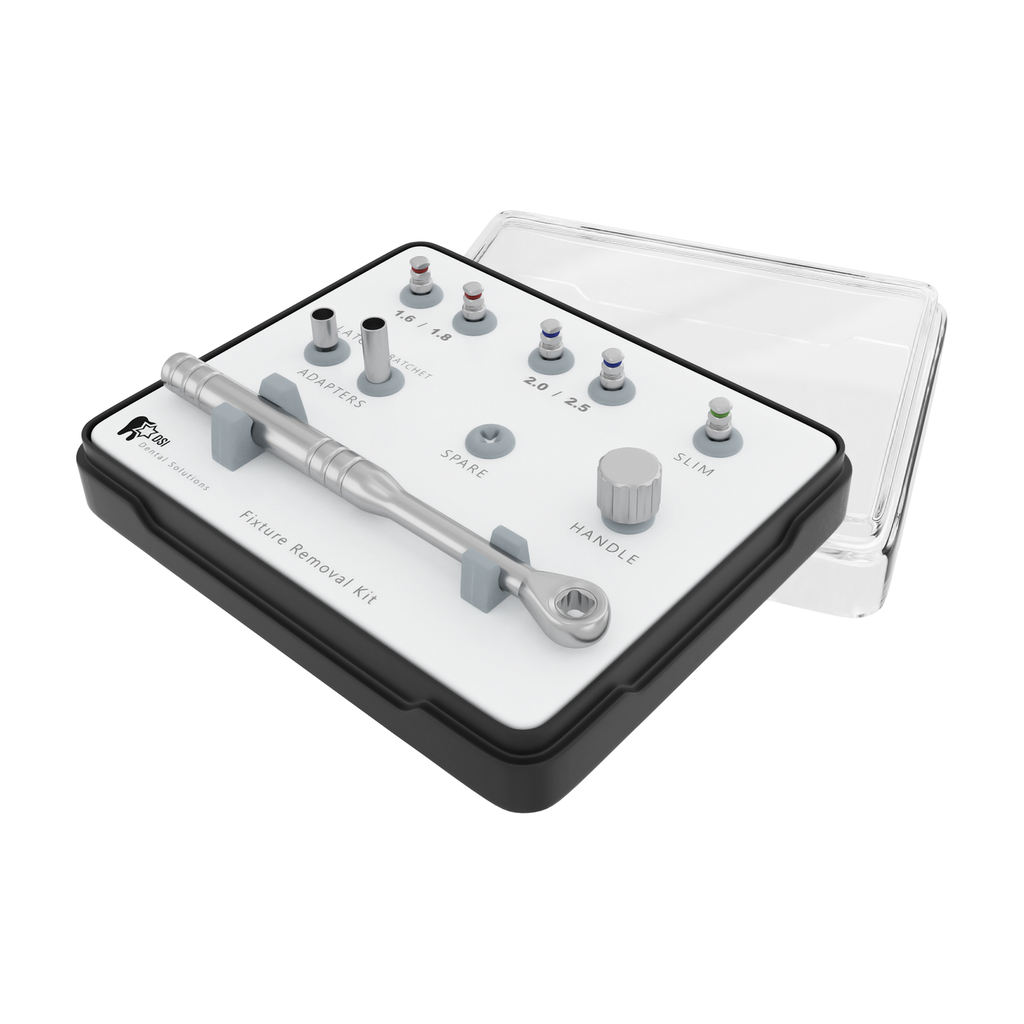

The kit includes all the following items:

• FRD-01: compatible systems remover Ø1.6/1.8mm (2pcs)

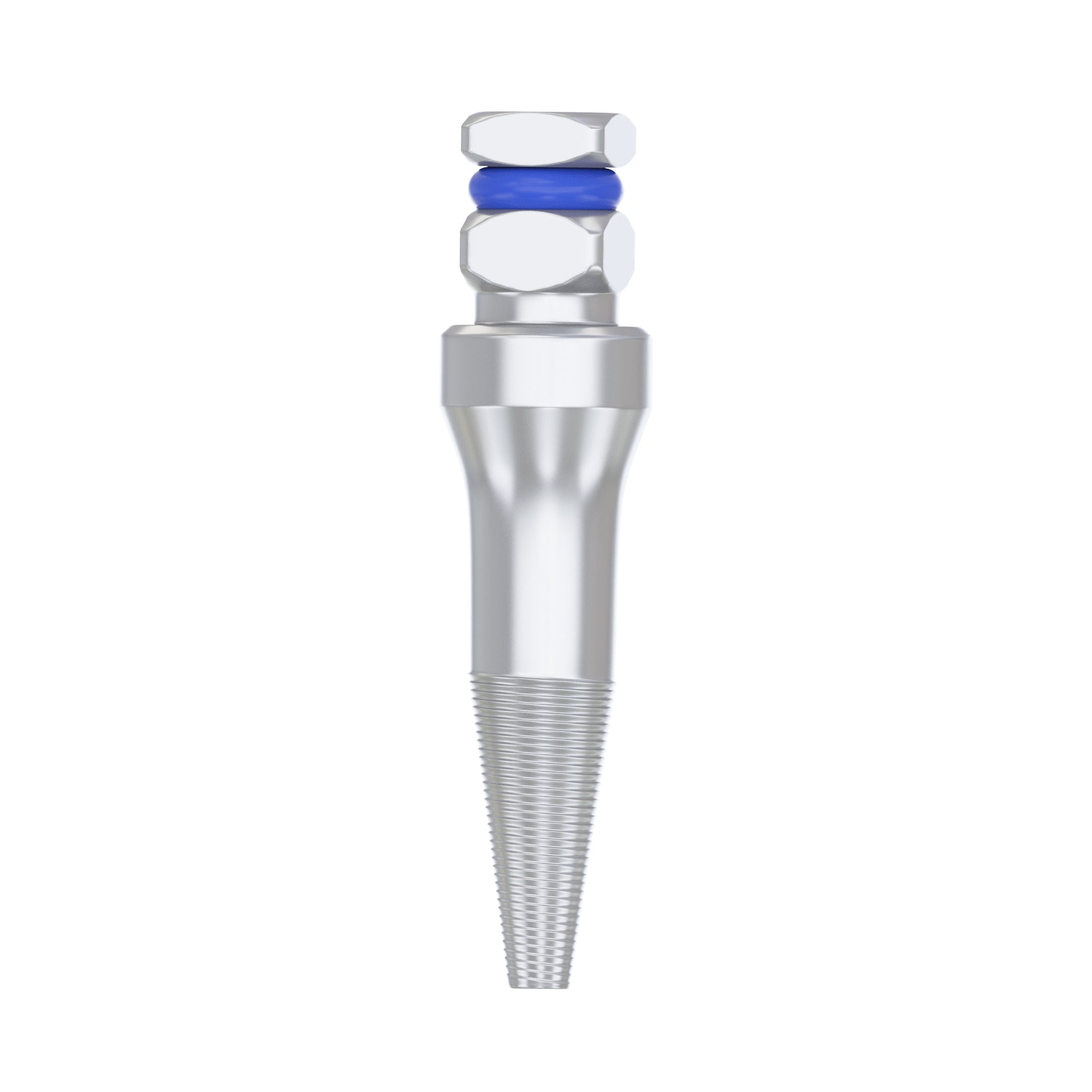

• FRD-02: compatible systems remover Ø2.0/2.5mm (2pcs)

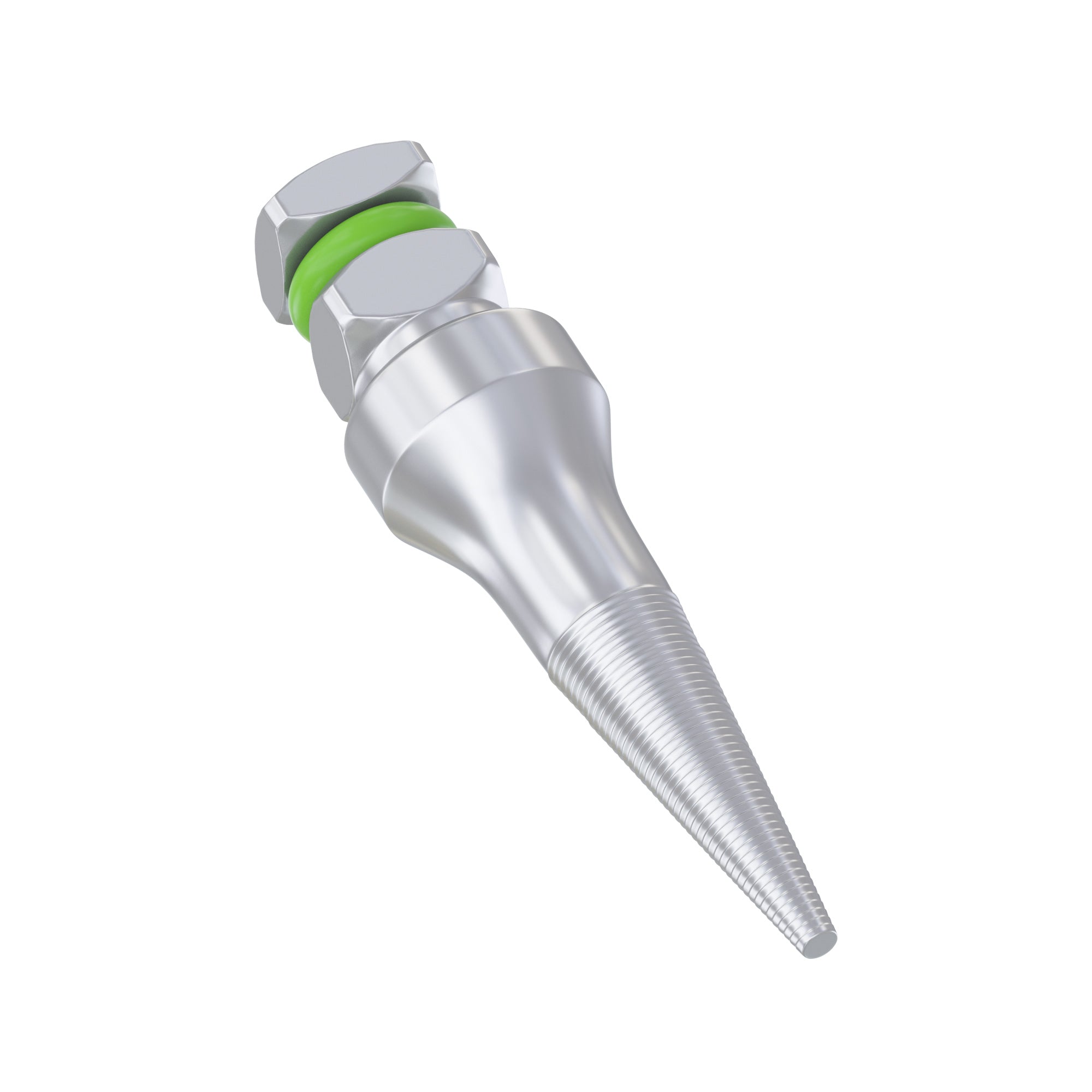

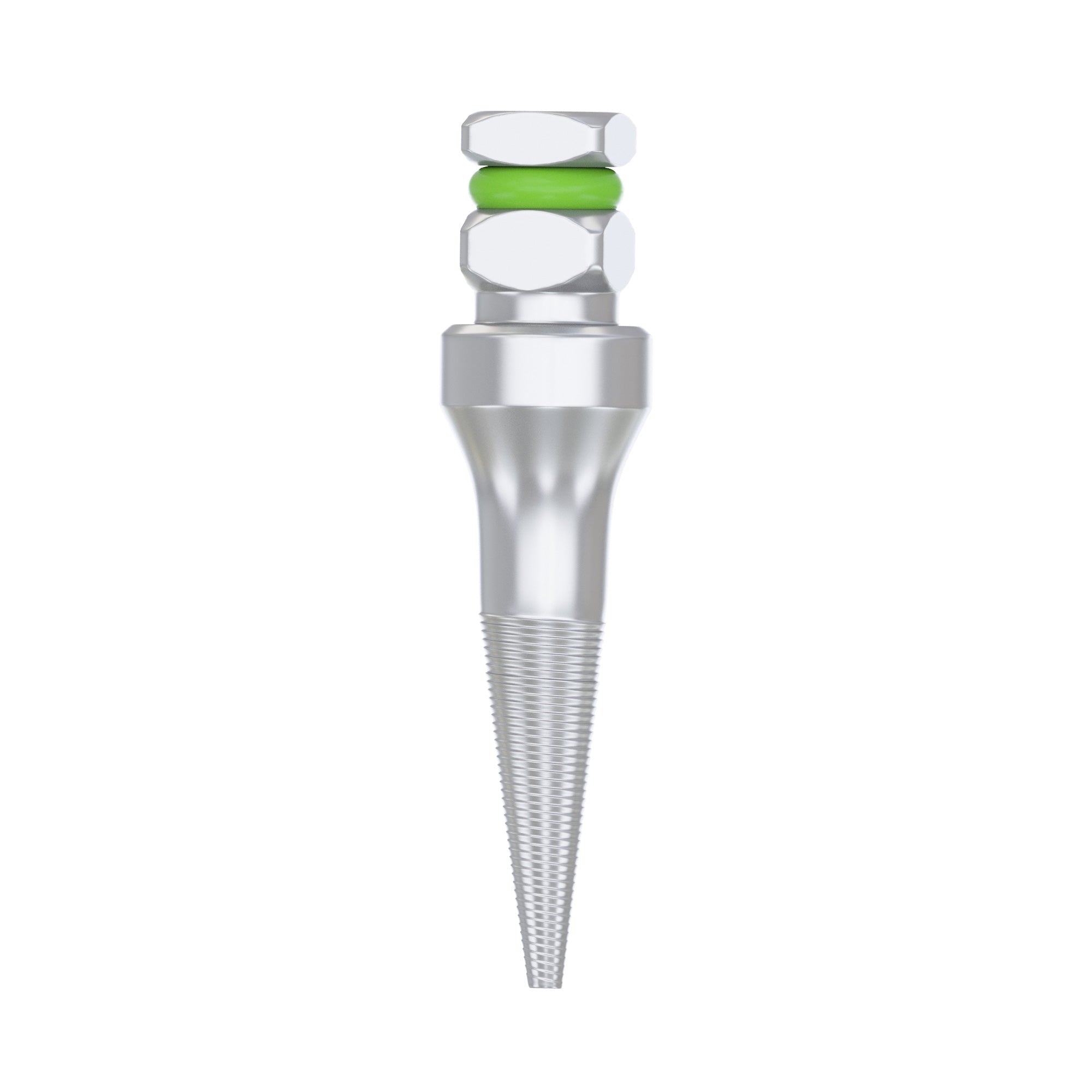

• FRD-03: compatible systems remover Narrow (1pcs)

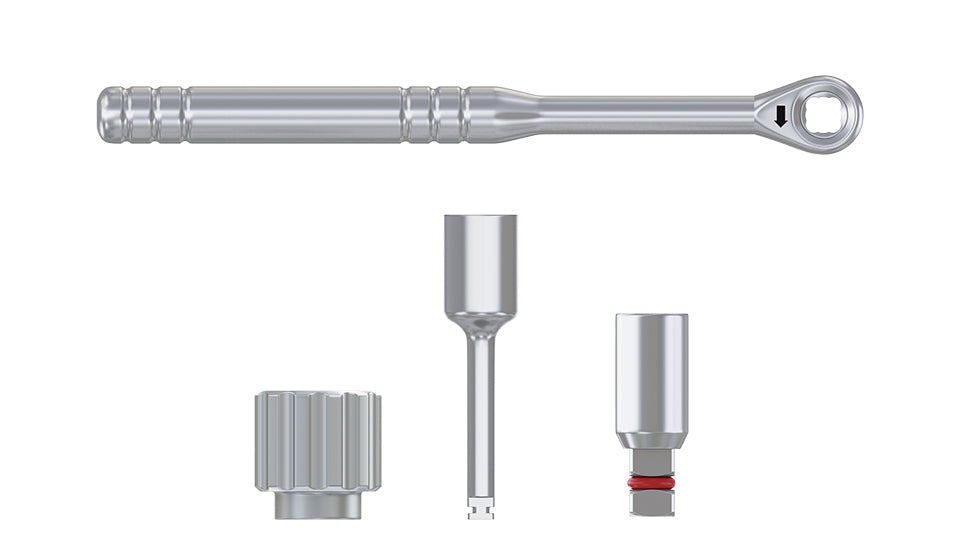

• RE-02: ratchet extension square connection type Ø4.0mm (1pcs)
• SDADP-01: Latch-type RA connector adapter (handpiece condenser) (1pcs)
• SDWRH-02: Wrench ratchet - length 110mm (1pcs)
• TH-03: Manual adapter (turning handle) (1pcs)
