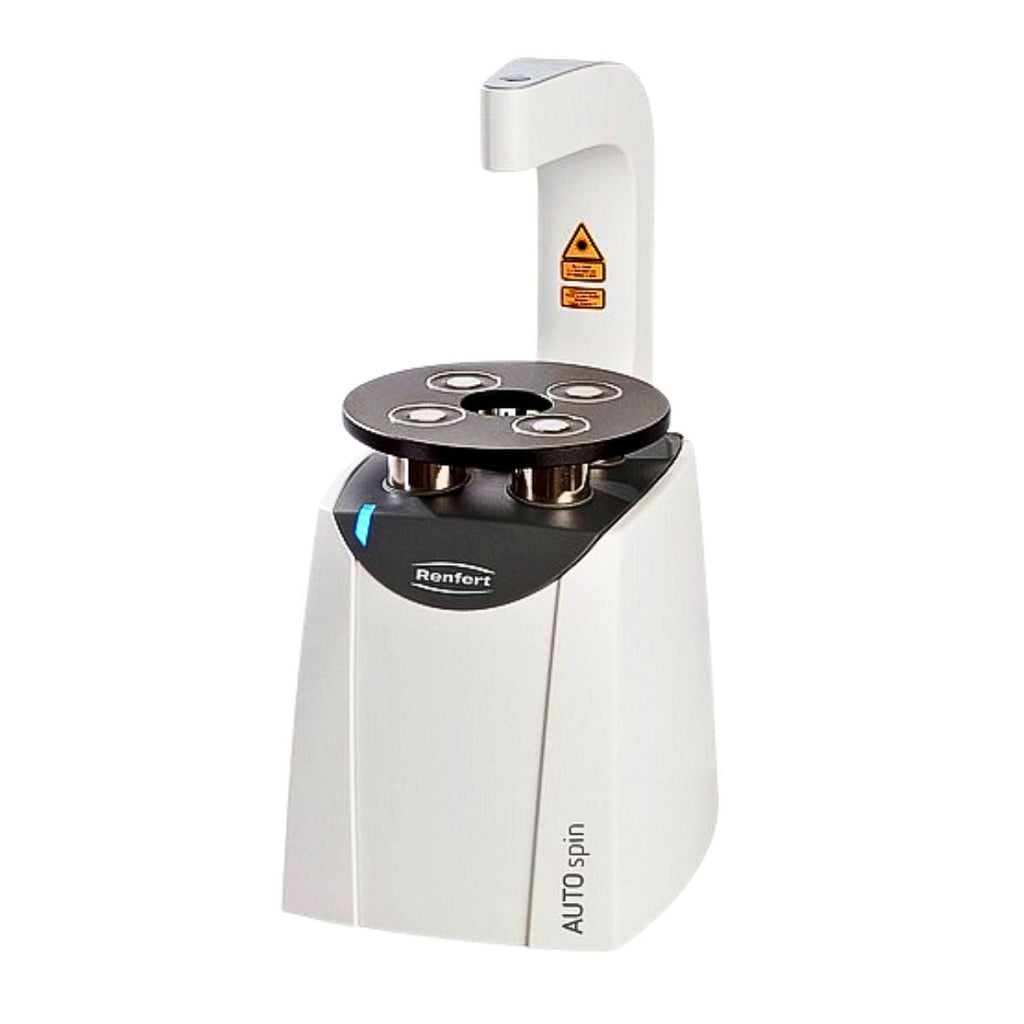

The auto spin pin drill is a tool for precise and efficient model fabrication. This device allows you to create intricate working models with plastic base plates, providing a strong and durable foundation for dental work. When used in conjunction with the auto spin model-making system, this drill takes model fabrication to a whole new level. With perfectly matched materials, even the most complex models can be created with ease that saves time and costs by reducing the use of traditional dental plaster.
Indication

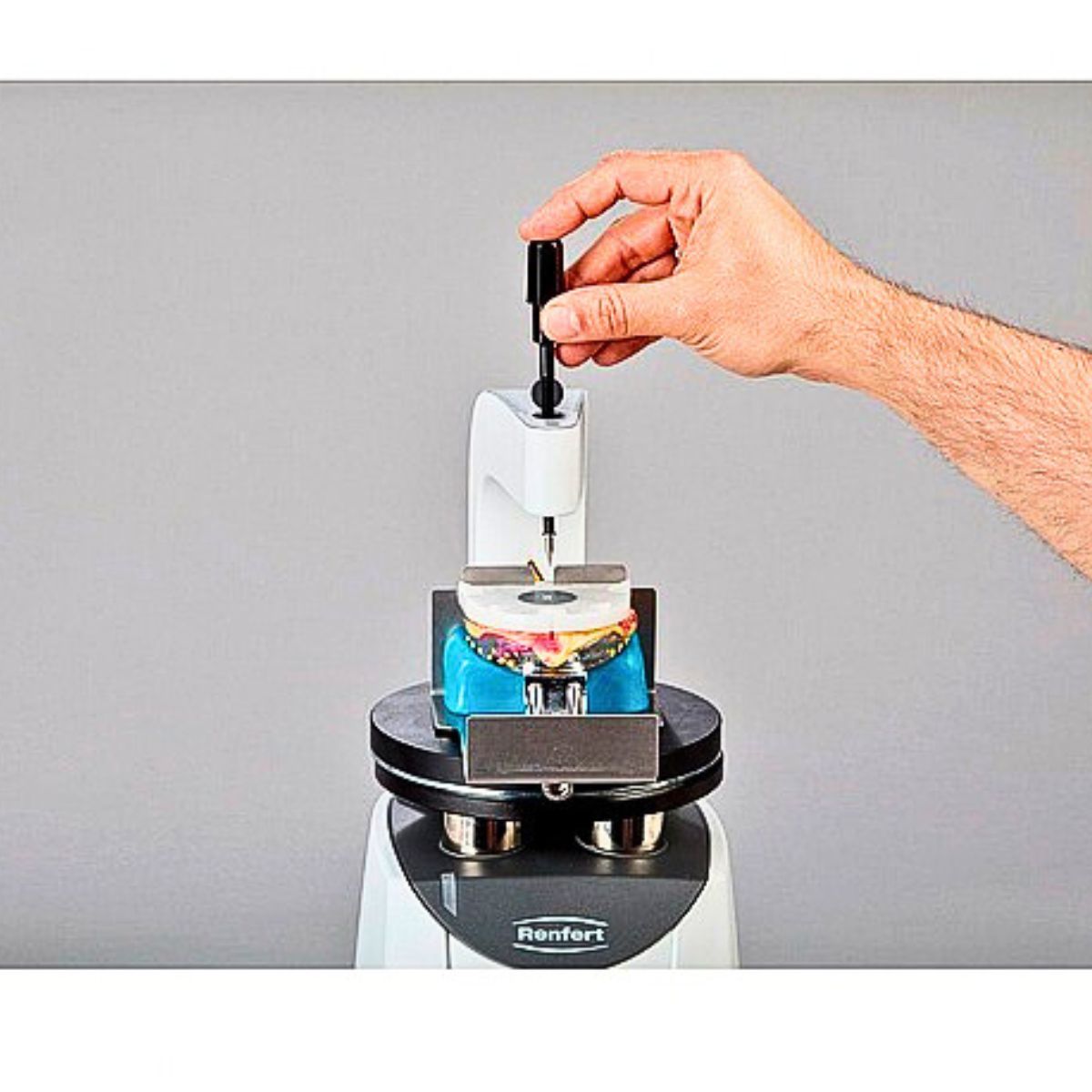

The auto spin pin drill allows dentists to create precise working models with plastic base plates. This ensures accuracy and helps in achieving better results in dental procedures.
Features
Reducing the use of dental plaster saves time and money.
The innovative Renfert Level Controller ensures safe positioning and alignment even in difficult impression situations.
The universal plate holder with secure double fixation allows for flexible use with nearly any plate geometry.
Specification
Permissible network voltage: 220–240 V | 120 V
Allowed network frequency: 50/60 Hz
Power consumption during drilling: 80 W
Standby power consumption: 1.5 W
Laser type: 2
Sound pressure level: 70 dB(A)
Dimensions (B x H x D): 180 x 368 x 275 mm

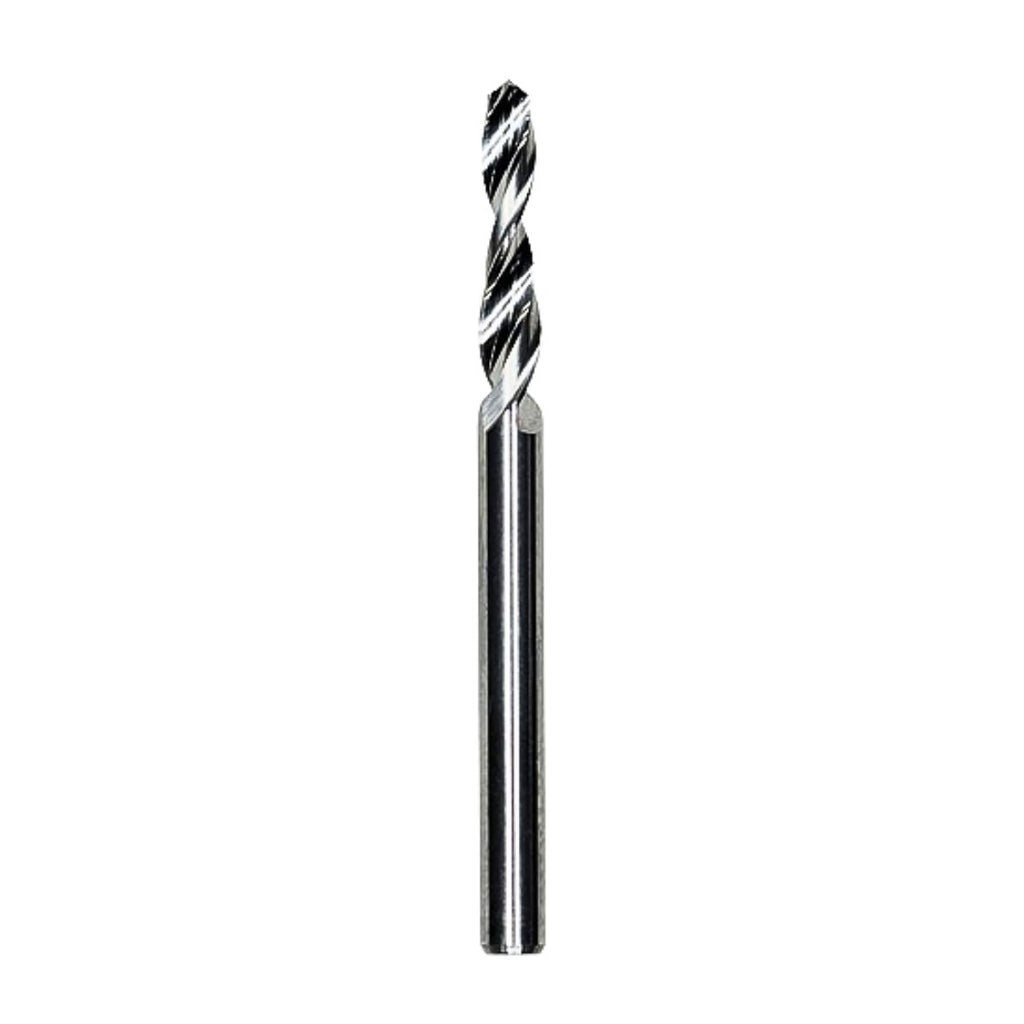

Permissible drill diameter: Ø 3 mm ± 0.03 mm Allowable drill length: 34–46mm
