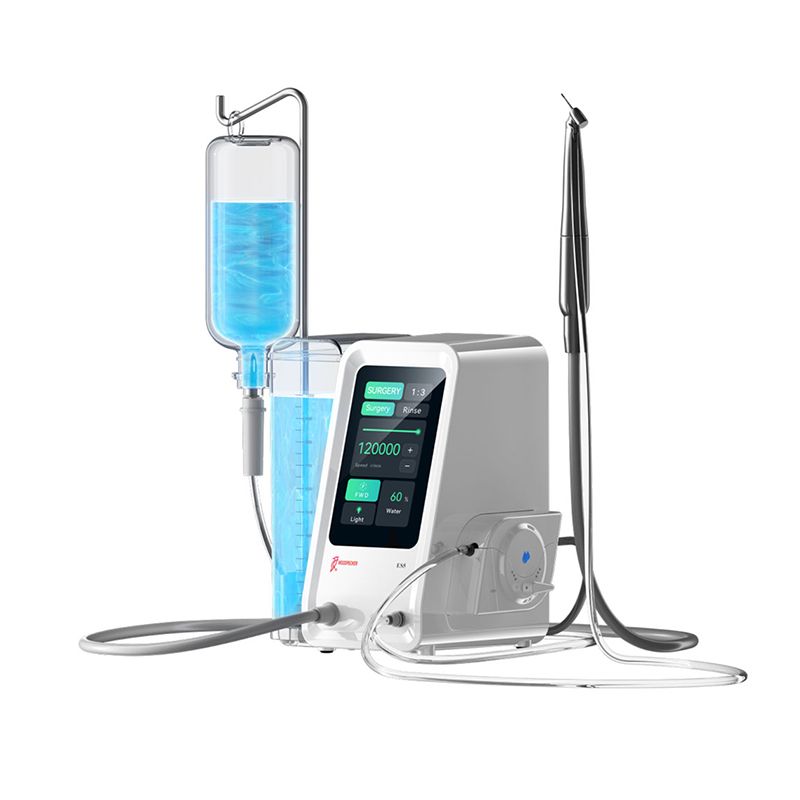

ES5 Dental Electric Surgical Turbine 3.5 Ncm

The WOODPECKER ES5 Electric Surgical Motor provides stable, quiet, and precise performance - ideal for implantology and oral surgery.

Key Advantages:

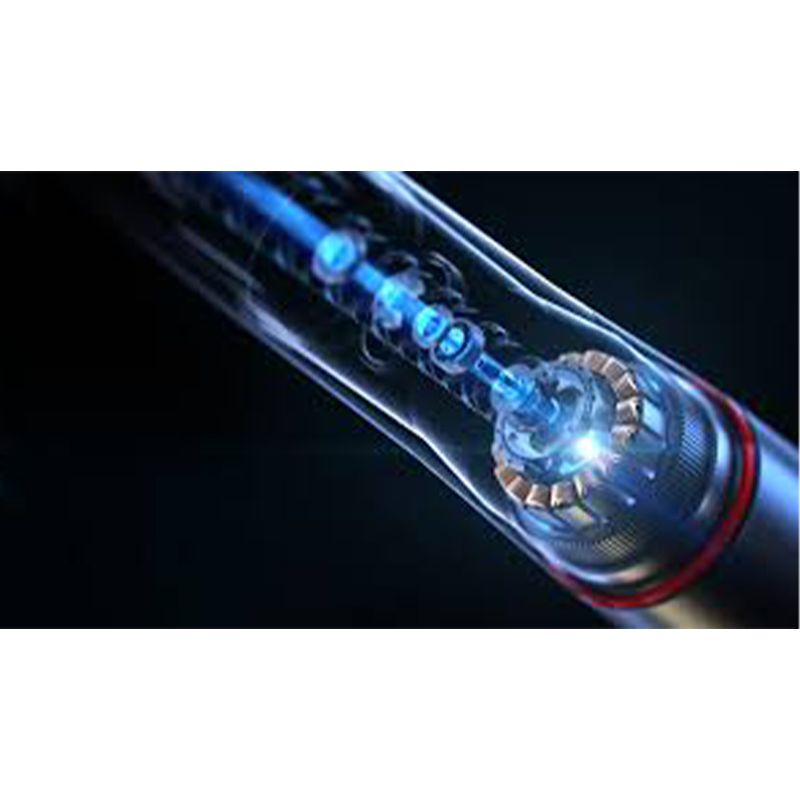

• Powerful and quiet brushless motor

• High torque for precise work, even in complex cases

• Stronger and faster compared to a conventional air turbine

• No need for pneumatic or air compressor connection

• No need for connection to a water source

• Advanced irrigation system enabling the use of saline and sterile fluids without risk of contamination

• Simultaneous use of both saline (physiological solution) and distilled water (with a separate reservoir)

• Anti-retraction turbine head to reduce the risk of cross-contamination

• Reduced aerosol generation - safer working environment

• Lightweight, ergonomic micromotor for comfortable handling

• Compact size and high portability - suitable for mobile clinics and multi-room use

System & Control:

• 5-inch color touchscreen - intuitive and user-friendly

• 2 working modes, 8 gear ratios, and 6 programmable programs

• Multi-function foot pedal, water-resistant (IPX6)

Technical Specifications:

• Speed: up to 40,000 rpm

• Torque: up to 70 N·cm (depending on contra-angle)

• Motor torque: 3.5 N·cm

• Water flow: up to 120 ml/min

Control Unit Dimensions (mm):
227 (H) × 220 (W) × 155 (D)
