Titanium Sleeve Abutment M1.4
Description

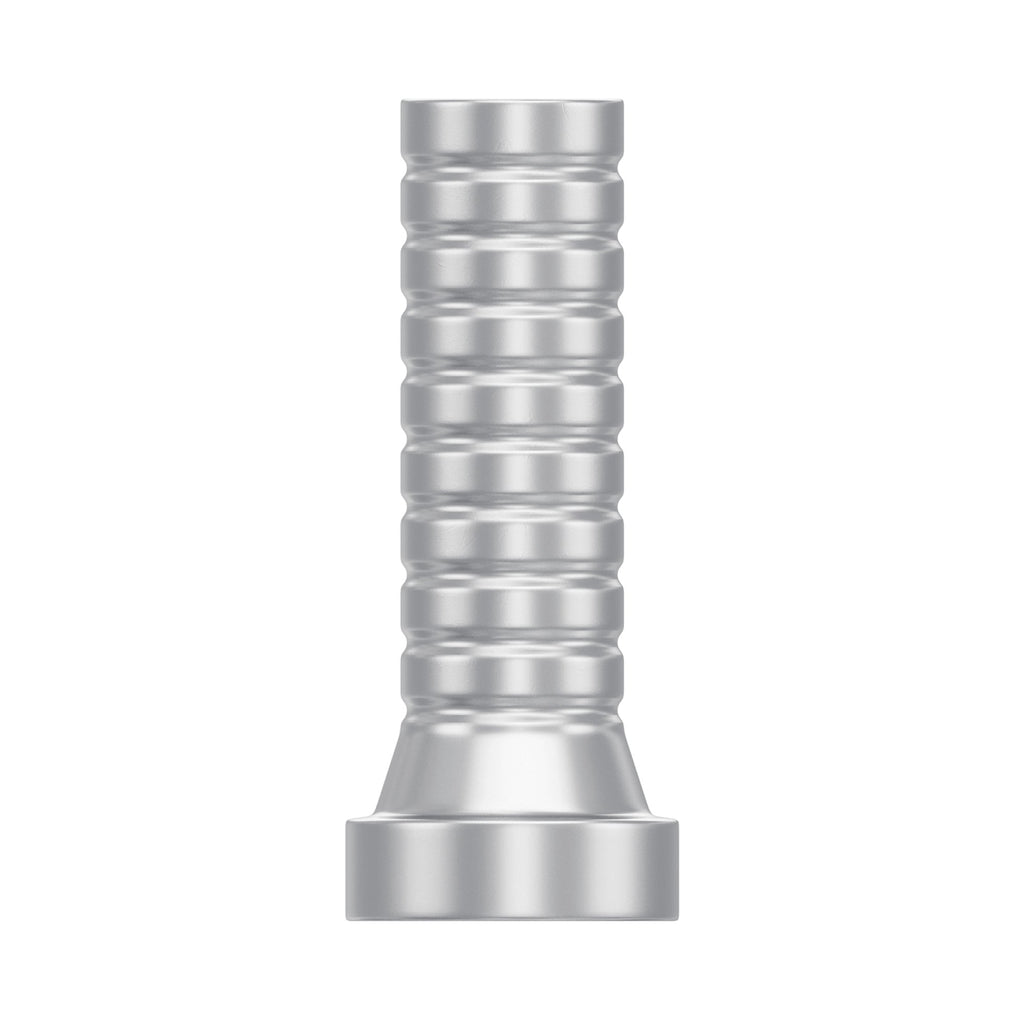

DSI Titanium Sleeve for Premium Multi-Unit Abutment M1.4 is used as a temporary restoration solution. The sleeve is compatible with Nobel Biocare® and other multi-unit systems with the same upper hexagon connection of M1.4.
The sleeve makes a solid connection with the multi-unit abutment. It is made out of high-quality Titanium alloy Ti-6Al-4V grade 23 ELI which gives an adequate combination of biocompatibility and durability.
The sleeve can be installed using a regular hexagonal (internal-hex) abutment driver Ø1.25mm.
Indications:
- Used for fabricating provisional restorations on top of the multi-unit abutment, crowns, bridges, etc.
Features and benefits:
- Excellent biocompatibility, no risk of abruption
- Precise, non-rotational, functional
- Simple, fast, and accurate positioning
- Outstanding stability for the crowns and bridges
Technical information:
- Material: Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
- Diameter: 4.9mm
- Length: 11mm
- Platform: Upper hexagon multi-unit abutment connection 1.4M
- Compatibility: DSI®, Nobel Biocare®

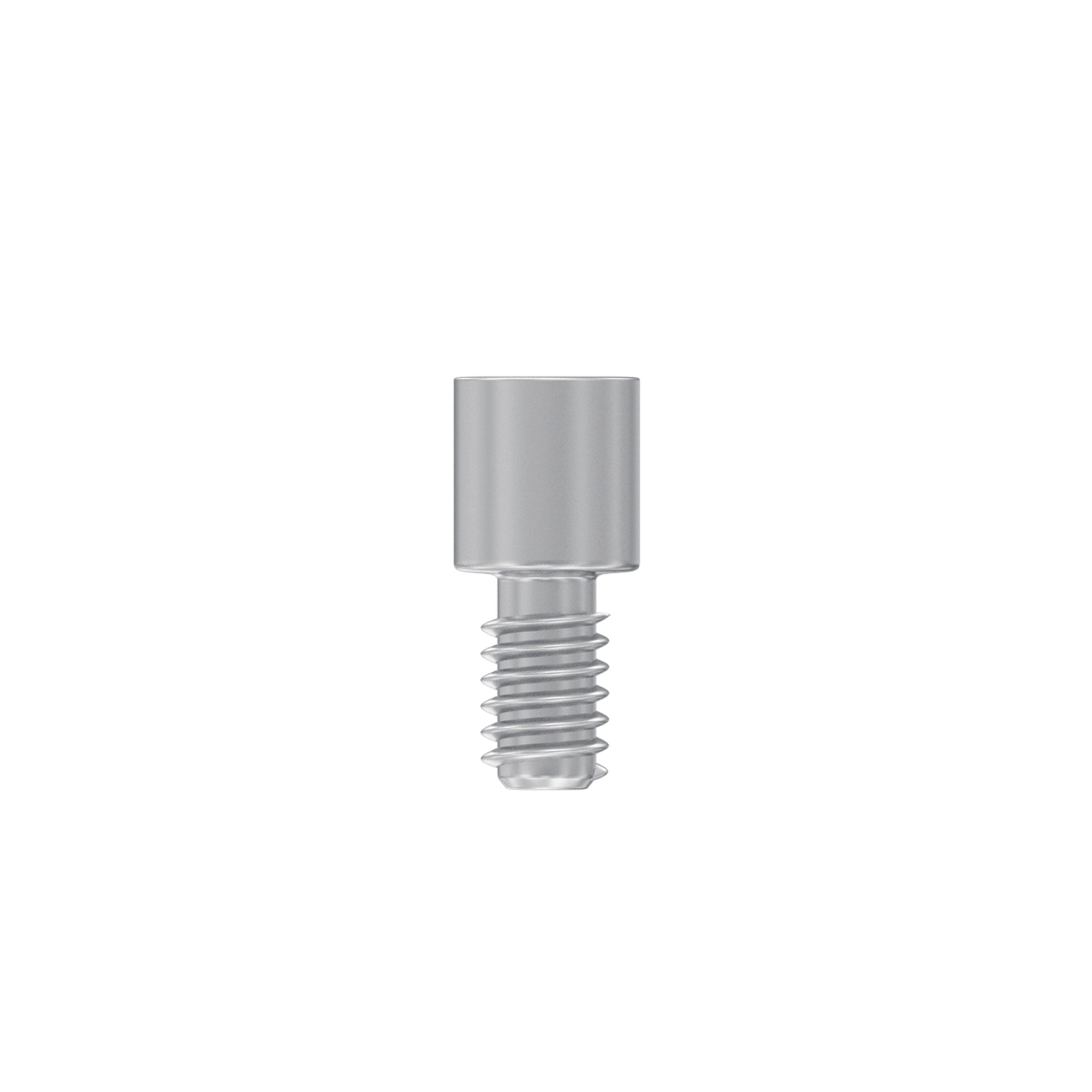

- Titanium fixation screw included with every abutment
Material:
- Titanium alloy Ti-6Al-4V grade 23 ELI (44)
- 1 Titanium sleeve + 1 fixation screw

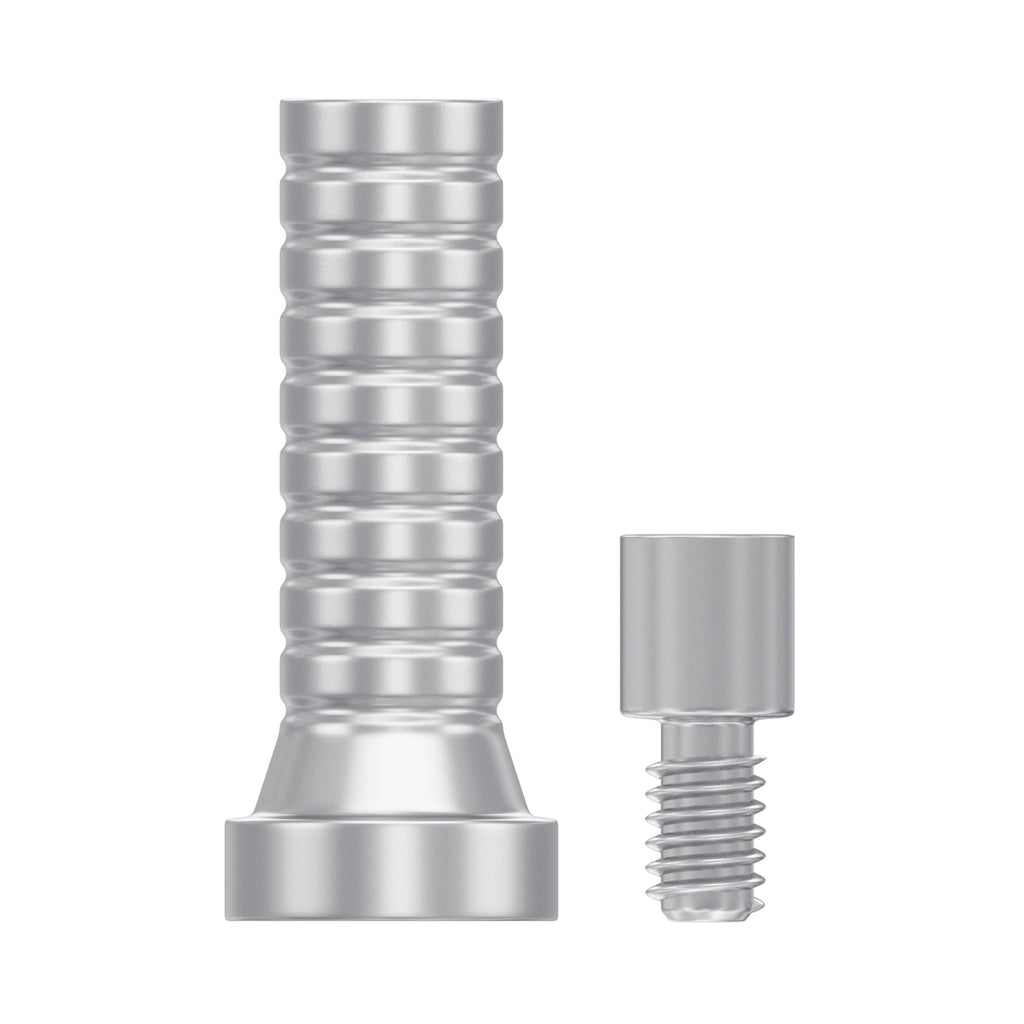

Titanium sleeve + fixation screw
Units in a box:1
