DSI SK007 Zygo Surgical Kit Tools and Drills Zygomatic Implant Installation

The DSI  Zygomatic surgical drill kit developed especially for zygomatic implant socket preparation and includes all the necessary items for convenient operation. The kit includes long cylindrical coated drills that are made with the highest durability and deliver exceptional functionality. This kit includes high-end surgical tools and is designed in a very specific manner for zygomatic implant installation. All the instruments are made of the best raw materials on the best CNC machines, delivering the highest quality and reliability. DSI Zygomatic surgical will give you extremely high accuracy, low vibration, and minimum heat generation allowing quiet, easy, and comfortable work time after time.

Features

• Made of the highest quality surgical stainless steel.
• Manufactured on the latest generation of high-precision CNC machines.
• Completely compatible with DSI zygomatic implants.
• Developed to fit with a 1.4M multi-unit
• Embedded with Dark Grey coating, with outstanding corrosion resistance and exceptional durability.
• Minimum Drill/Bone heat generation, low vibration, controlled and precise work with confidence.
• Special length marks that stay visible even in the harshest conditions.
• Special burs for degranulation, socket cleaning, and making microgrooves inside the implant socket.
• Diamond reamer bur for sinus lateral window.
• The complete kit does not require additional units.

Indications

This surgical kit is built for zygomatic implant installation.

Benefits

• Long Cylindrical Coated Drills
  Made with the highest durability and deliver exceptional functionality


• Surgical Tools&Instruments
  Designed in a very specific manner for zygomatic implant installation. All the instruments are made of the best raw materials on the best CNC machines, delivering the highest quality and reliability.


• Platform
  DSI Zigomatic kit was essentially developed to fit with a 1.4M multi-unit. The 1.4M multi-unit system is the ultimate solution for a zygomatic implant and allows more angulation options than any other multi-unit system

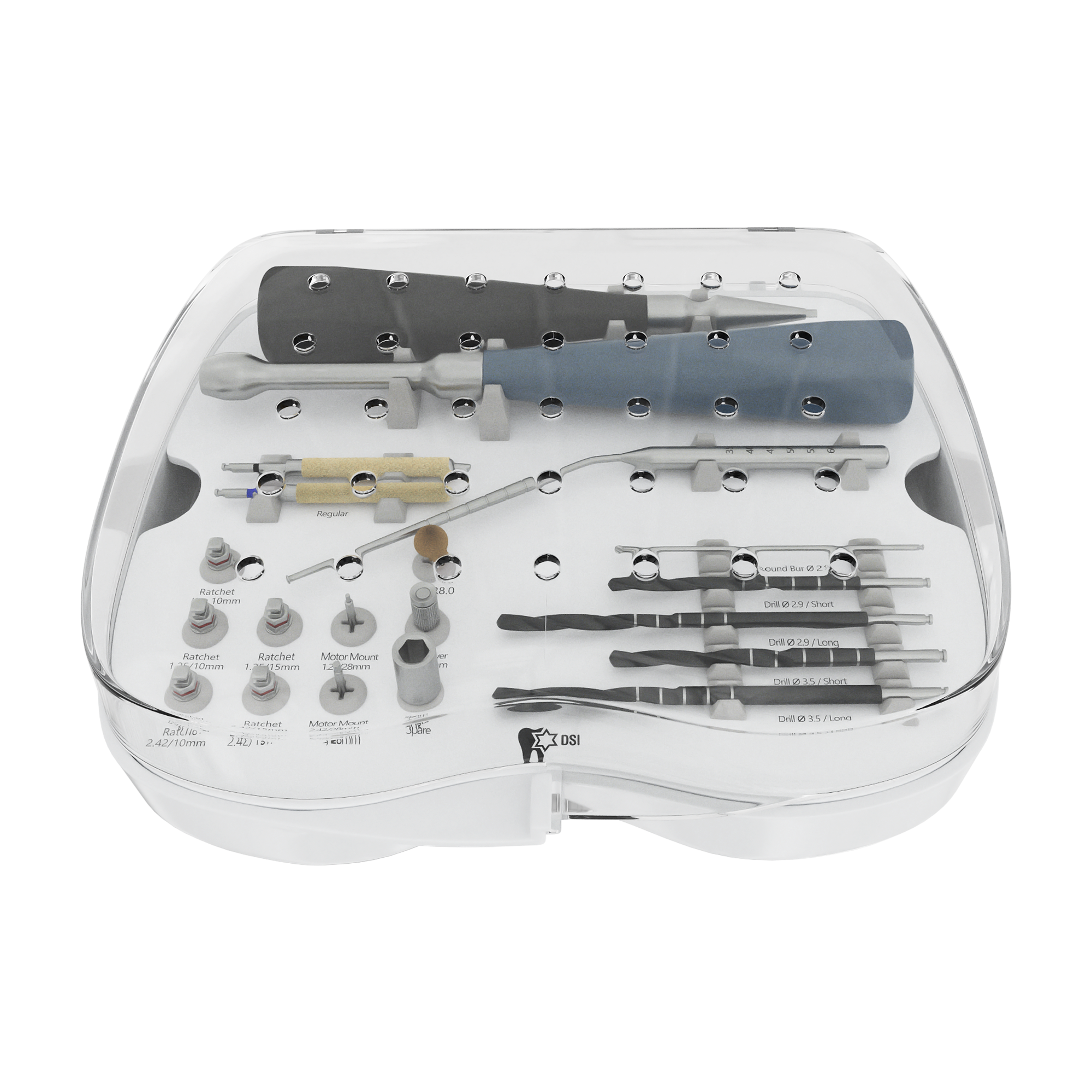

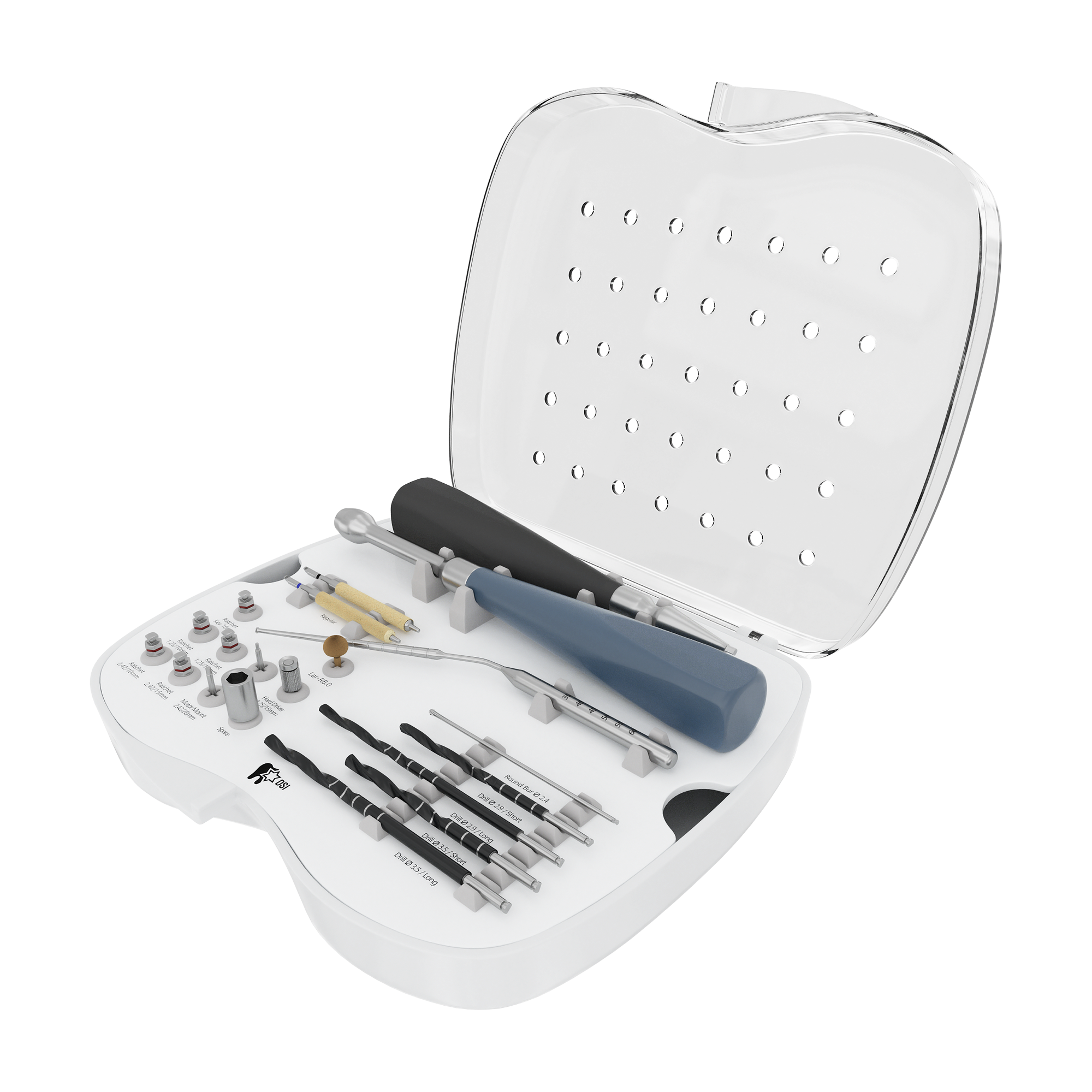

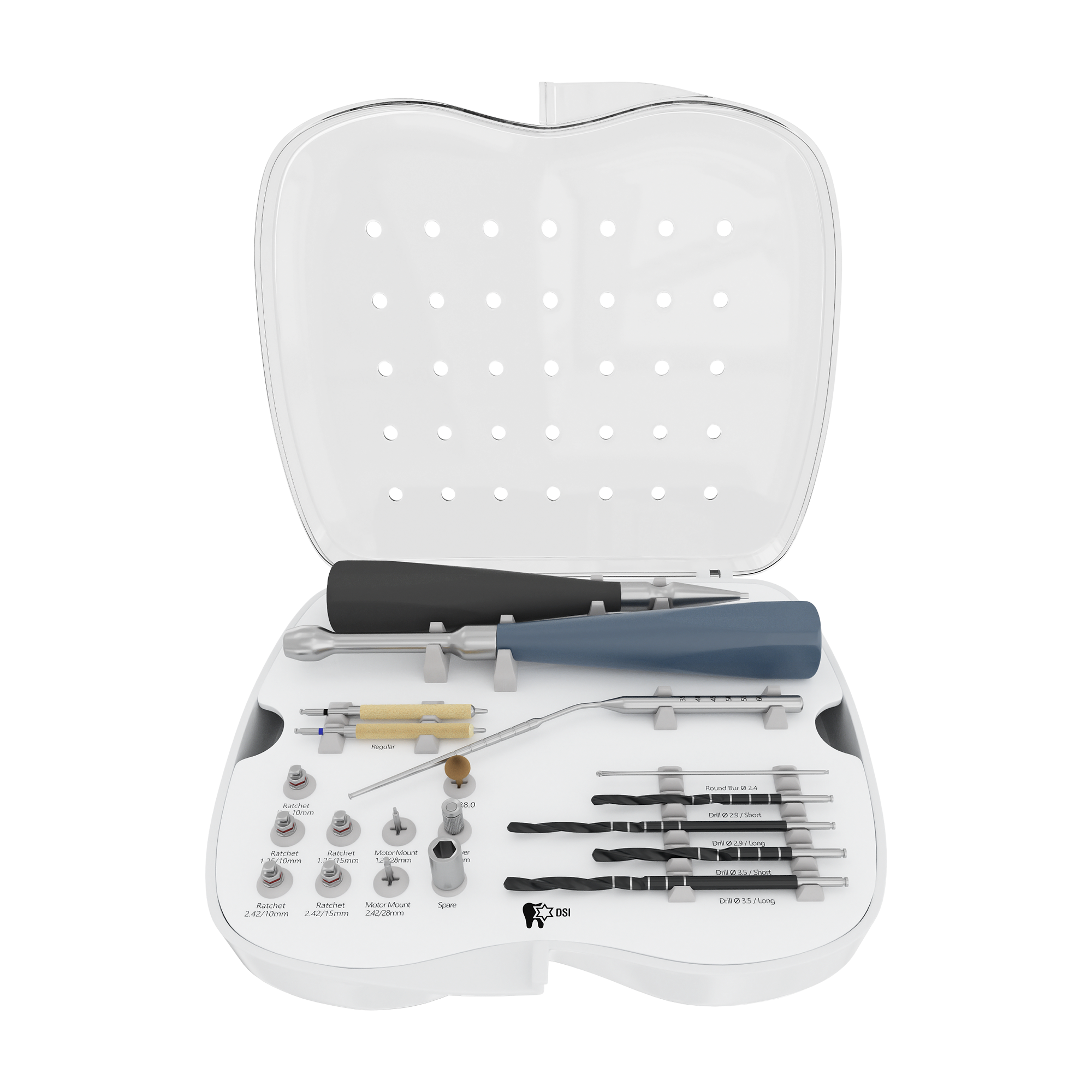

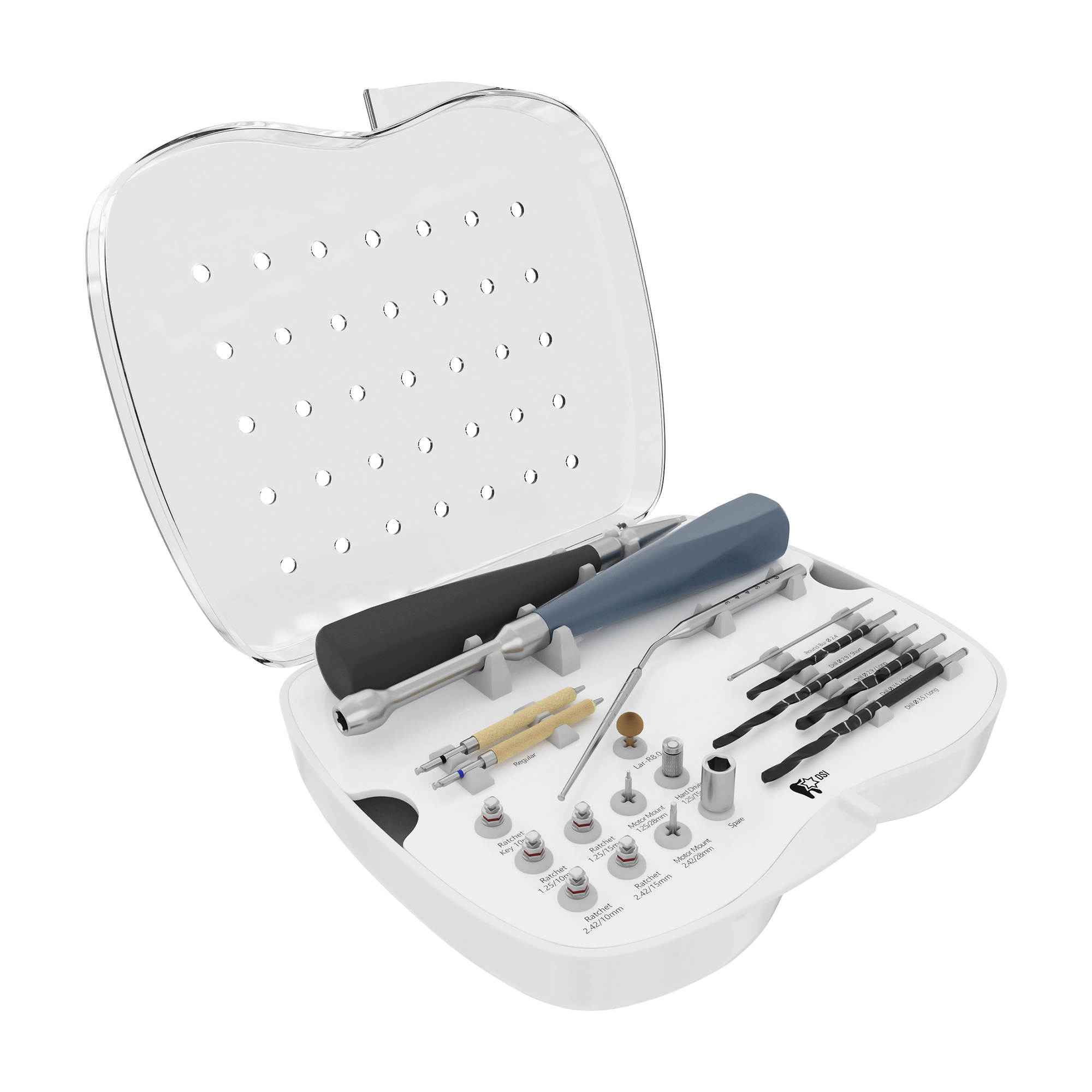

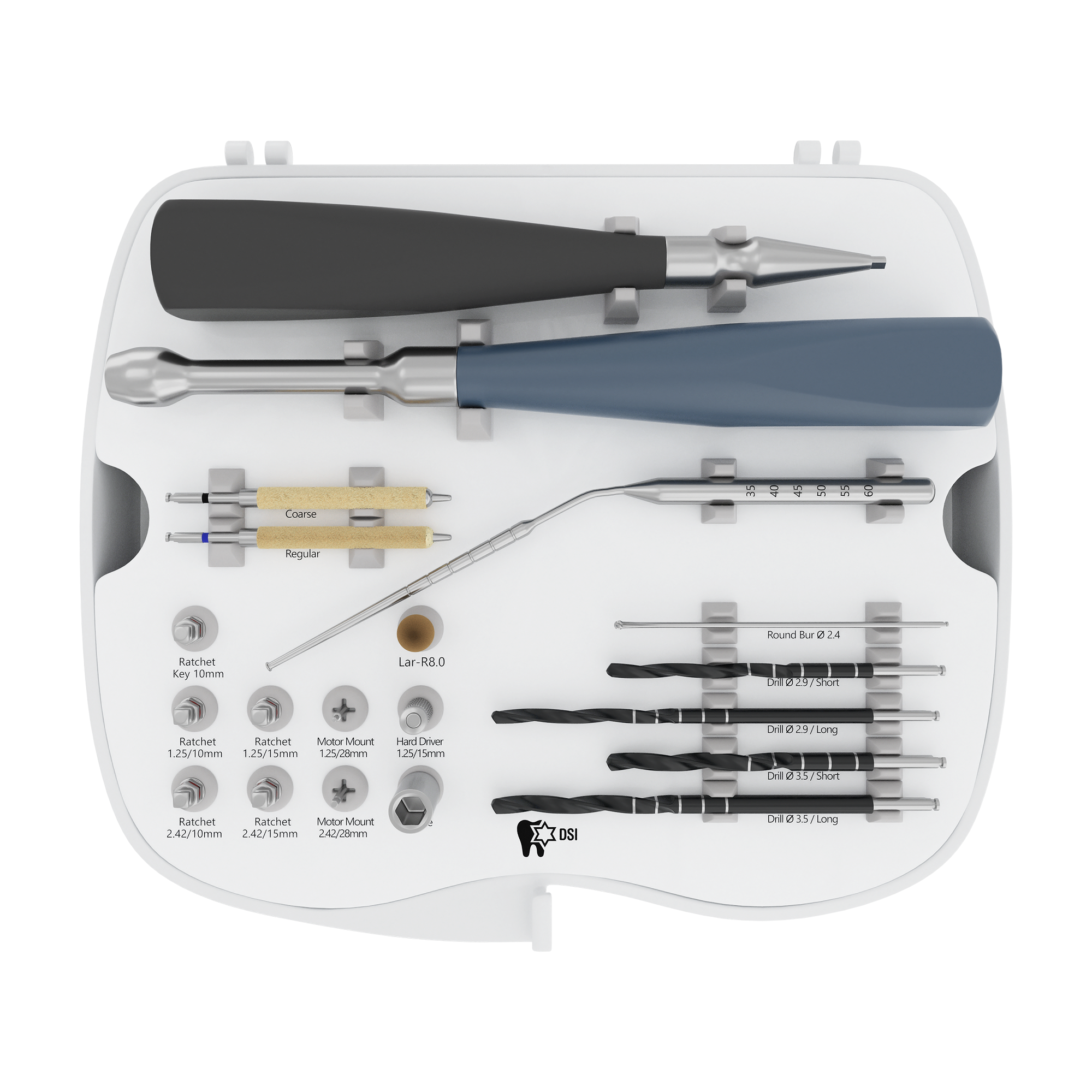

What's inside?

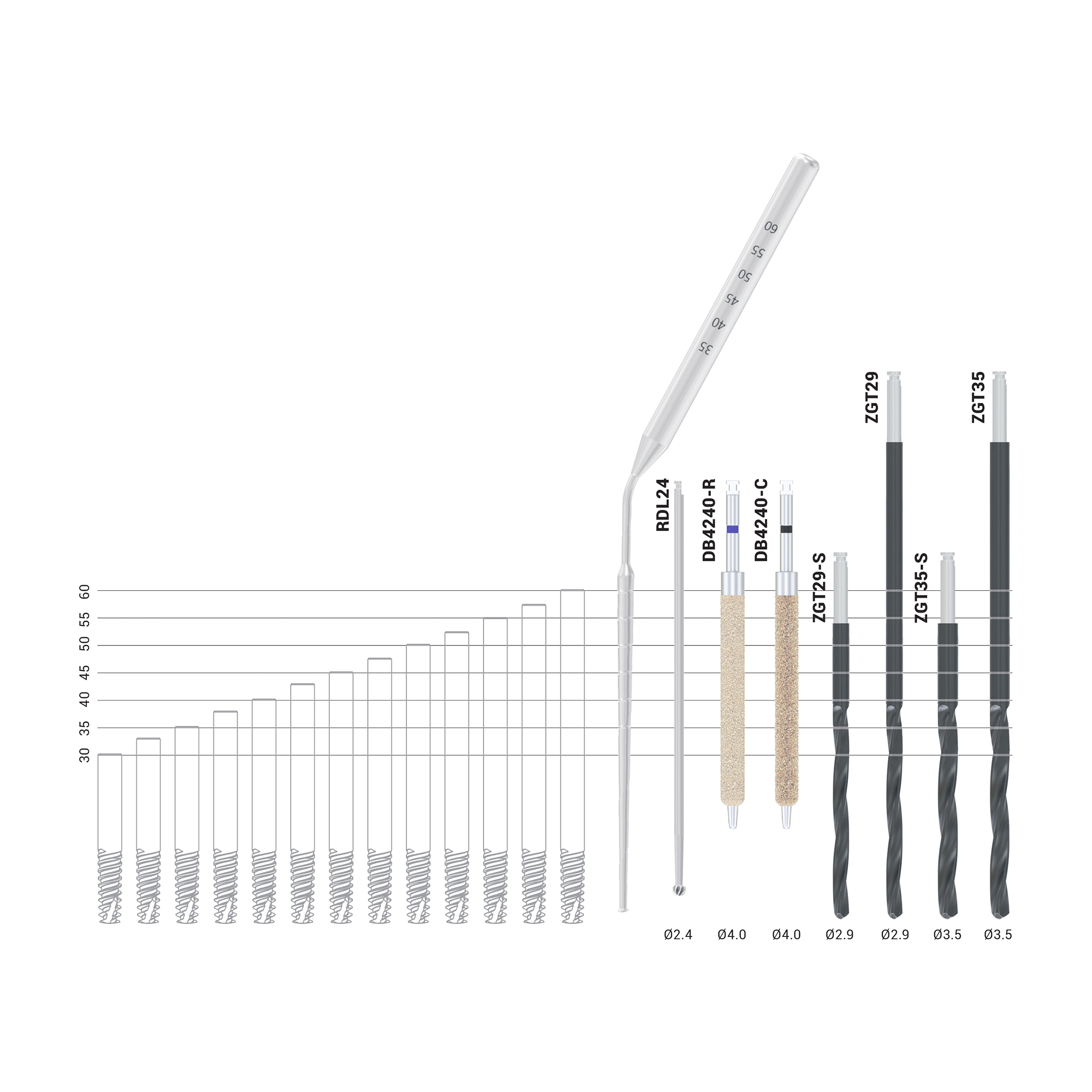

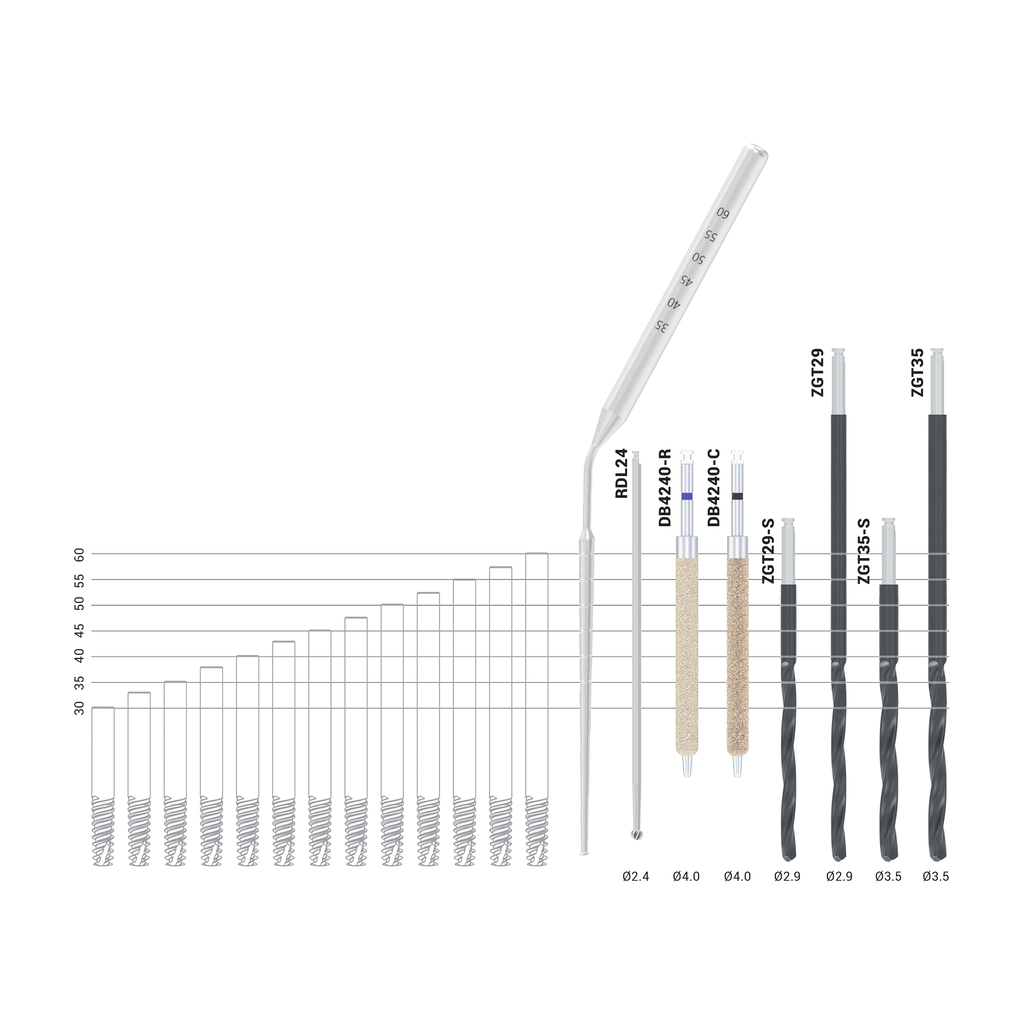

ZGT29-S, ZGT29: zygomatic drill Ø2.9mm L 54, 82mm
ZGT35-S, ZGT35: zygomatic drill Ø3.5mm L 54, 82mm
ZDG60: depth gauge for zygomatic implant - osteotomy depth marks at 35, 40, 45, 50, 55, and 60mm
HD: manual surgical implant driver Ø2.42mm for internal hex
RHD: manual ratchet driver adapter for Ø6.35mm hexagon driver connection
SD-RDL24: zygomatic pilot round bur
DB4240-R, DB4240-C: diamond bur for groove preparation, Ø4.0mm L 37mm regular, coarse
MM24028: motor mount driver for implant Ø2.42mm L 28mm
MM12528: motor mount driver for abutment Ø1.25mm L 28mm
RDK24100, RDK24150: ratchet driver for implant Ø2.42mm L 10 and 15mm
RDK125100, RDK125150: ratchet driver for abutment Ø1.25mm L 10 and 15mm
MMRA: motor mount to ratchet adapter
RDK-MU10: ratchet driver key for MUA
LAR-R80: sinus reamer bur for lateral approach Ø8.0mm L 25mm
