Straight Multi Unit Full Set M1.4
Description
The DSI Premium Multi-Unit Abutments are a key(M1.4) component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for all kind of restorations from a single tooth to full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.
The only type of DSI multi units which allows Single Crown as one of the options. - each structure comes with a plastic guide. The building is built in a special way that allows the restoration of a single crown. The head of the structure is produced with a hexagonal connection and can only be screwed with a special key.
DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals
- Straight M1.4 MUA Abutment is supplied with versatile Acetal position-holder that can be also used for creation of the single-crown castable abutment by a dental lab
DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

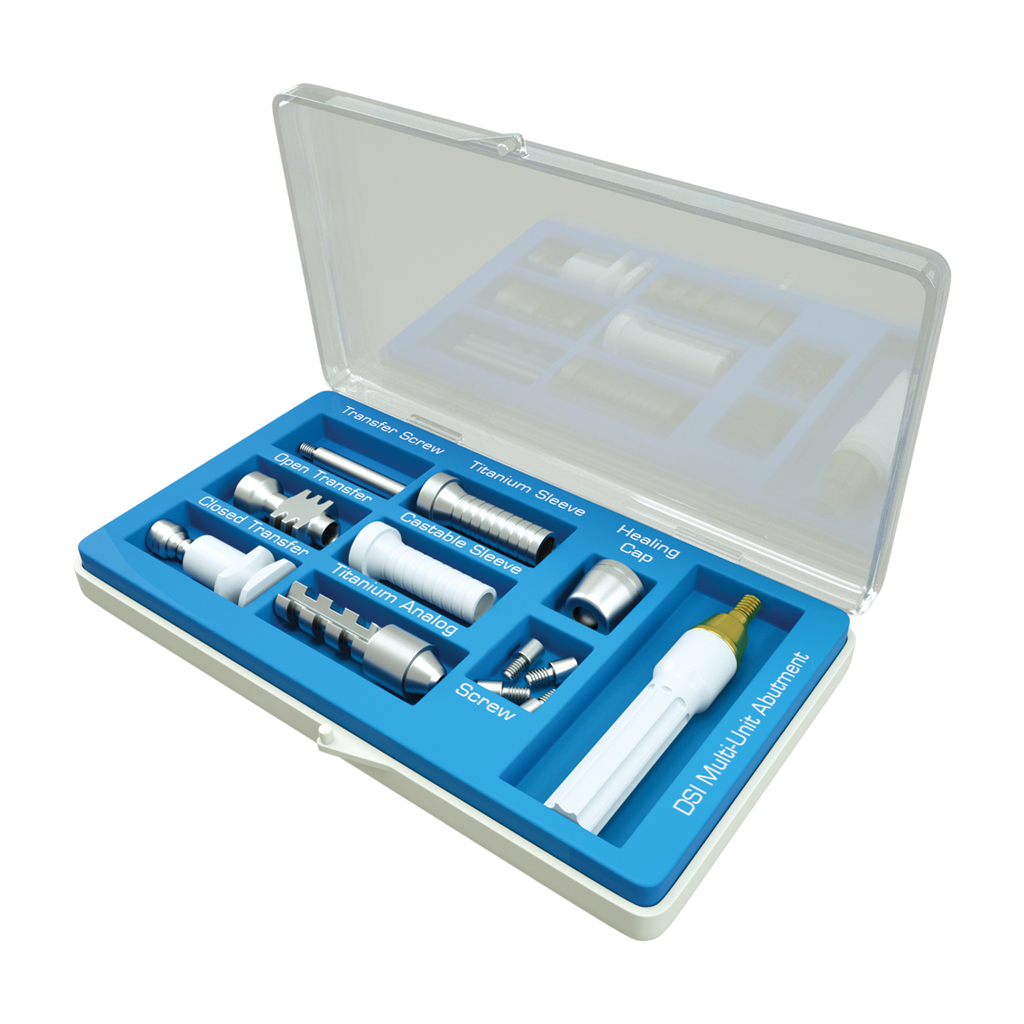

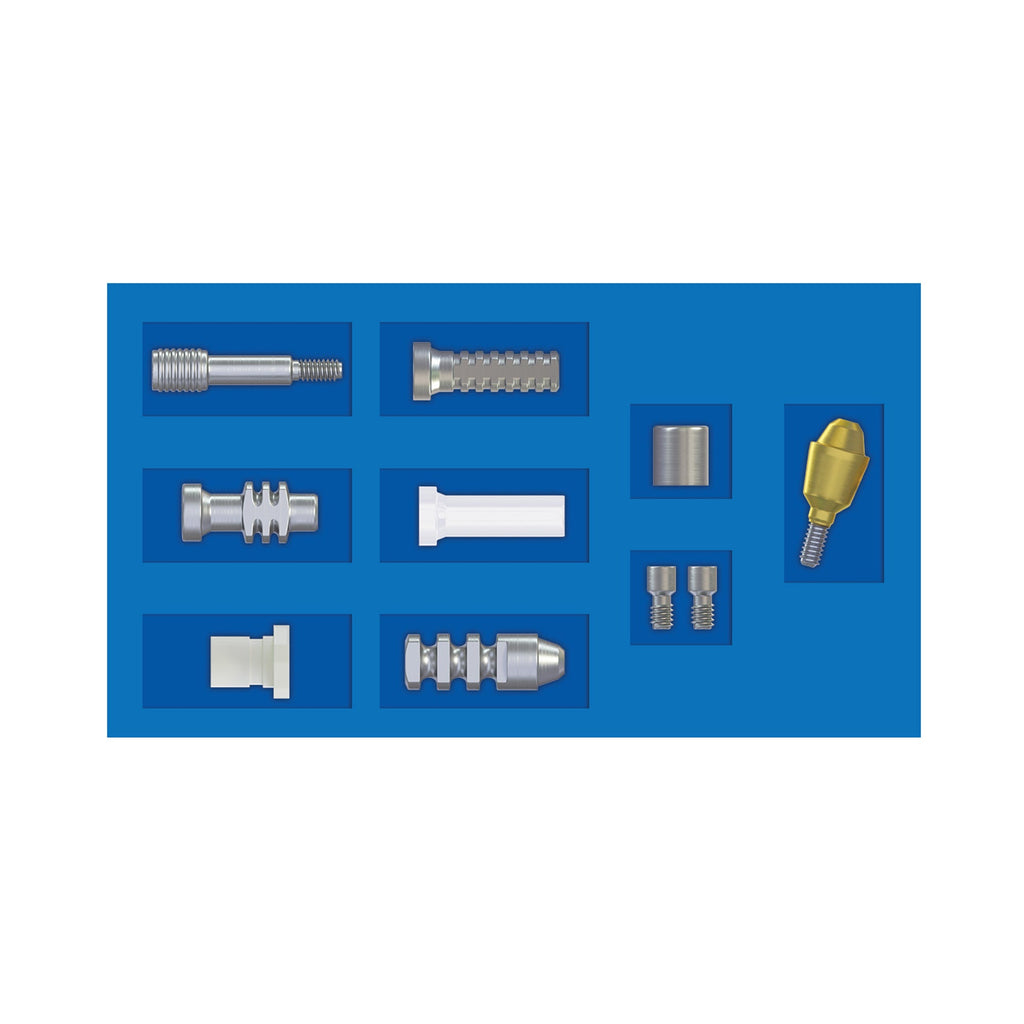

The most commonly used and versatile is the Full Set, which includes
One abutment of the chosen size:

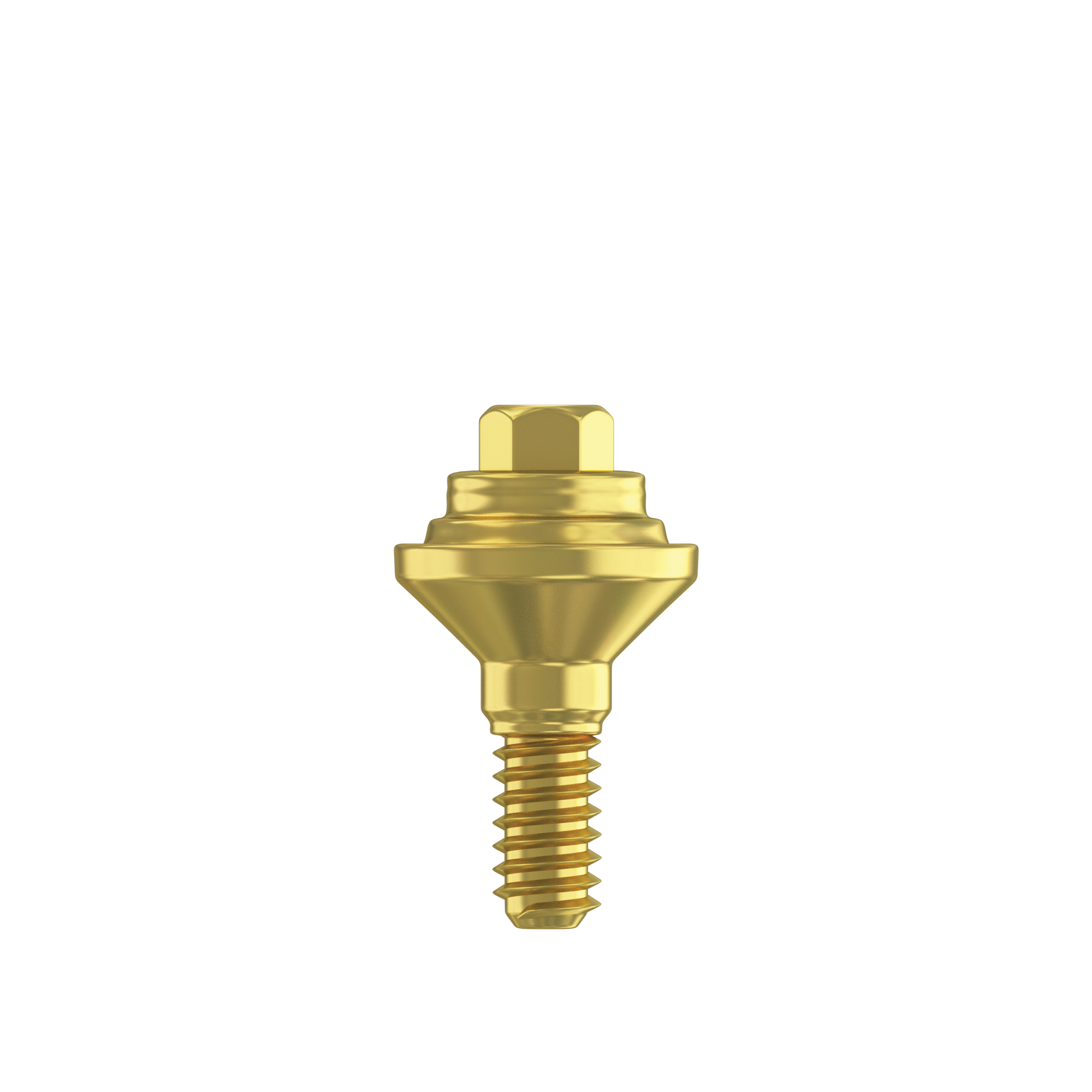

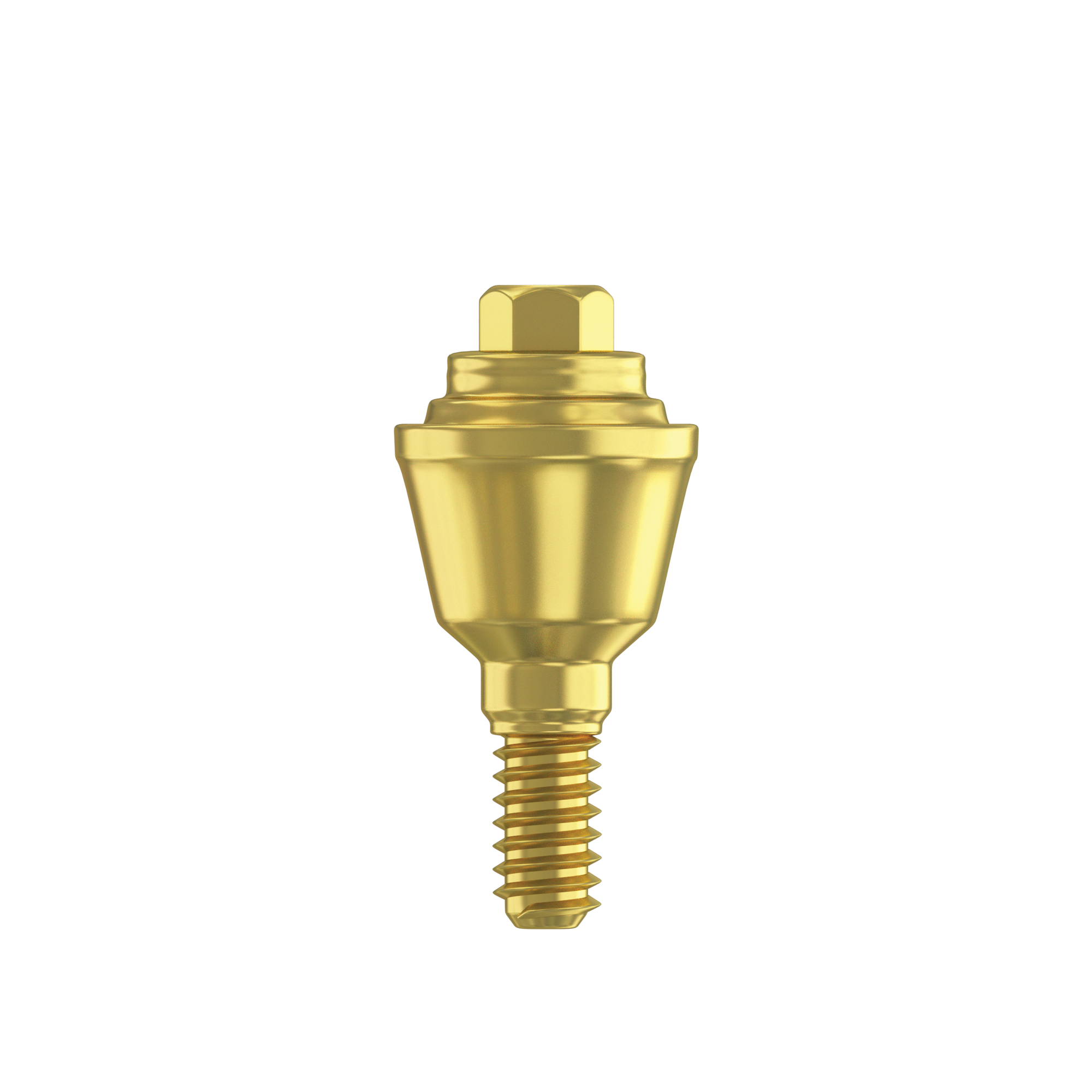

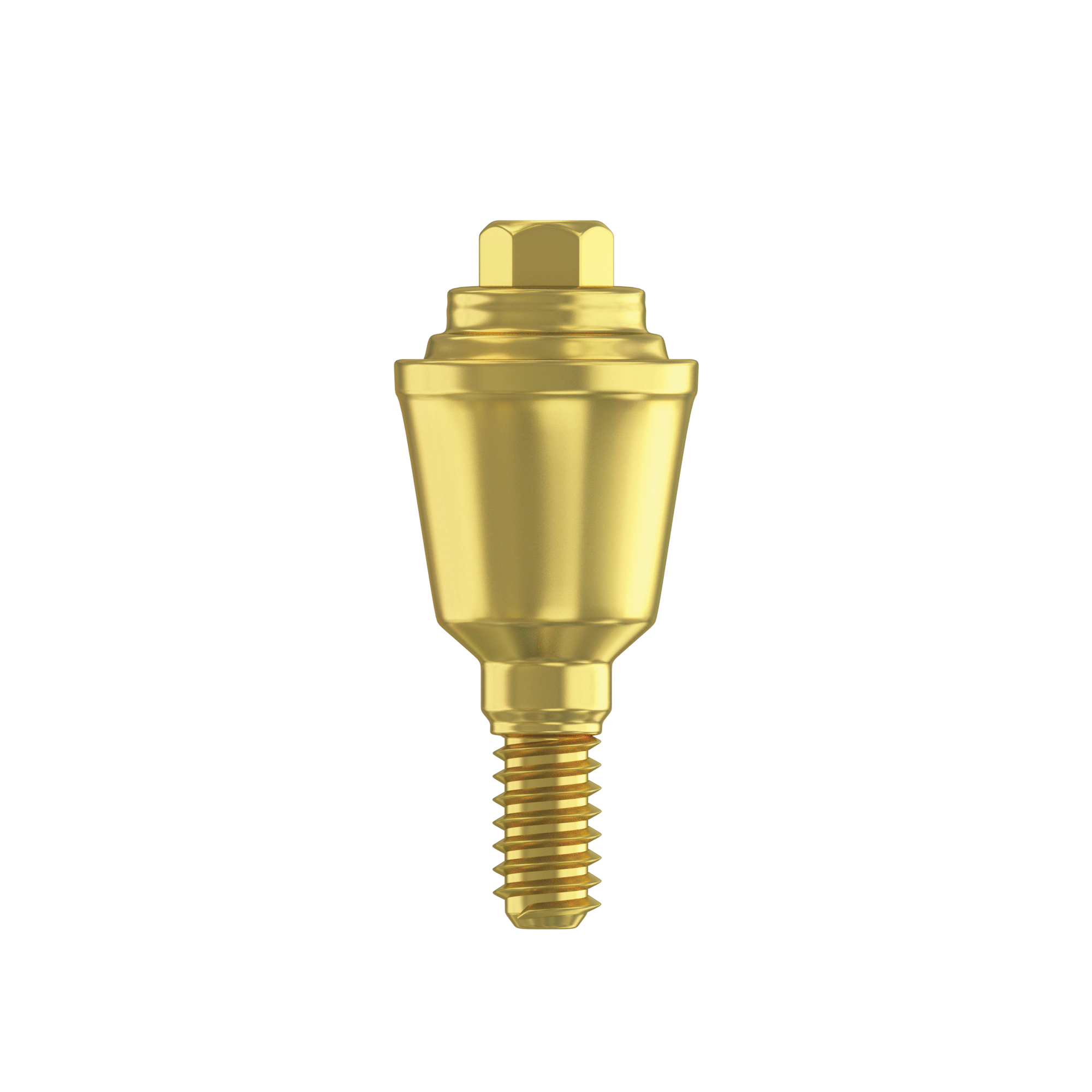

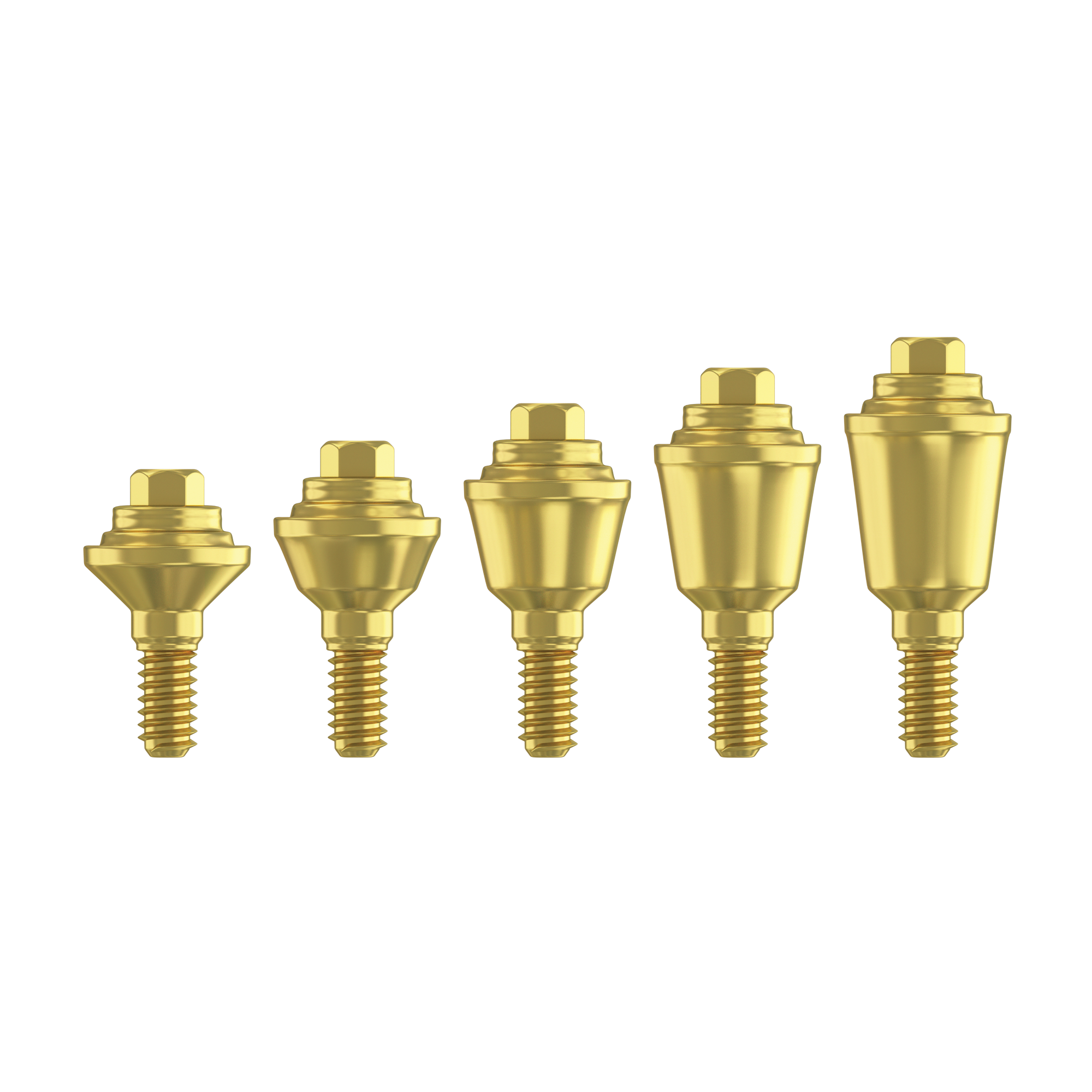

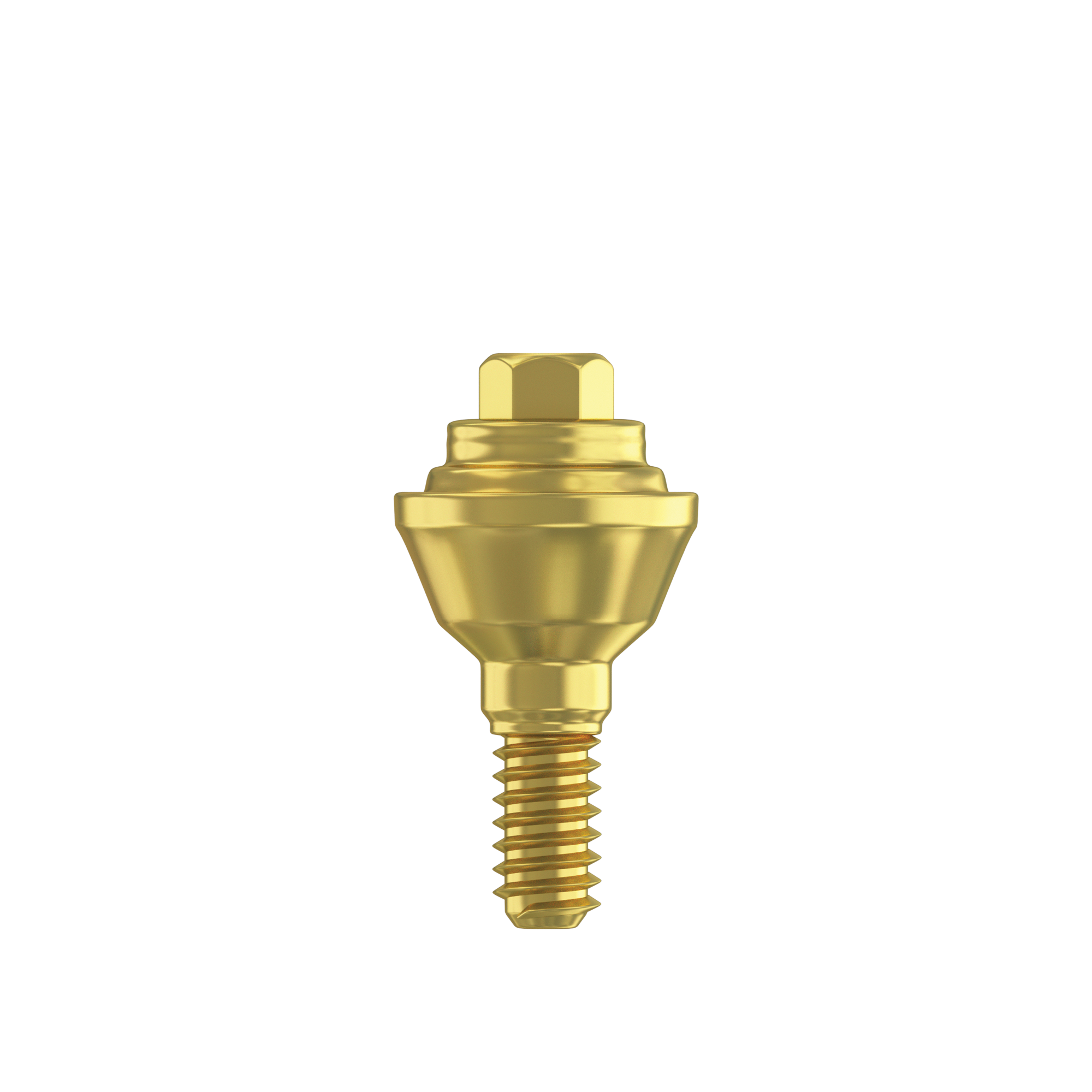

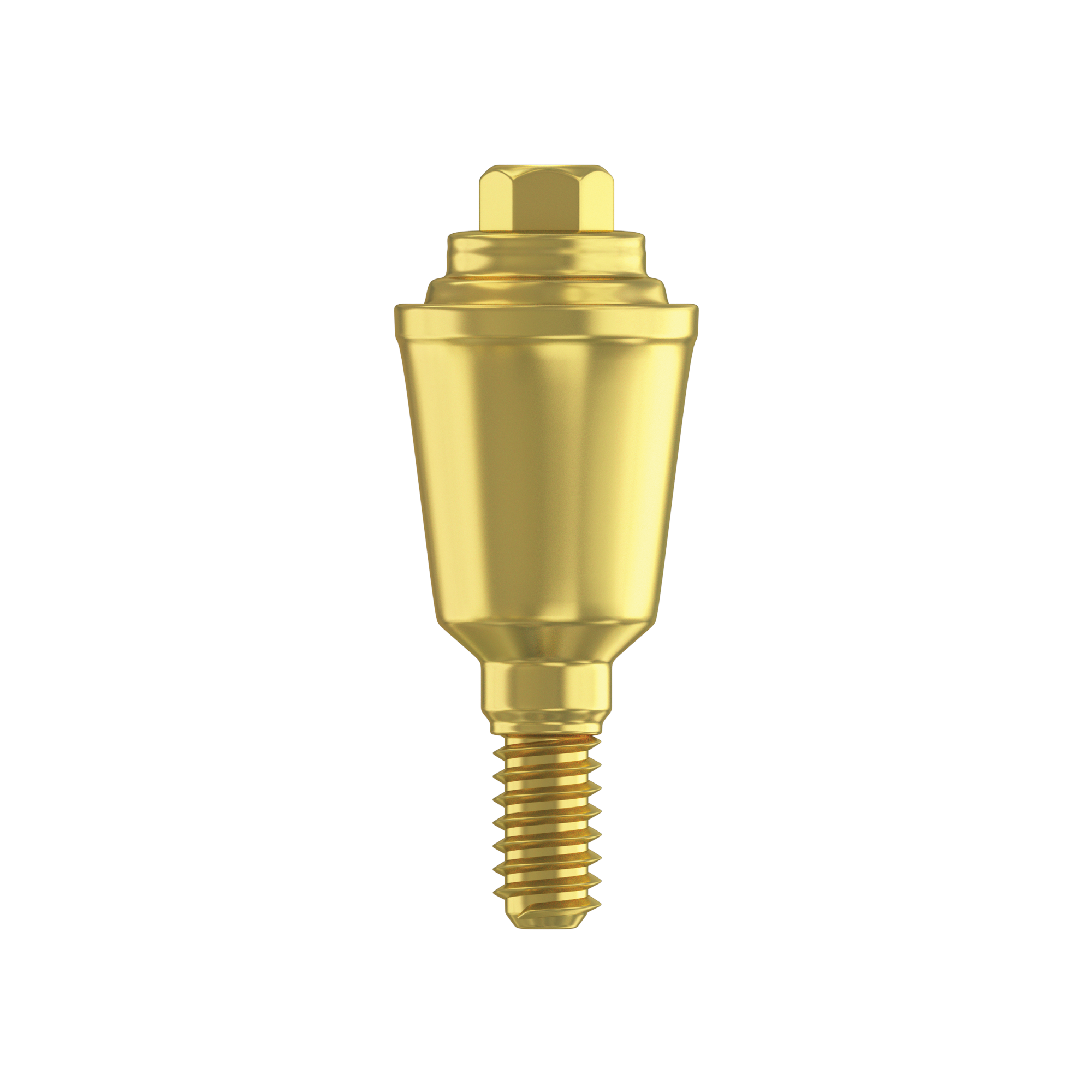

- MUA-NO-10, MUA-NO-20 , MUA-NP-30 , MUA-NO-40 , MUA-NO-50: Straight Multi Unit Abutment Ø5.0mm ,1.0-4.0mm x1
And the following parts:

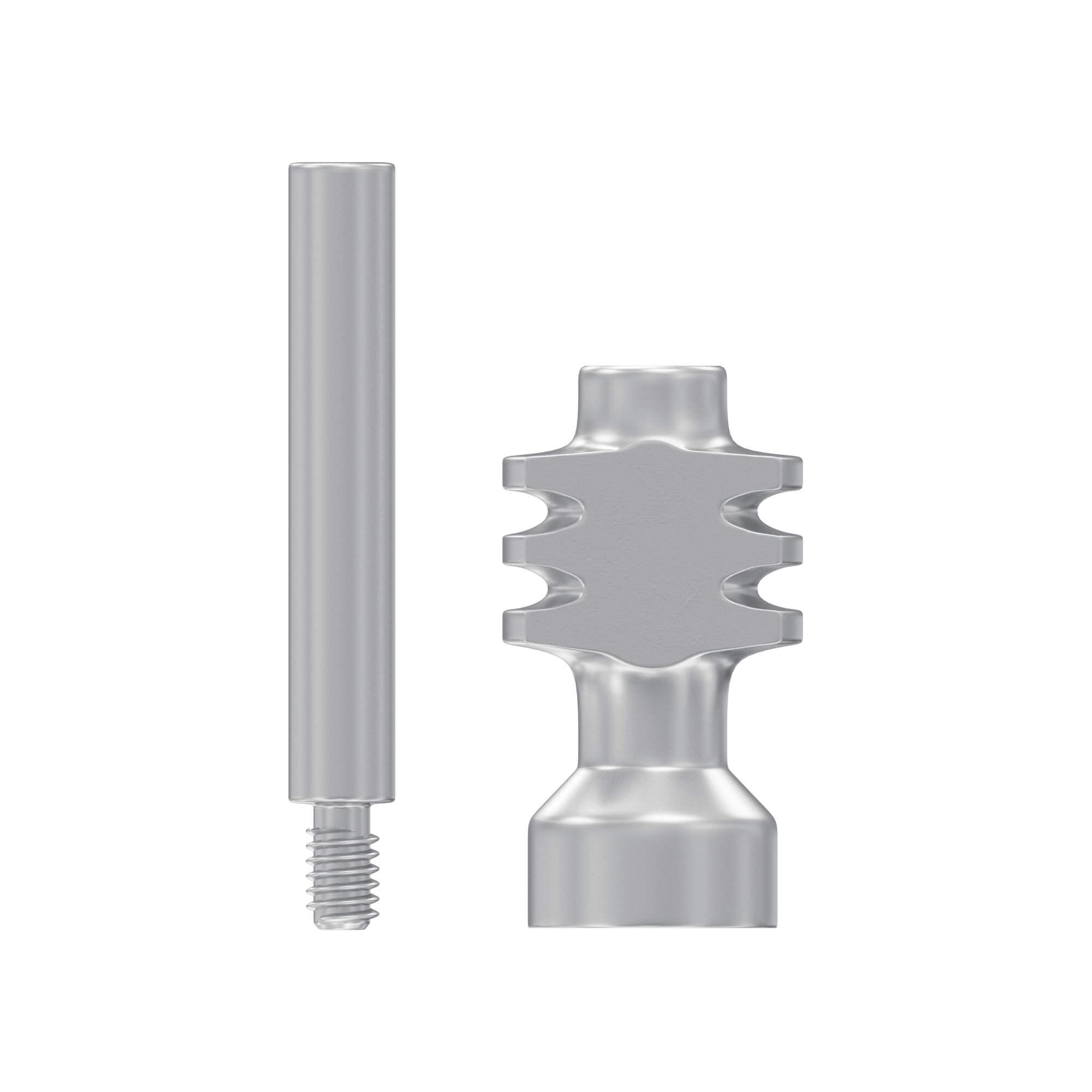

- MU-NO-OT: Open Tray Transfer + screw Ø 4.9mm , L=9.0mm, H=11.0mm x 1

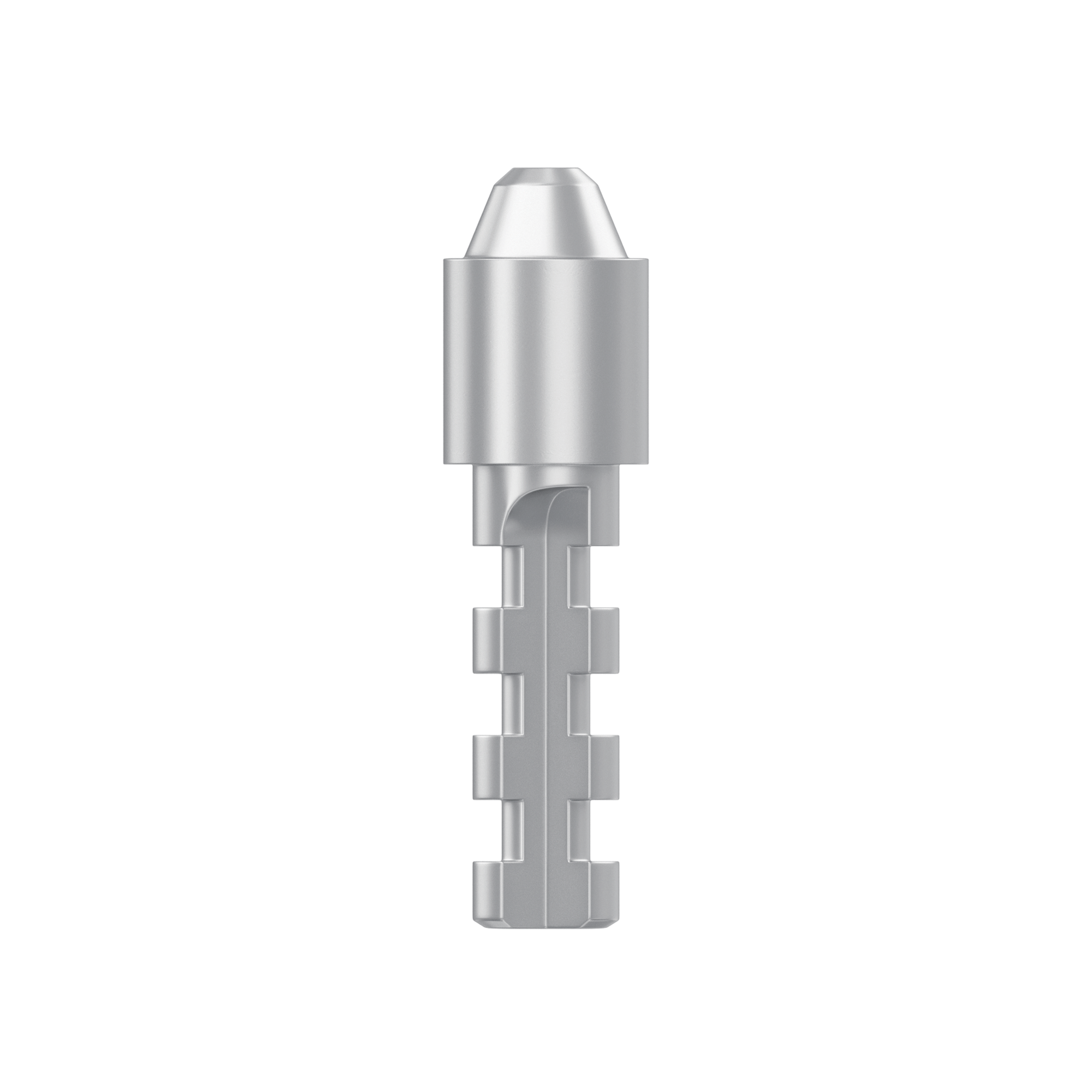

- MU-ANNO: Titanium Analog Ø 4.9mm , L=11.0mm, H=18.0mm x 1

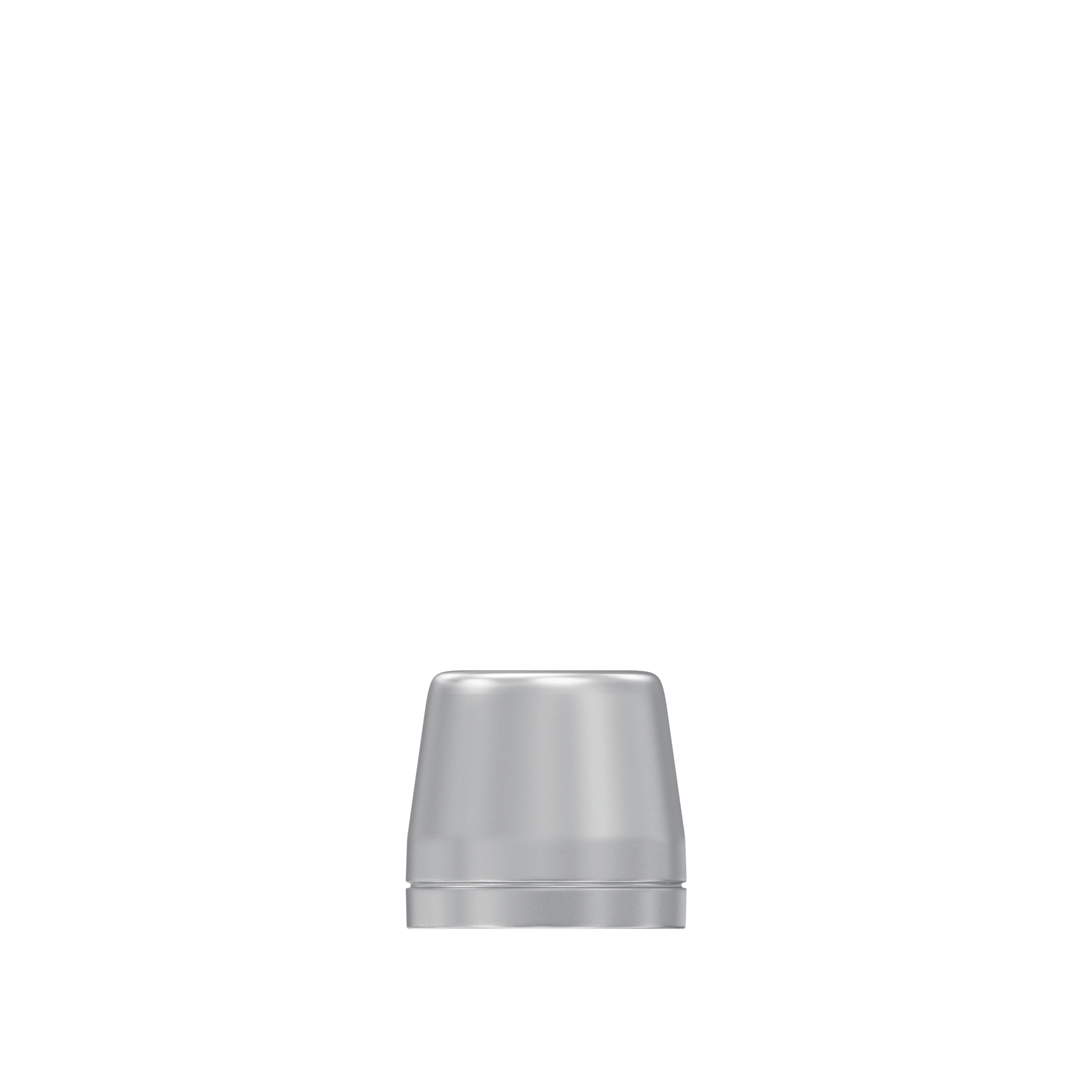

- MU-NO-HC: Healing Cap Ø 4.9mm , L=3.7mm, H=4.7mm x 1

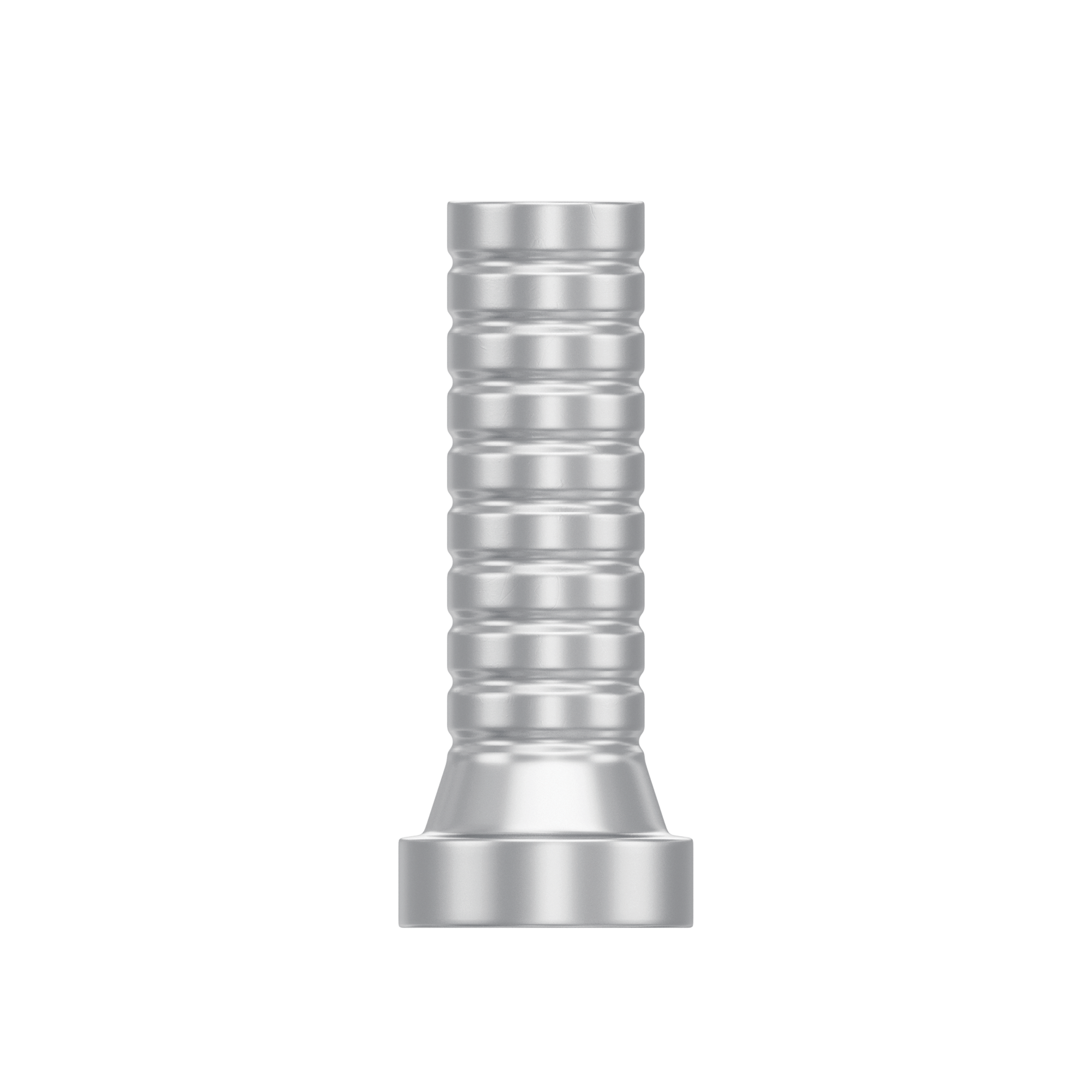

- MU-S-ST14: Titanium Sleeve Abutment Ø 4.9mm , L=11.0mm, H=12.0mm x 1

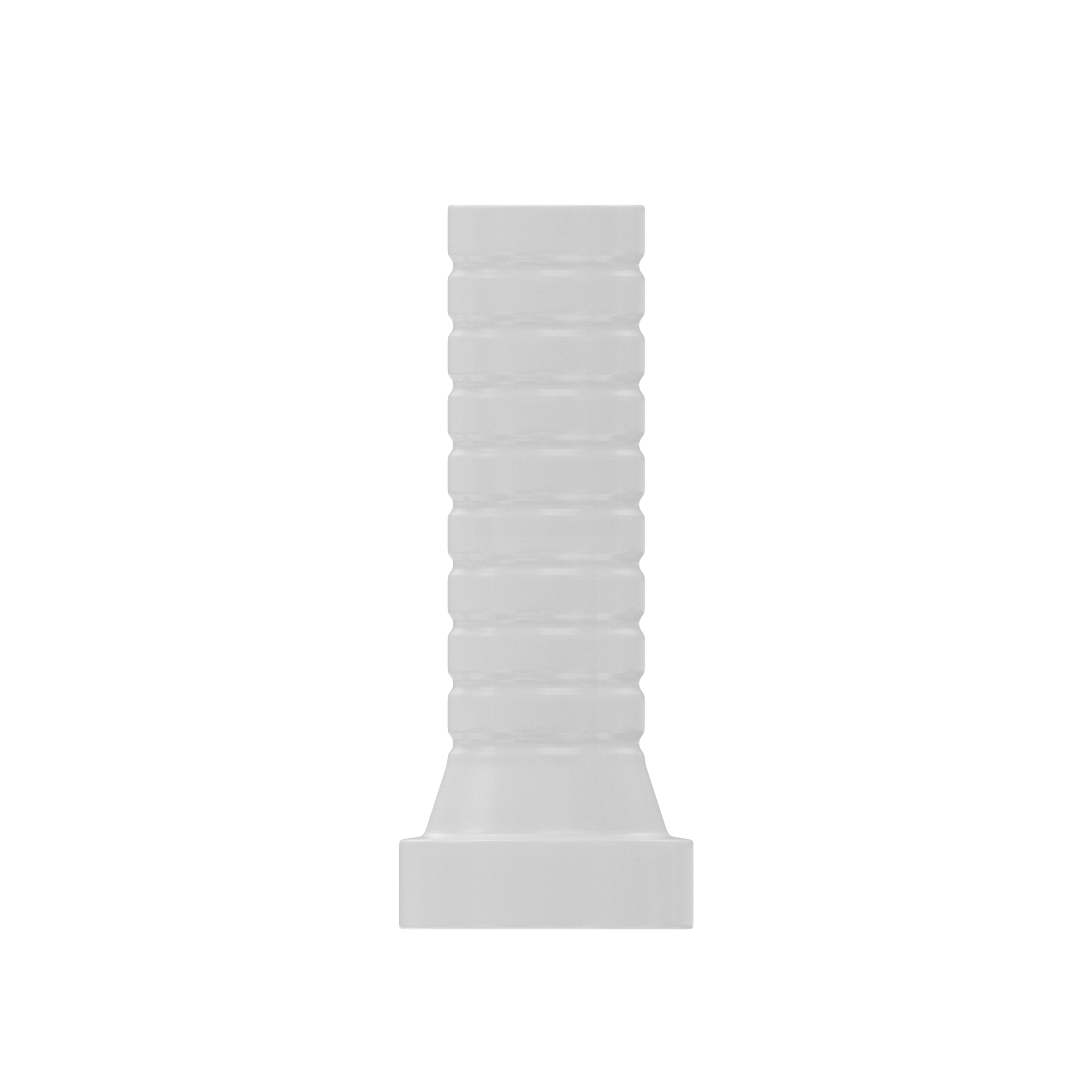

- MU-S-SP14: Castable Sleeve Abutment(for Lab) Ø 4.9mm , L=11.0mm, H=12.0mm x 1

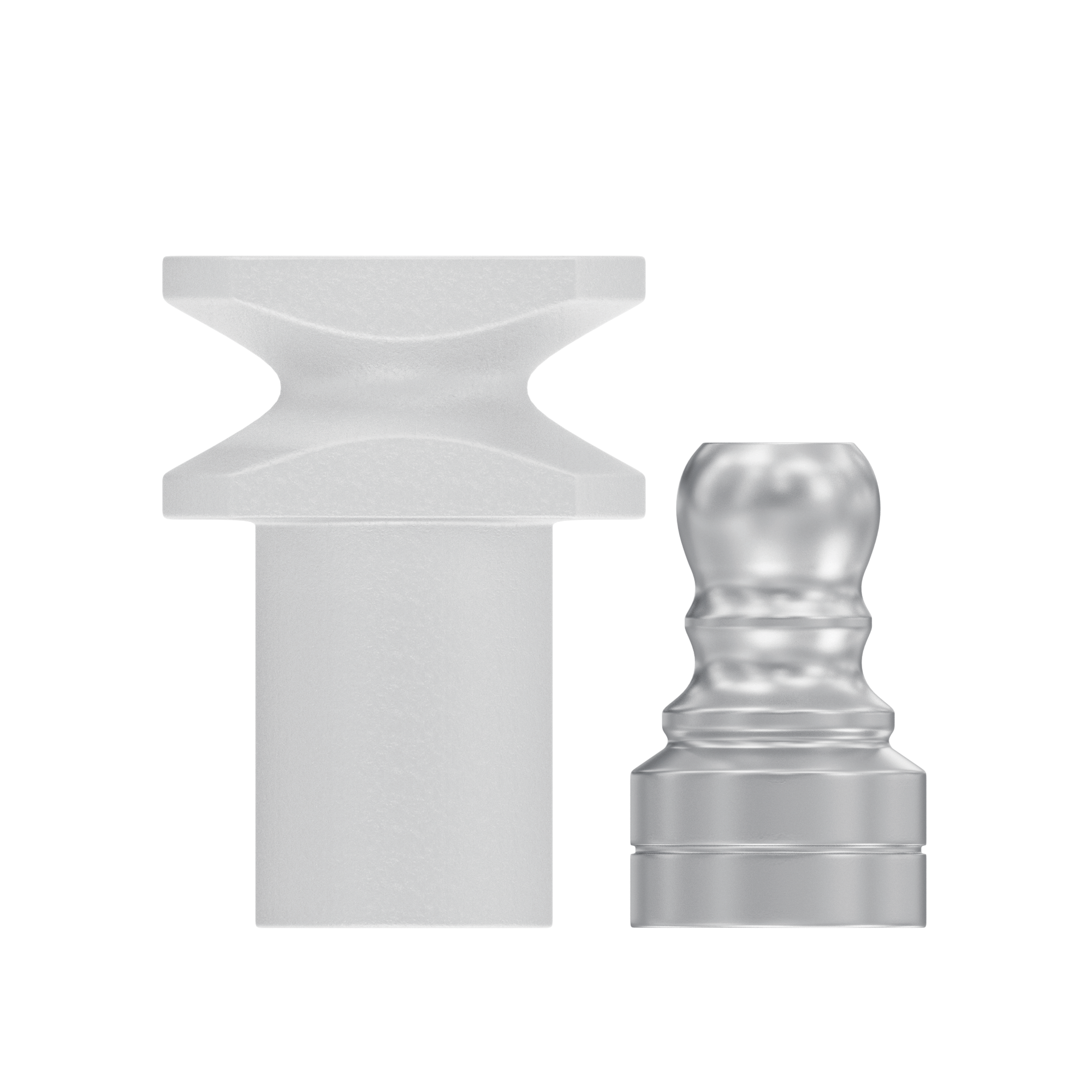

- MU-NO-CT: Snap On Cap for closed transfer Ø 4.8mm , L=6.8mm, H=11.0mm x 1
- MU-NM-CT: Closed Tray Transfer Ø 4.8mm , L=5.0mm, H=8.0mm x 1

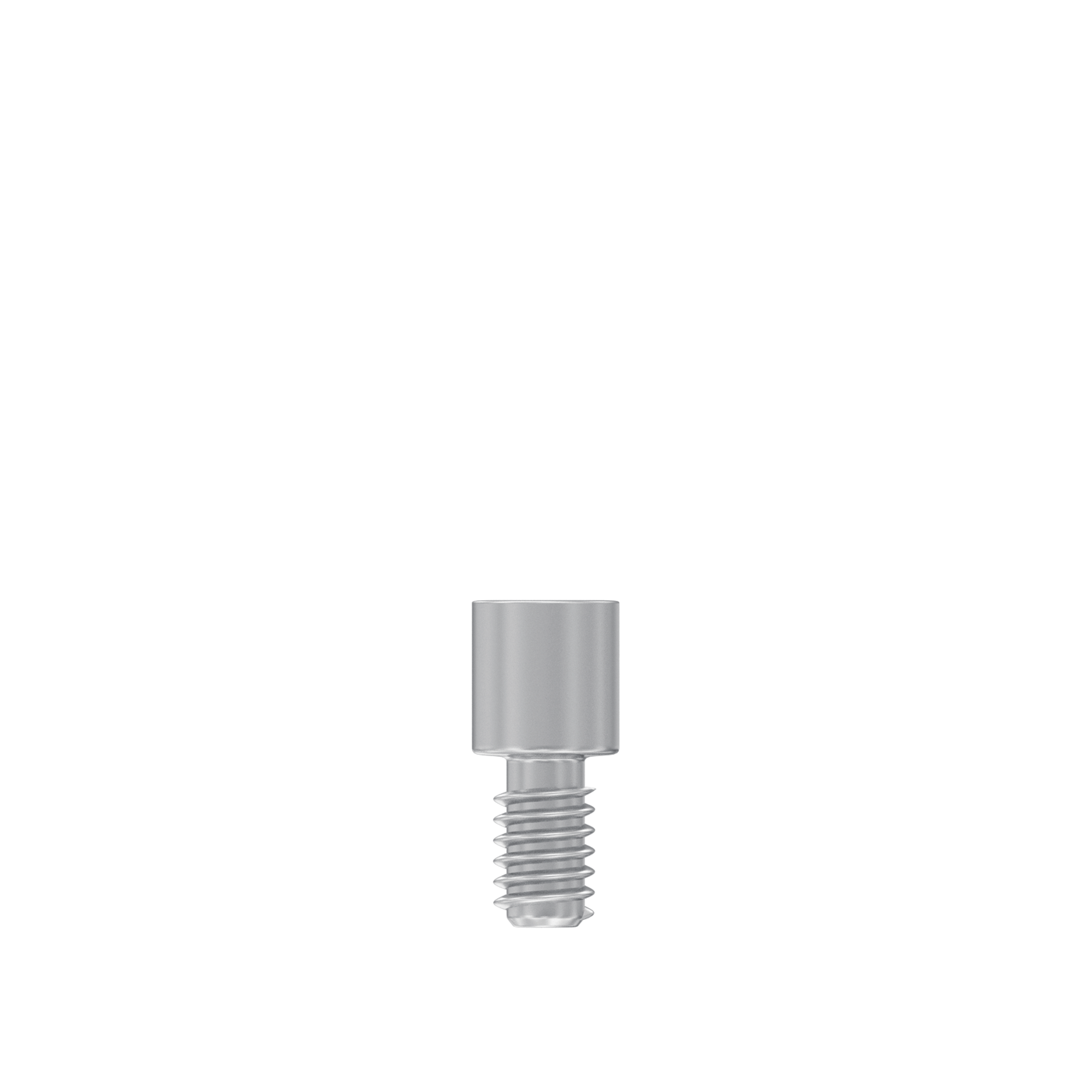

- MU-TX-FX: Fixation Short Screws Ø 2.0mm , L=2.2mm, H=4.2mm x 2

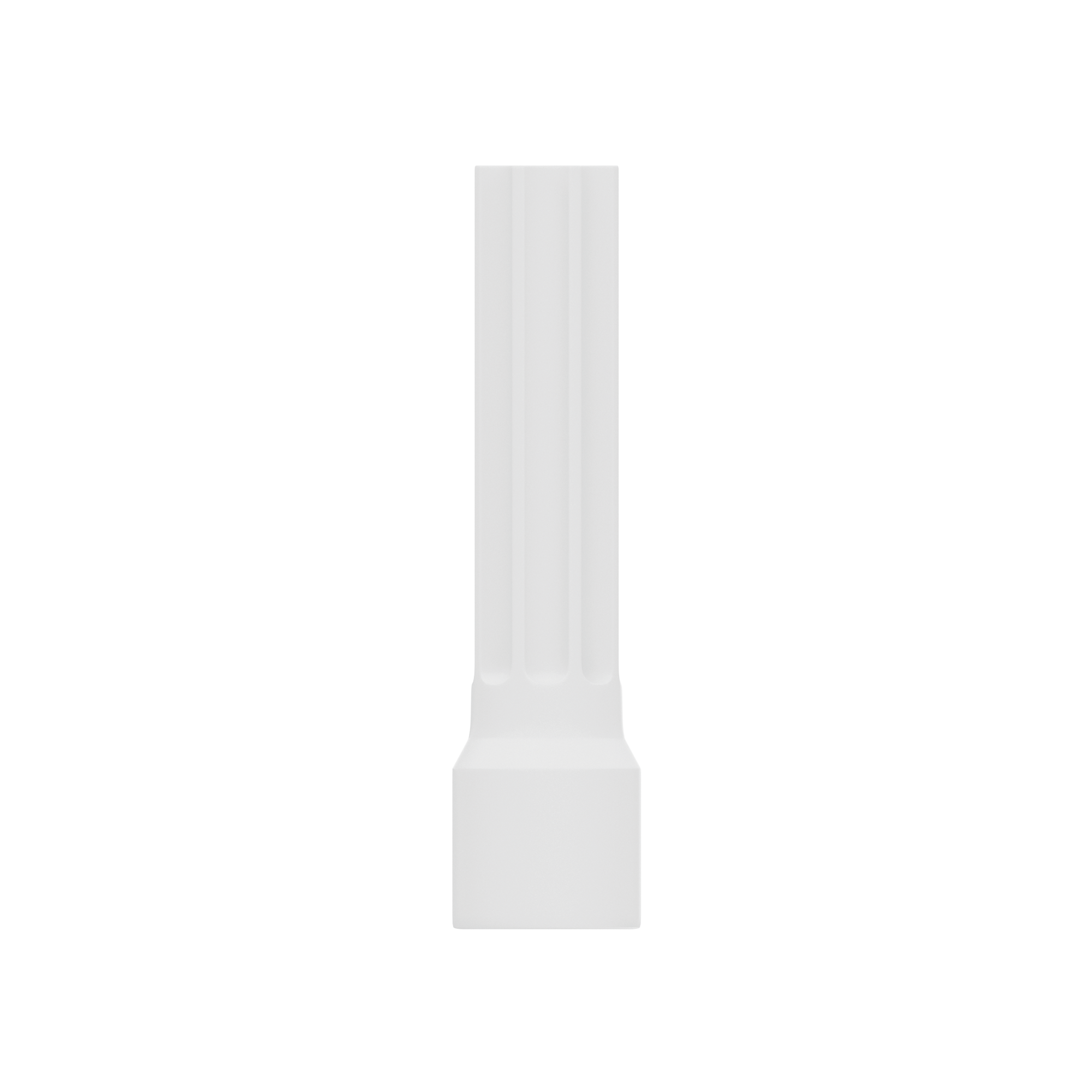

- PUD-M14: Plastic Holder Ø 4.9mm , L=15.0mm, H=20.0mm x 1
Indications:
- Single Crown
- Multiple teeth
- Complete bridges
- Fabrication of long-term/permanent restorations
- All-on-4,All-on-6
Features:
- Excellent biocompatibility, no risk of abruption.
- Precise, non-rotational, functional.
- Simple, fast, and accurate positioning.
- Outstanding stability for the crowns and bridges
- Superior aesthetic results.
Technical information:
- Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
- Regular platform - Ø4.9mm / collar height 1.0-5.0mm
- Implant Level Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
- Multi Unit level Connection M1.4 Compatible with : Nobel Biocare and DSI premium multi-unit abutments M1.4
- Titanium alloy Ti-6Al-4V grade 23 ELI
- 1 Straight MUA + Accessories (see description)
Collar 1-5mm Selection
