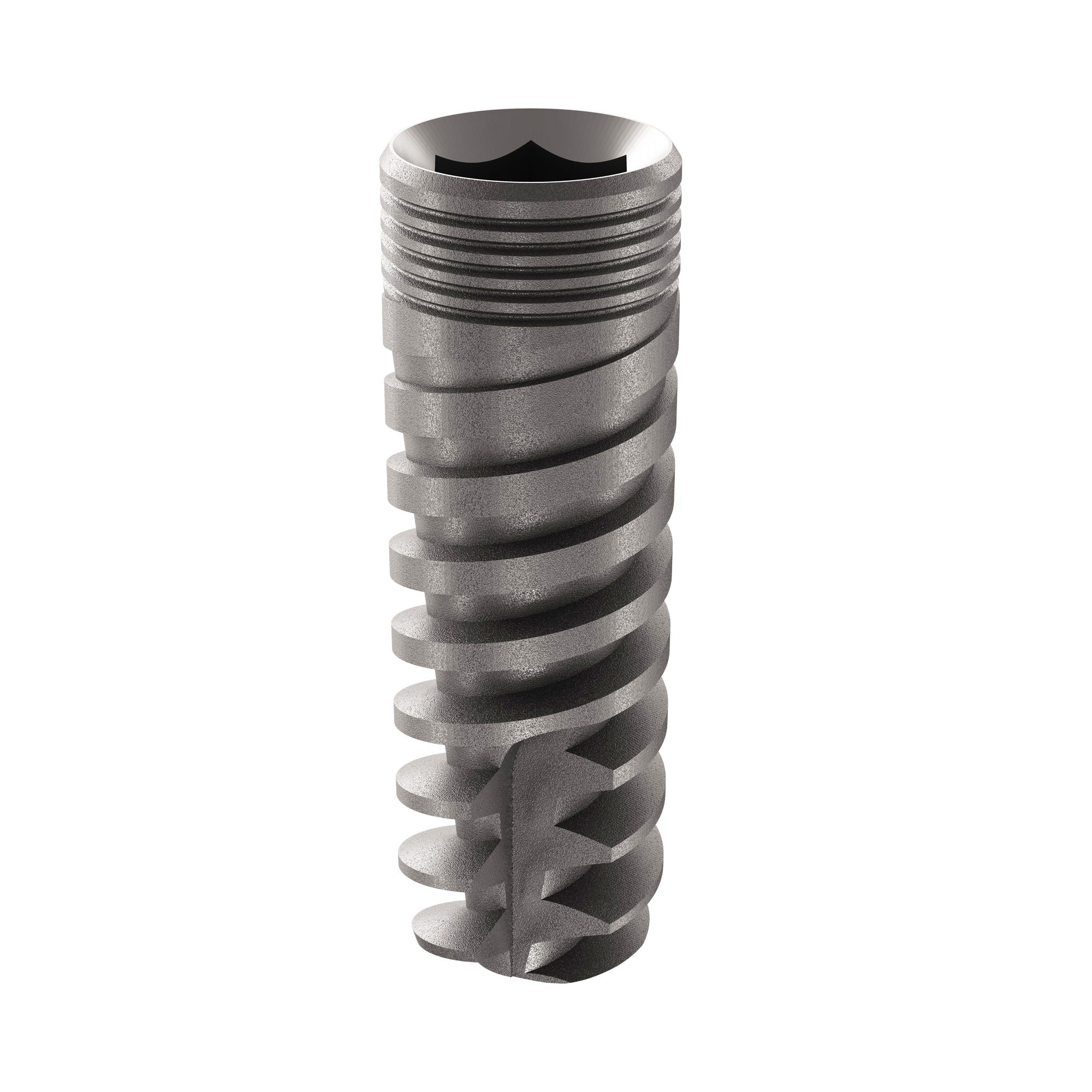

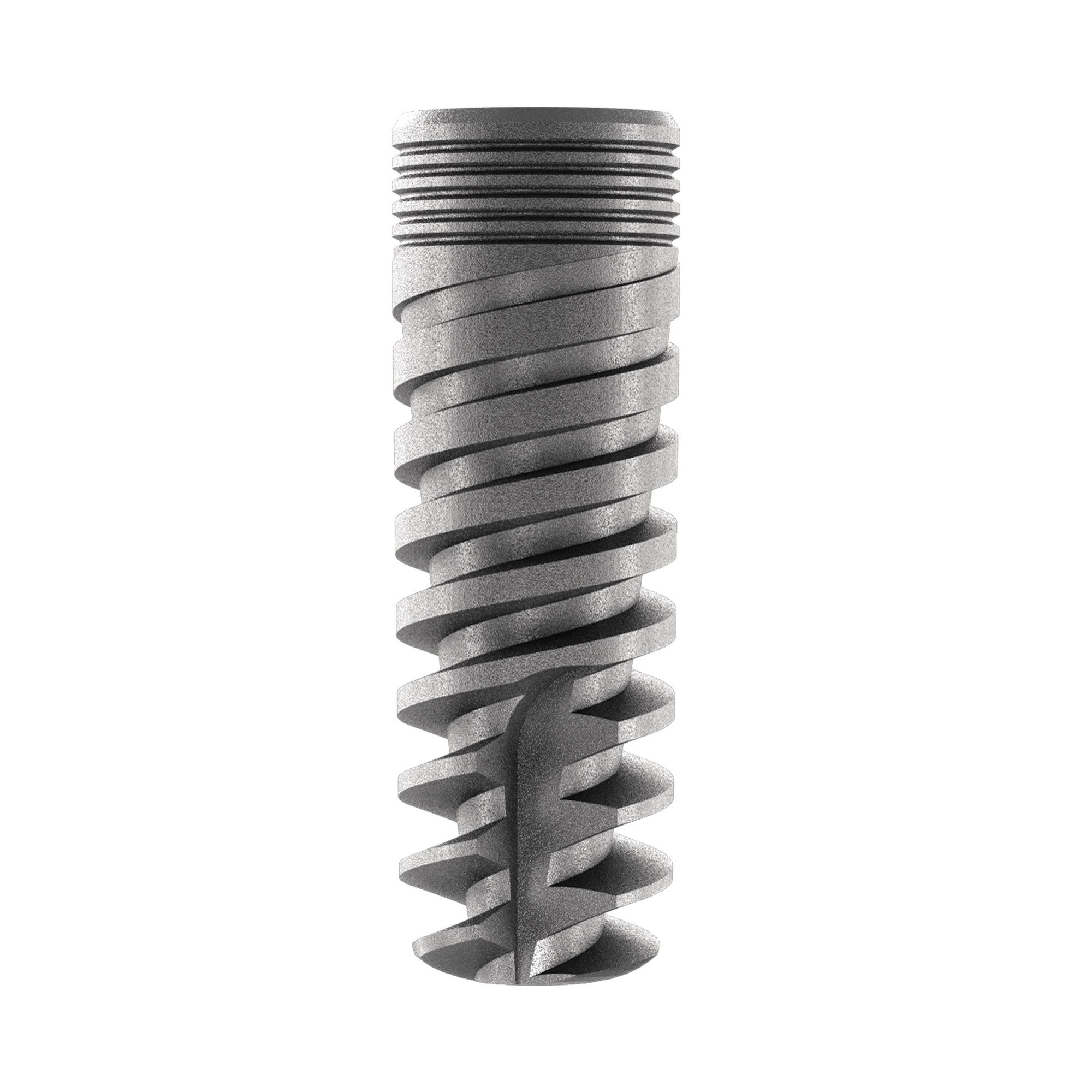

Green Line Spiral Implant

DSI Premium Spiral Implants Green Line maintains a perfect balance between high primary stability and sensitivity to the bone. These implants enable easy insertion into the socket allowing immediate loading and sustaining exceptional initial stability even in soft bone.

The special design with the reverse-cutting flutes allows slight adjustment for repositioning the implant during the surgery, for an optimized restorative orientation, particularly in extraction sites. The flat apex and solid anchor in softer bone make it an excellent choice for impacting the maxillary sinus floor for “sinus bump” procedures.

Indications:

• Immediate loading.
• Traditional 2-stage protocols.
• Both single and multi-implant restorations
• Can be used for all bone types

Advantages:

• Made of titanium alloy grade 5 Ti-6Al-4V ELI.

• SLA surface treatment for better osseointegration.

• Connection 2.42mm Internal Hex, accepts the full range of the DSI Prosthetic component.
• Platform switching.

• Simple, easy, and fast prosthetic fit and restoration process.

• Large surface area and long-term BIC.

• Improved stress distribution and reduced pressure on the bone

• Smooth and gentle bone penetration with high primary stability

• Ideally suited for both immediate loading and traditional 2-stage protocols.
• FDA Approved

SLA Surface Treatment:

The classic SLA surface, short of «Sand-blast, Large grit, Acid-etch» is based on a large aluminum oxide Al2O3 particles sandblasting technique that generates a macro-roughness on the titanium surface. Sandblasting is followed by an acid-etching batch at high temperatures. As a result, subtle-sized 2-5 micron micropores appear at the implant surface. This unique macro/micro-topography provides an ideal structure for cell attachment while reducing the possibility of bacterial colonization. SLA surface treatment is one of the most used in modern dental implantology. The studies confirmed its strong long-term performance, high mechanical stability, and low odds of developing peri-implantitis. DSI has improved the process, making it hands-free and minimizing the aluminum oxide residuals that may remain on the surface and could significantly impair osseointegration.
