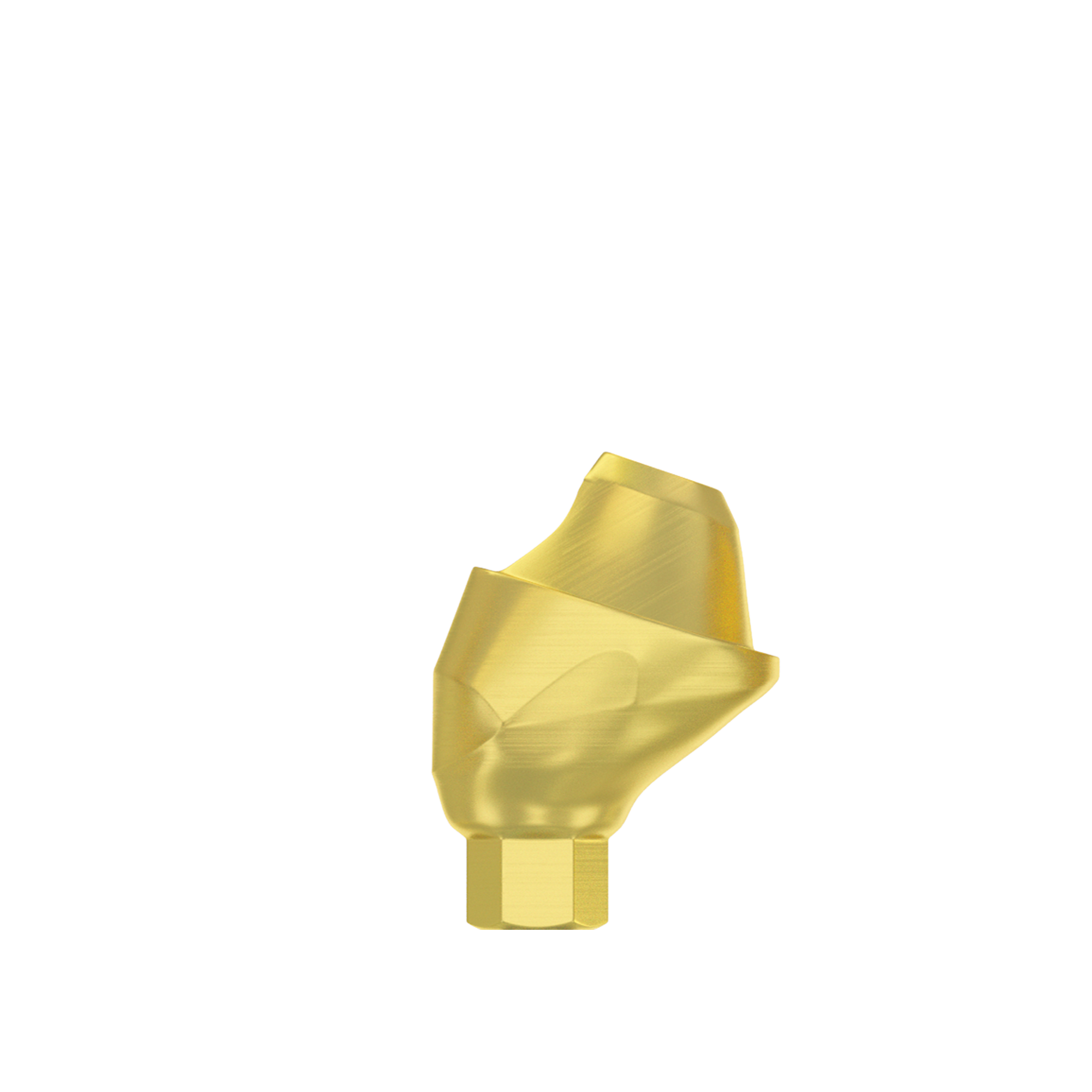

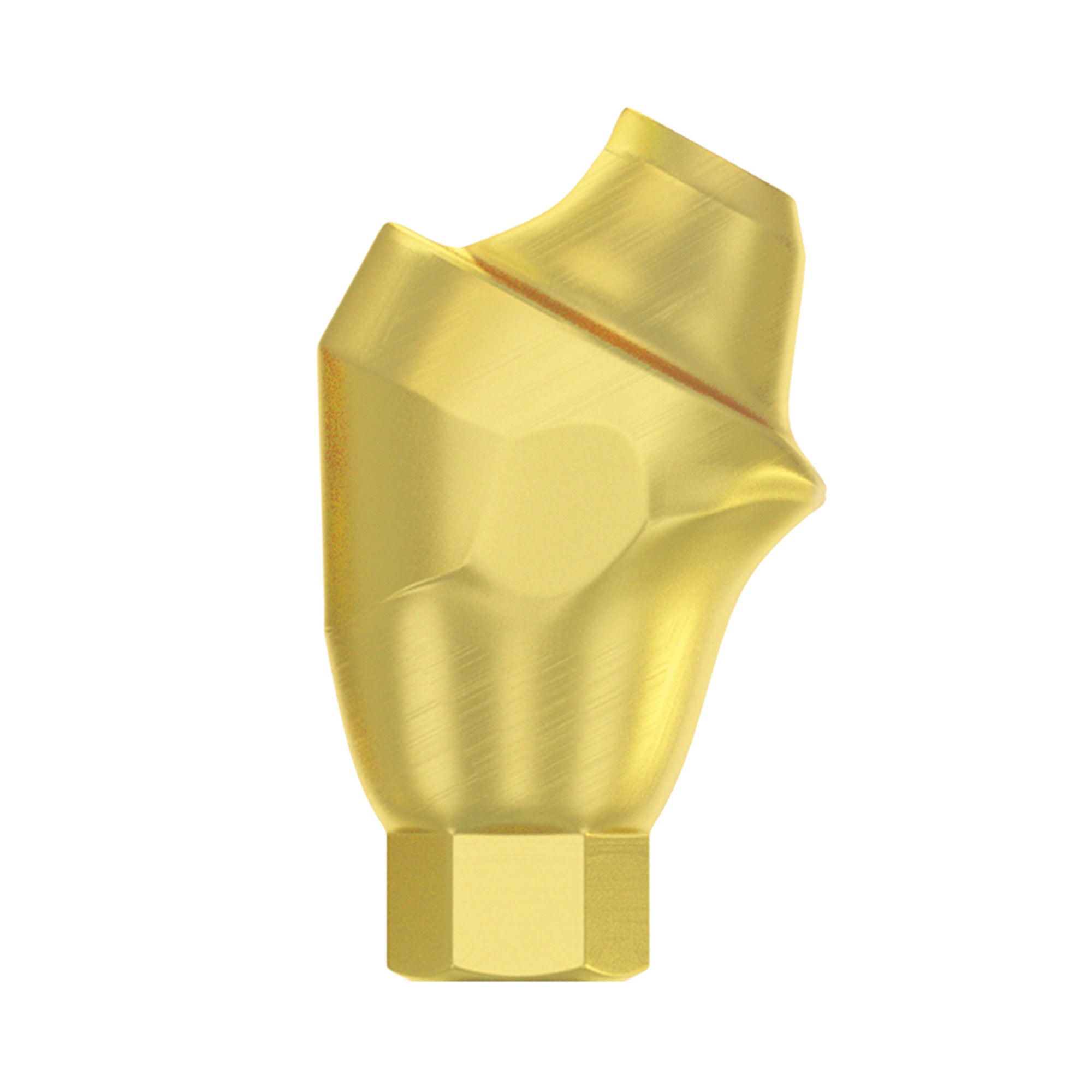

The DSI Premium Angulated Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.
DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals
- DSI Premium multi-unit Time-proven design Allows, work with different implants (regular hexagonal, narrow, conical) without changing the restoration at the multi-unit level
DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.
Indications:
- Multiple teeth
- Complete bridges
- Fabrication of long-term/permanent restorations
- All-on-4,All-on-6
- For non-parallel implant alignment cases
Features:
- Excellent biocompatibility, no risk of abruption.
- Precise, non-rotational, functional.
- Simple, fast, and accurate positioning.
- Outstanding stability for the crowns and bridges
-
Superior aesthetic results.
Technical information:
- Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
-
Narrow Platform NP - Ø4.8mm / collar height 1.0-2.0mm
-
Implant Level Connection Conical Connection NP Ø3.5mm, compatible with: DSI Conical NP, NobelActive® NP platform Ø3.5mm
-
Multi Unit level Connection M1.6 Compatible with : DSI®, MIS®,

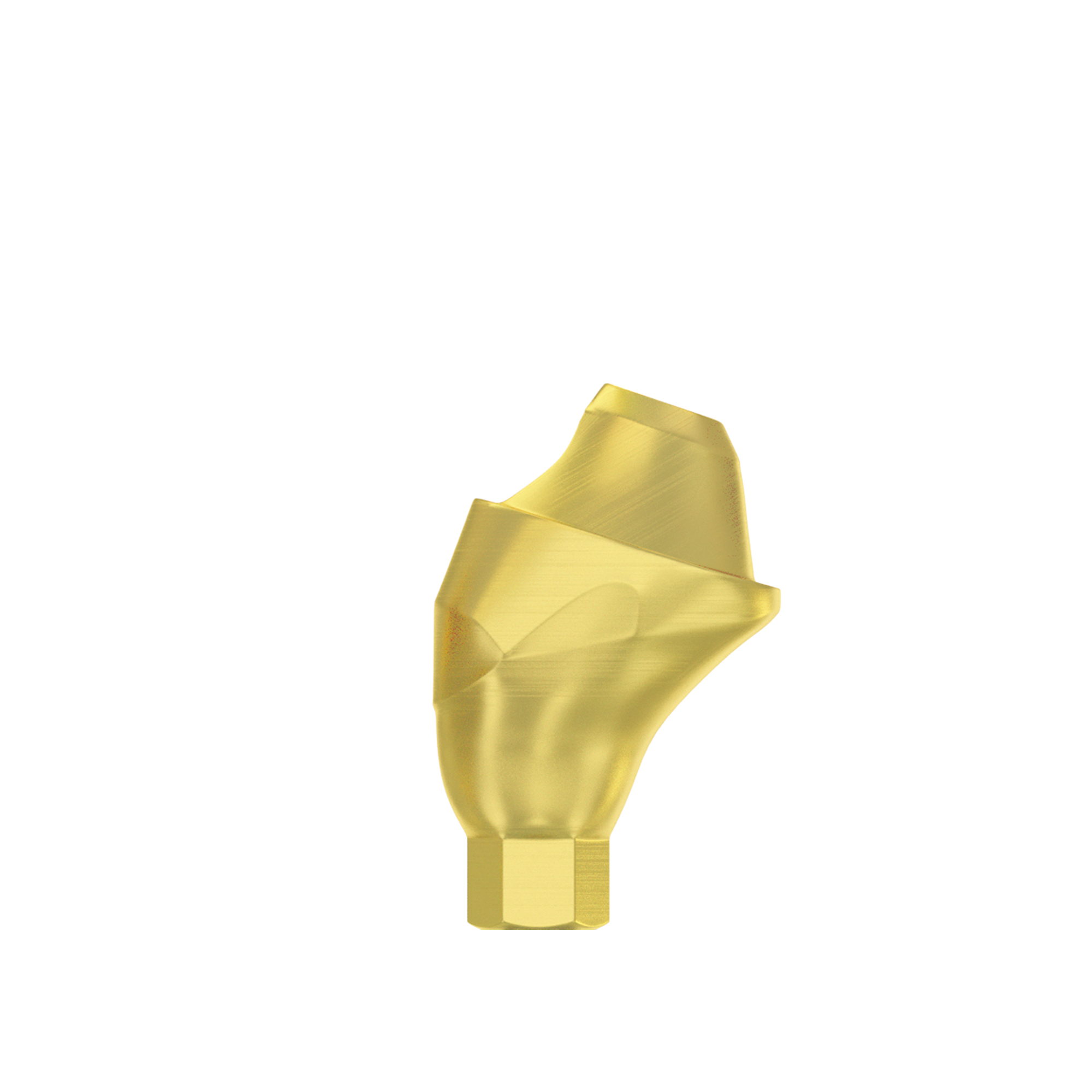

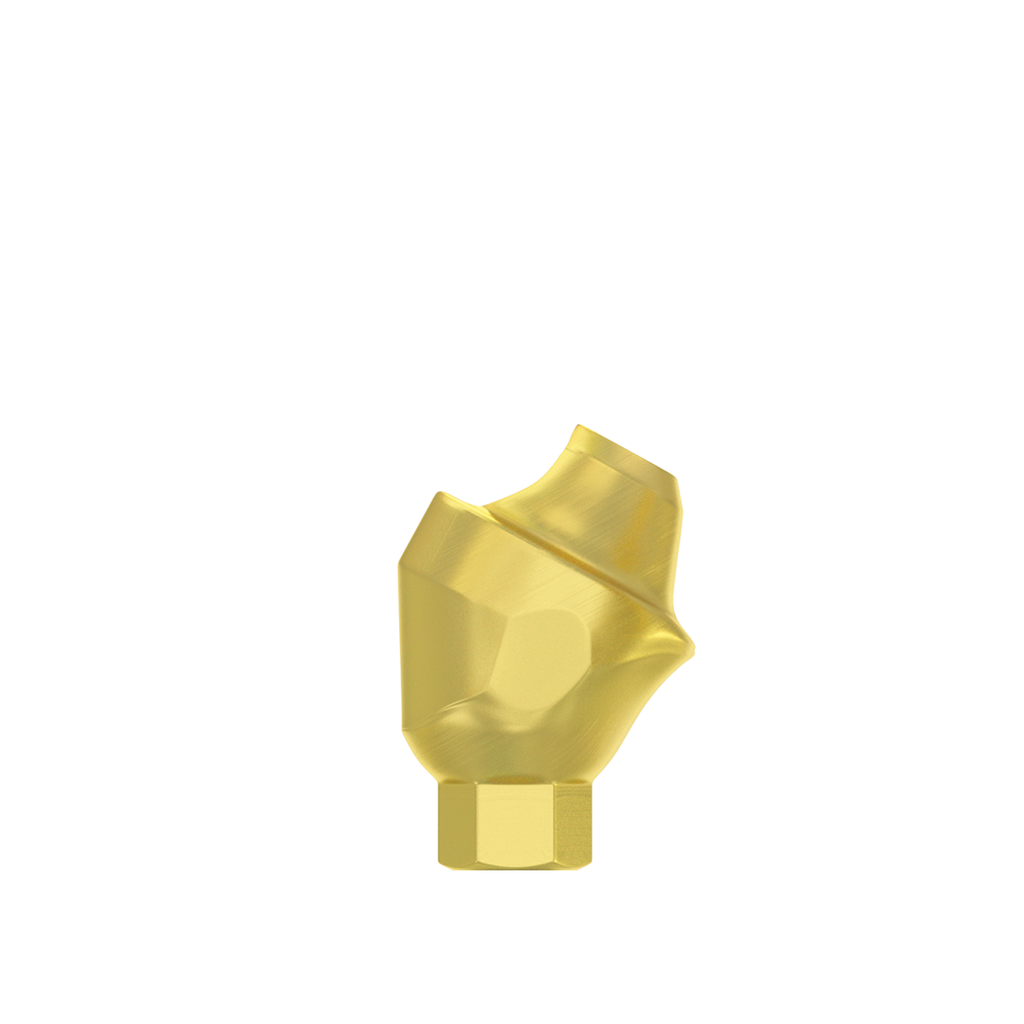

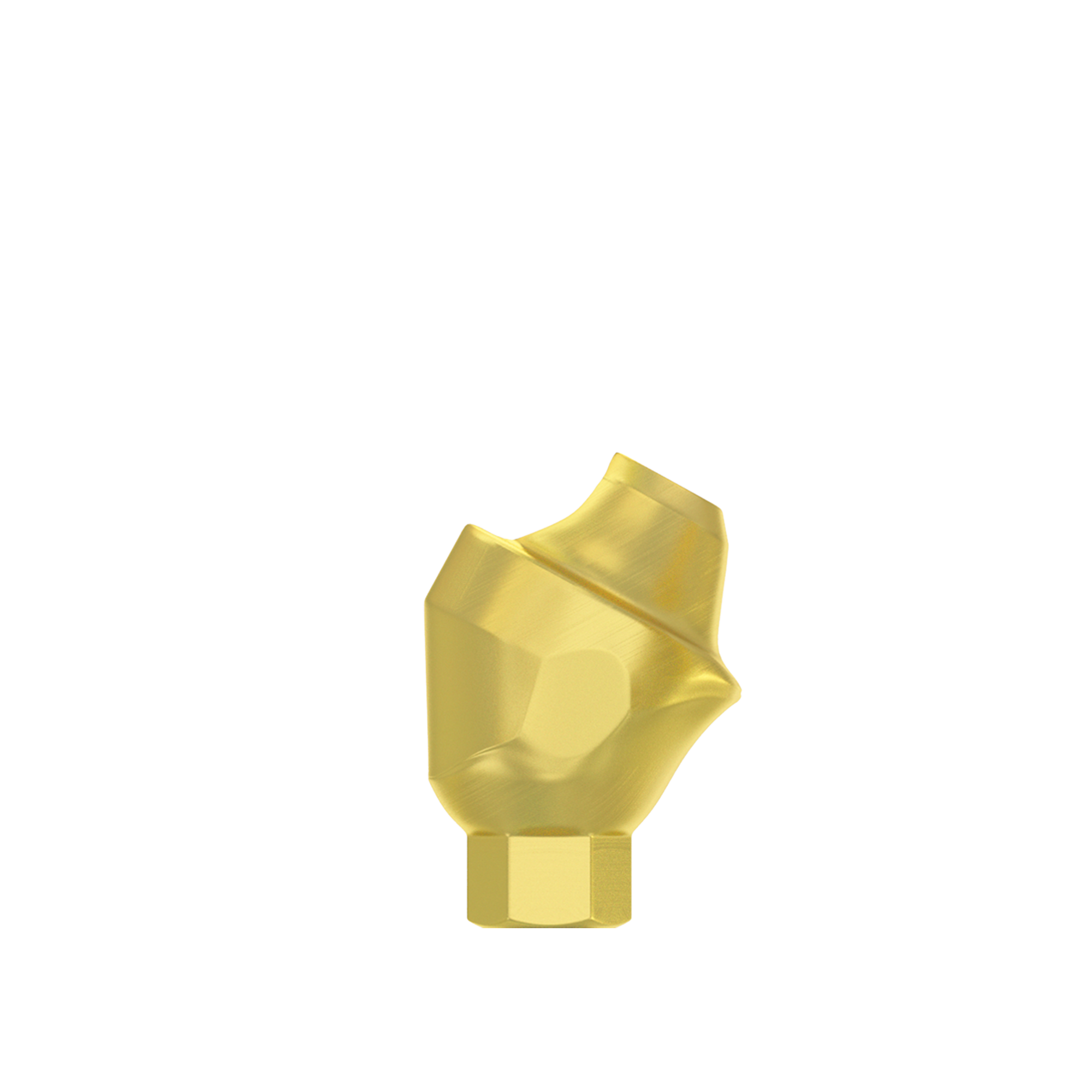

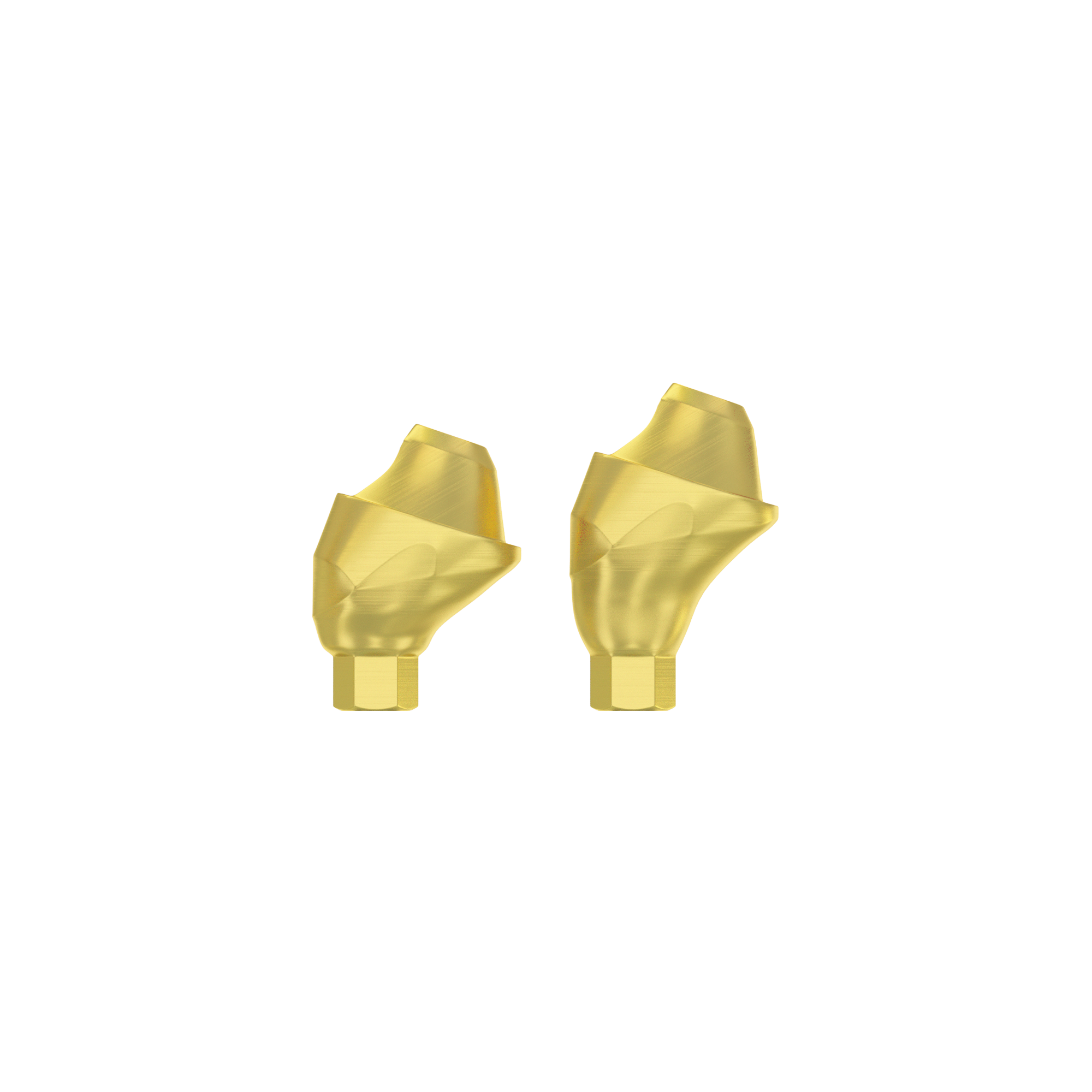

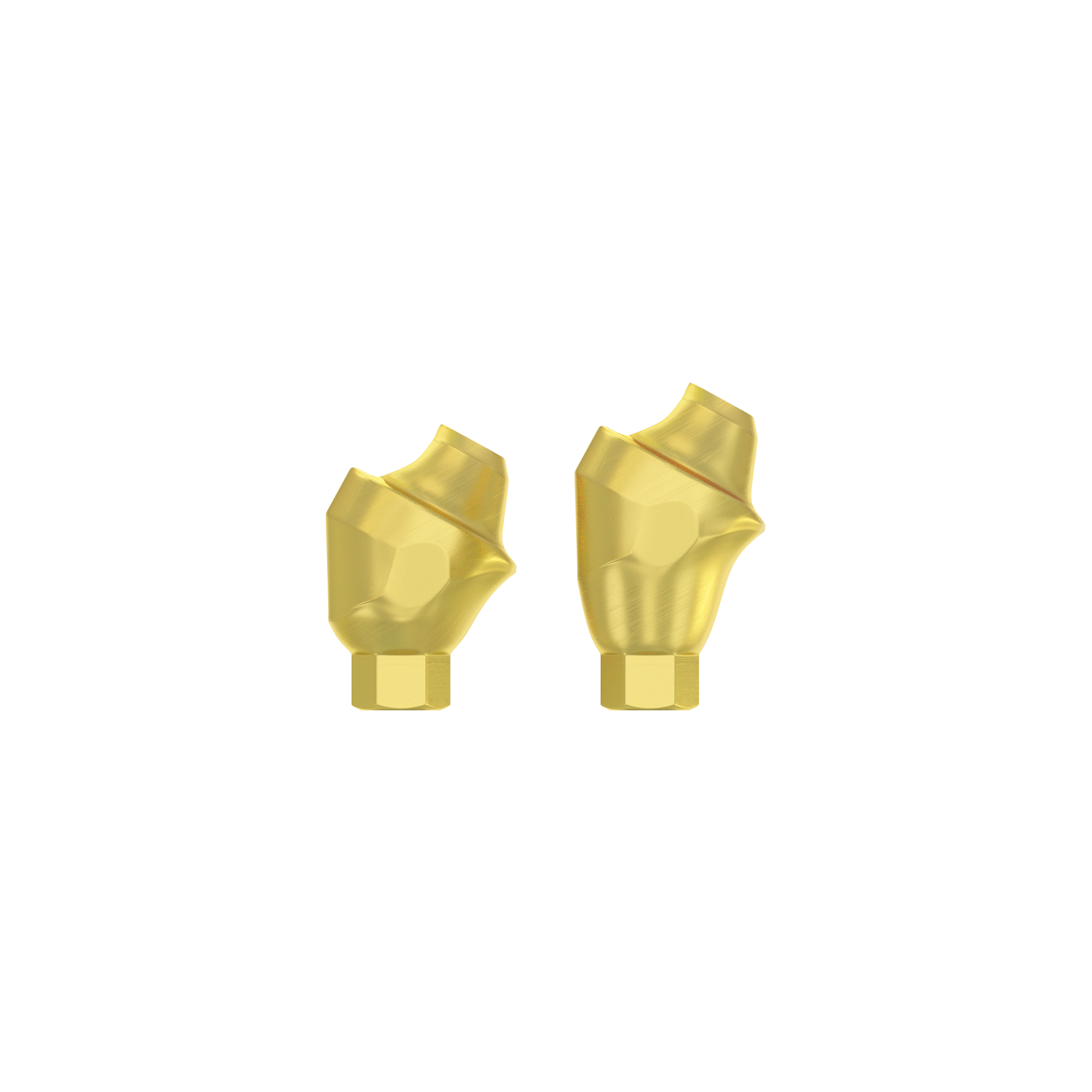

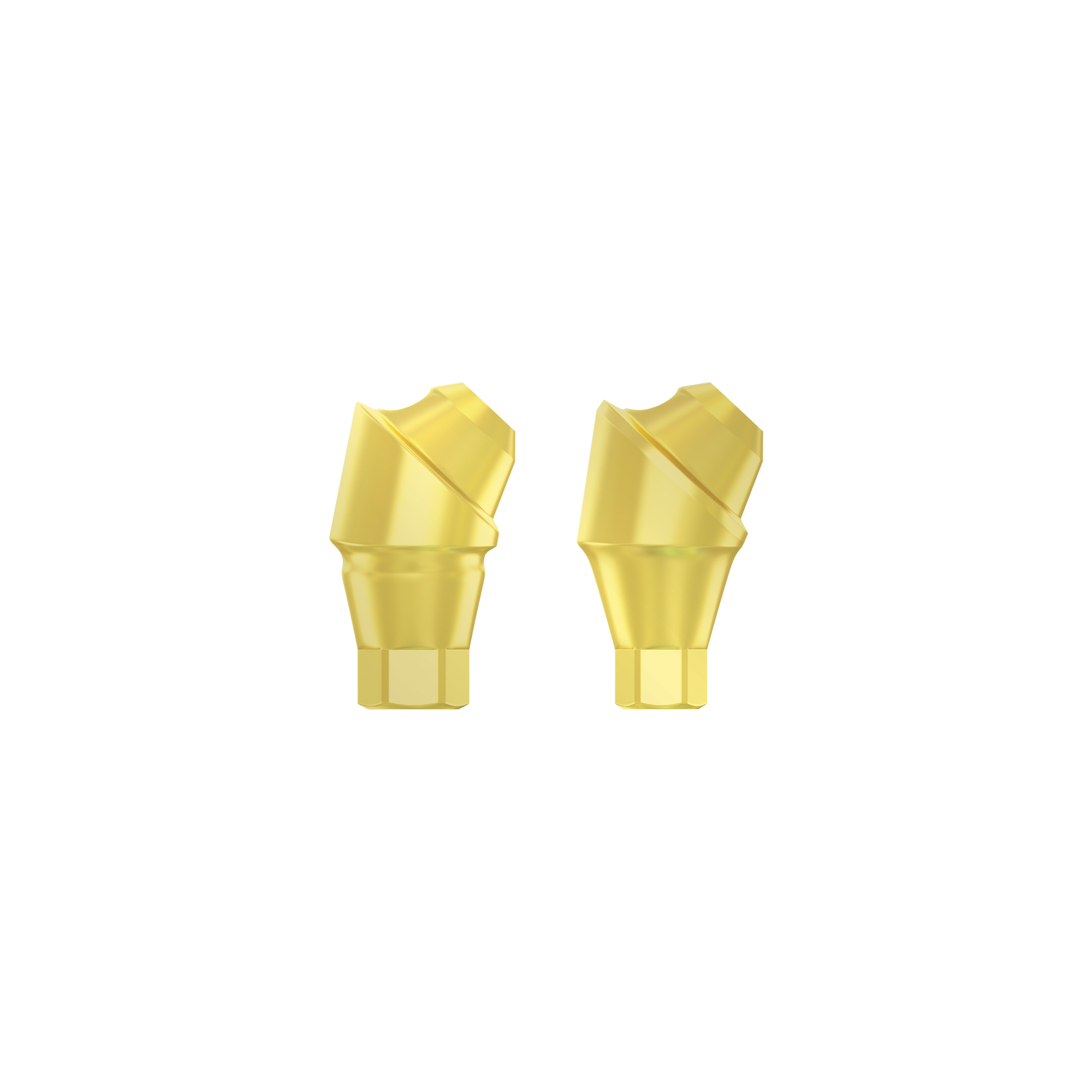

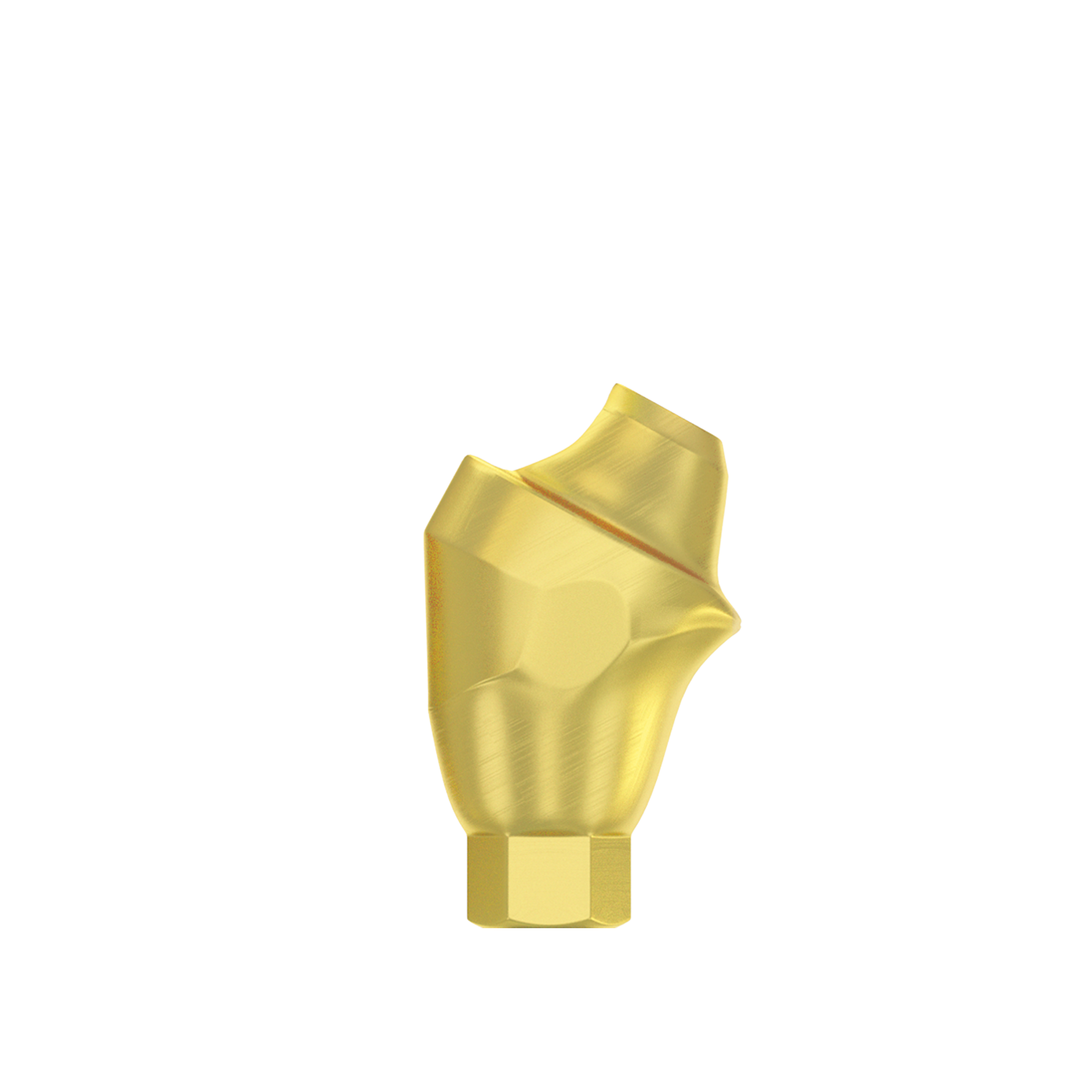

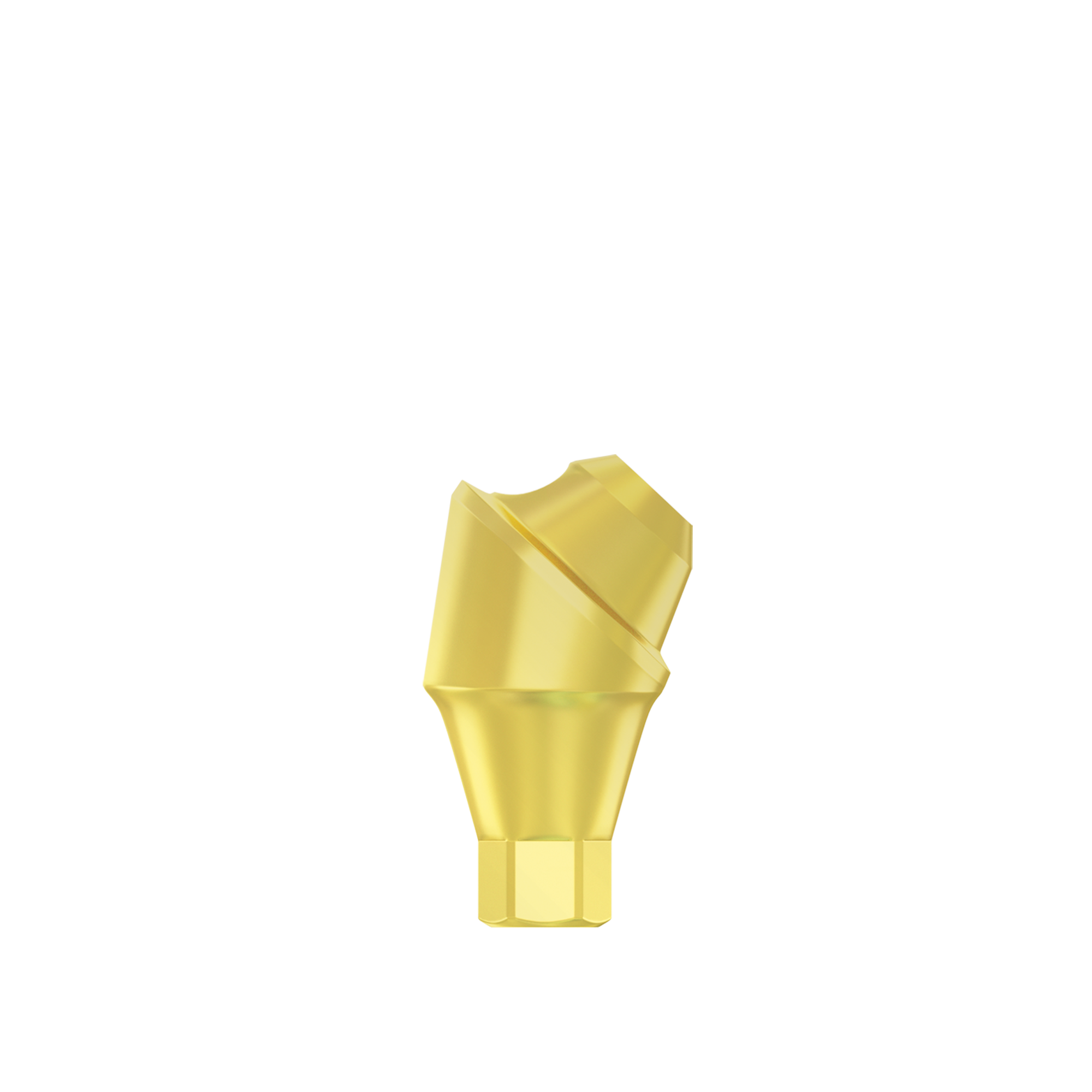

- Angle - 17°, 30°, 45°
- Titanium fixation screw included with every abutment
