Angulated Multi Unit 1.4 Full Set
Quick Buy
Description
The DSI Angulated Premium Multi-Unit Abutments 1.4M come with an angle selection of up to 60° which allows overcoming implant divergence for up to 120° in all directions for perfect parallel alignment. They are suitable for all kind of restorations from a single tooth to full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.
- Higher angulations (45°+) are developed for basal and zygomatic bone-anchored implant restorations
DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals
DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

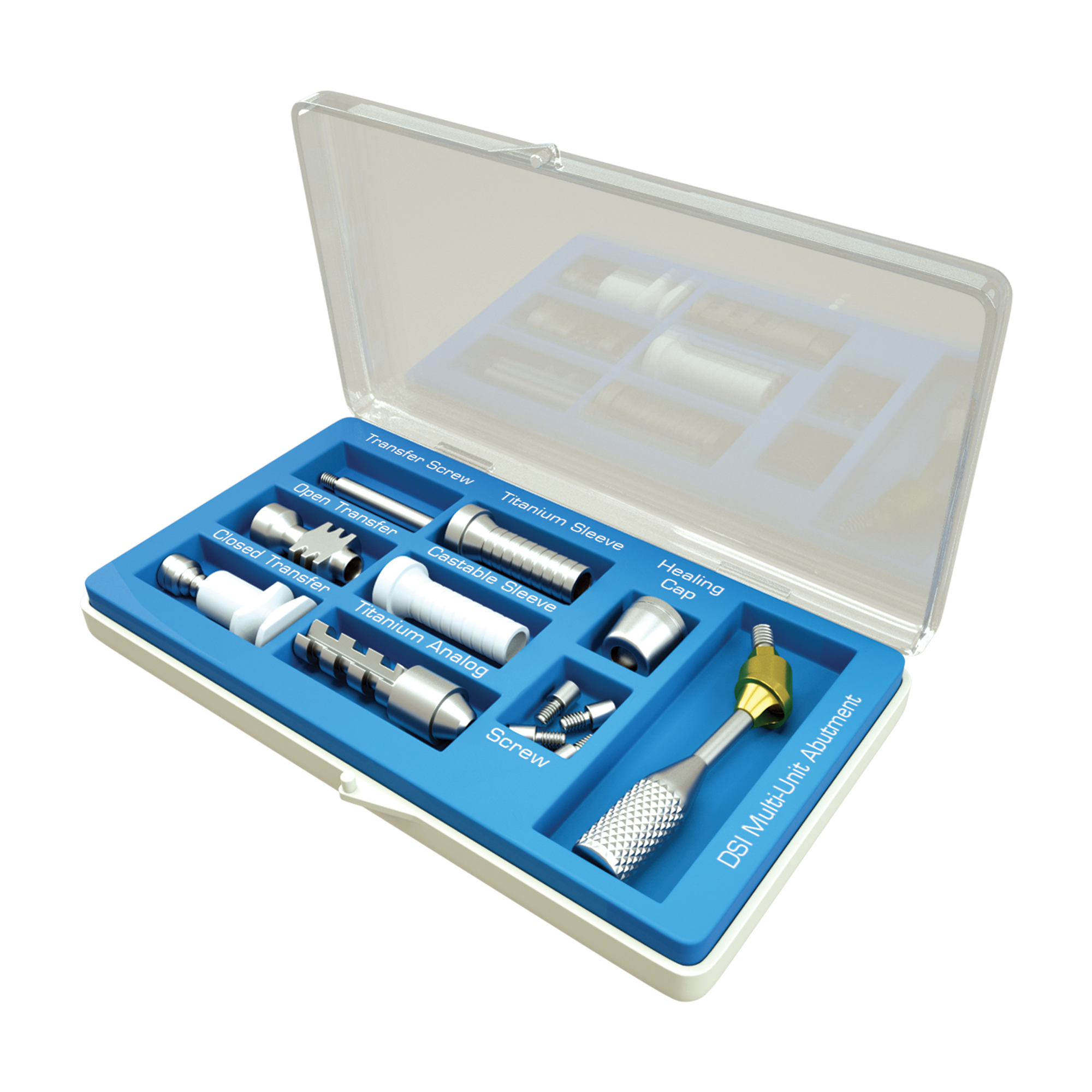

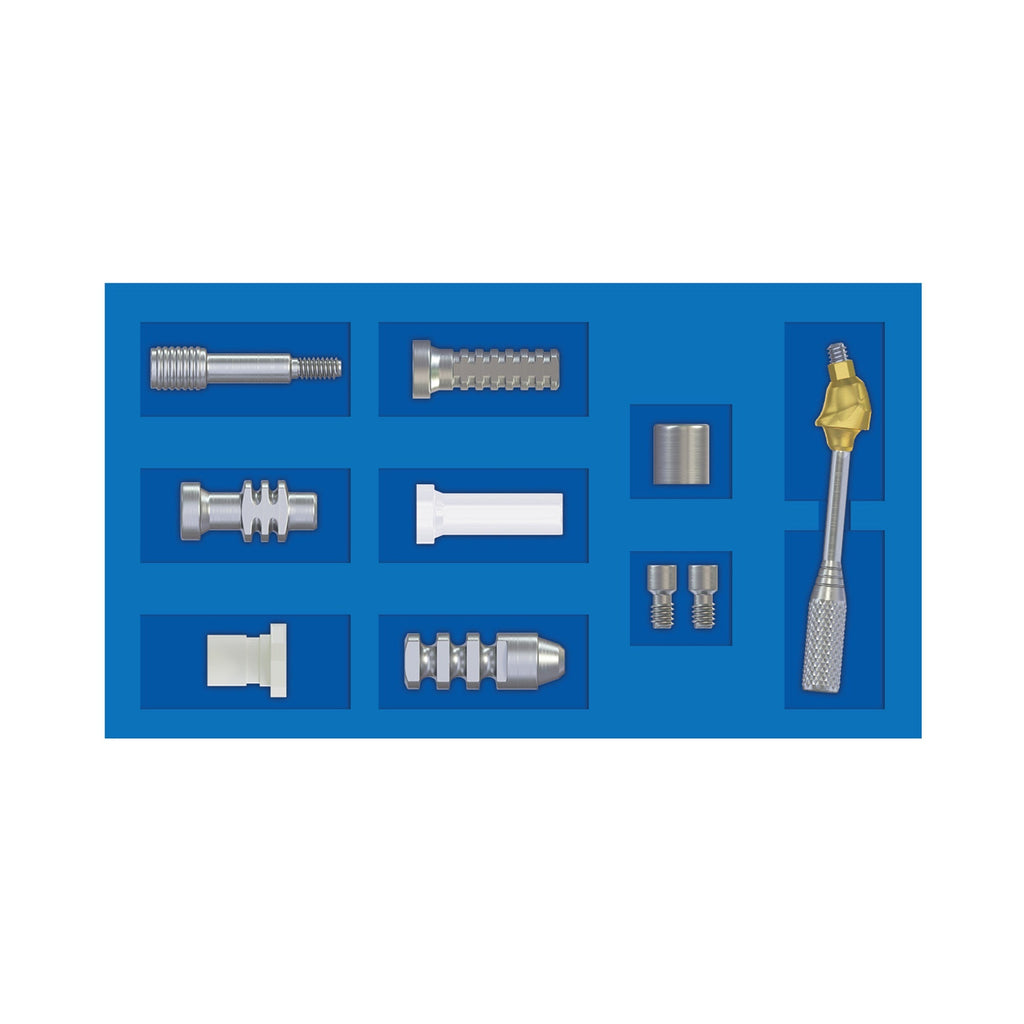

The most commonly used and versatile is the Full Set, which includes
One abutment of the chosen size:

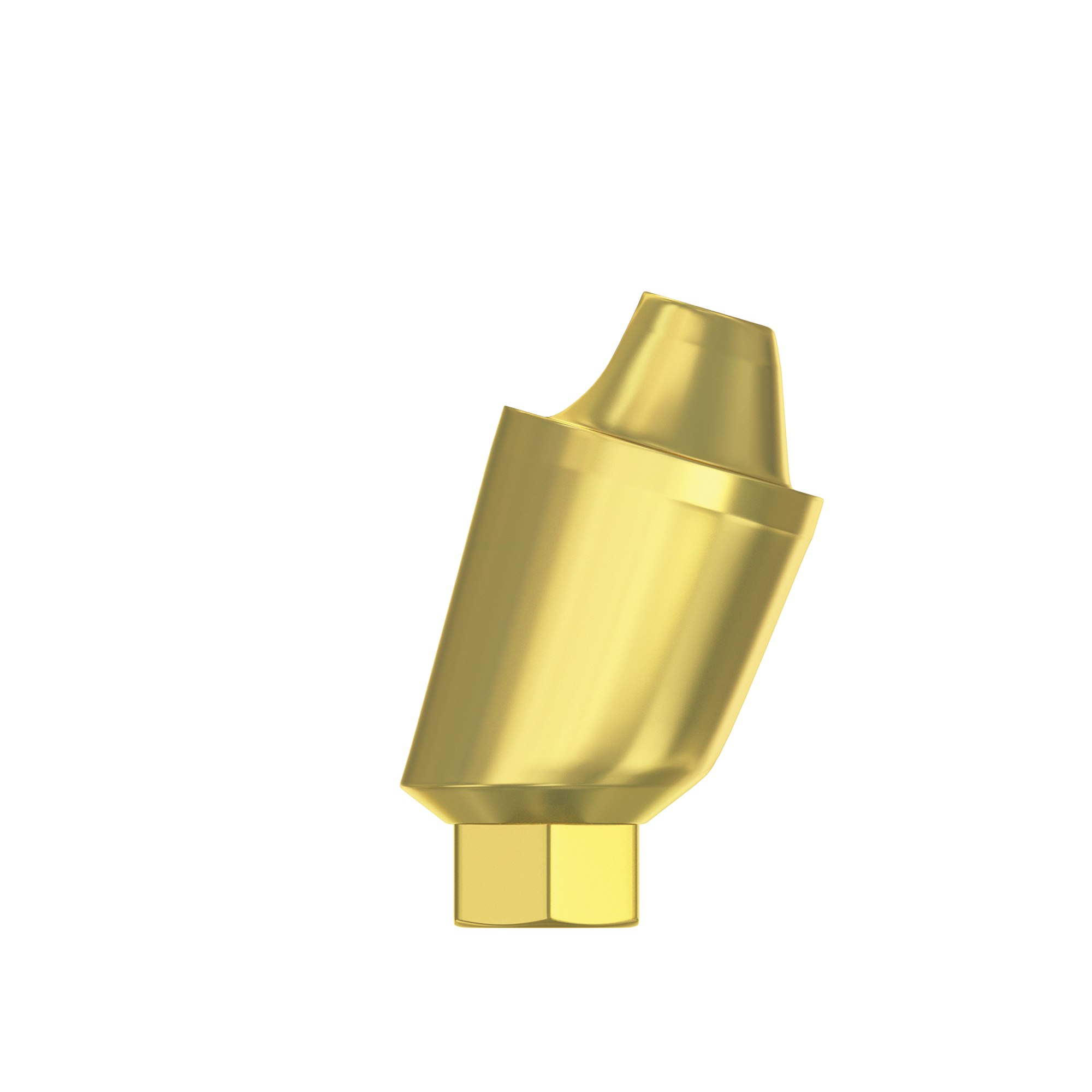

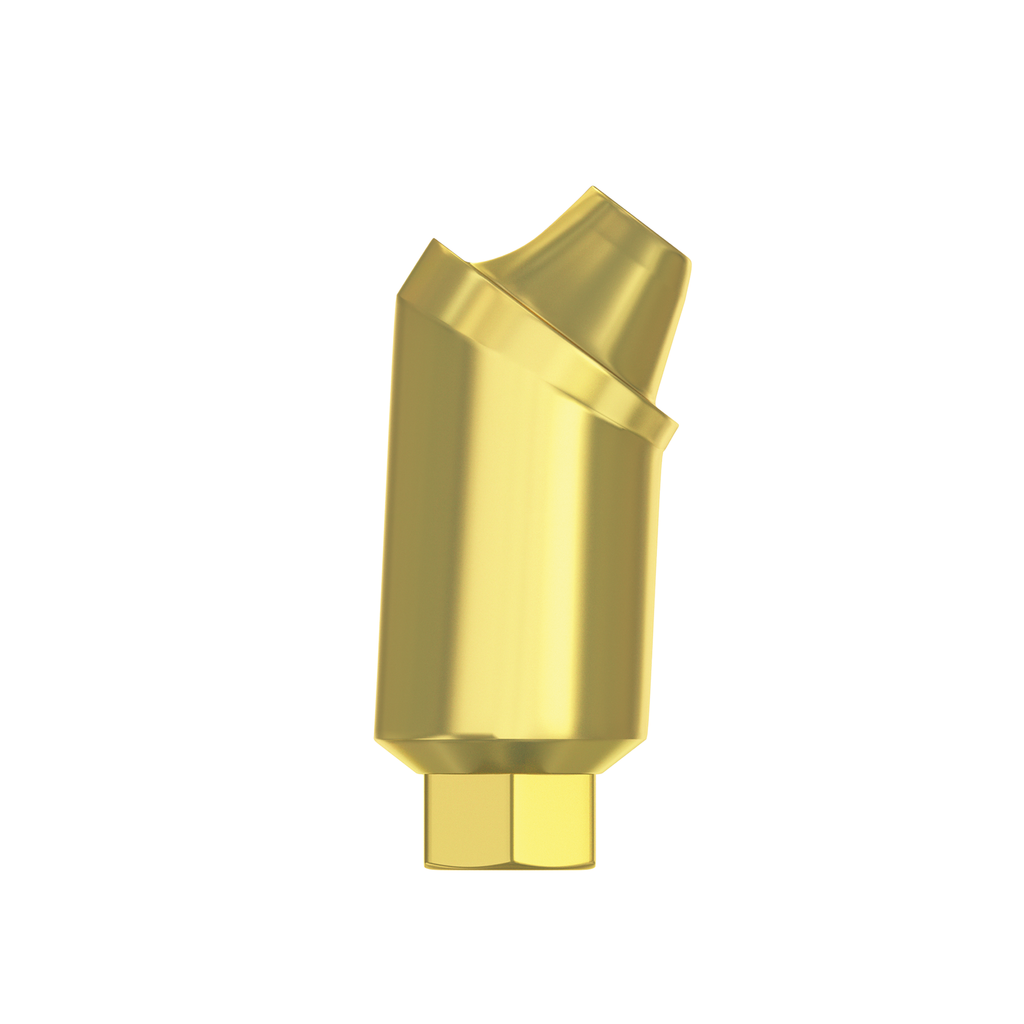

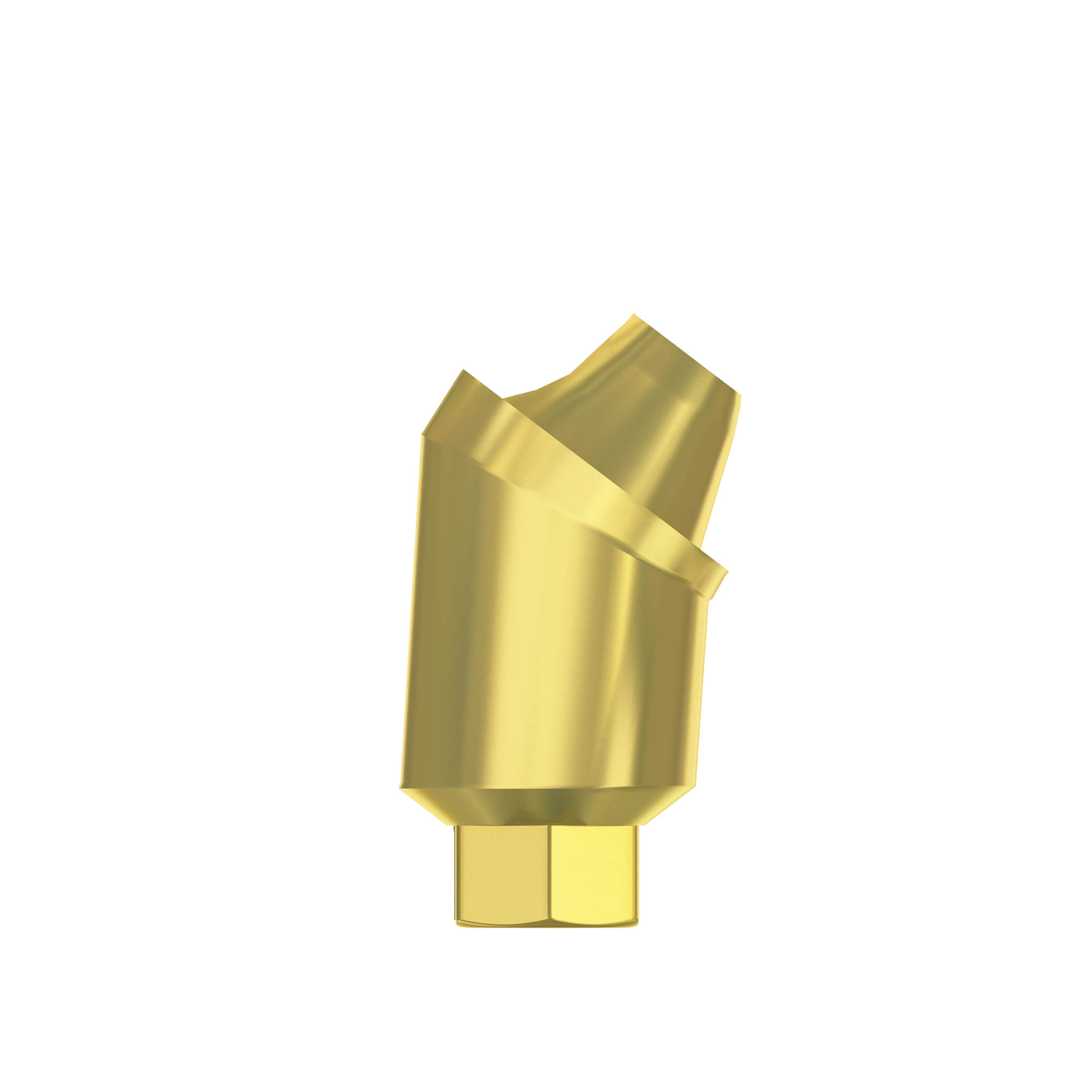

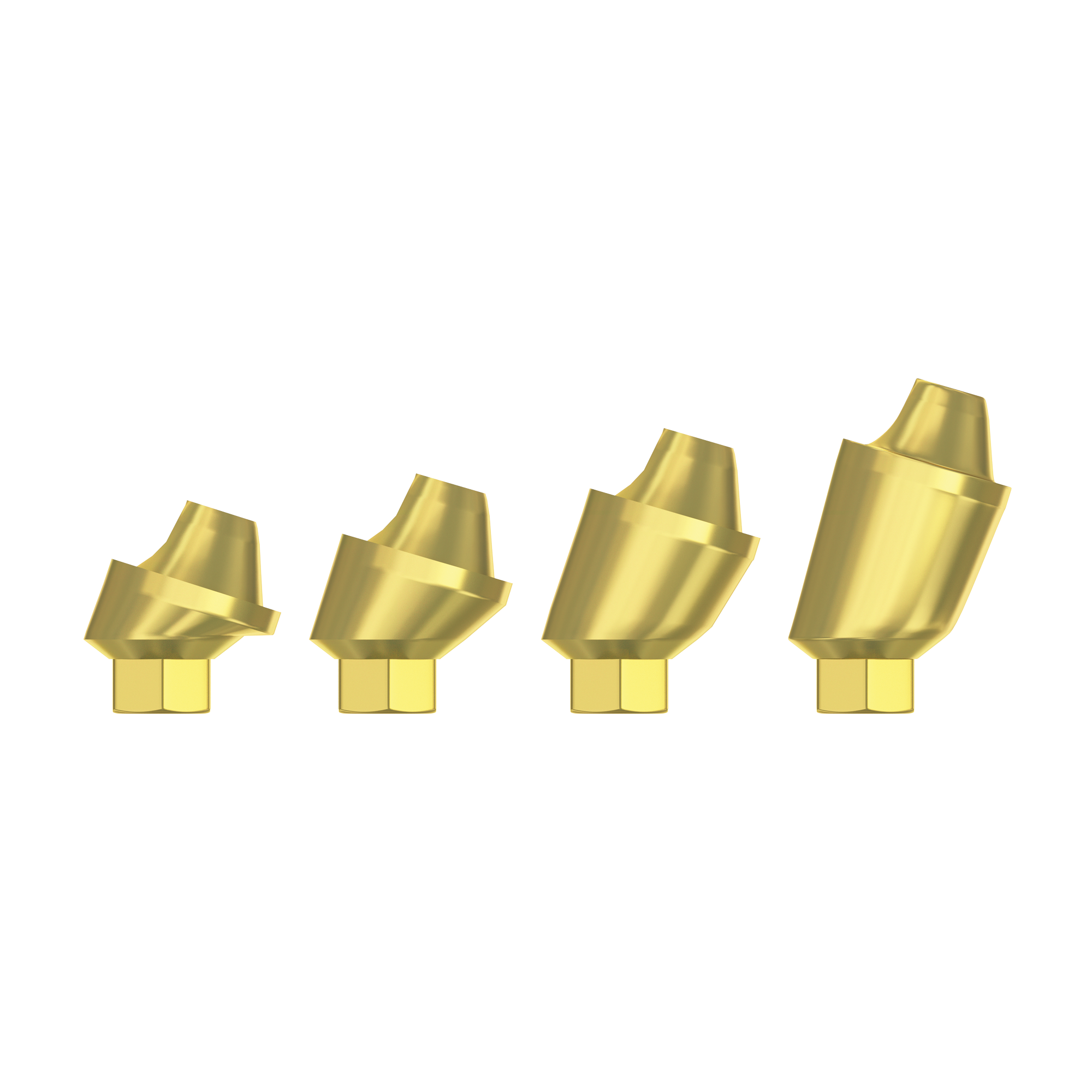

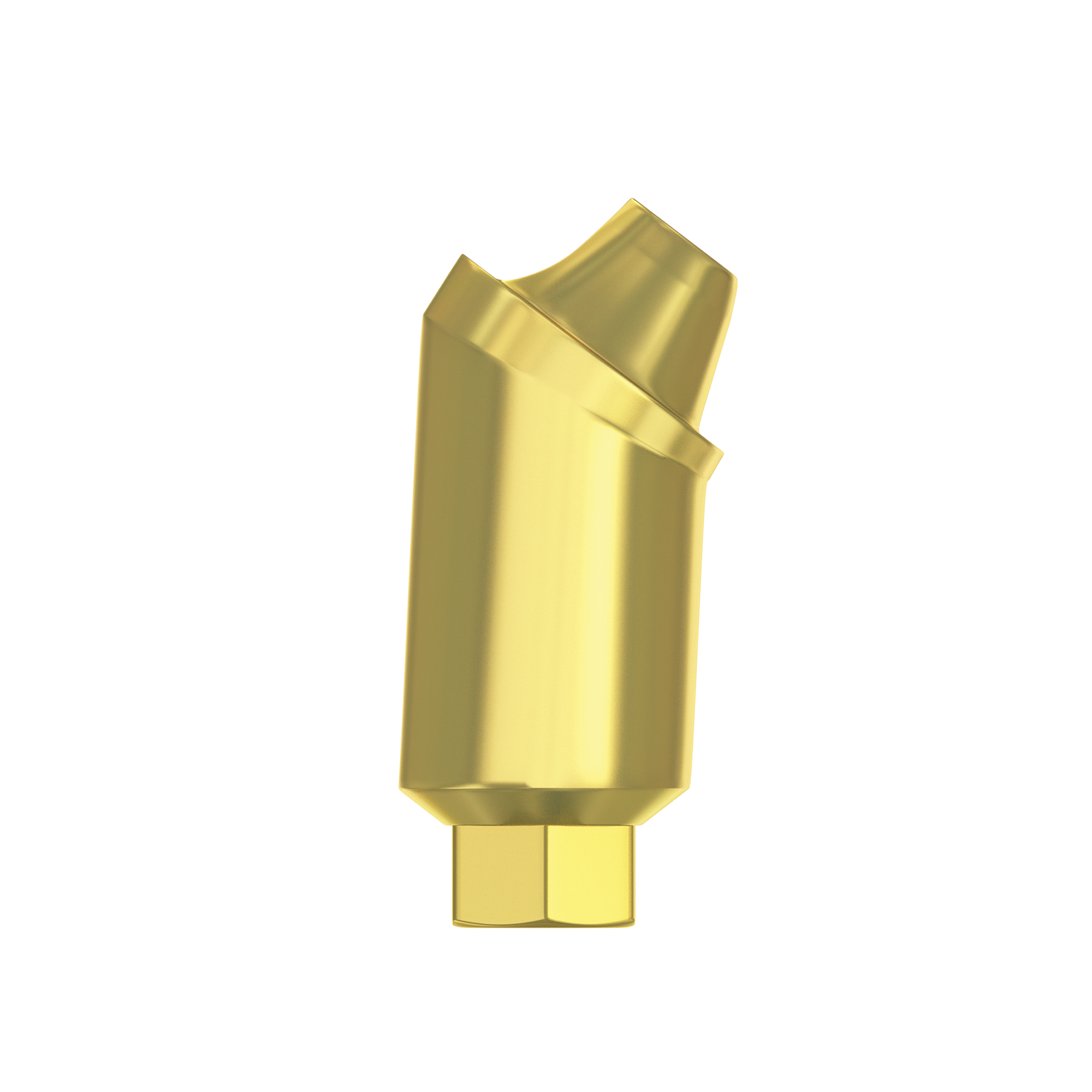

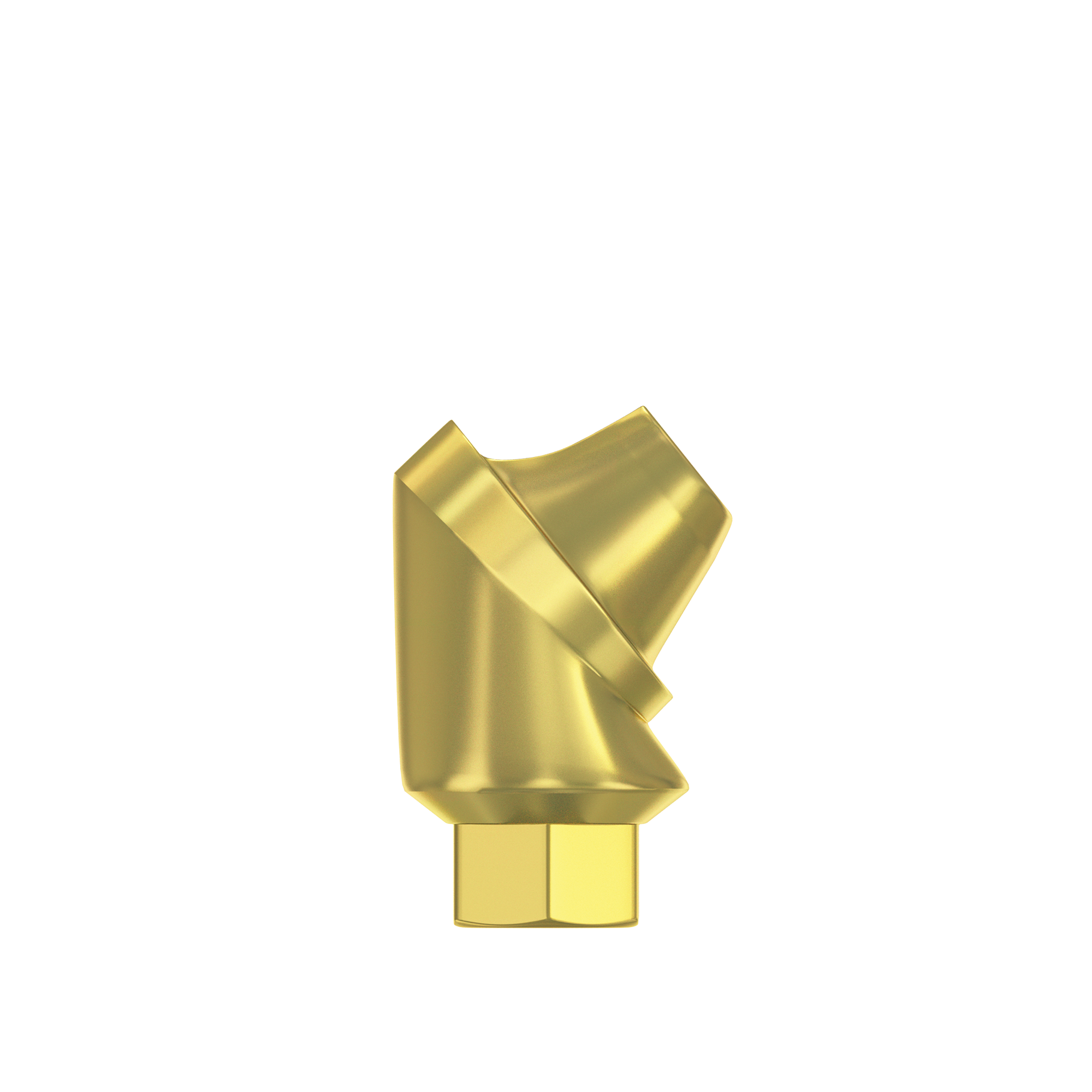

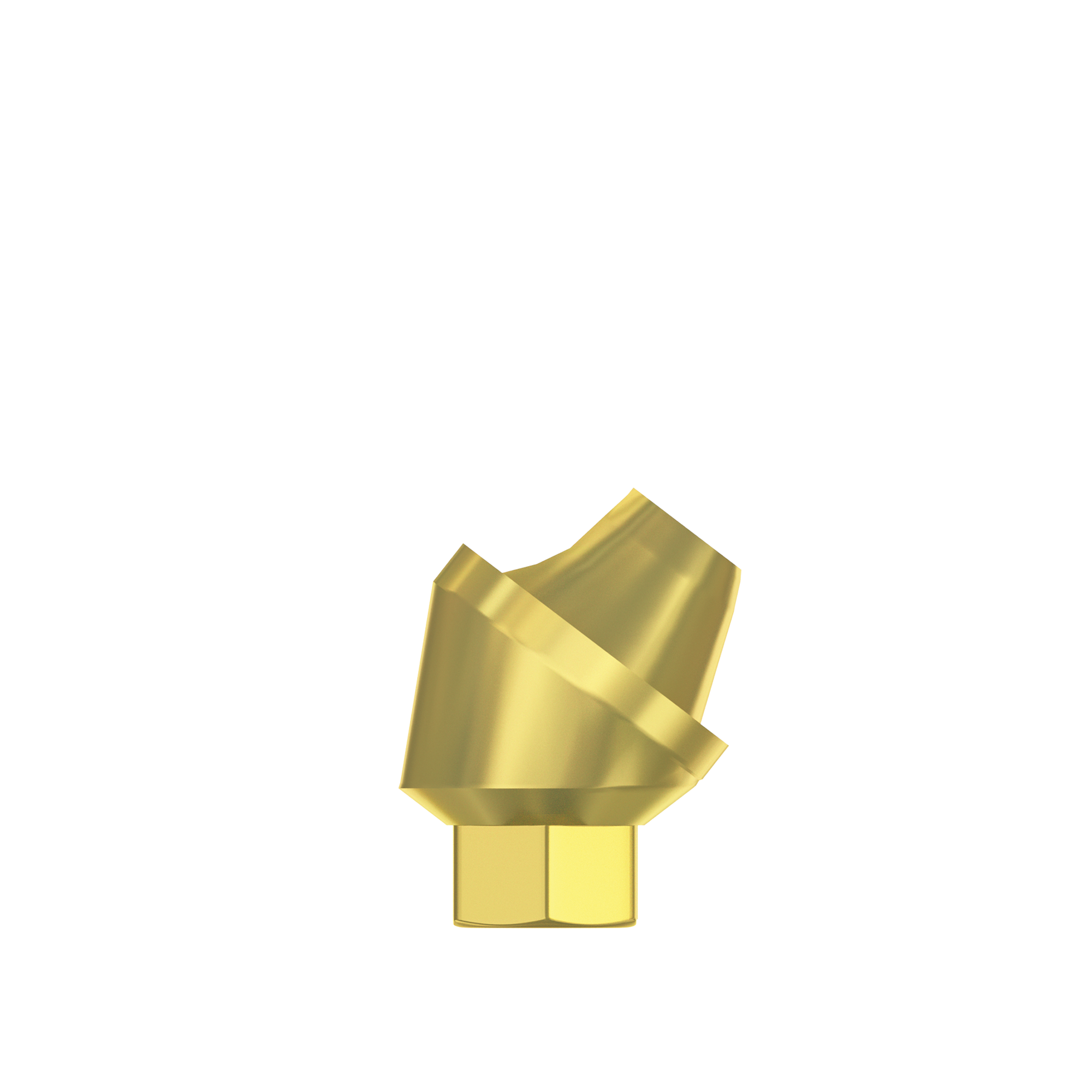

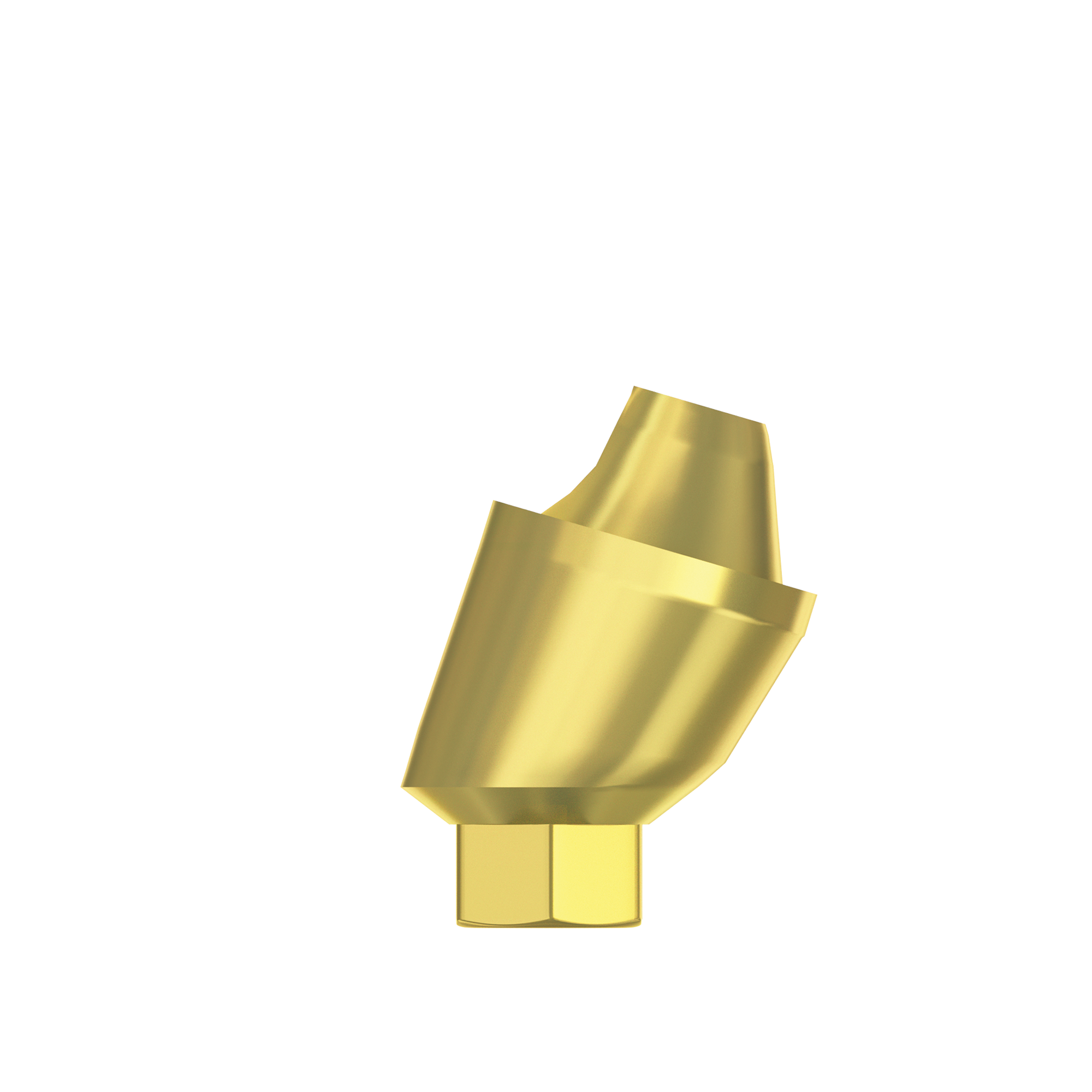

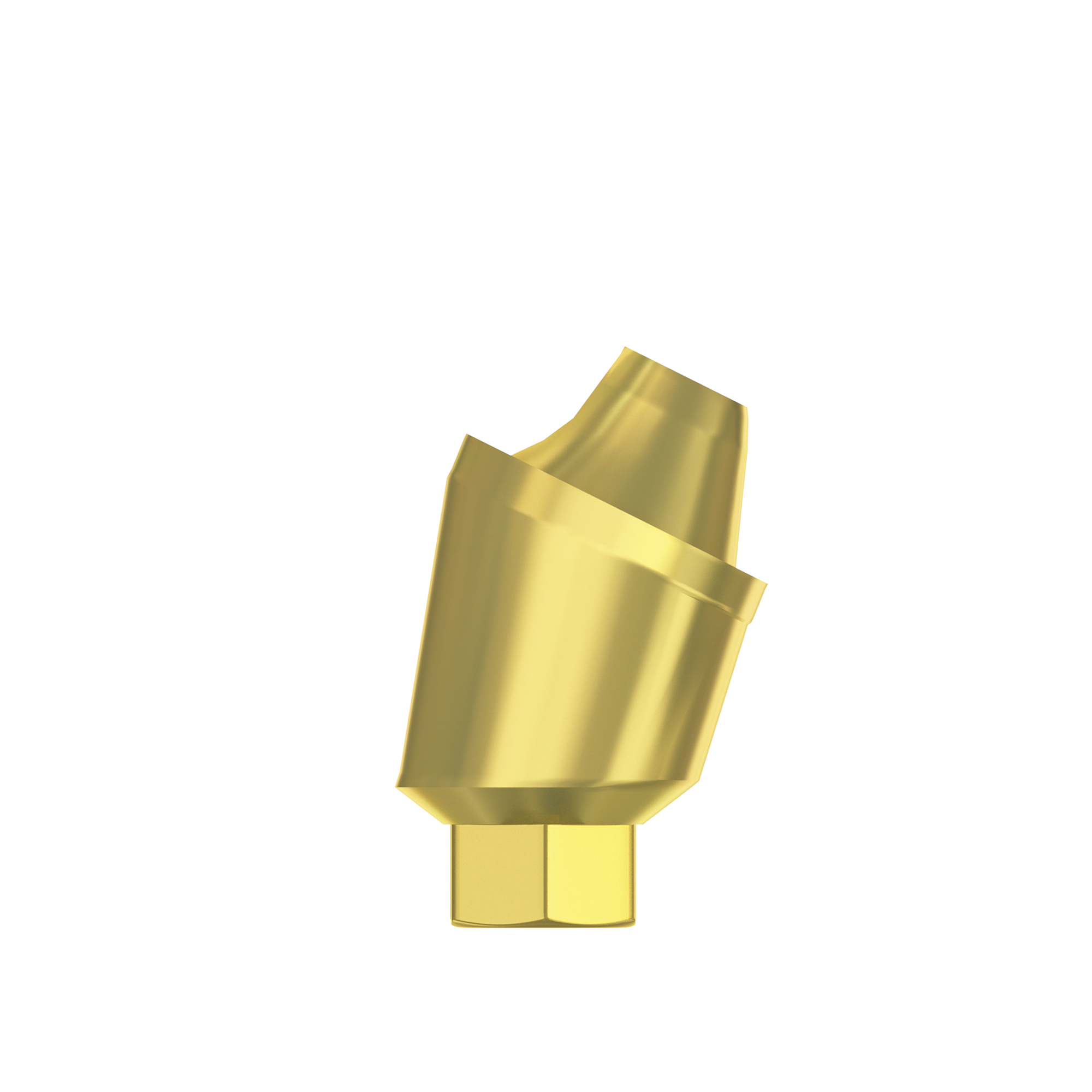

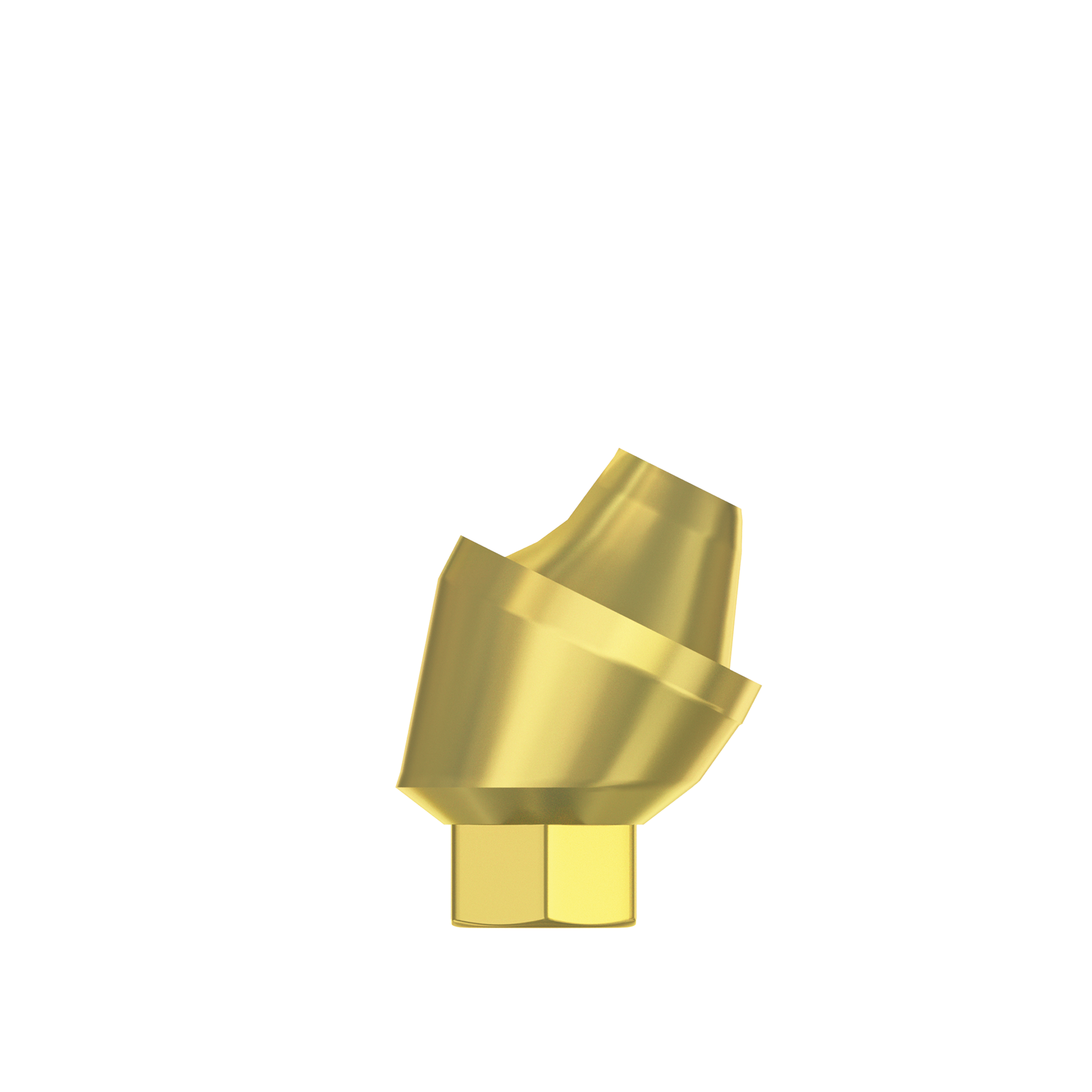

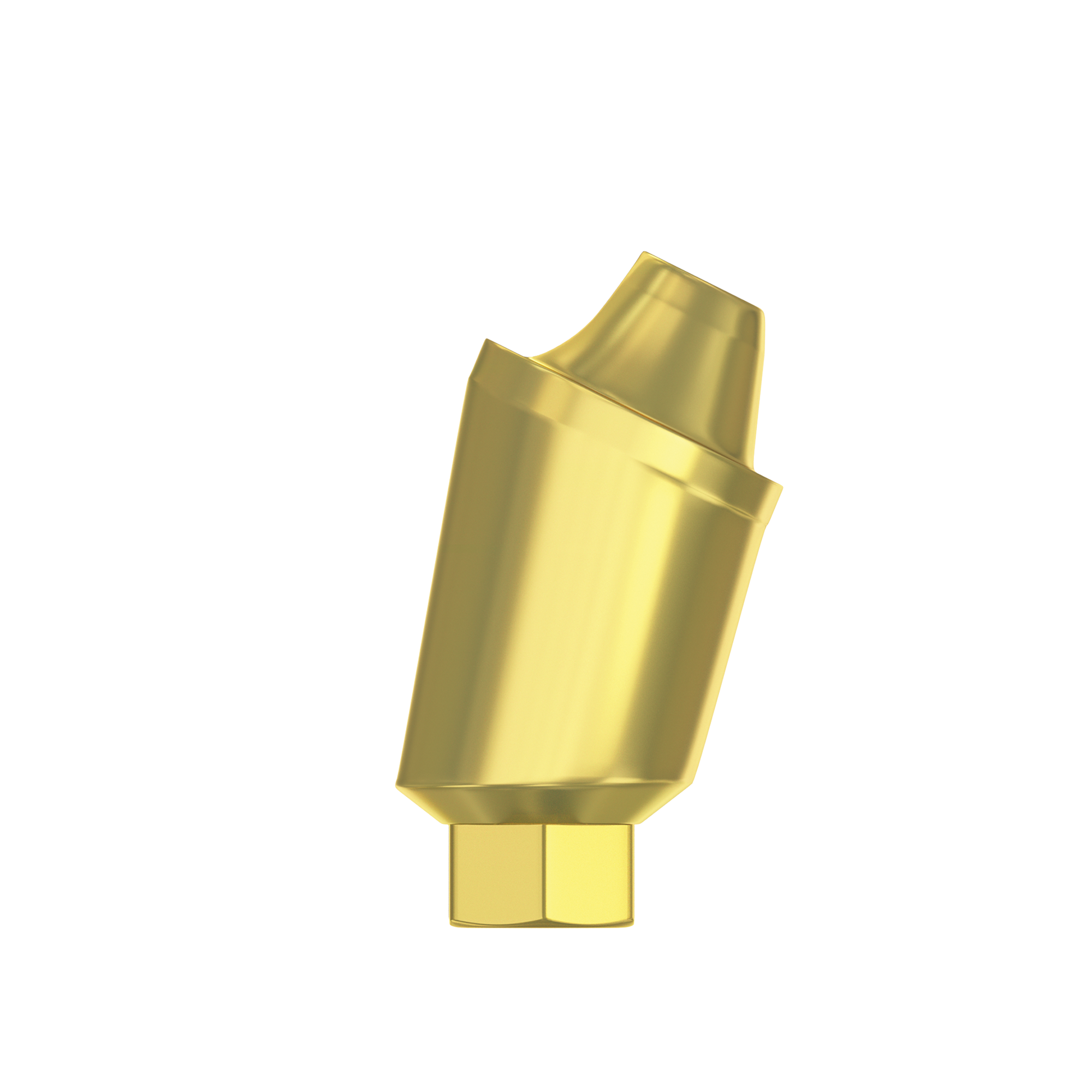

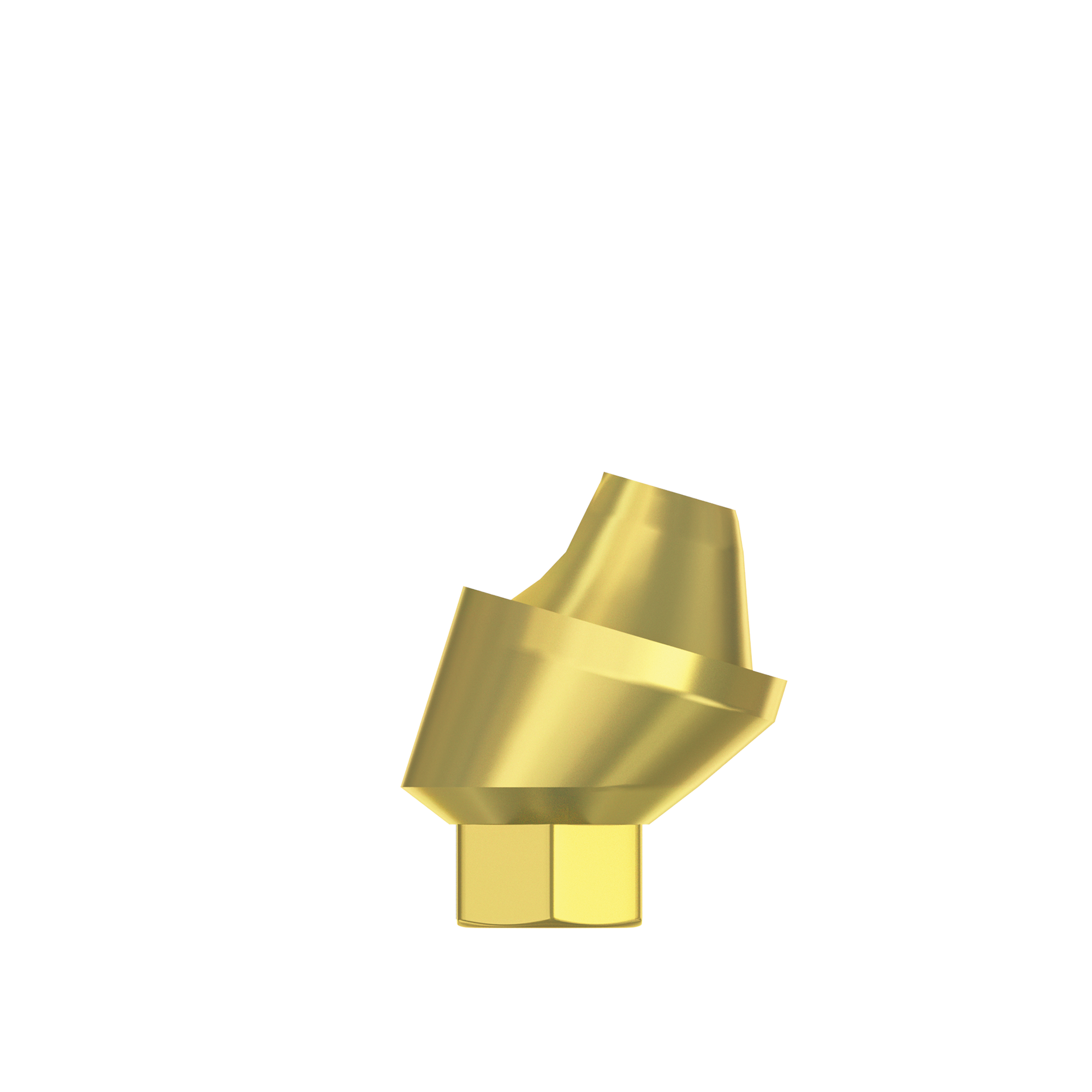

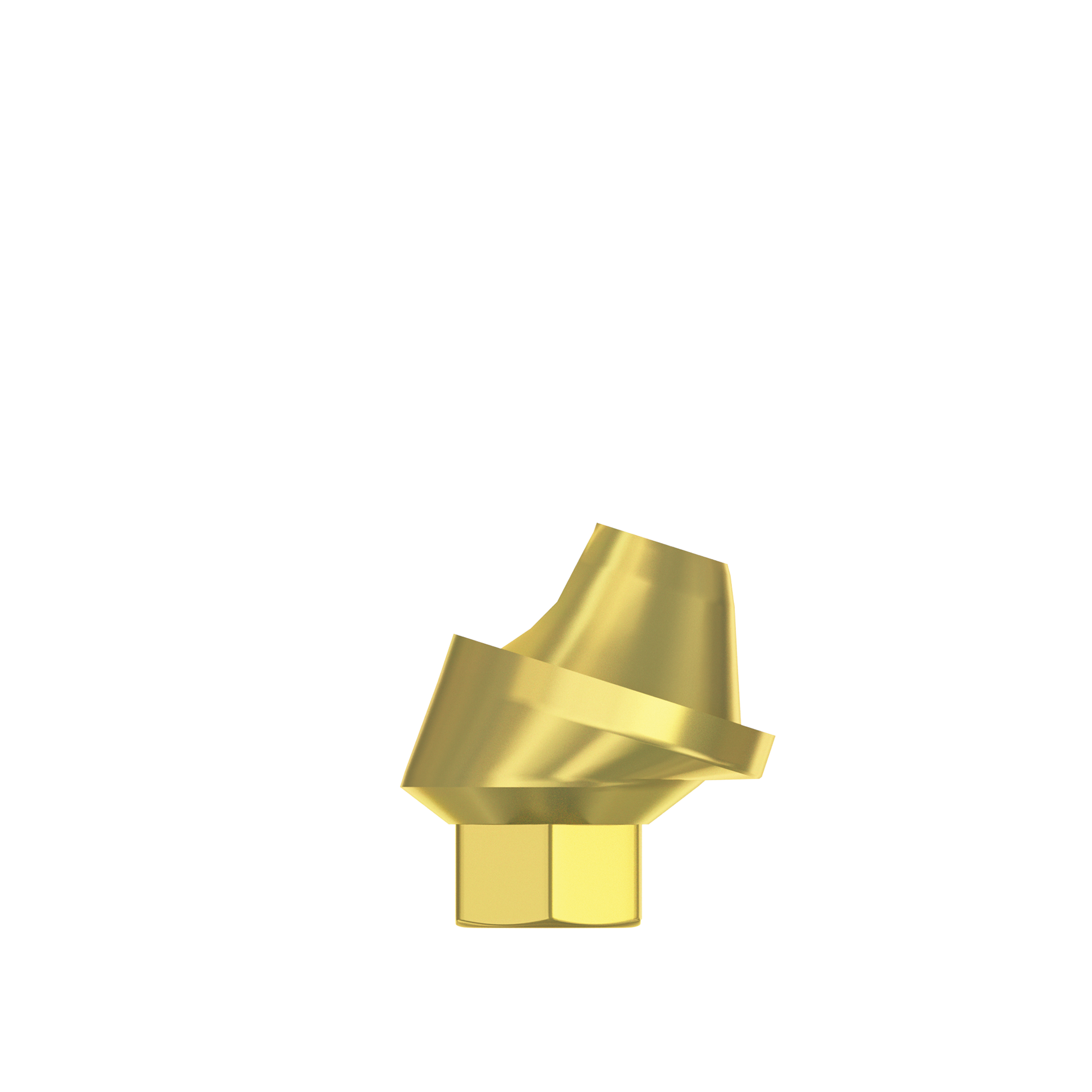

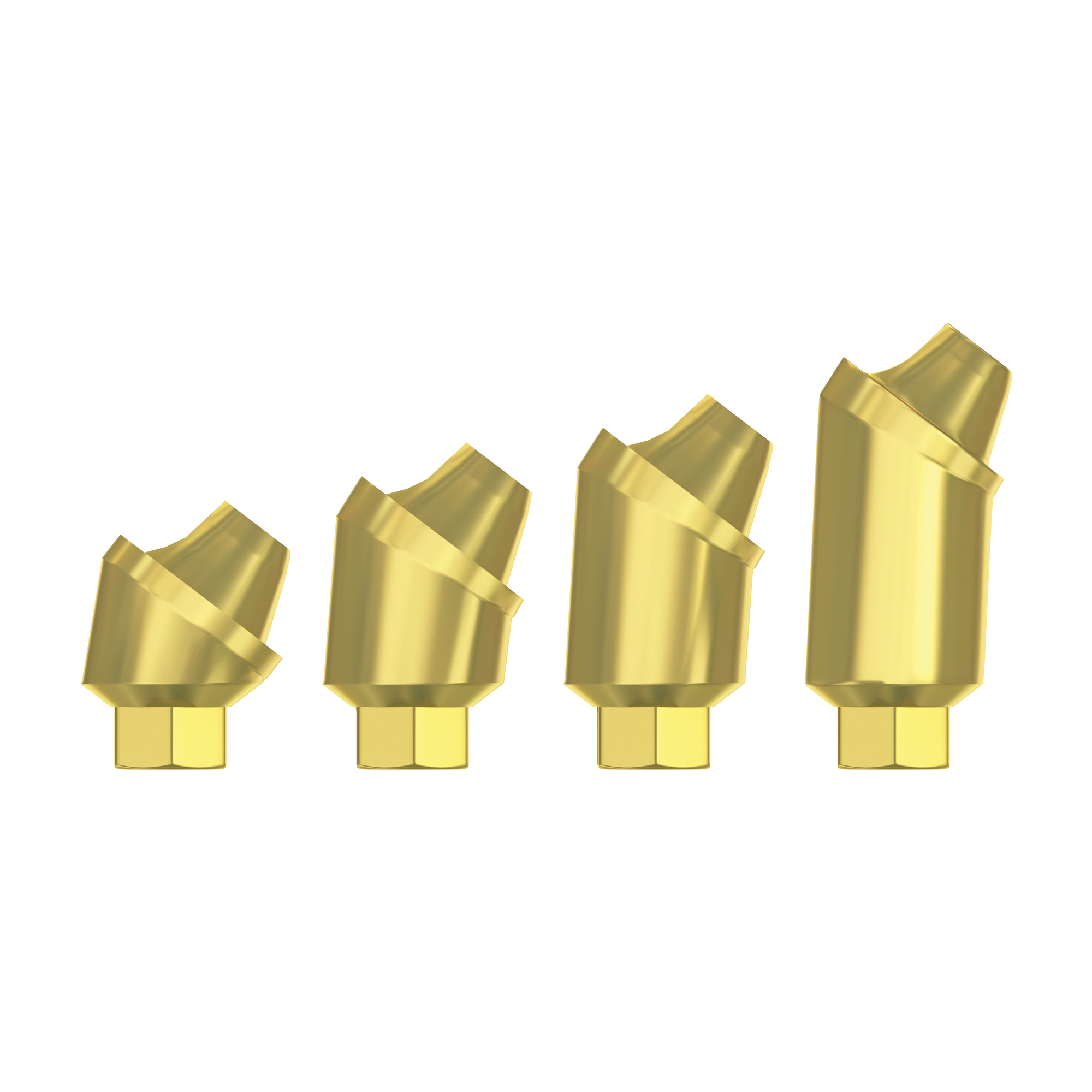

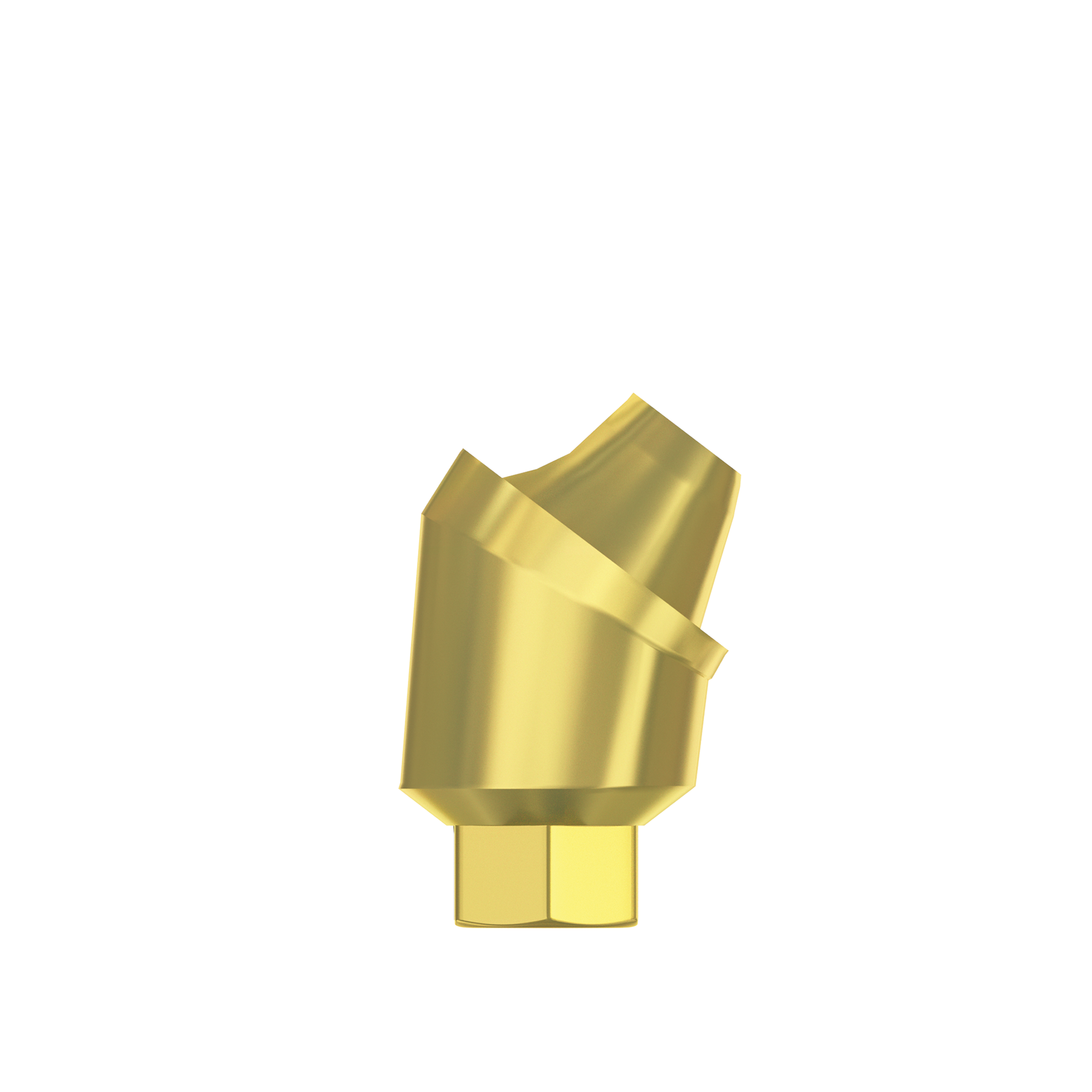

- MUA-NO-1720, MUA-NO-1730 , MUA-NP-1740 , MUA-NO-1750 , MUA-NO-3020, MUA-NO-3030, MUA-NO-3040, MUA-NO-3050, MUA-NO-4520, MUA-NO-4530, MUA-NO-4540,MUA-NO-5220, MUA-NO-6020: Angulated Multi Unit Abutment Ø5.0mm ,2.0-5.0mm x1
And the following parts:

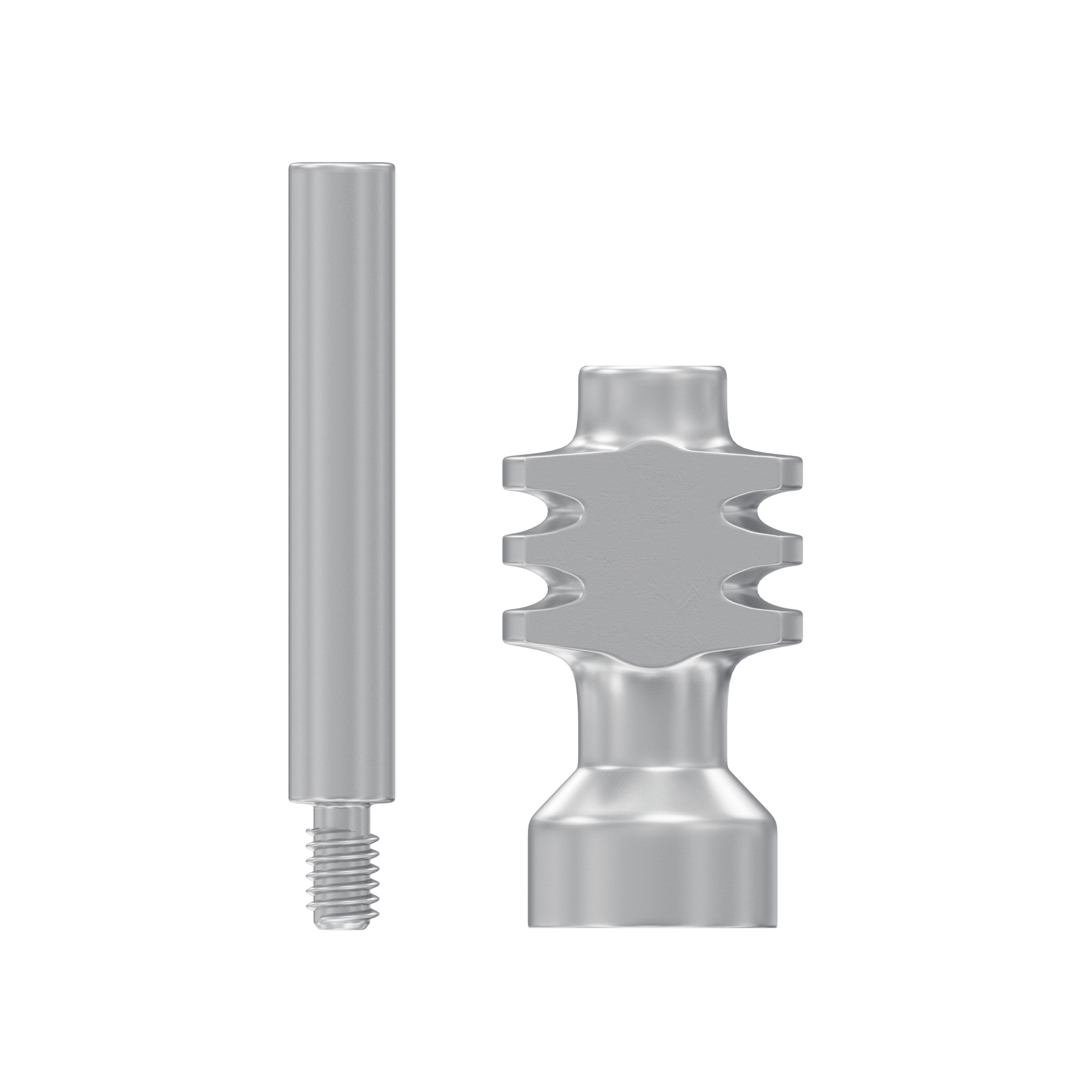

- MU-NO-OT: Open Tray Transfer + screw Ø 4.9mm , L=9.0mm, H=11.0mm x 1

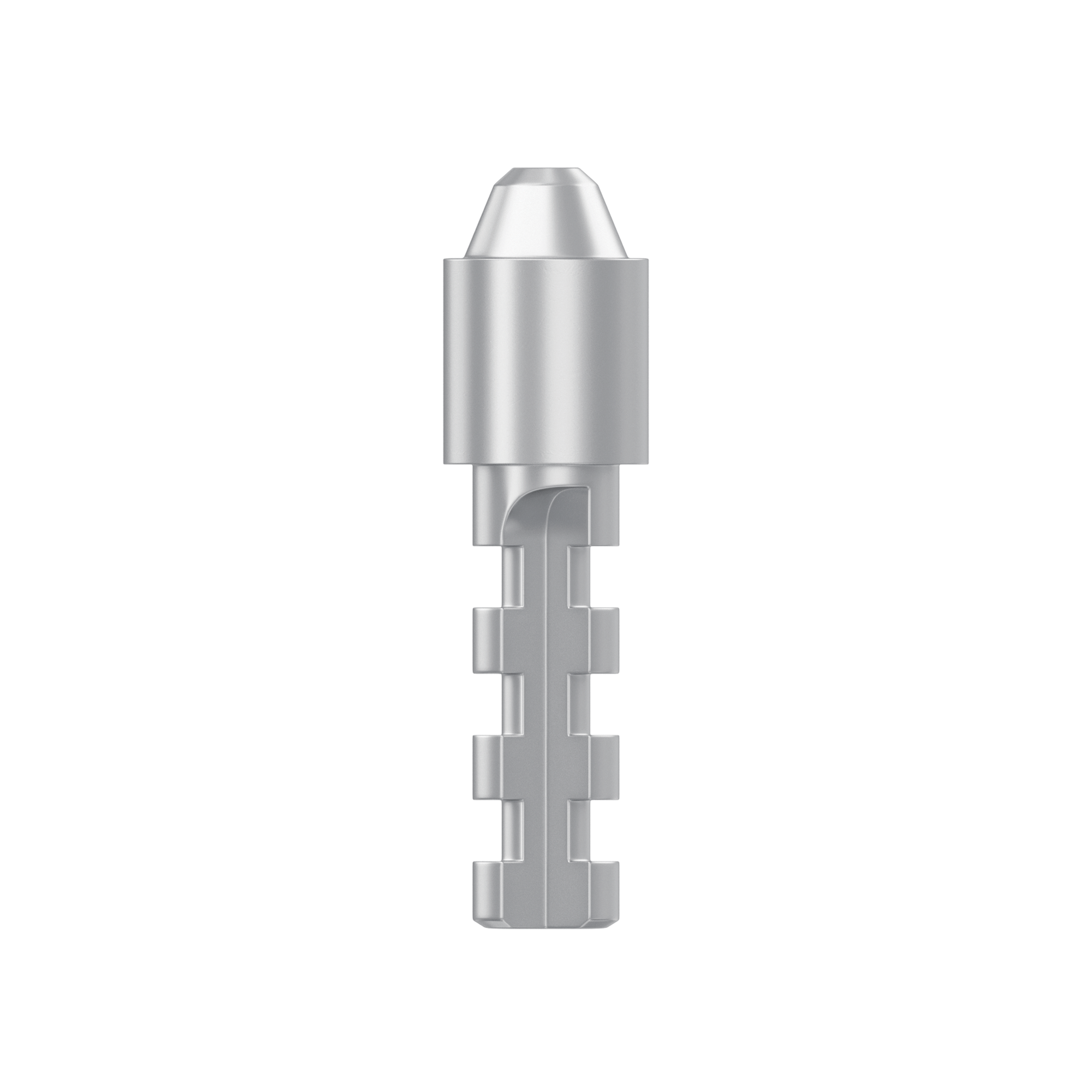

- MU-ANNO: Titanium Analog Ø 4.9mm , L=11.0mm, H=18.0mm x 1

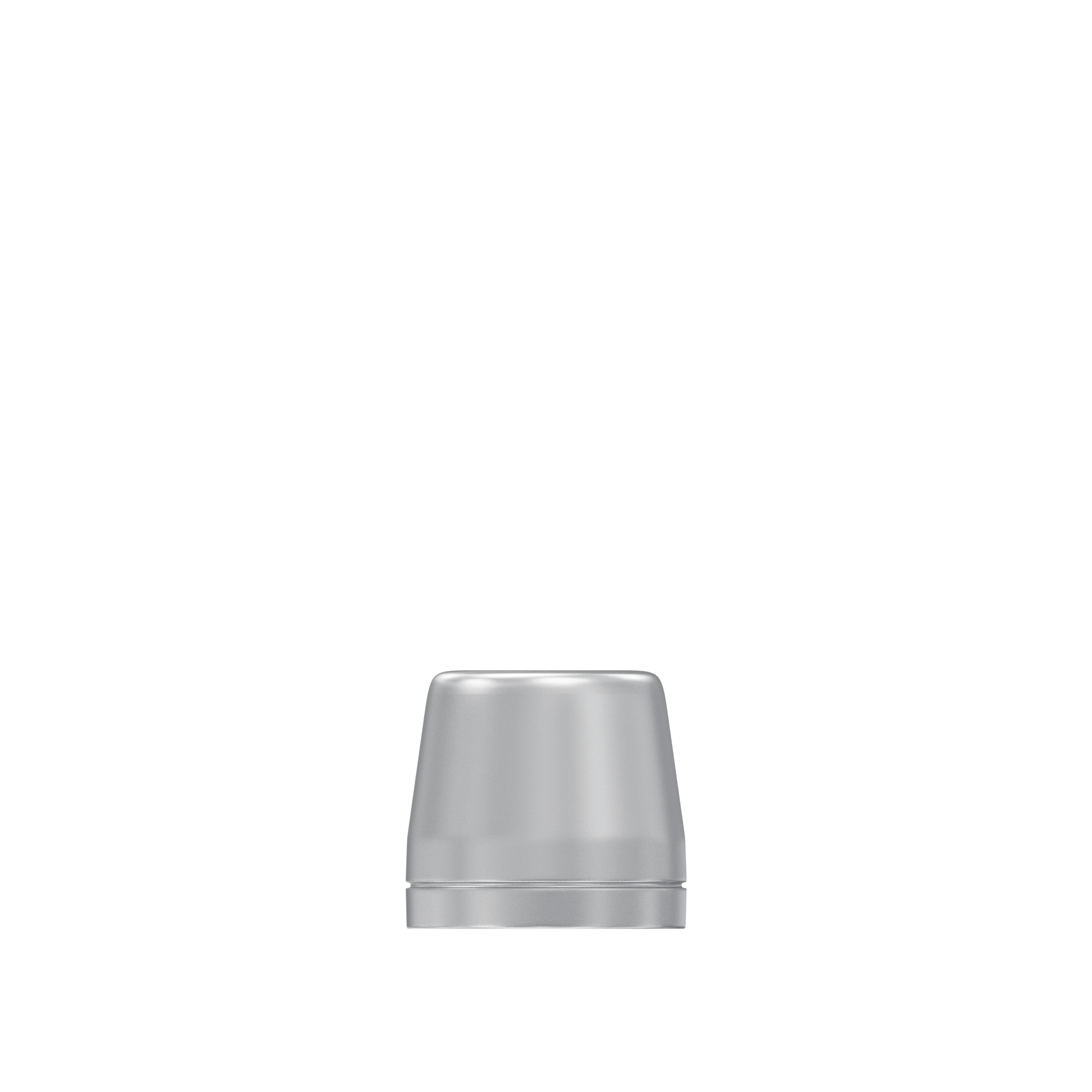

- MU-NO-HC: Healing Cap Ø 4.9mm , L=3.7mm, H=4.7mm x 1

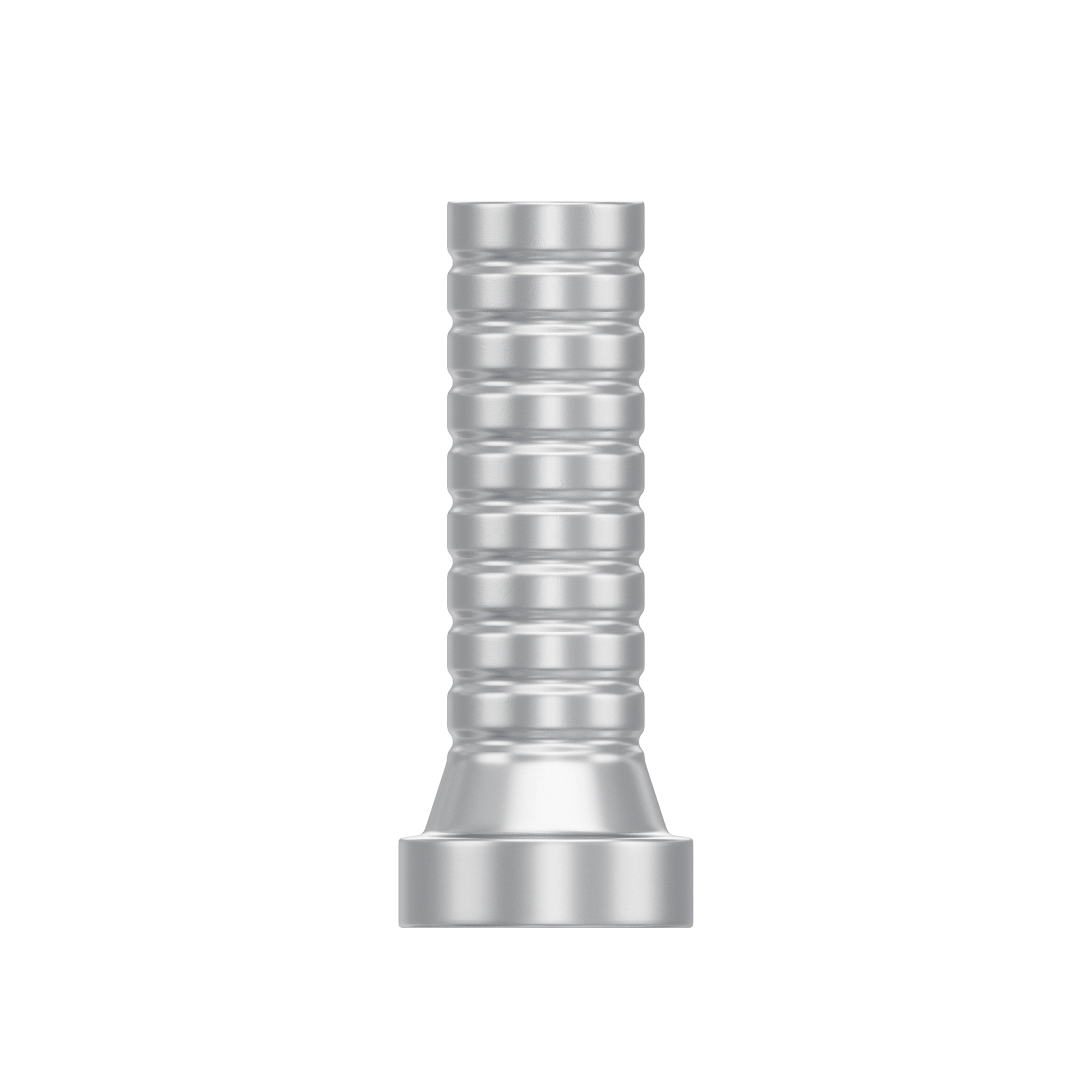

- MU-S-ST14: Titanium Sleeve Abutment Ø 4.9mm , L=11.0mm, H=12.0mm x 1

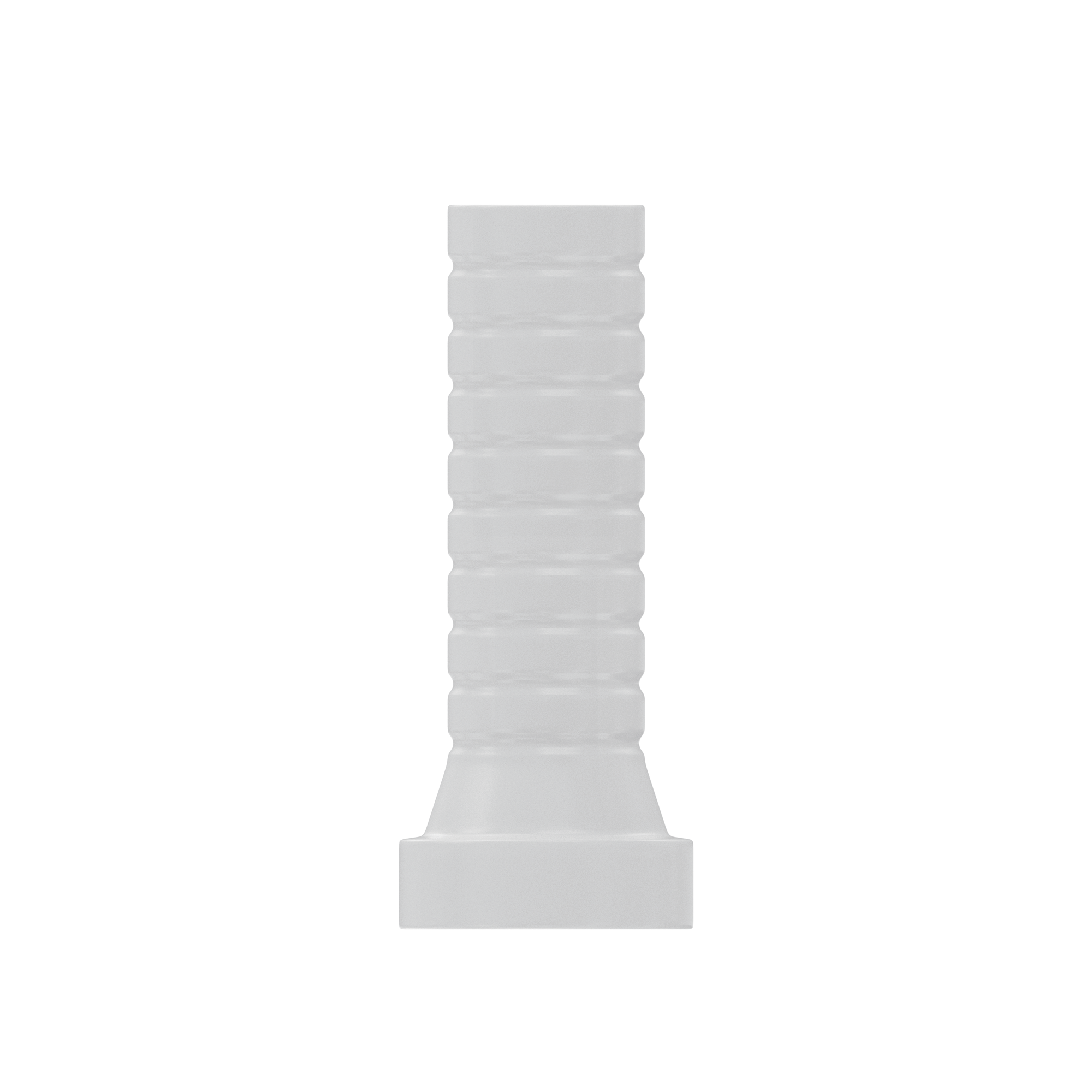

- MU-S-SP14: Castable Sleeve Abutment(for Lab) Ø 4.9mm , L=11.0mm, H=12.0mm x 1
-

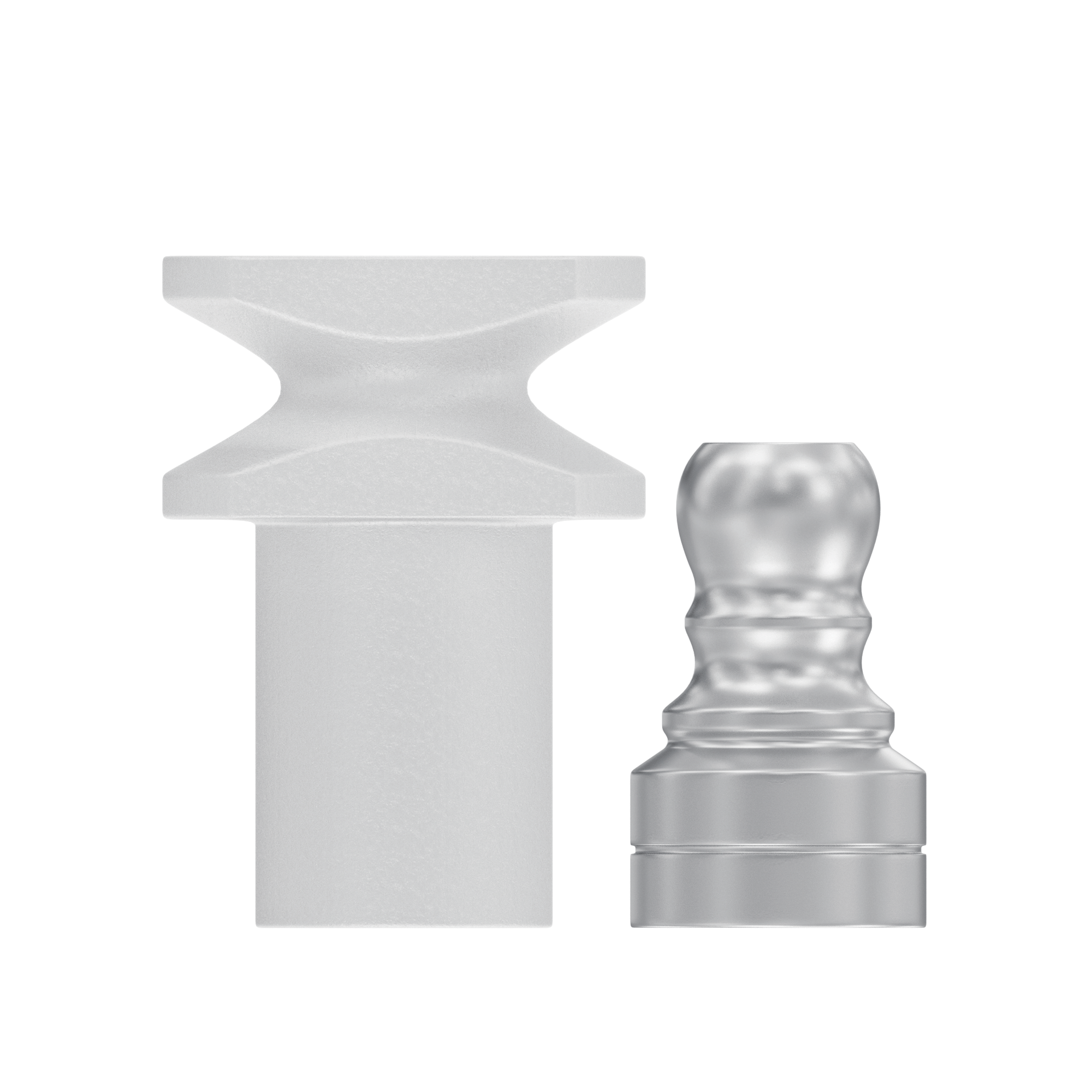

MU-NO-CT: Snap On Cap for closed transfer Ø 4.8mm , L=6.8mm, H=11.0mm x 1
- MU-NM-CT: Closed Tray Transfer Ø 4.8mm , L=5.0mm, H=8.0mm x 1

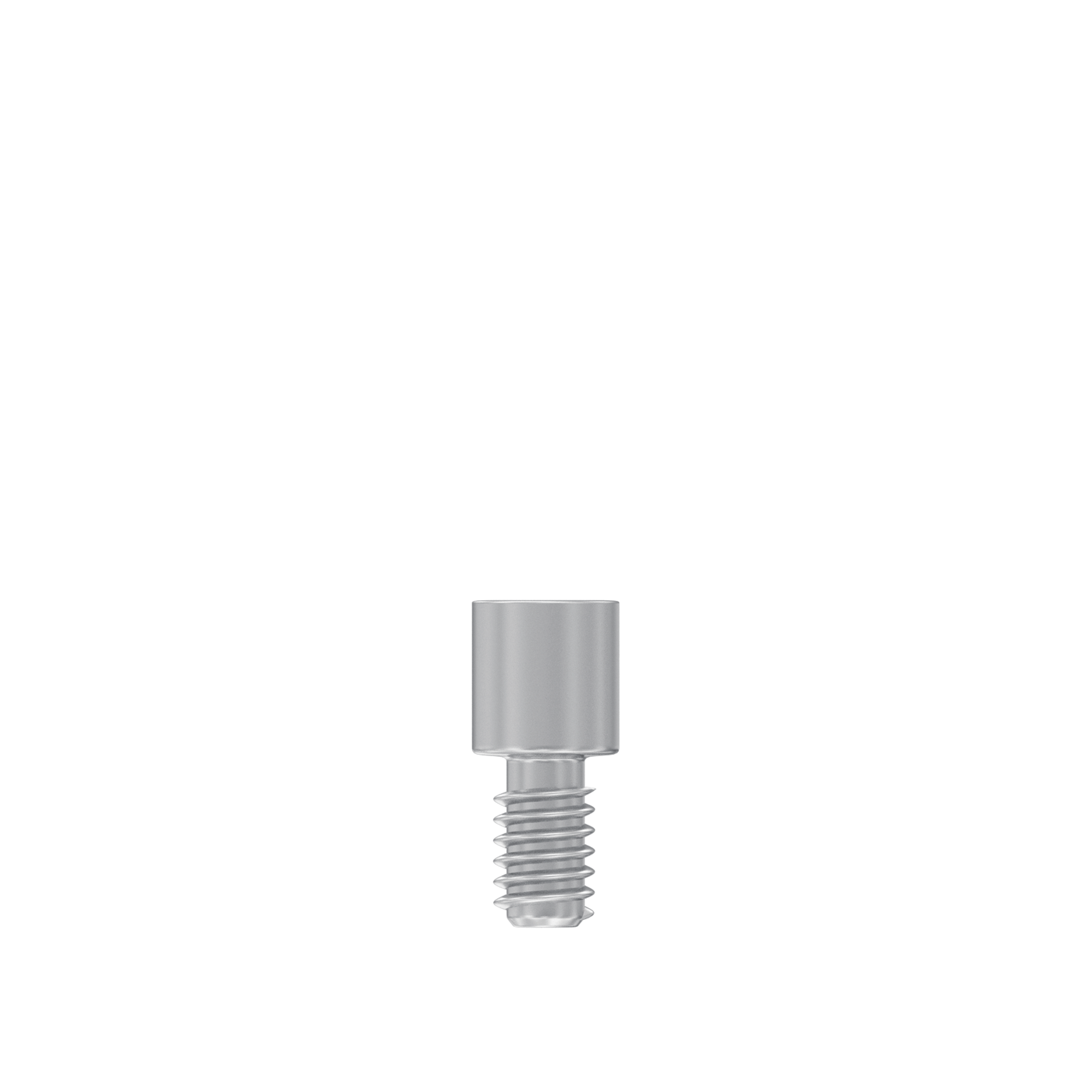

- MU-TX-FX: Fixation Short Screws Ø 2.0mm , L=2.2mm, H=4.2mm x 2
-

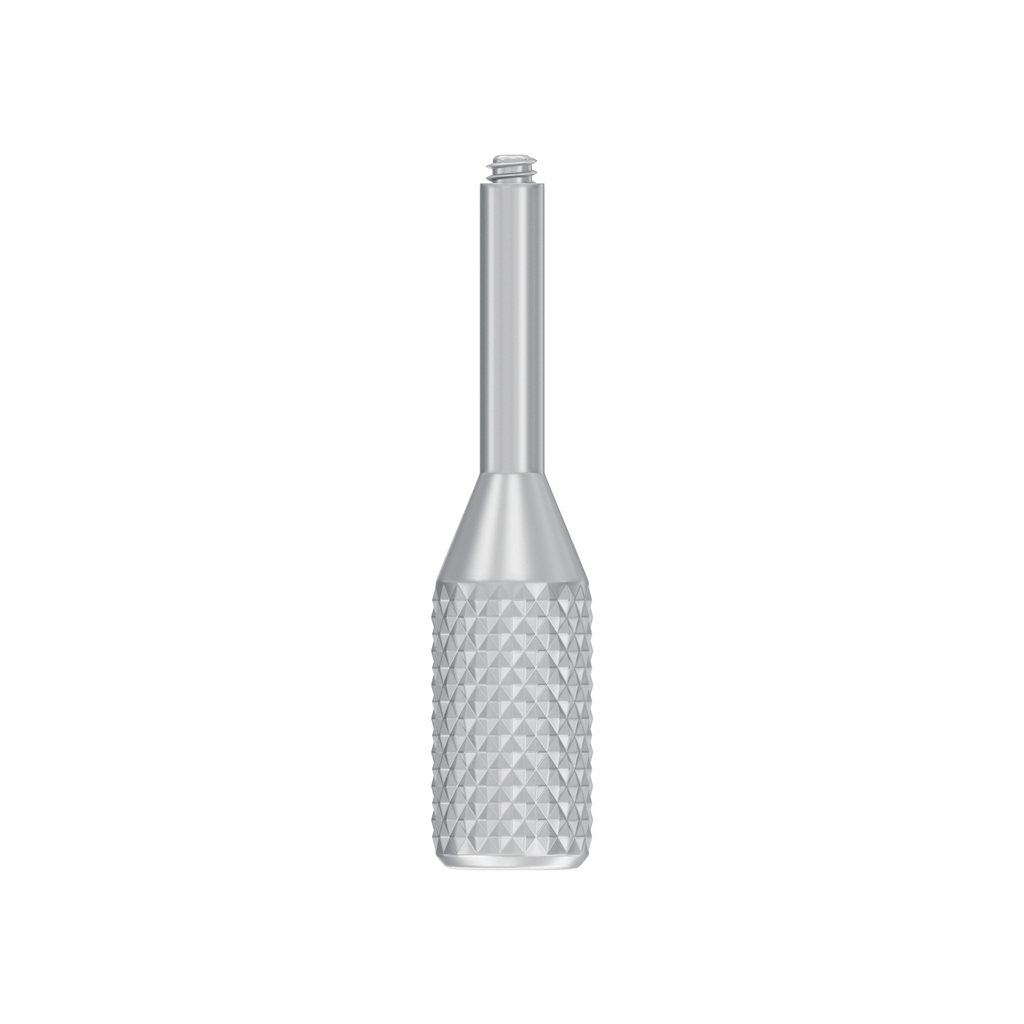

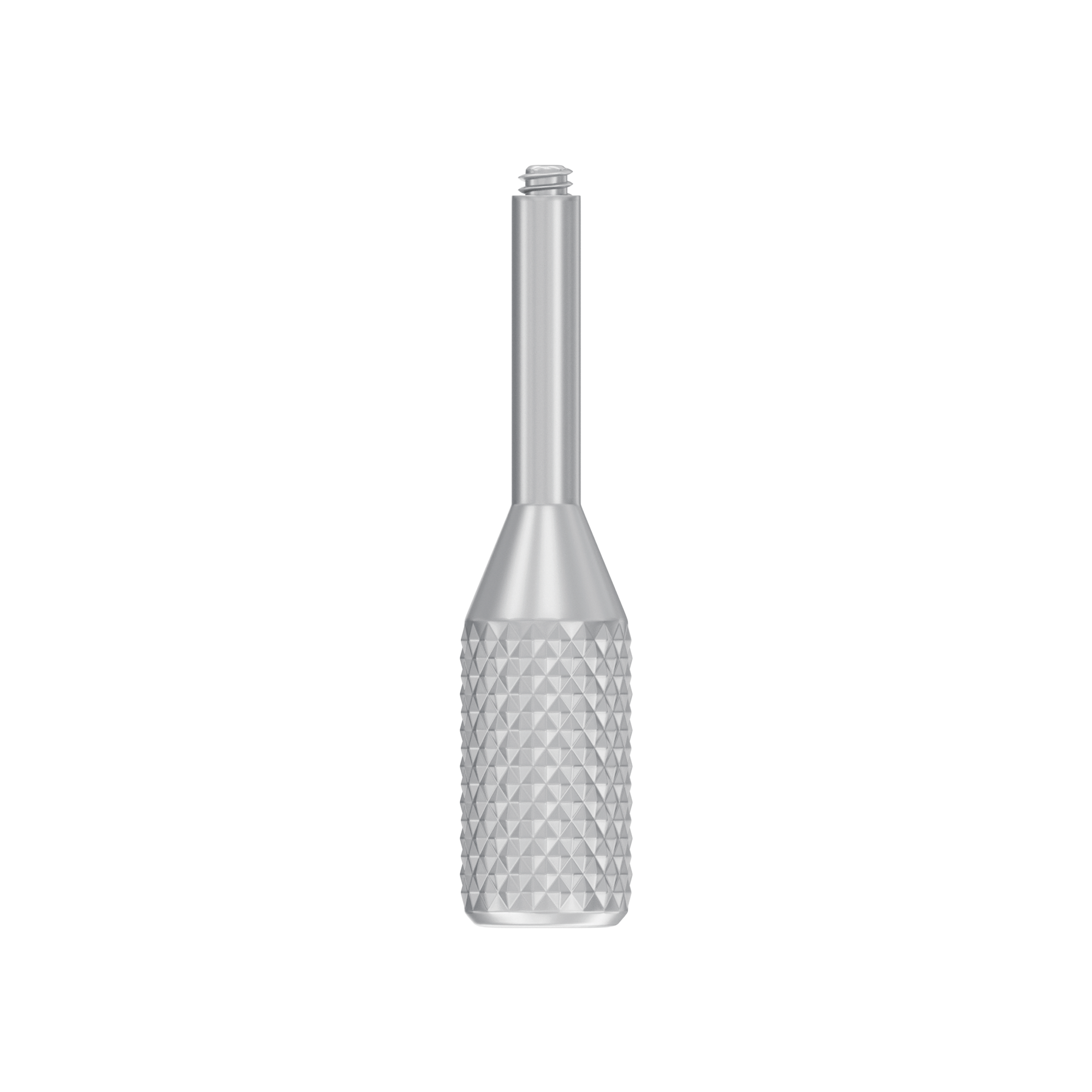

MUIH: Metal Position Holder Ø 1.4mm , L=7.5mm, H=15.3mm x 1
Best-in-class digital library link for free download
Exocad: https://dsisrael.co/EXOCADLIB
3Shape: https://dsisrael.co/3SHAPELIB
Indications:
- Multiple teeth
- Complete bridges
- Fabrication of long-term/permanent restorations
- All-on-4,All-on-6
- For non-parallel implant alignment cases
Features:
- Excellent biocompatibility, no risk of abruption.
- Precise, non-rotational, functional.
- Simple, fast, and accurate positioning.
- Outstanding stability for the crowns and bridges
-
Superior aesthetic results.
Technical information:
- Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
-
Regular platform - Ø4.9mm / collar height 2.0-5.0mm
- Implant Level Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
- Multi Unit level Connection M1.4 Compatible with : Nobel Biocare and DSI premium multi-unit abutments M1.4

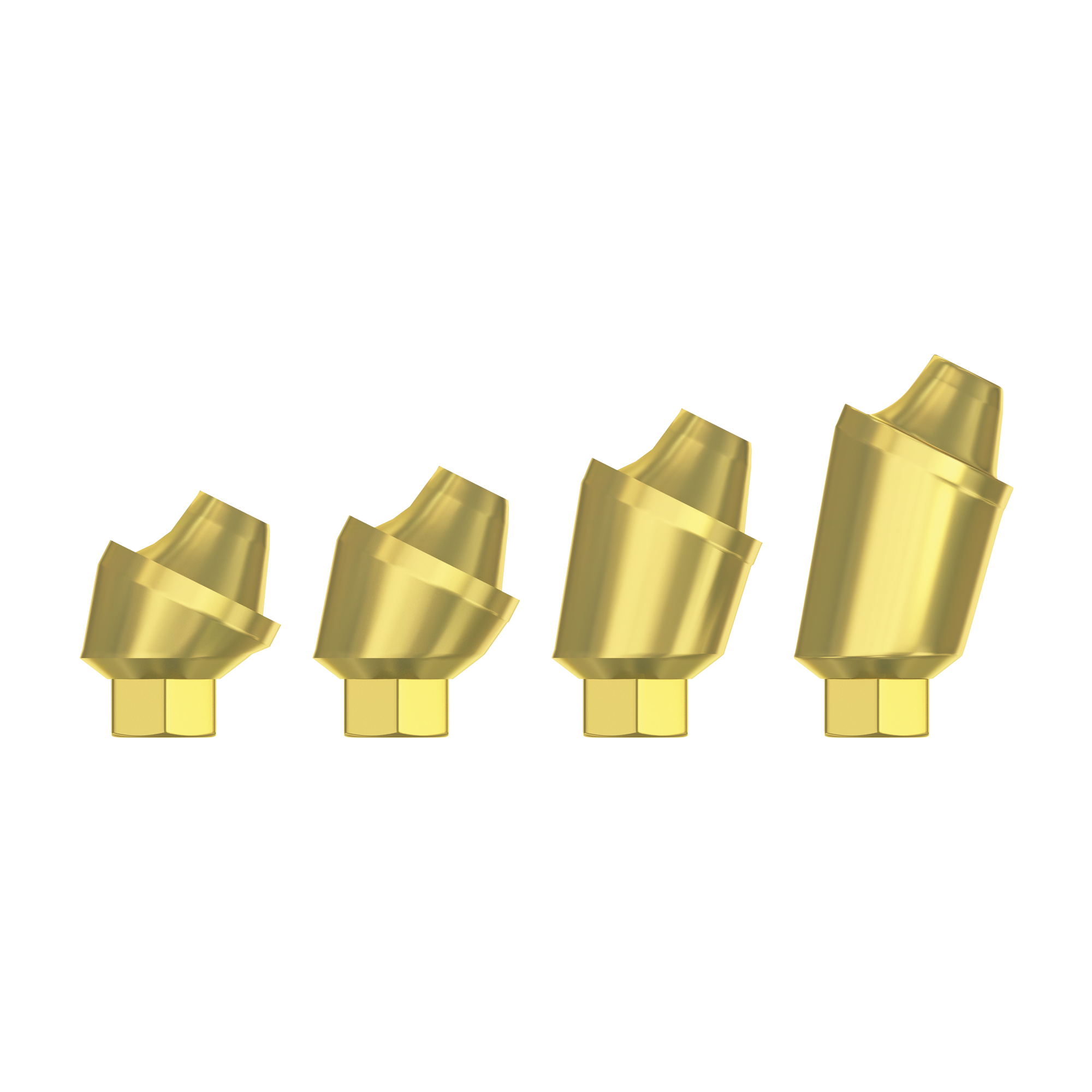

- 17° Degrees
- 30° Degrees
- 45° Degrees
- 52° Degrees
- 60° Degrees
- Titanium fixation screw included with every abutment
- Titanium alloy Ti-6Al-4V grade 23 ELI
- Acetal (Delrin®)
- 1 Angulated MUA + Accessories (see description)
Collar 2-5mm and Angle 17, 30, 45, 52, 60 Selection
