DSI Implant Extraction Removal Drills (SD-FSR refill)

DSI compatible systems Removal Drills are designed specifically for the extraction of broken, ill-fit, or misplaced compatible systems. This is not an invasive solution without the need for surgical intervention. The procedure is fast, reliable, and not traumatic for the professional use.

The compatible systems removal drills can be used with a designated ratchet (square head connection Ø4.0mm), or hand adapter, or with any contra-angle handpiece using the special latch-type RA connection adapter.

use cases:

• Removal of failed, misplaced, or broken compatible systems

Features & Benefits:

• Easy and fast removal on any compatible systems, including the ones that are already osseointegrated into a bone structure
• No bone damage or serious trauma for professional use
• There is no need for surgical intervention, trephine drills, or additional units
• Applicable for a large variety of compatible systems types, and diameters
• Removes failed compatible systems without compromising surrounding bone or damaging neighboring structures
• Fast, reliable, and cost-effective solution
• Can be used with a ratchet, hand adapter, or with a contra-angle handpiece

Technical information:

• Material: Stainless steel
• External device connection type: Ratchet square Ø4.0mm
• Additional adapters: Manual adapter and Latch-type RA connection adapter
• Length of the removal units: 22mm

• Autoclavable and reusable


Compatibility:

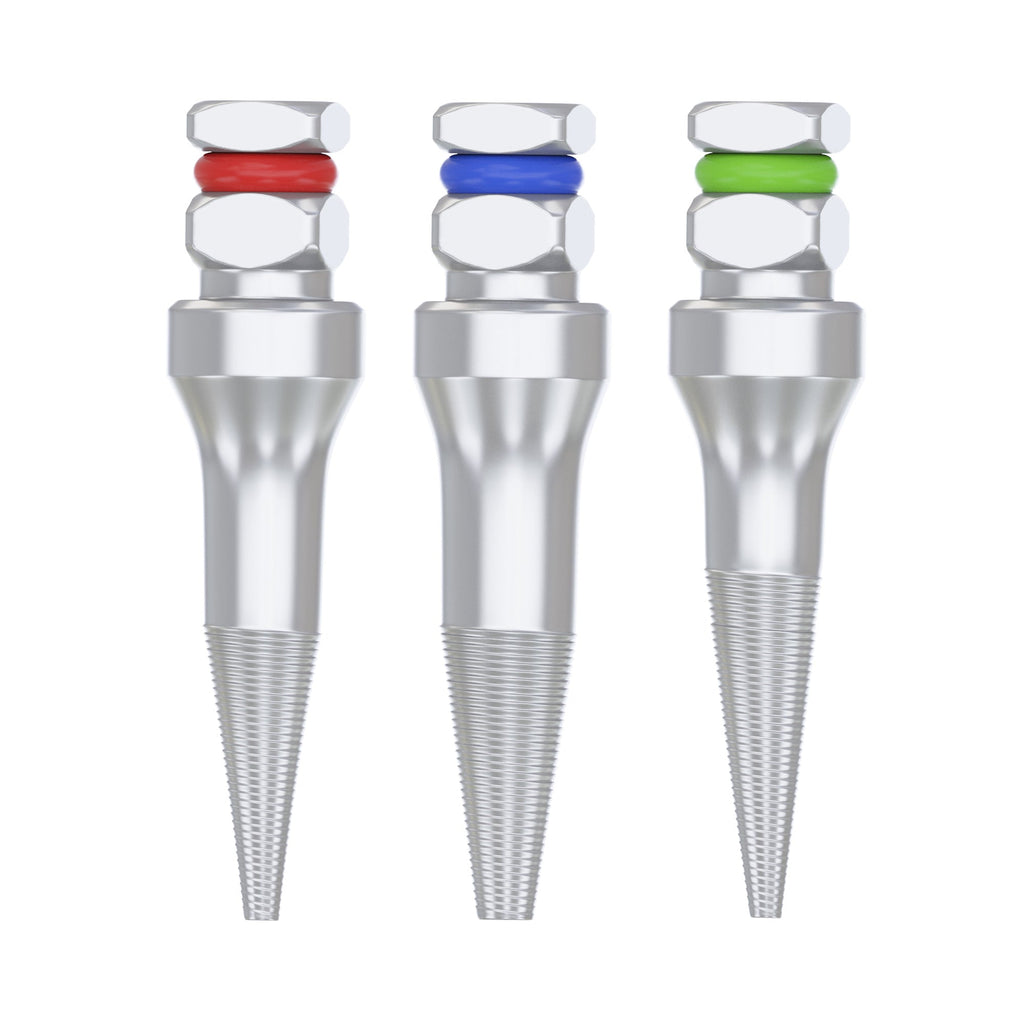

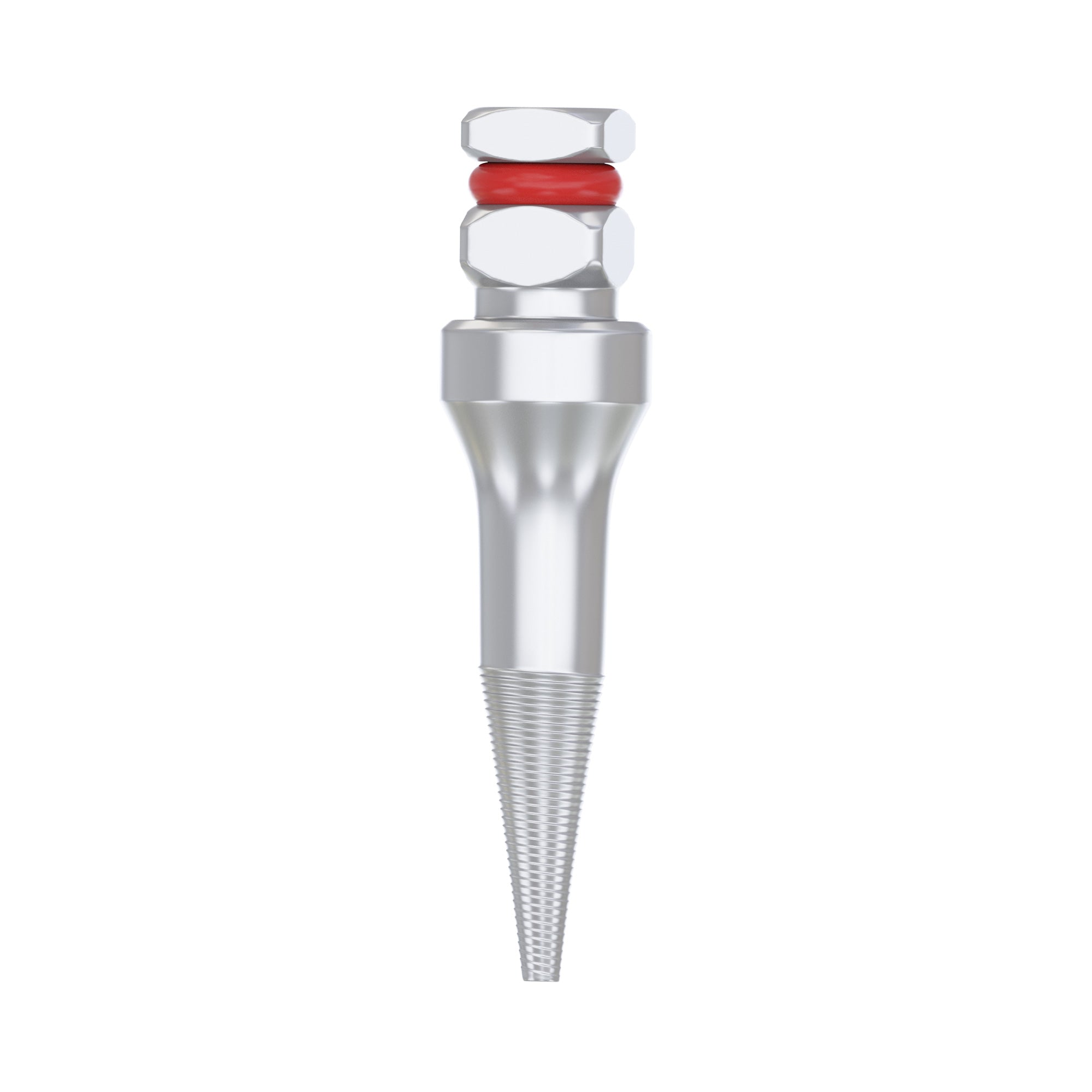

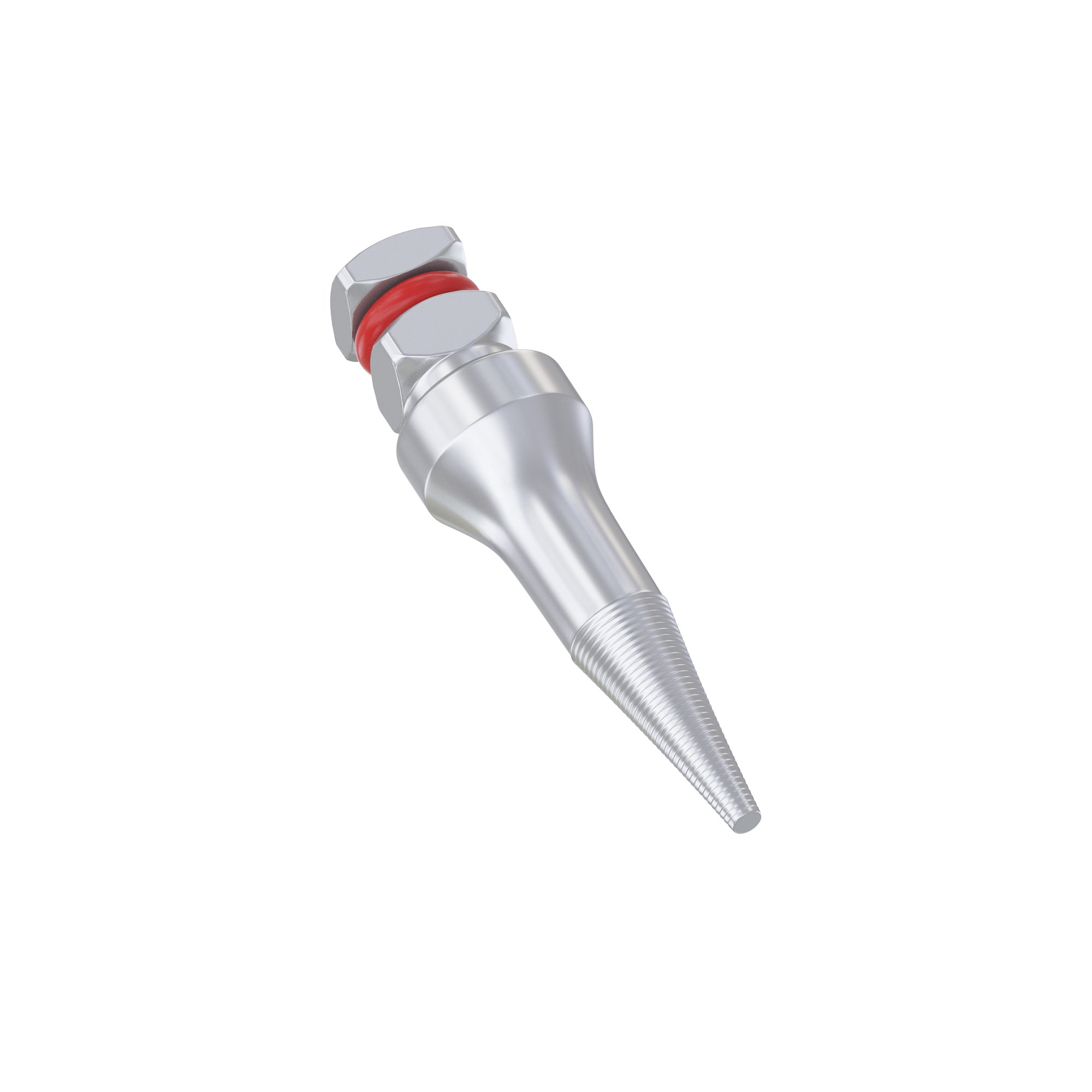

• FRD-01(Ø1.6-1.8mm): Used for compatible systems with diameters between 3.5-4.5mm

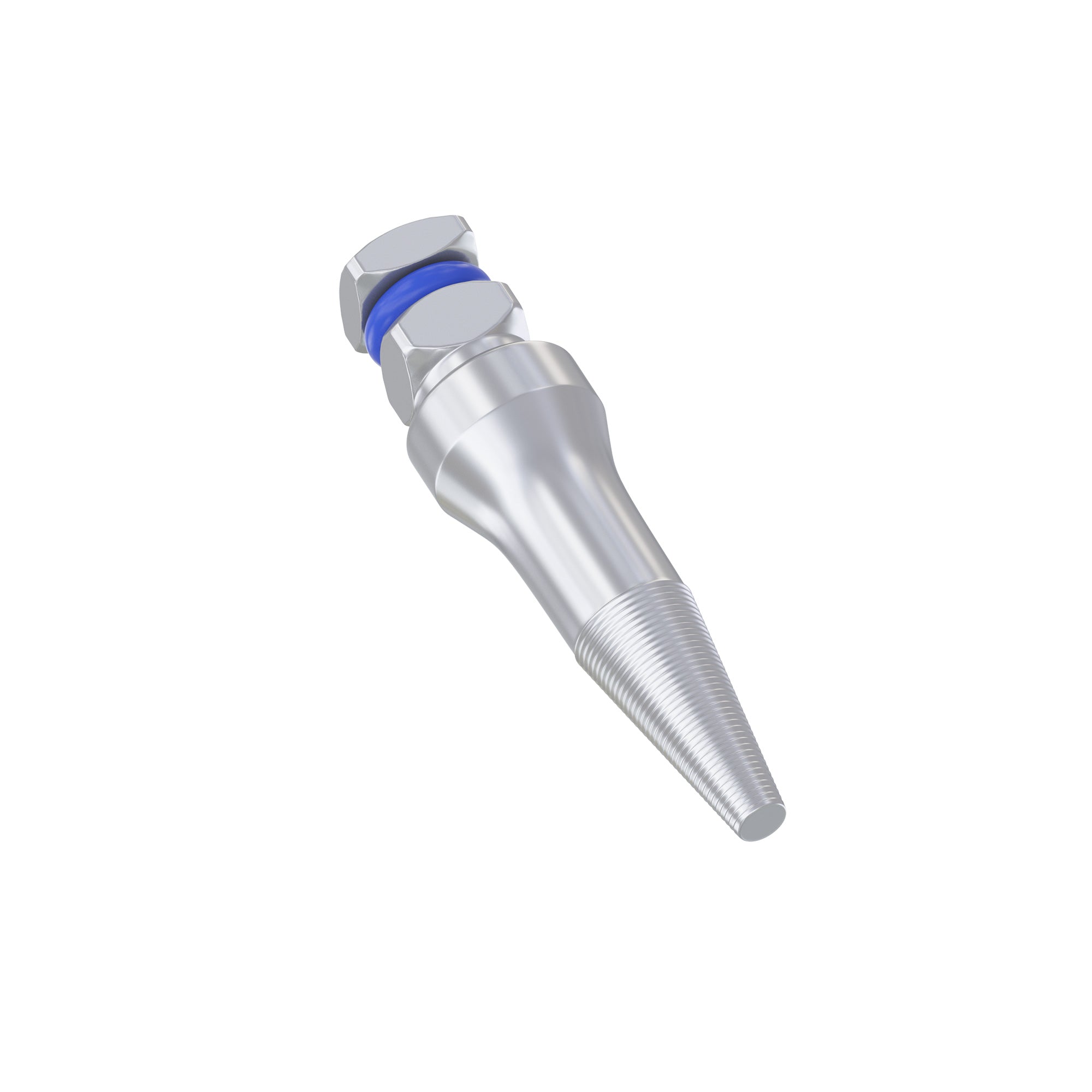

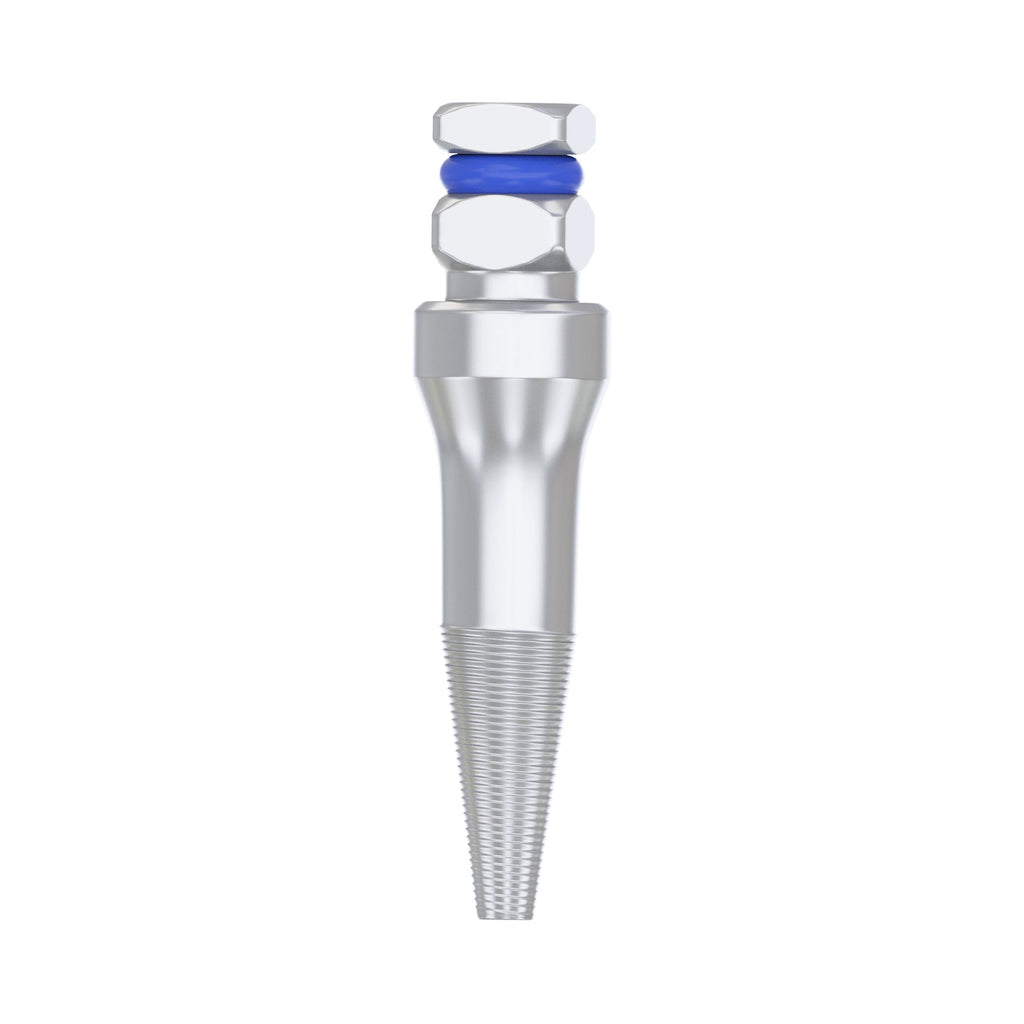

• FRD-02(Ø2.0-2.5mm): Used for compatible systems with a diameter larger than 4.5mm

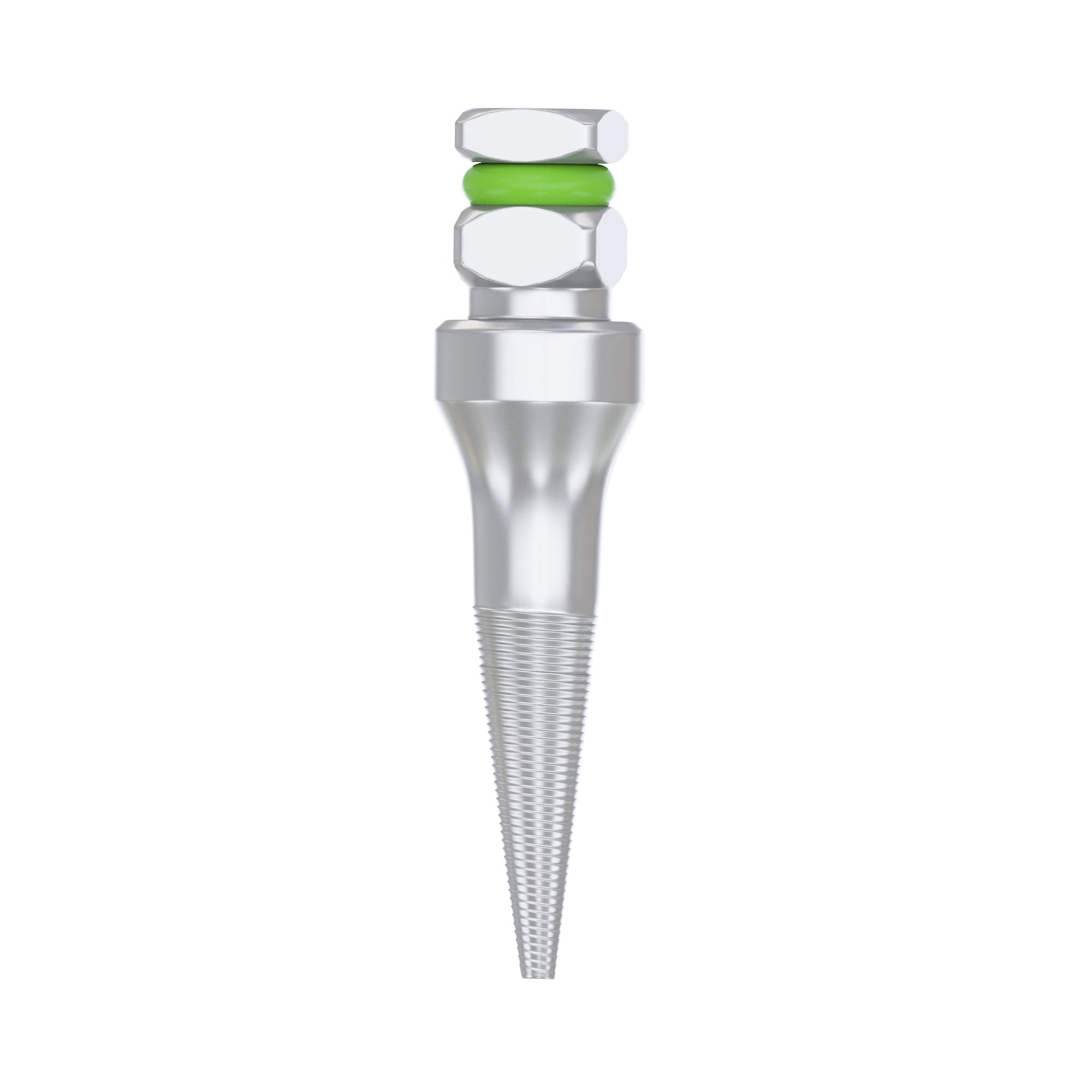

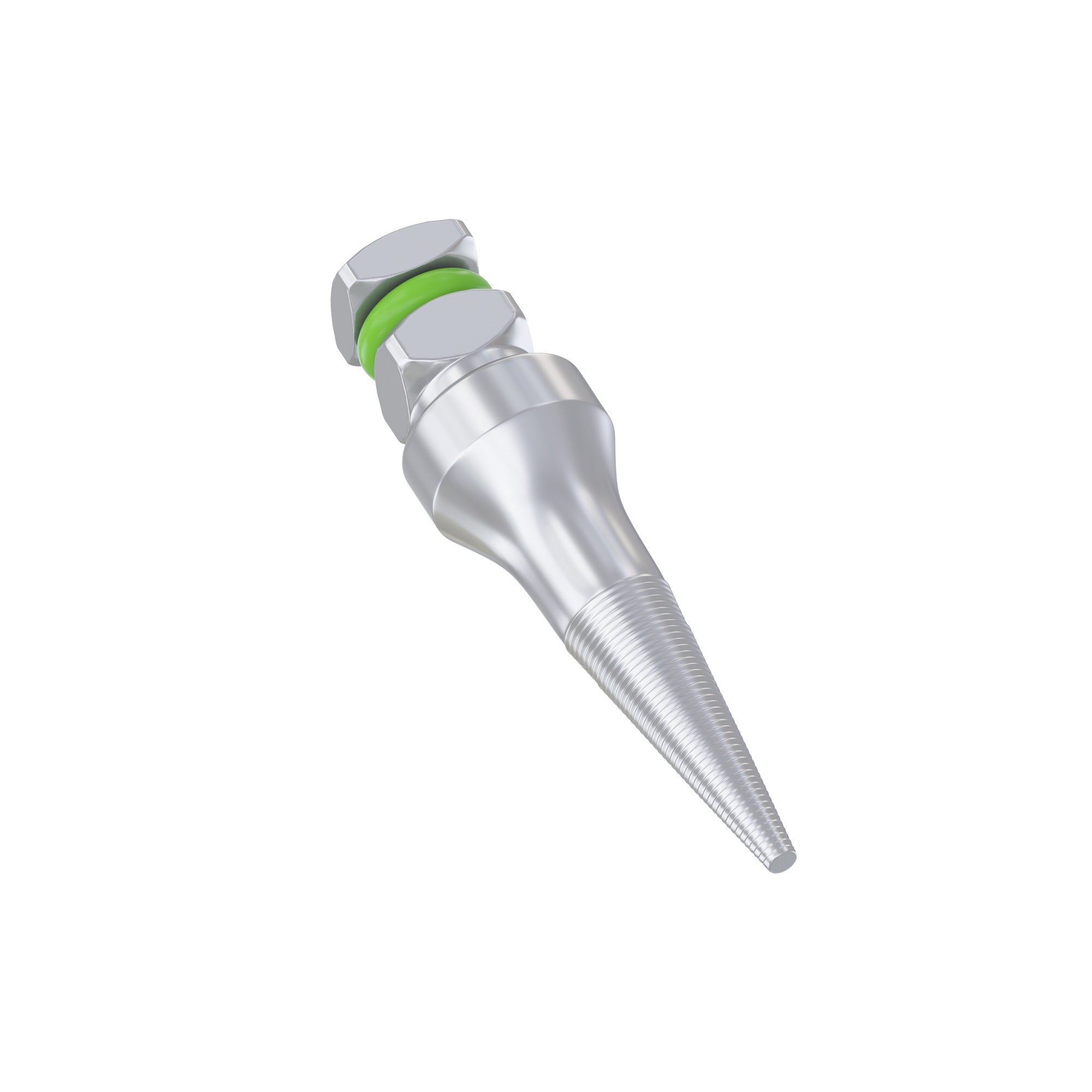

• FRD-03(Narrow): Used for compatible systems with a diameter smaller than 3.5mm

Package includes 1 compatible systems removal drill for selection
