Angulated Ti-Base Abutment Dynamic Screw

These screws are intended specifically for DSI angulated Ti-base CAD/CAM abutments only. Each screw was carefully designed to be compatible with a specific height of a DSI angulated ti-base abutment.

The screw is used to install and fixate the DSI angulated ti-base abutment on the implant. The screw is made of high-quality Titanium alloy Ti-6Al-4V grade 23 ELI and compatible only with DSI angulated ti-base abutments. The implant's platform is internal-hex Ø2.42mm

Indications:

• Installation and fixation of angulated ti-base abutments on the implant

Features:

• Excellent biocompatibility

• Simple and fast insertion

• Accurate positioning

• Outstanding stability for abutments

Technical information:

• Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
• Compatible with DSI angulated ti-base abutments
• Platform: Internal hex Ø2.42mm
• Diameter: Ø2.1mm
• Length: 8.3 / 9.6 / 10.6mm
• Head length: 2.5 / 3.8 / 4.8mm
• Can be used with a regular Ø1.25mm hexagon driver

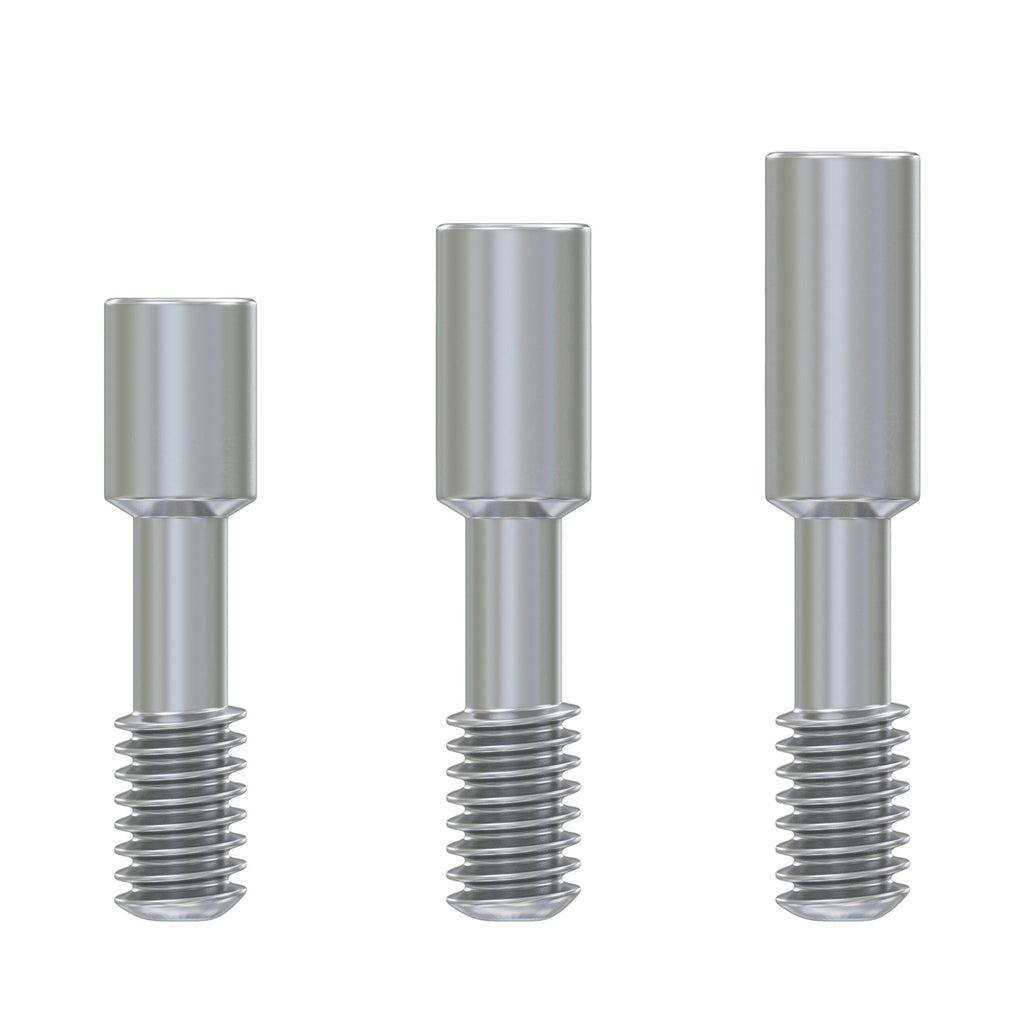

Screw types and compatibility:

SISCA1: Compatible only with DSI angulated ti-base abutments with collar height of 0.5mm / 1.0mm / 2.0mm

SISCA2: Compatible only with DSI angulated ti-base abutments with collar height of 3.0mm

SISCA3: Compatible only with DSI angulated ti-base abutments with collar height of 4.0mm

Package includes 1 fixation screw
