DSI DS-RKS Kit For Broken Implant Fixture & Screw Removal Extraction

DSI compatible systems & Screw Removal Kit is made for the precise extraction of broken, poorly fitted, or misplaced compatible systems, along with the removal of fractured fixation screws. Offering a non-invasive alternative to surgical intervention, this procedure is swift, dependable, and minimally traumatic for professional use. Upon extraction of the broken screw, it can be replaced replacement with a new prosthetic solution.

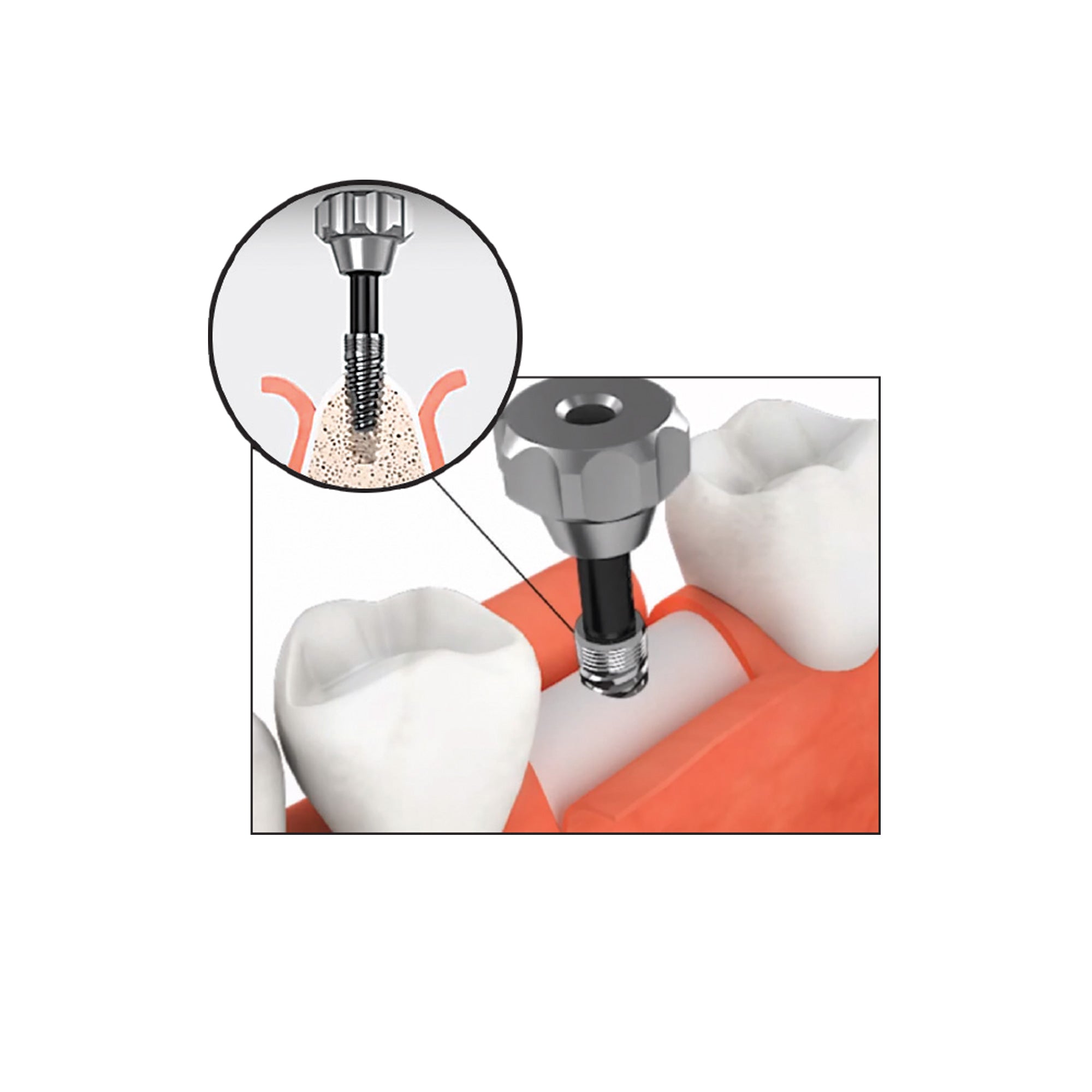

The kit contains extraction drills that fit a wide array of platforms and compatible systems sizes found in the dental market. It also features reverse and tap drills made for the extraction of broken or fractured screws from compatible systems. The removal drill tools' tapered bodies seamlessly engage with the internal threads of both the compatible systems and screw, facilitating effortless and rapid extraction, including compatible systems already integrated into bone structures.

The compatible systems removal drills are compatible with the kit's designated ratchet or hand adapter. The screw removal drills are designed with a universal latch-type RA connection.

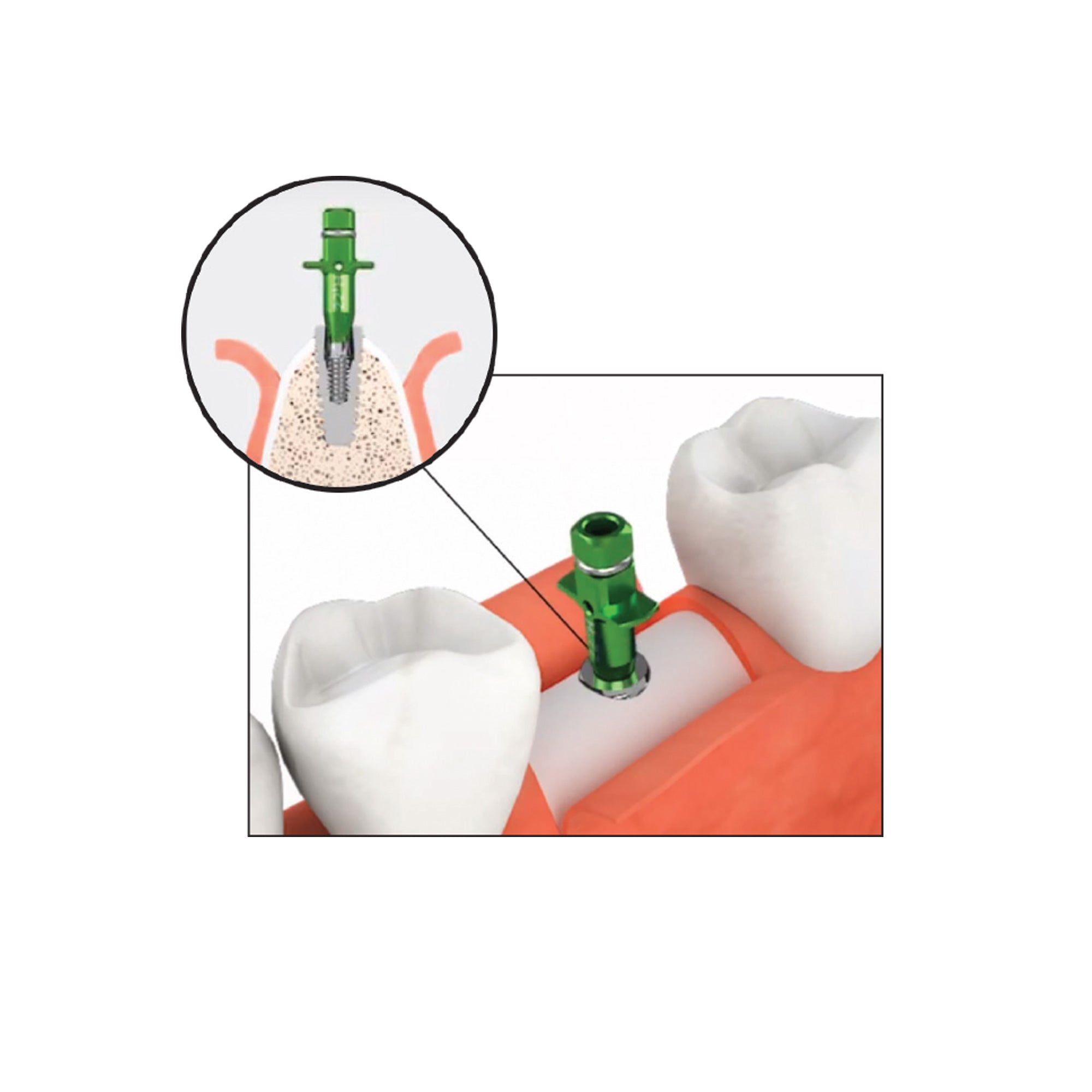

Moreover, the kit includes guides for nearly all platforms, serving as invaluable aids in advanced techniques for scenarios where standard methods prove inappropriate. These guides facilitate precise positioning and stabilization of the reverse drill during the procedure, ensuring great accuracy.

use cases:

• Removal of failed, misplaced, or broken compatible systems.
• Removal of broken and fractured screws

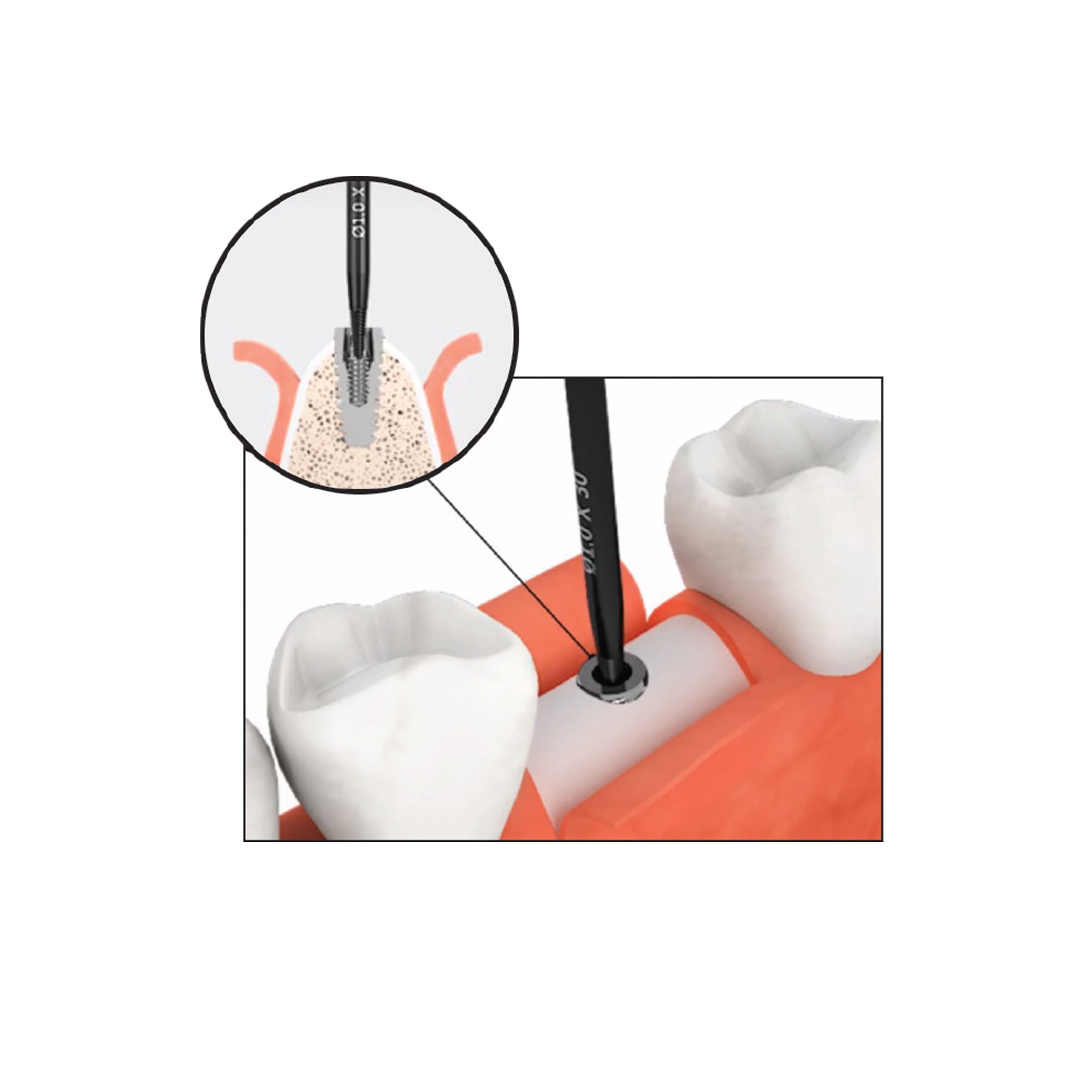

• Drilling out broken screws that cannot be extracted with a regular removal drill
• Forward engagement with the compatible systems inner thread without surgical intervention.

Features & Benefits:

• Easy and fast removal on any compatible systems, including the ones that are already osseointegrated into a bone structure
• Simple removal of all kinds of fixation screws, broken and fractured alike
• No bone damage or serious trauma for professional use
• No need for surgical intervention, trephine drills, or additional units
• When the broken screw is lifted from the compatible systems it can then be replaced by a new prosthetic solution with a new fixation screw
• Applicable for a large variety of compatible systems types, and diameters
• Removes failed compatible systems without compromising surrounding bone or damaging neighboring structures
• Fast, reliable, and cost-effective solution
• Can be used with a ratchet, hand adapter, or with a contra-angle handpiece

Technical information For compatible systems removal drills:

• Material: Carbide
• External device connection type: Ratchet square Ø4.0mm
• Additional adapters: Manual adapter
• Autoclavable and reusable


Compatibility:

• HFR16 (16°): Used for conical compatible systems

• HFR16N(16°N): Used for narrow compatible systems

• HFR22(22°H): Used for spiral compatible systems

Technical information For screw removal drills:

• Material: Carbide
• Diameter: Ø1.0mm
• Length: 25mm / 32mm
• Speed: 30-80RPM (Screw remove tap) / 800-1000RPM (Screw remove drill)
• Compatibility: Internal-Hex abutment screws with a Ø1.25mm inner hexagon
• External device connection type: Latch-type RA
• Can be used with a contra-angle handpiece
• Autoclavable and reusable

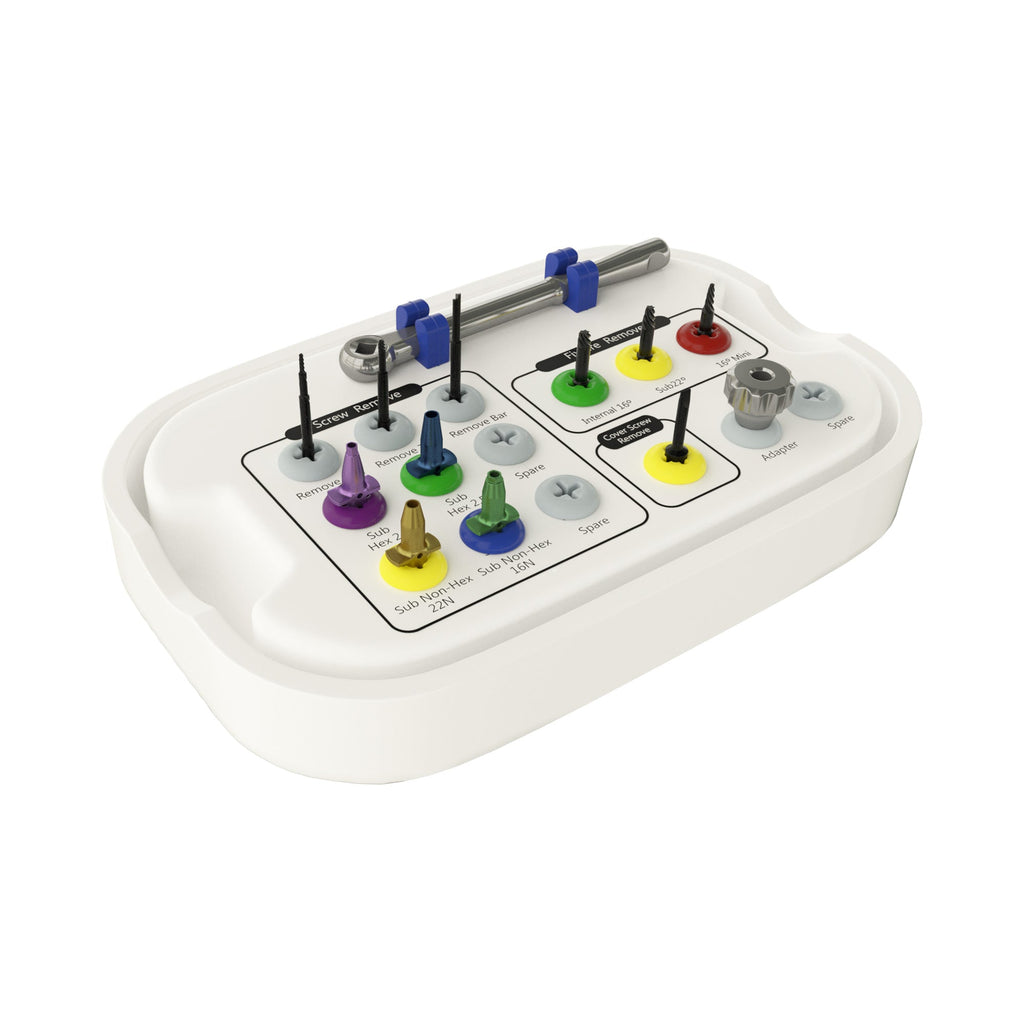

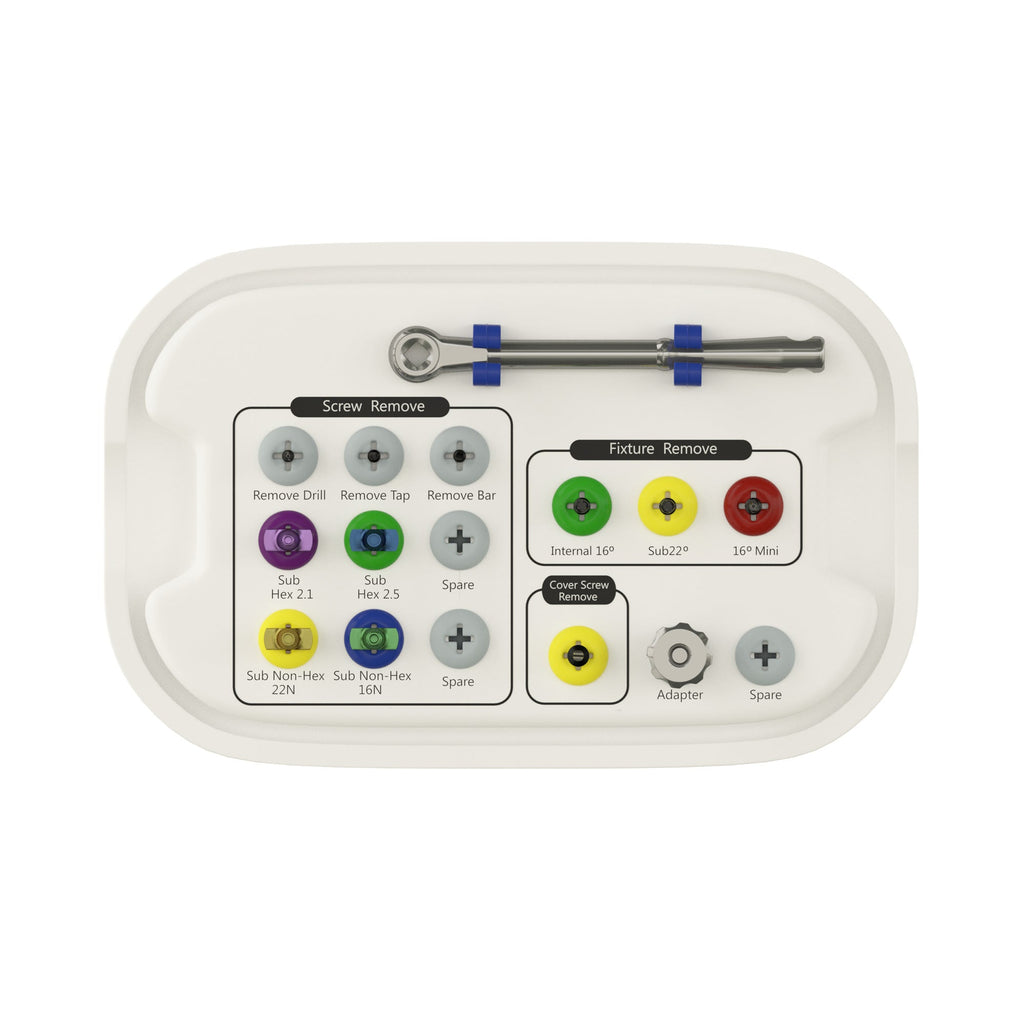

The kit includes all the following items:

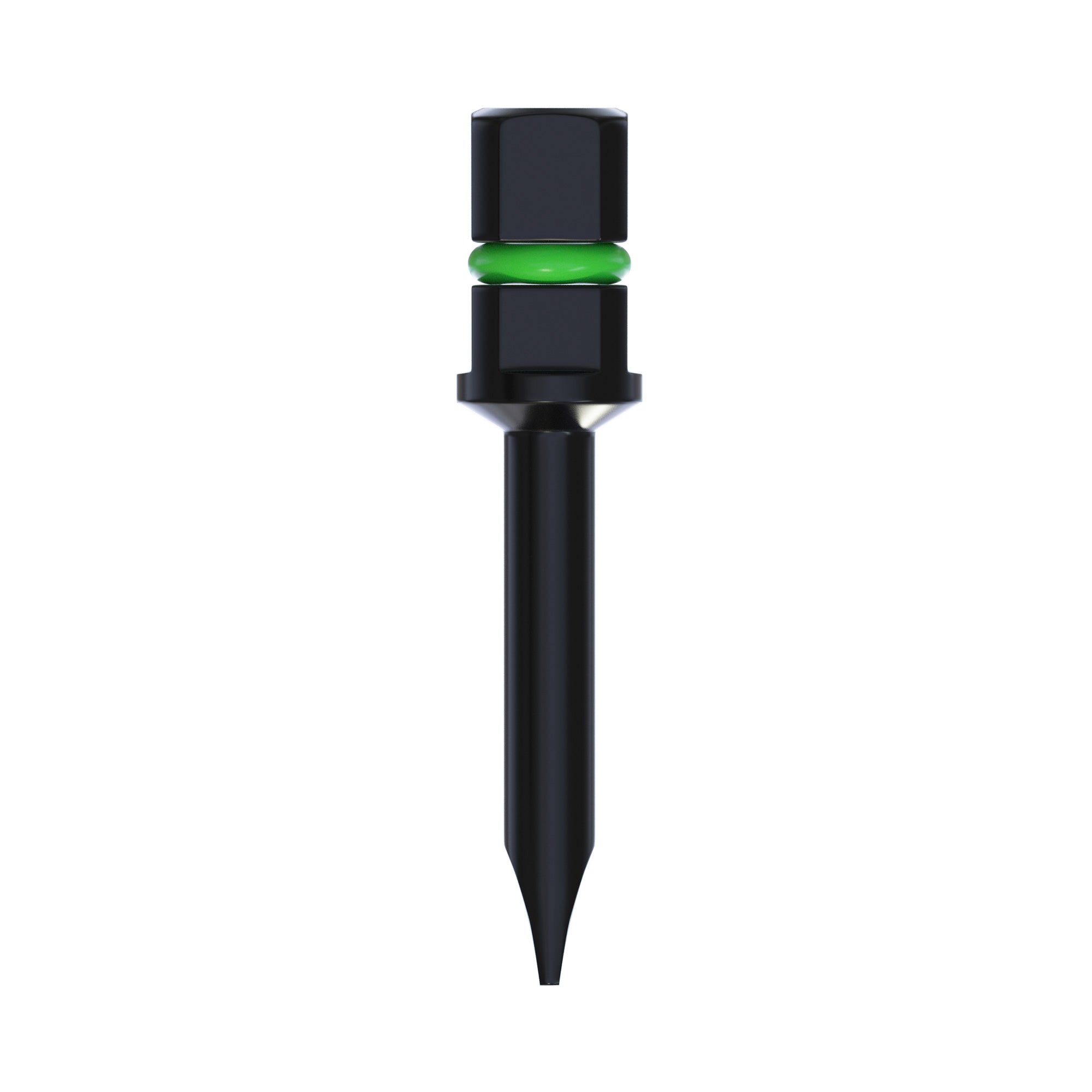

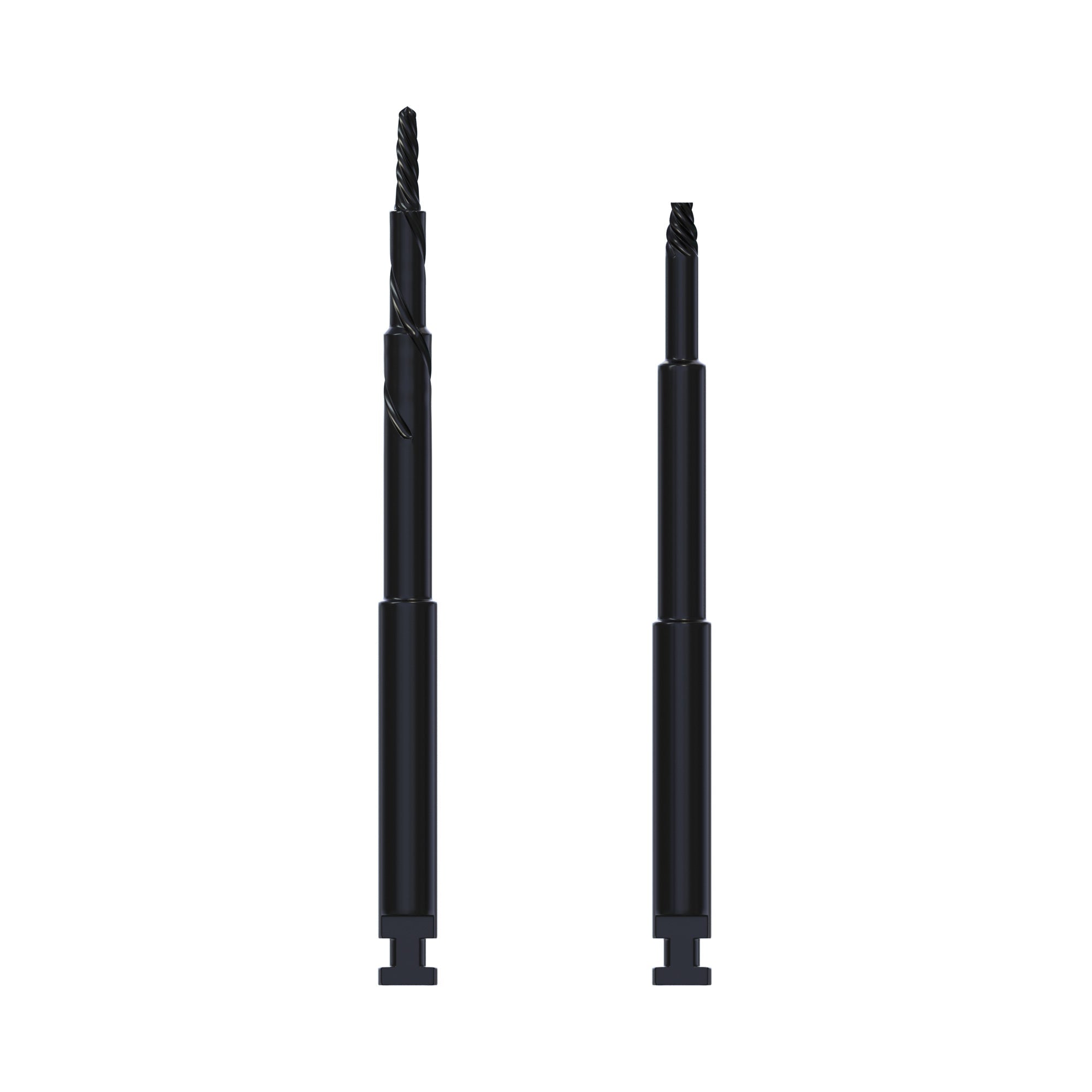

• HSD1032: Screw remove drill Ø1.0mm, L 32mm (1pcs)

• HST1025: Screw remove tap Ø1.0mm, L25mm (1pcs)

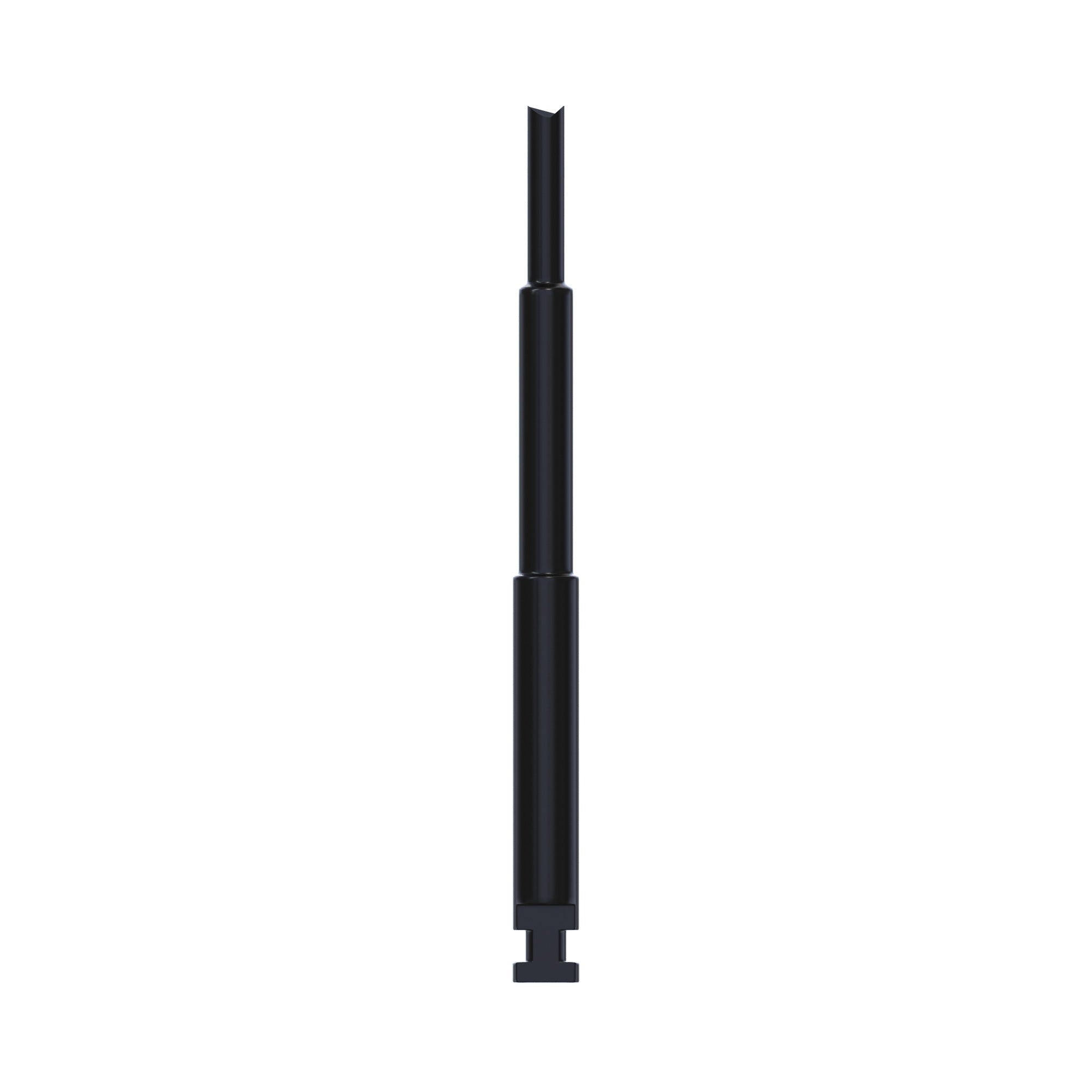

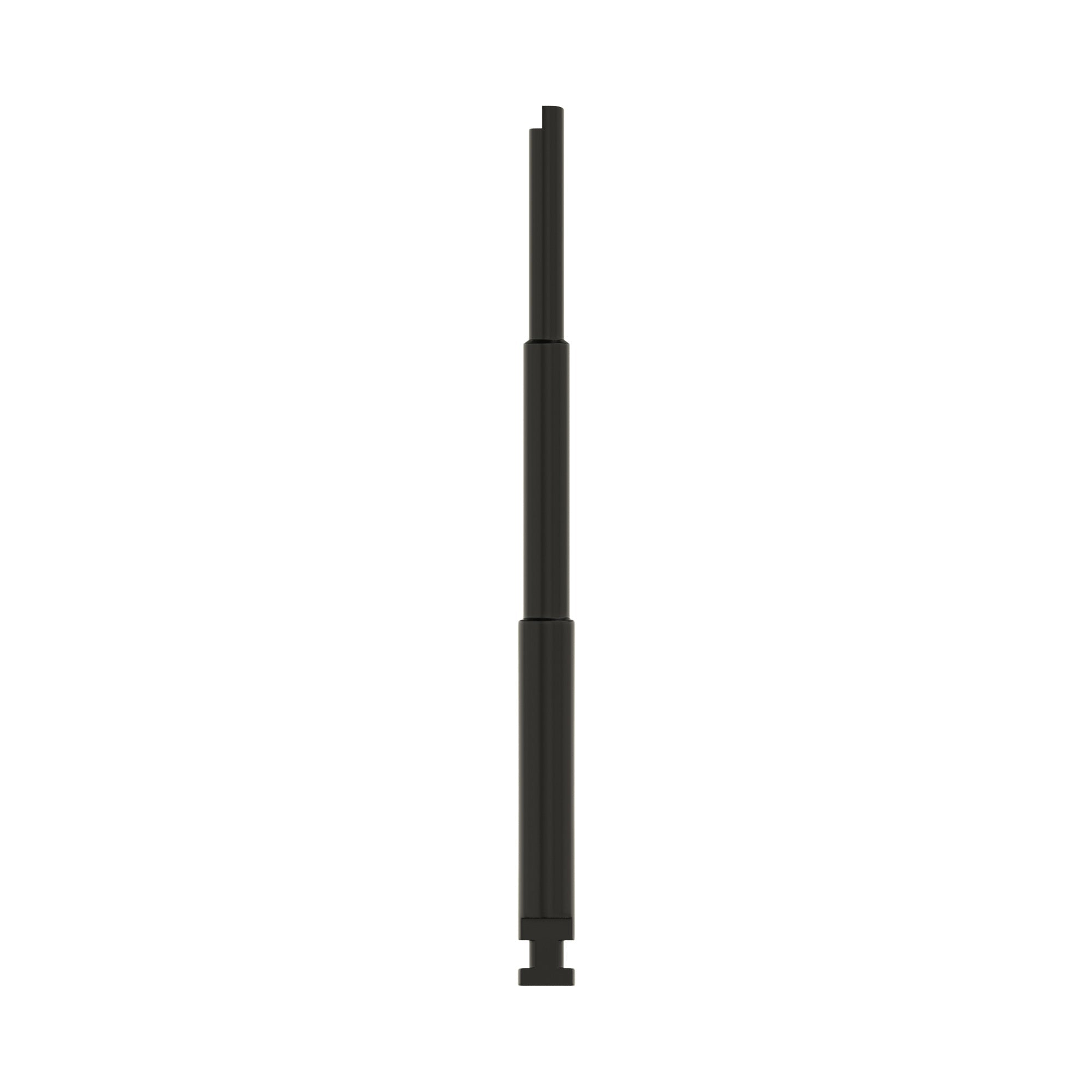

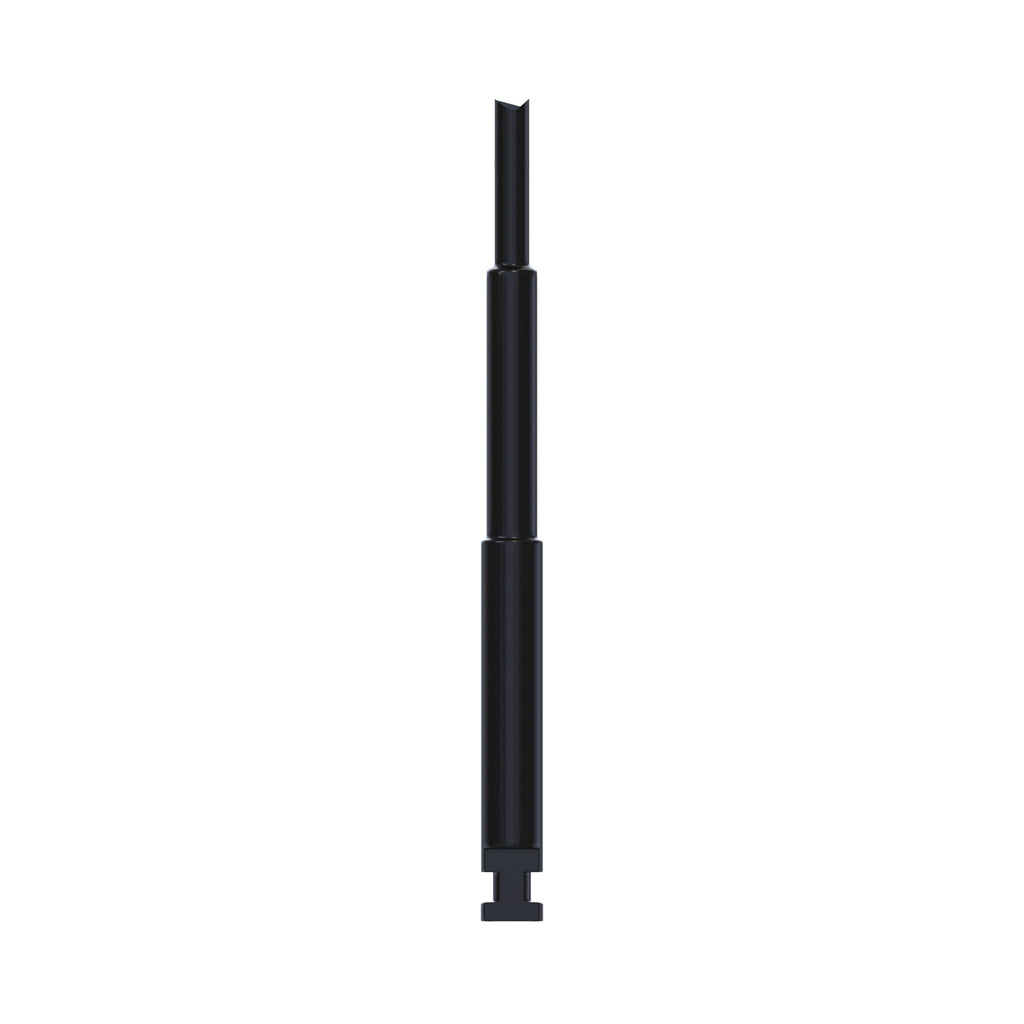

• HSB145B: Screw remove bar Ø1.0mm, L60mm (1pcs)

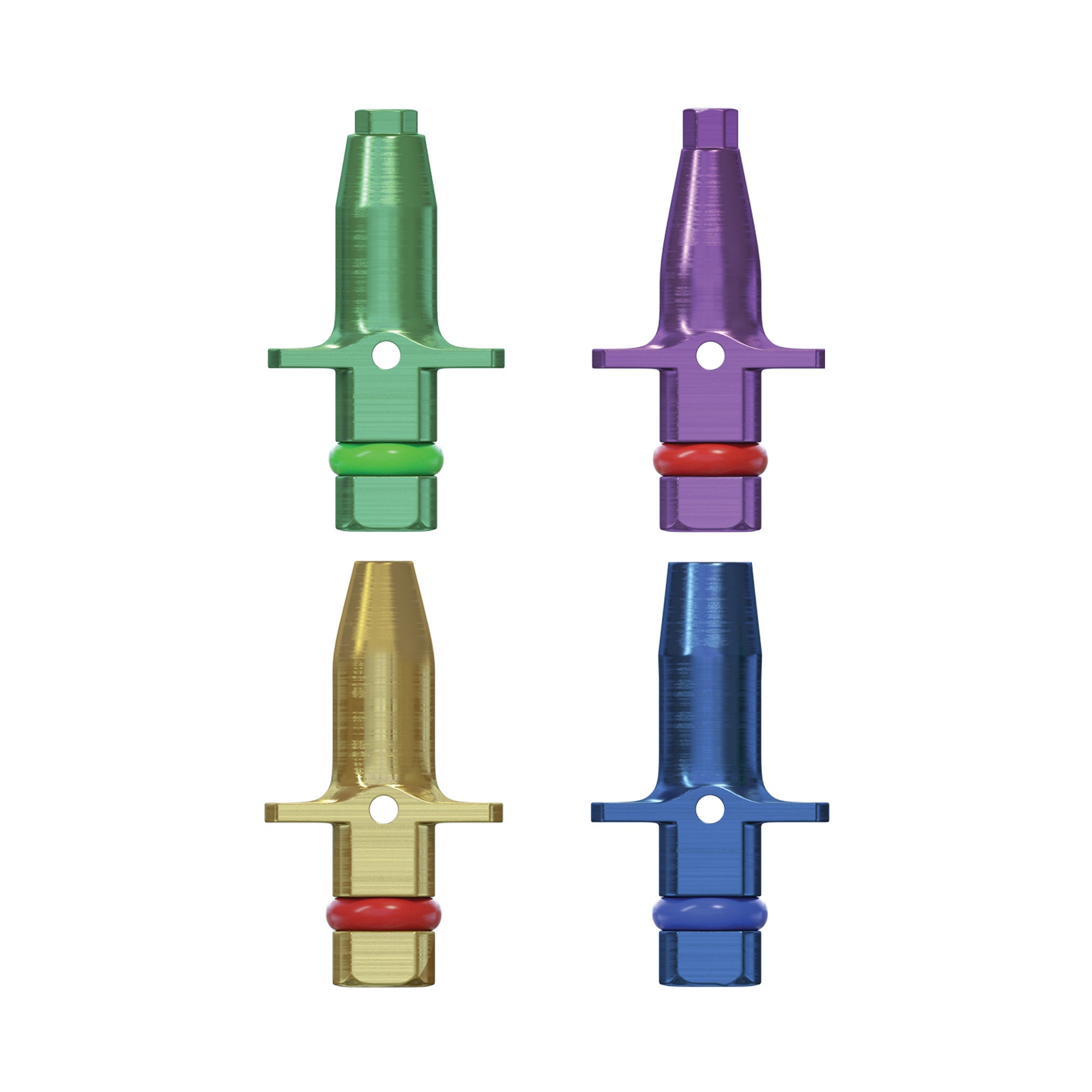

• HSG22N: Screw remove guide - sub-non-hex 22N (1pcs)

• HSG16N: Screw remove guide sub-non-hex 16N (1pcs)

• HSG25H: Screw remove guide sub. hex 2.5 (1pcs)

• HSG22N: Screw removes guide sub. hex 2.1 (1pcs)

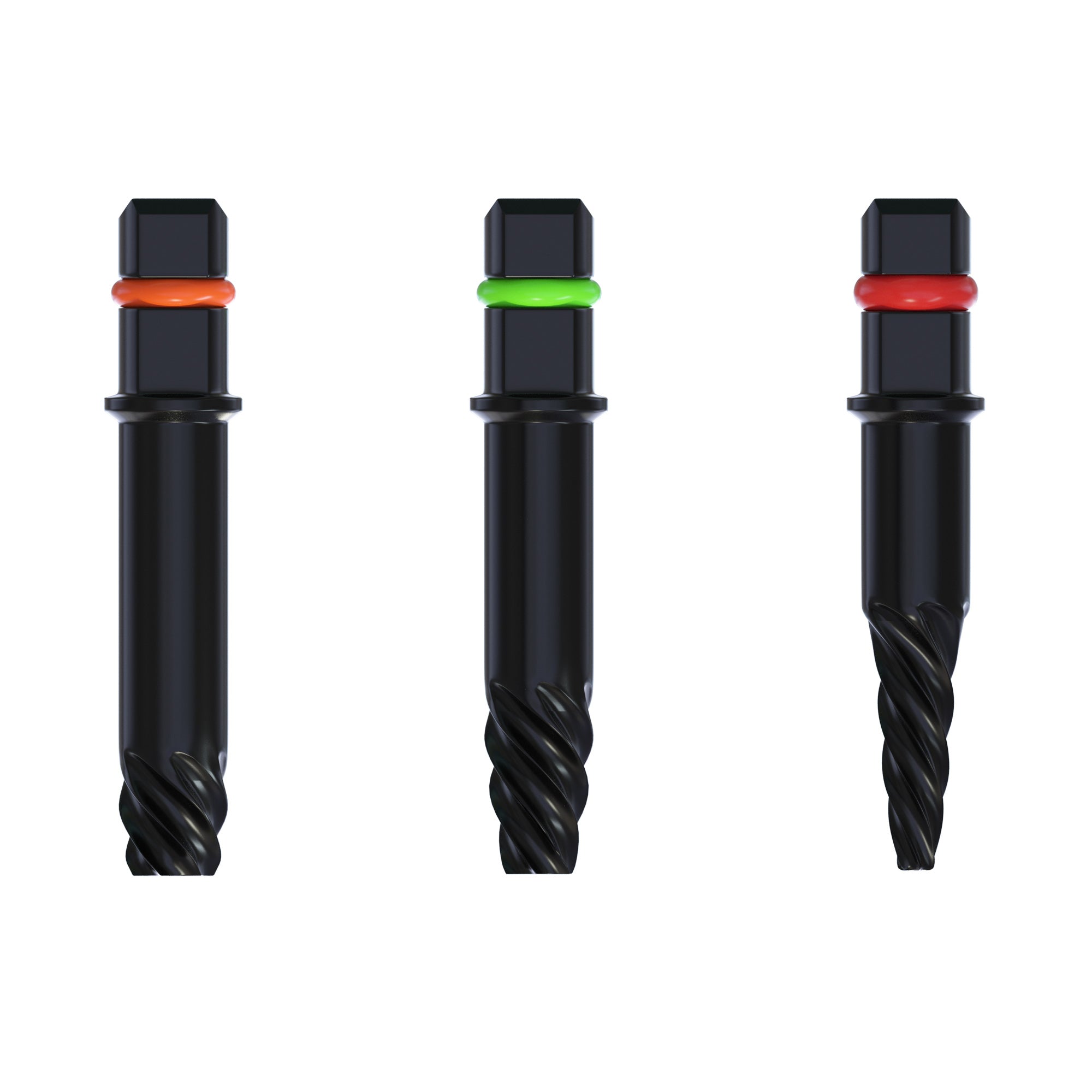

• HFR22: Spiral compatible systems remove F22° (1pcs)

• HFR16: Conical compatible systems remove 16° (1pcs)

• HFR16N: Narrow compatible systems remove 16°N (1pcs)

• HSD054L: compatible systems cover screw remove (1pcs)

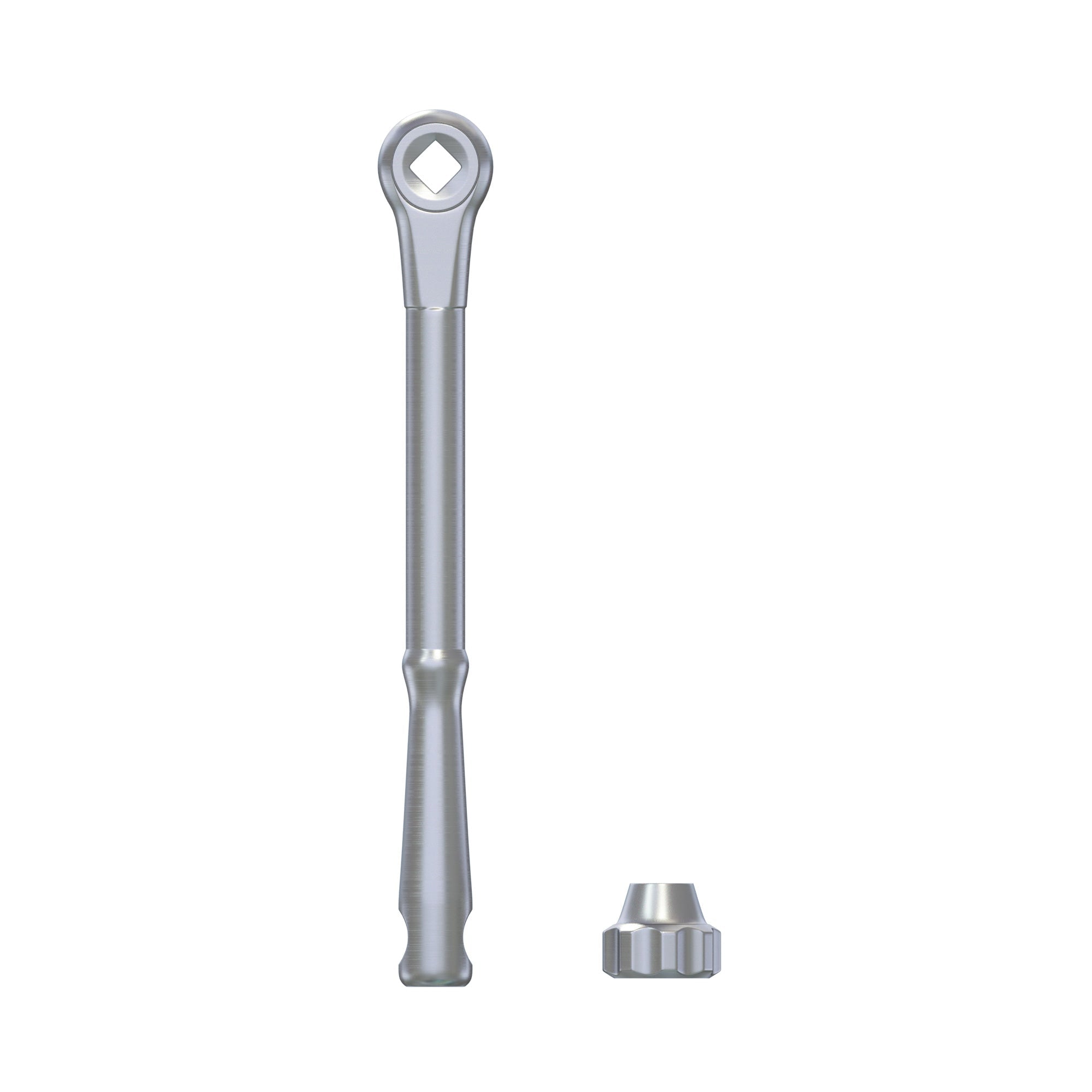

• HRW9758: Ratchet wrench square head Ø4.0mm (1pcs)

• HHSA40: Manual adapter (1pcs)
