DSI Drill For Extraction And Removal Broken / Fractured Fixation Screw

DSI Drills For Screw Extraction are designed specifically for the extraction and removal of a broken or fractured fixation screw from the compatible systems's inner thread. This is not an invasive solution, and there is no surgical intervention. The procedure is fast, reliable, and completely atraumatic for the professional use. When the broken screw is removed from the compatible systems it then can be replaced by a new prosthetic solution with a new fixation screw.

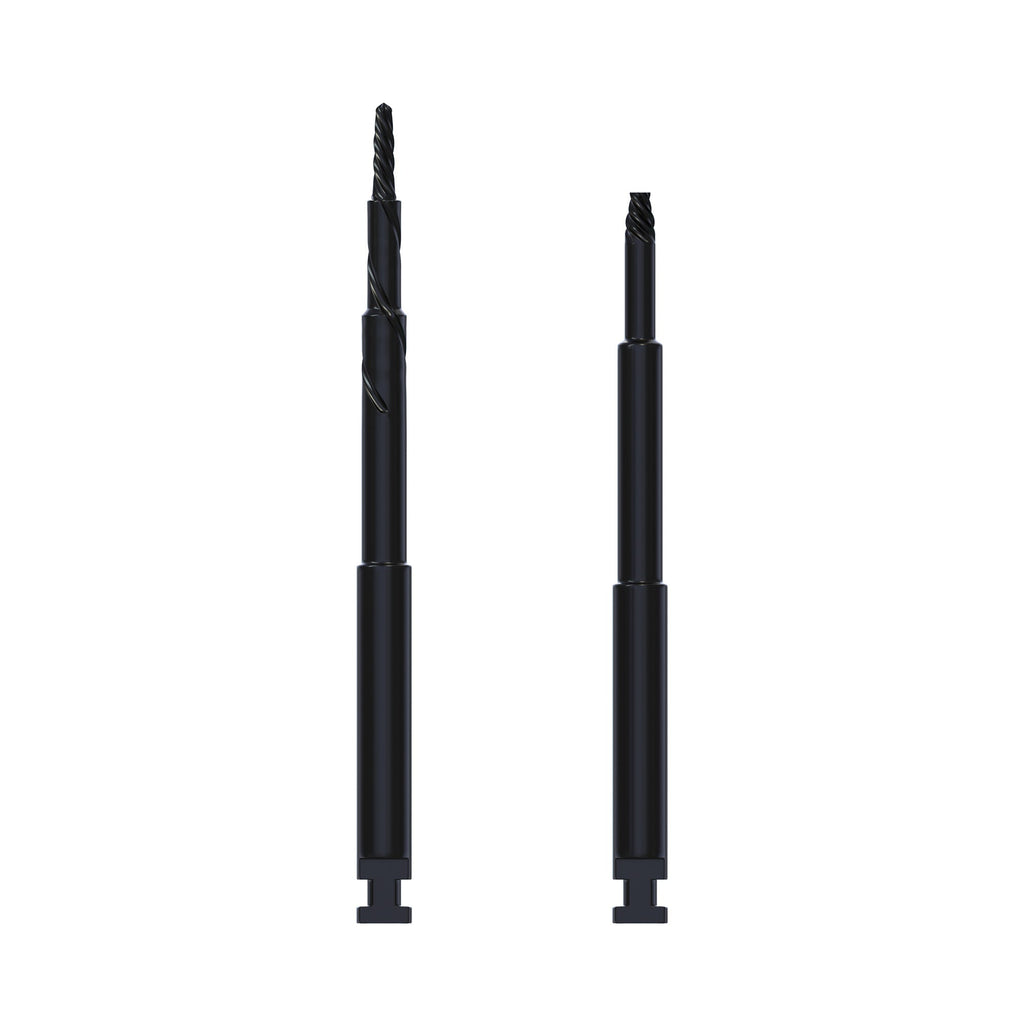

There is a reverse drill and a tap for selection available for extracting broken and fractured screws from the compatible systems. In 90% of the cases, any sort of screw can be extracted, even if it is broken.

The drills are designed for Ø1.25mm internal hex screws and can be used with any contra-angle handpiece and are designed with a universal latch-type RA connection.

use cases:

• Removal of broken and fractured screws
• Drilling out broken screws that cannot be extracted with a regular removal drill

Features & Benefits:

• Simple removal of all kinds of fixation screws, broken and fractured alike
• No bone damage or serious trauma for professional use
• There is no need for surgical intervention, trephine drills, or additional units
• When the broken screw is lifted from the compatible systems it can then be replaced by a new prosthetic solution with a new fixation screw
• Applicable for a large variety of compatible systems types, and diameters
• Fast, reliable, and cost-effective solution
• Can be used with a universal latch-type RA contra-angle handpiece

Technical information:

• Material: Carbide
• Diameter: Ø1.0mm
• Length: 25mm / 32mm
• Speed: 30-80RPM (Screw remove tap) / 800-1000RPM (Screw remove drill)
• Compatibility: Internal-Hex abutment screws with a Ø1.25mm inner hexagon
• External device connection type: Latch-type RA
• Can be used with a contra-angle handpiece
• Autoclavable and reusable

Package includes 1 bur for selection
