Angulated Multi Unit Full Set
Quick Buy
Description

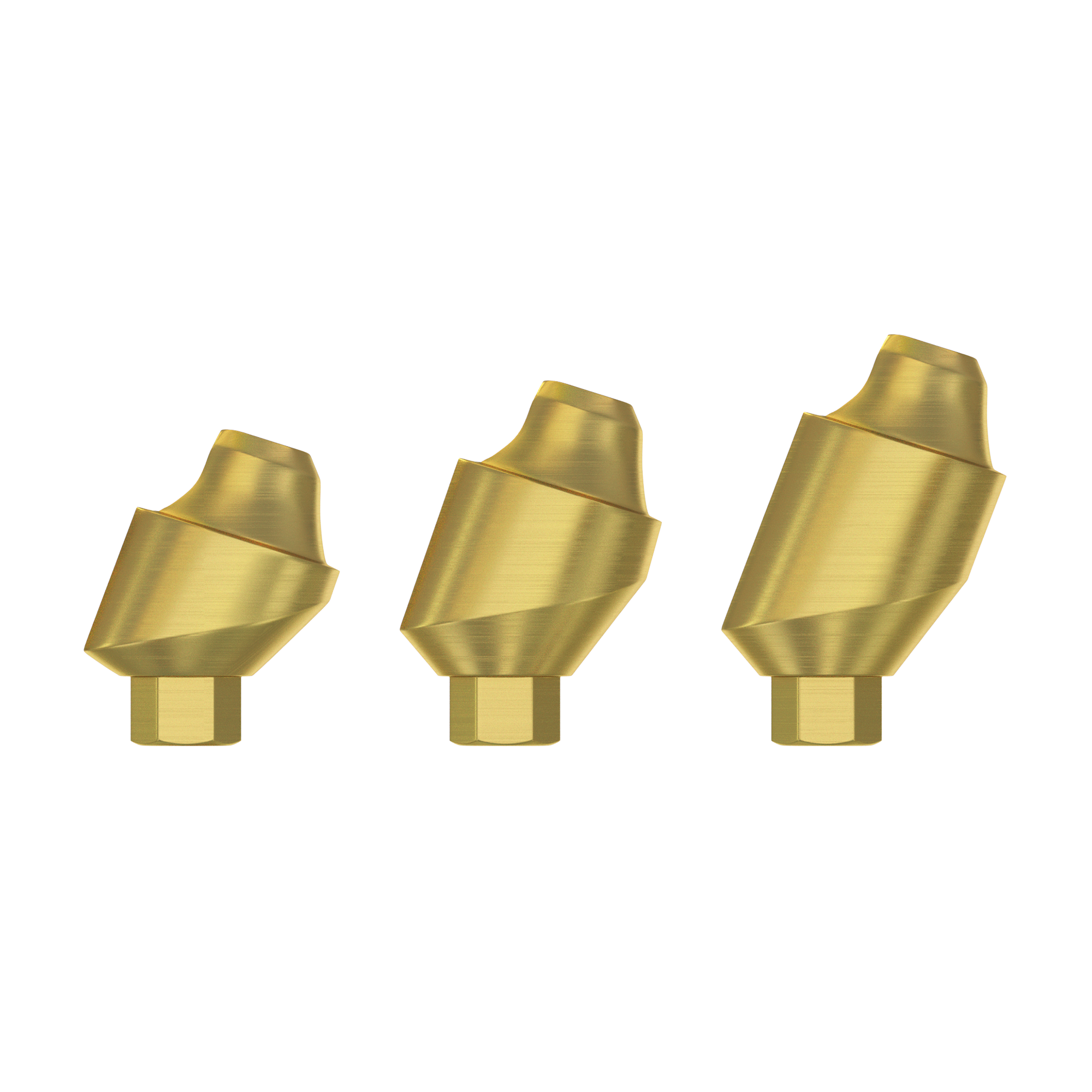

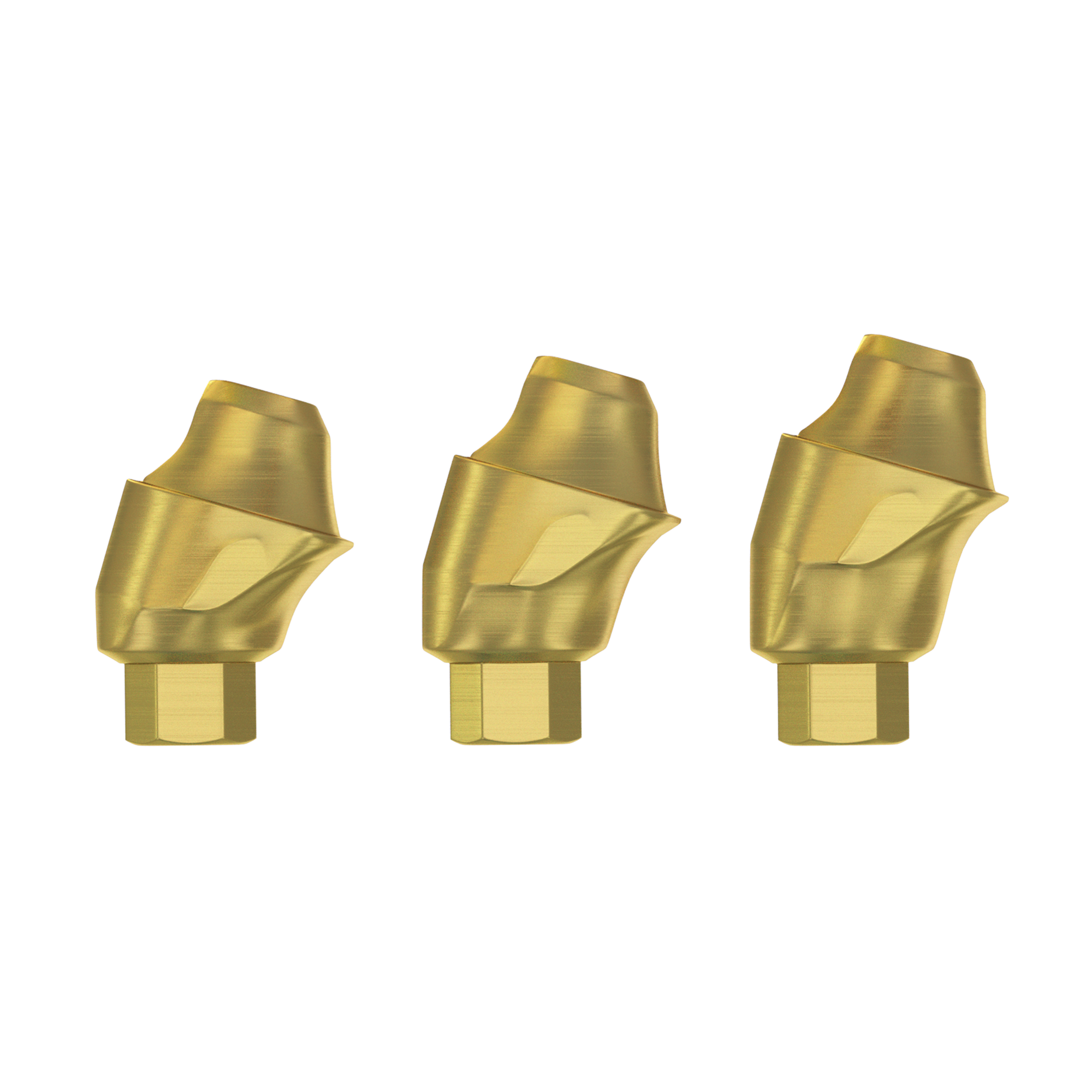

The DSI Angulated Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.
DSI Next-Gen multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Next-Gen multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals

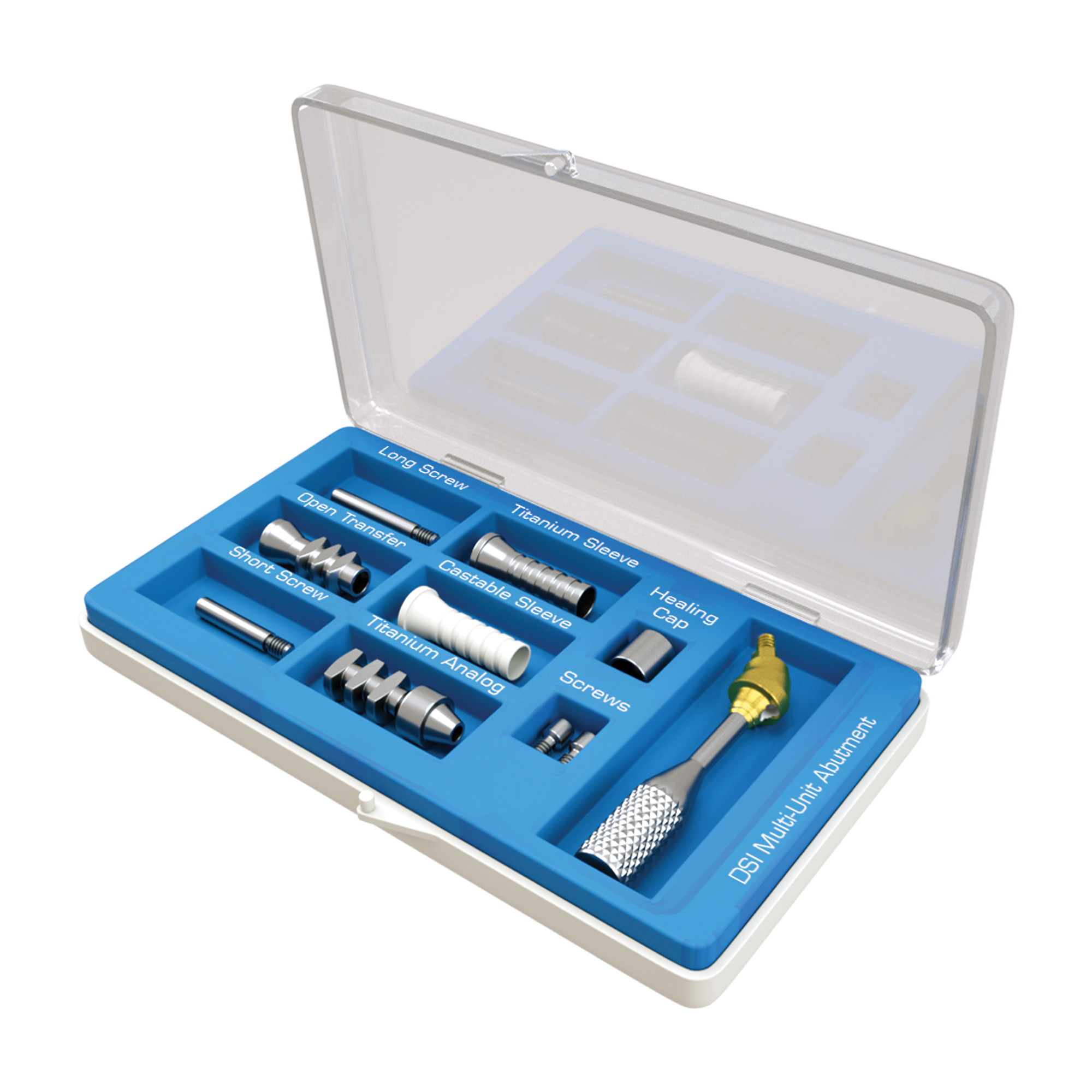

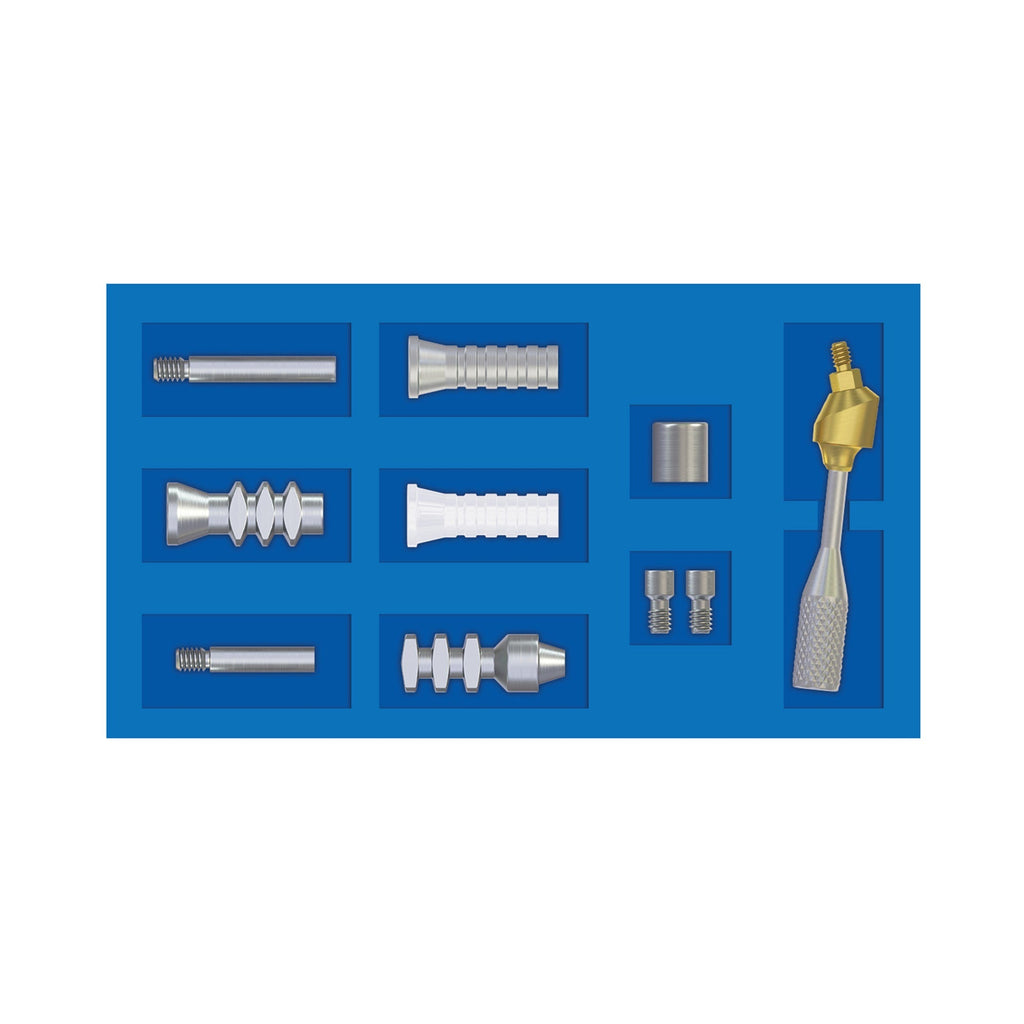

The most commonly used and versatile is the Full Set, which includes
One abutment of the chosen size:

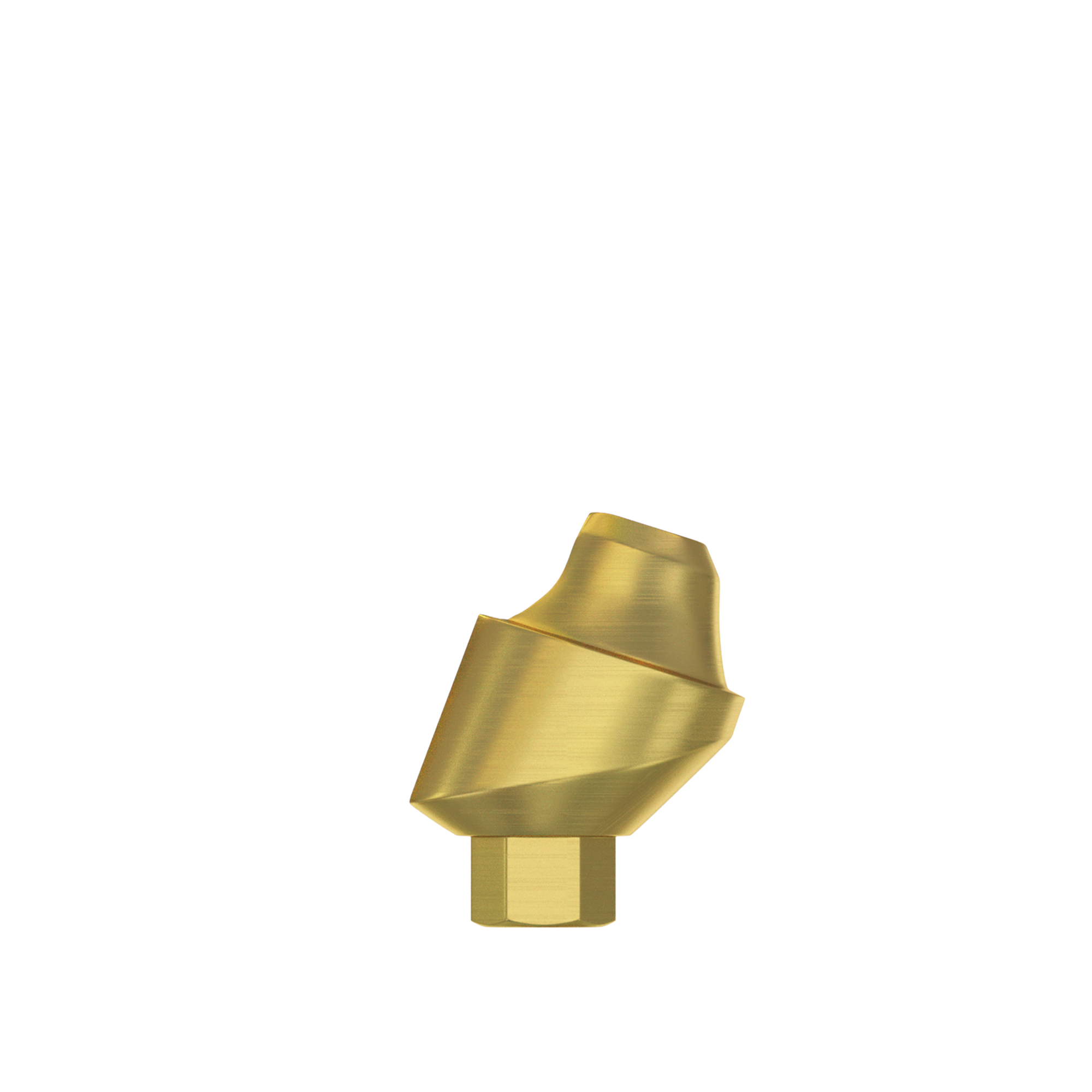

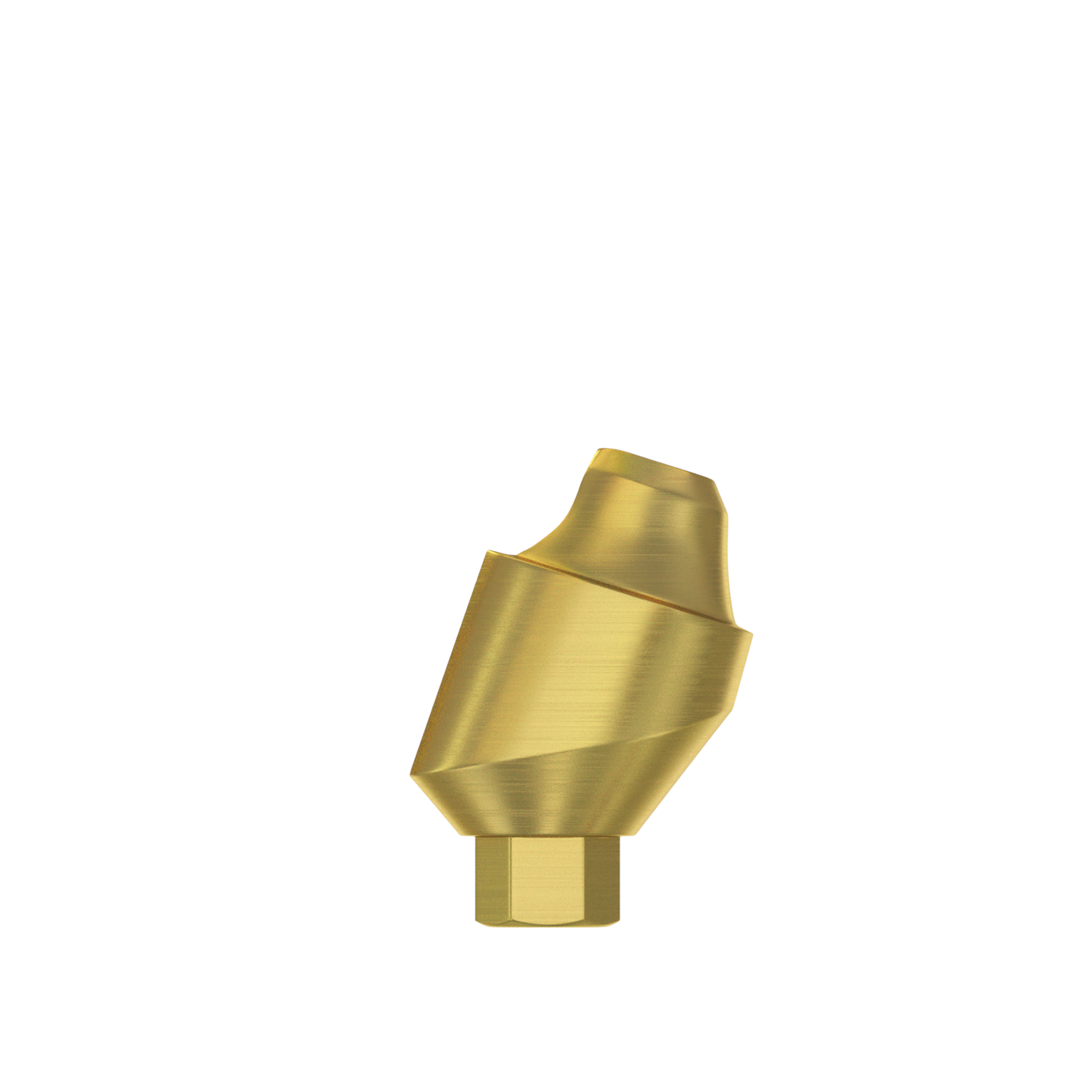

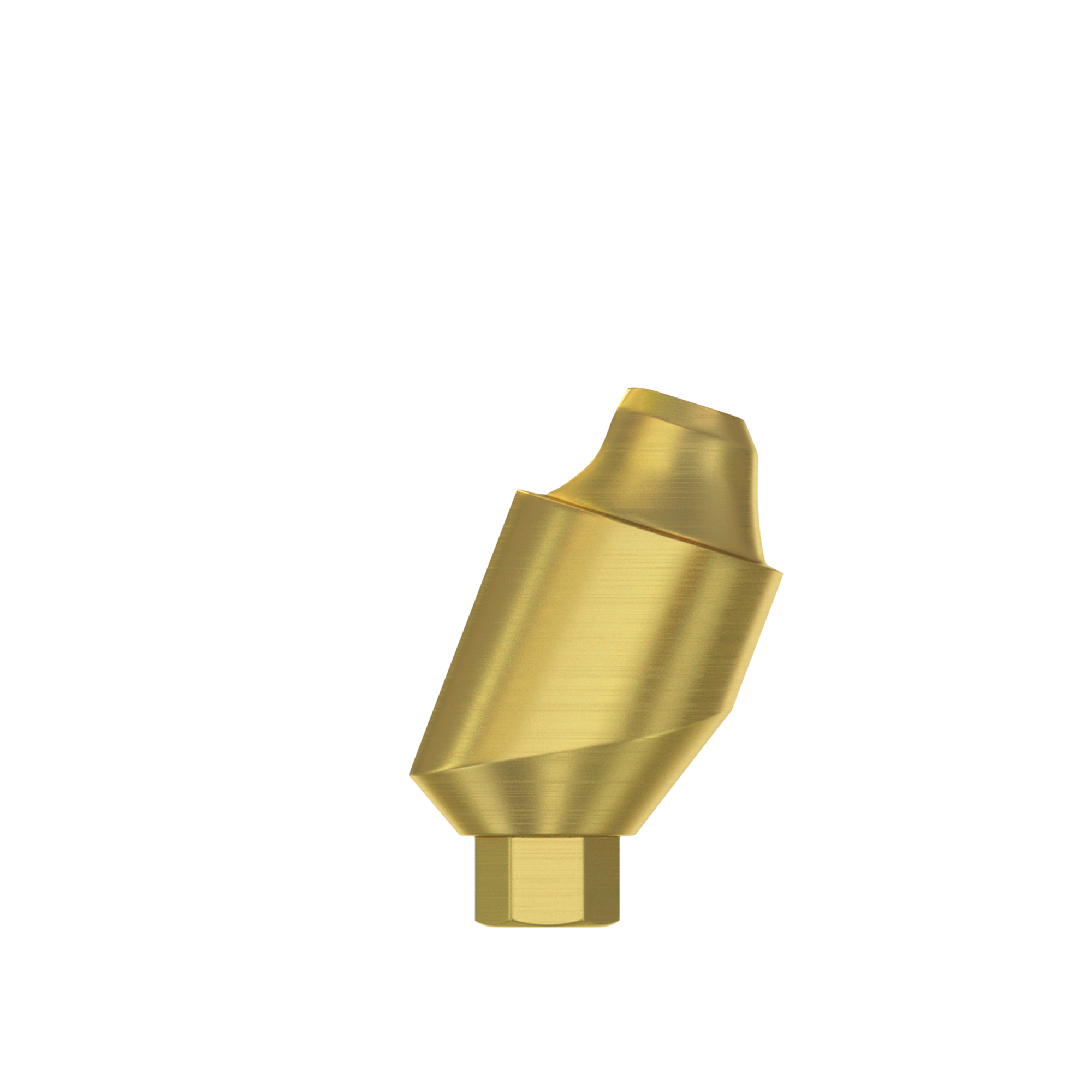

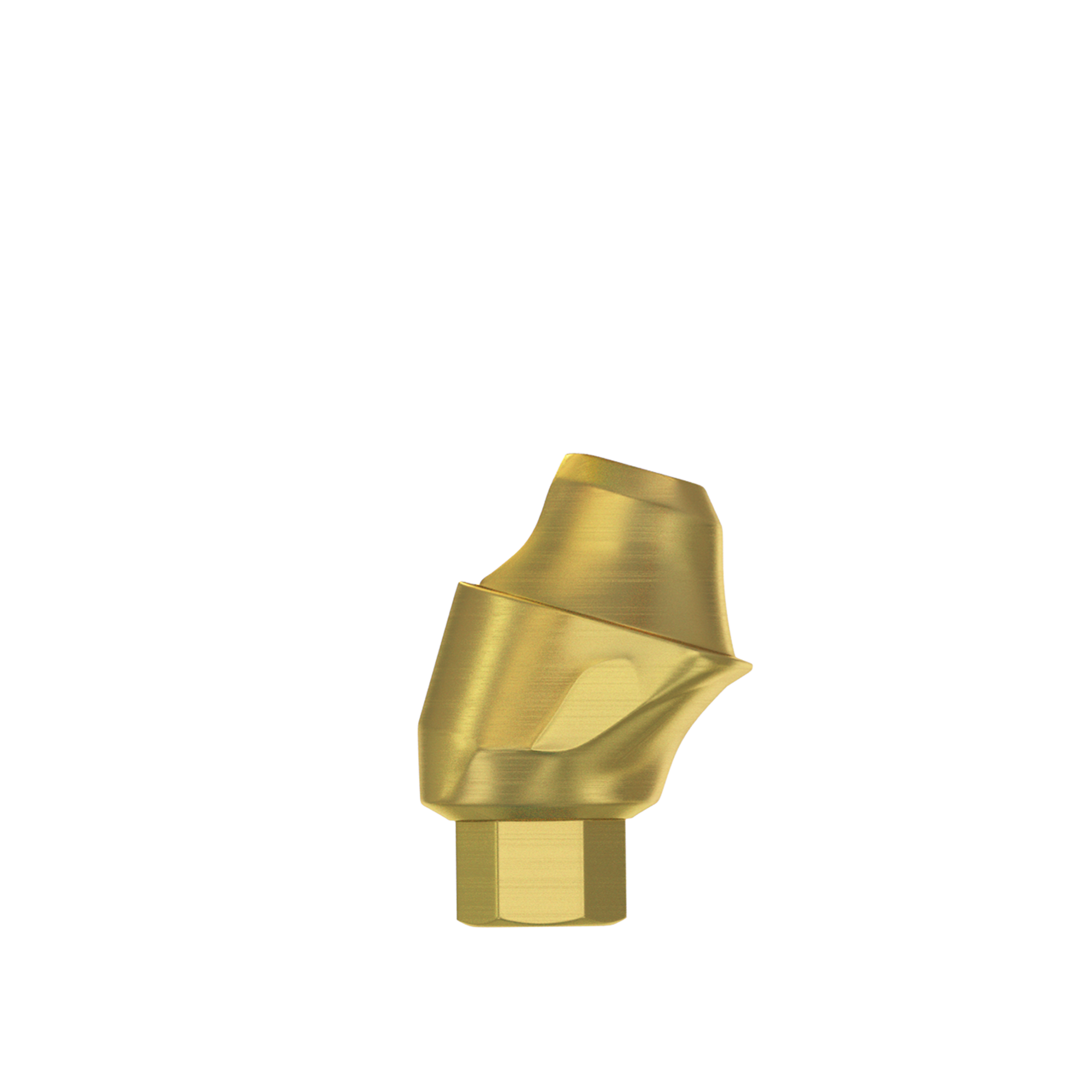

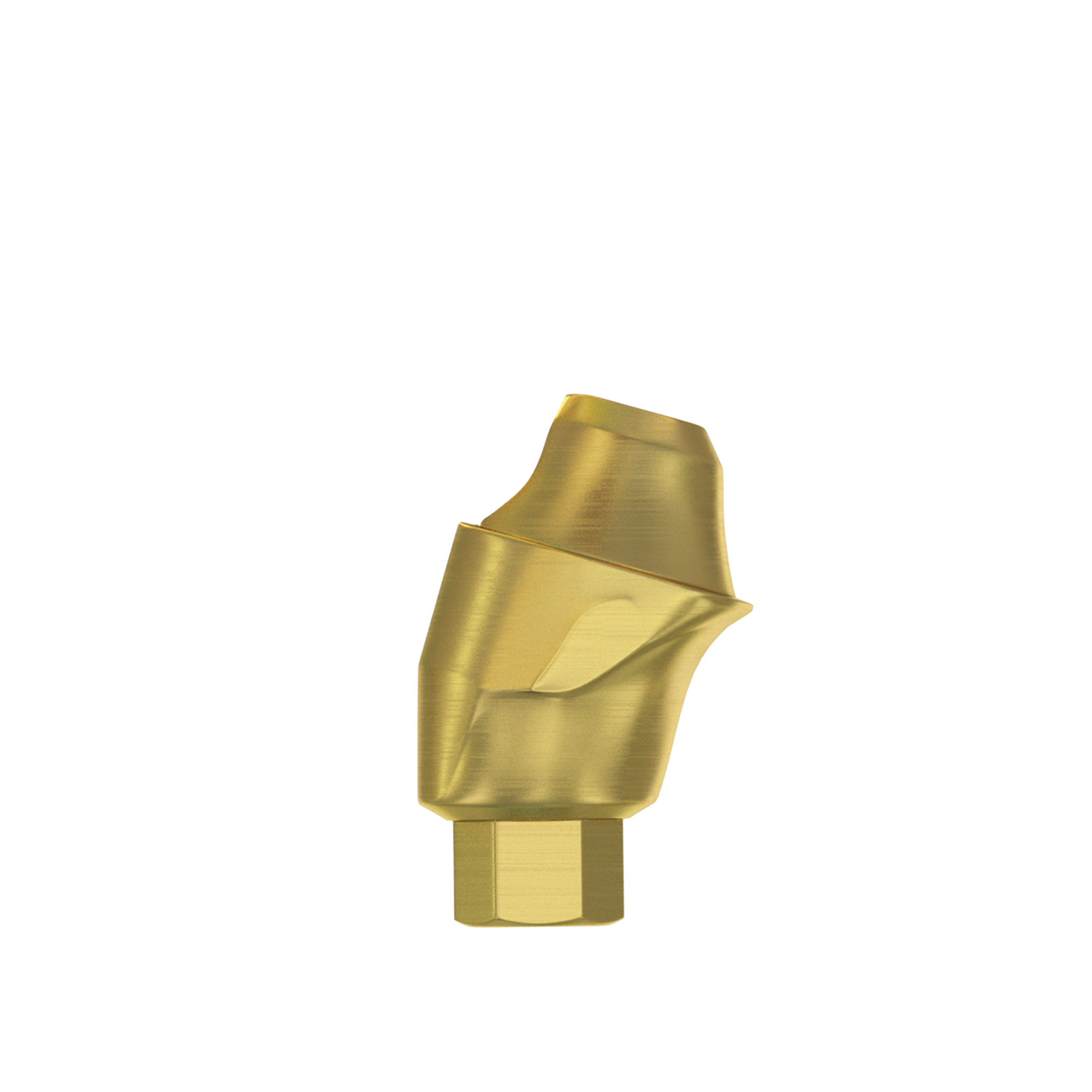

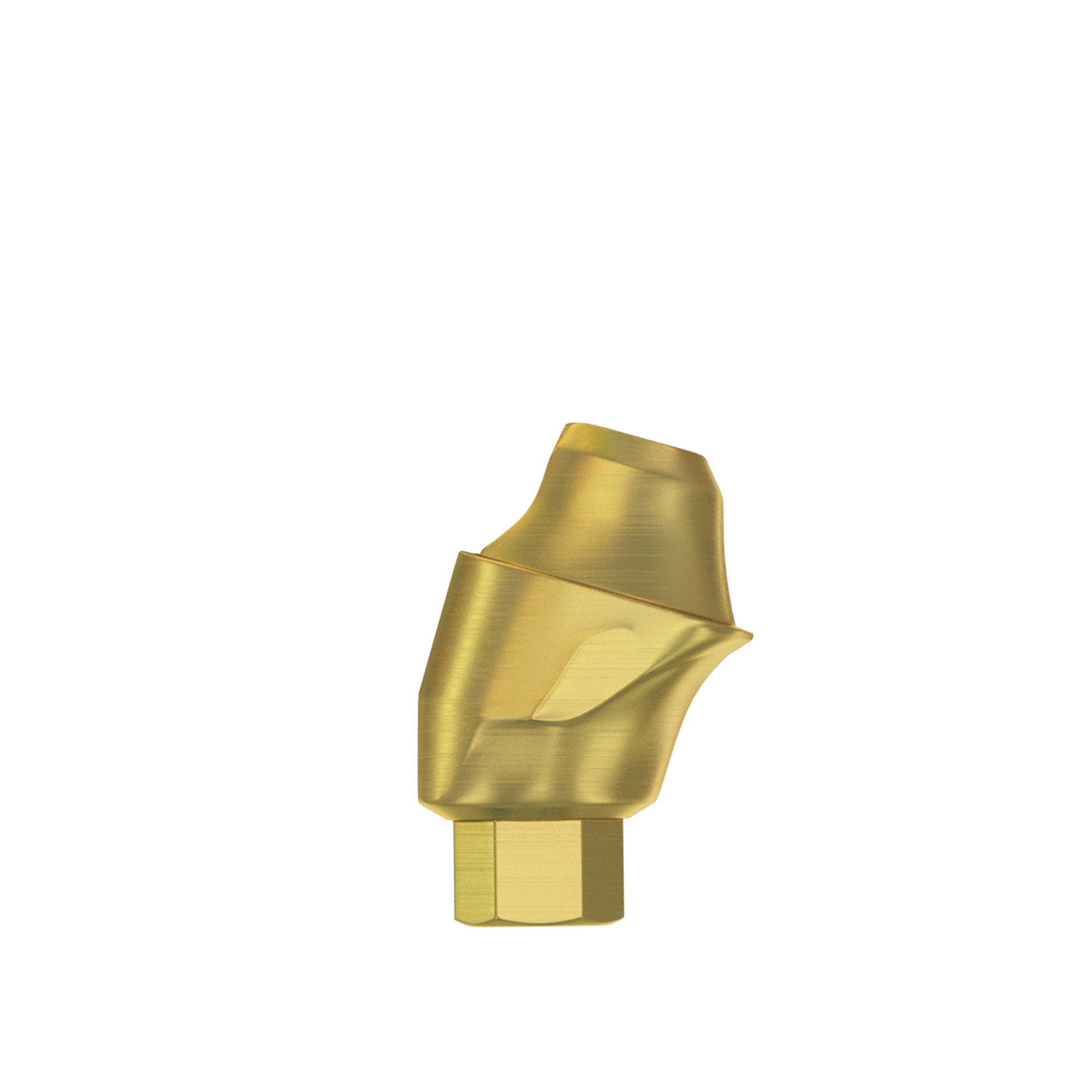

- GAMU-1710,GAMU-1720,GAMU-1730,GAMU-3010,GAMU-3020,GAMU-3030,GAMU-4510: Angulated Multi Unit Abutment Ø5.0mm ,1.0-3.0mm x1
And the following parts:

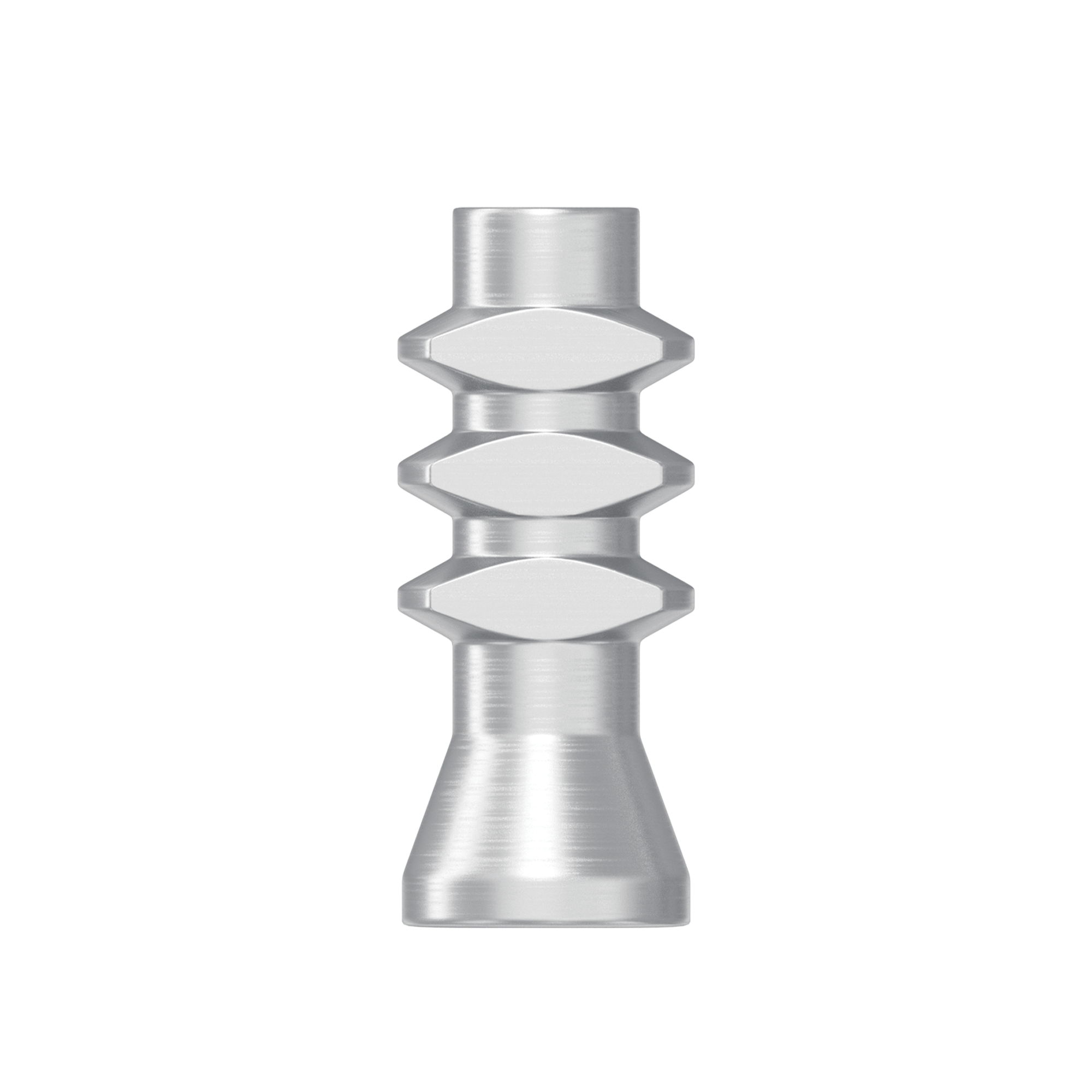

- MU-S-OT: Open Tray Transfer Ø 5.0mm , L=9.0mm, H=11.5mm x 1

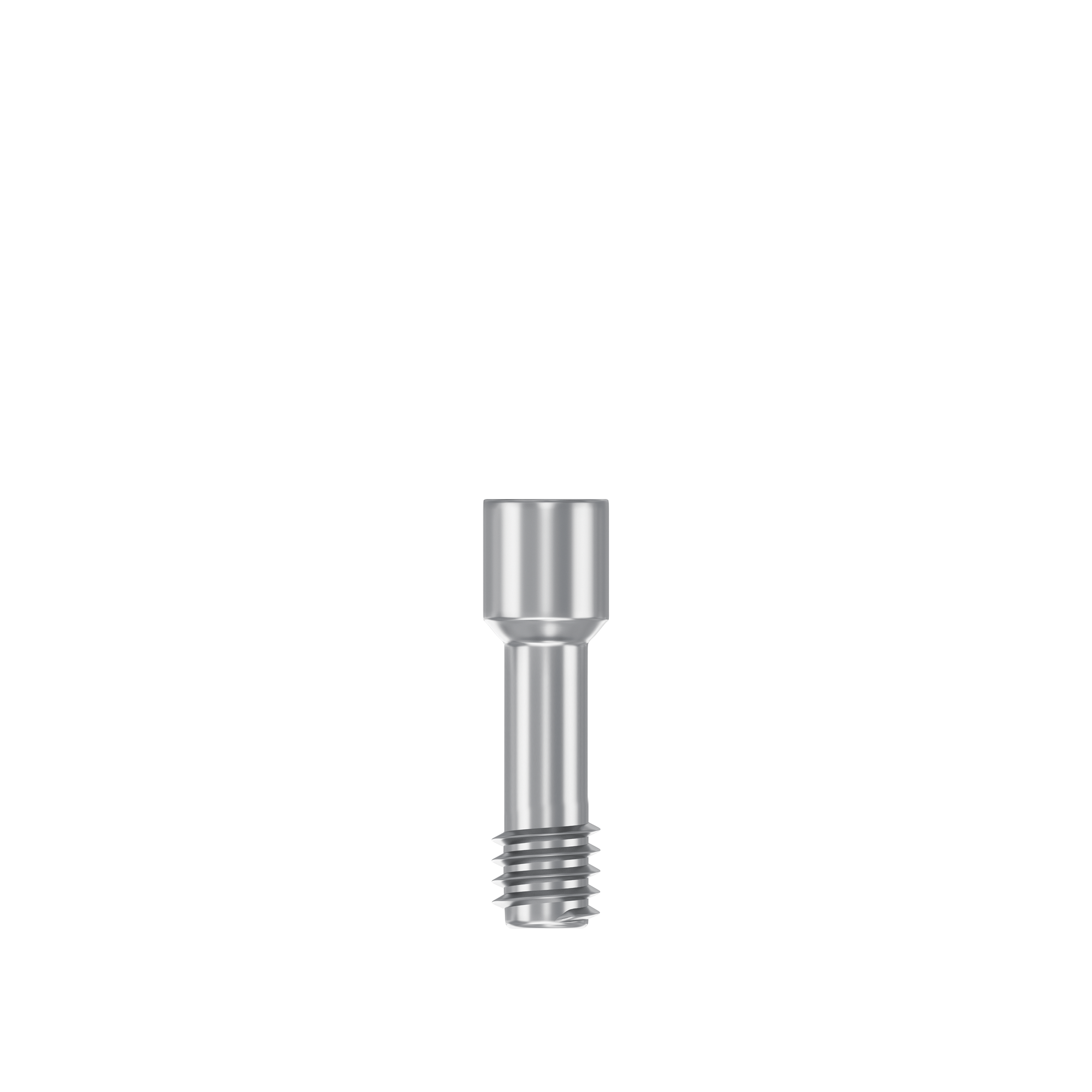

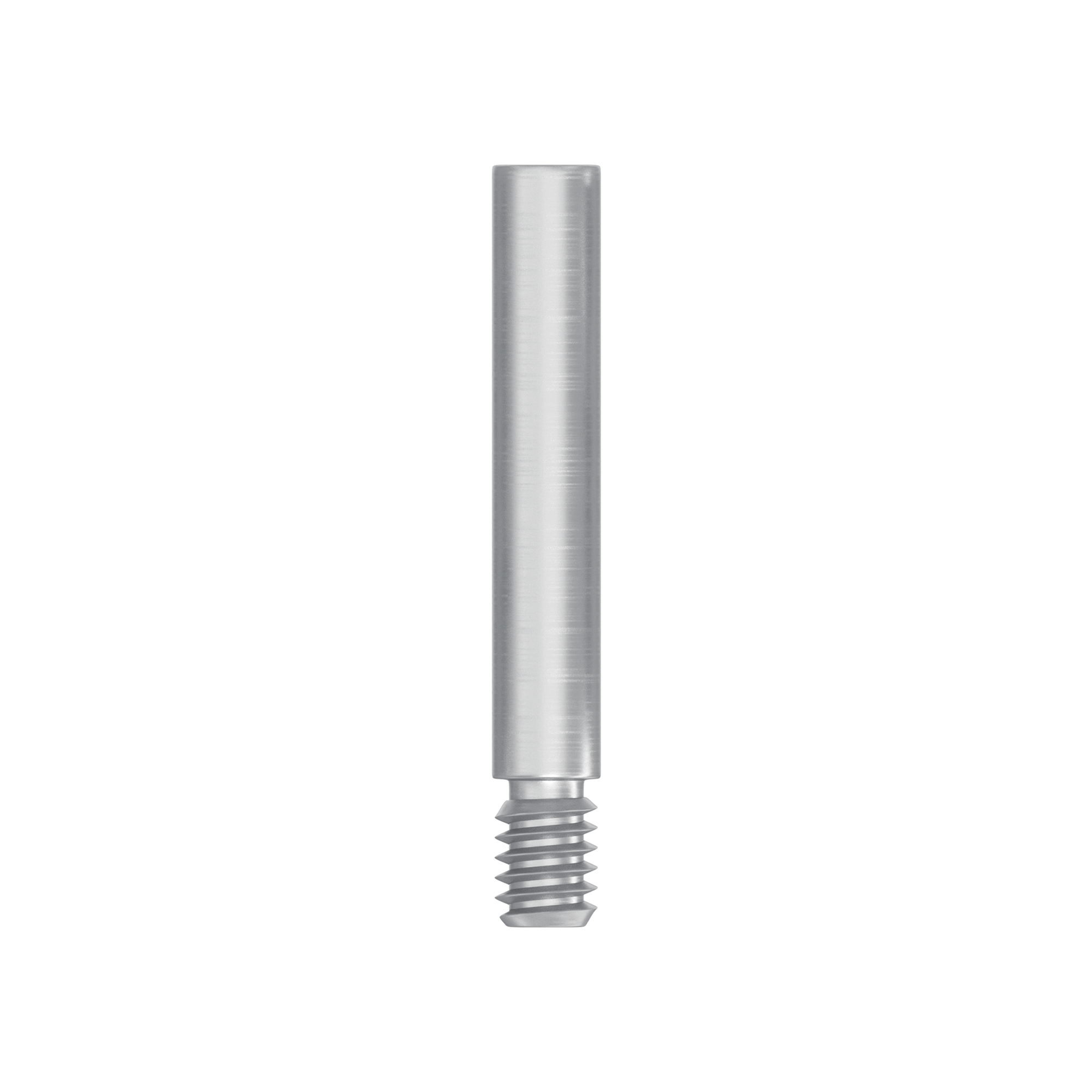

- MU-S-LT: Long Transfer Screw Ø 2.0mm , L=12.0mm, H=14.0mm x 1

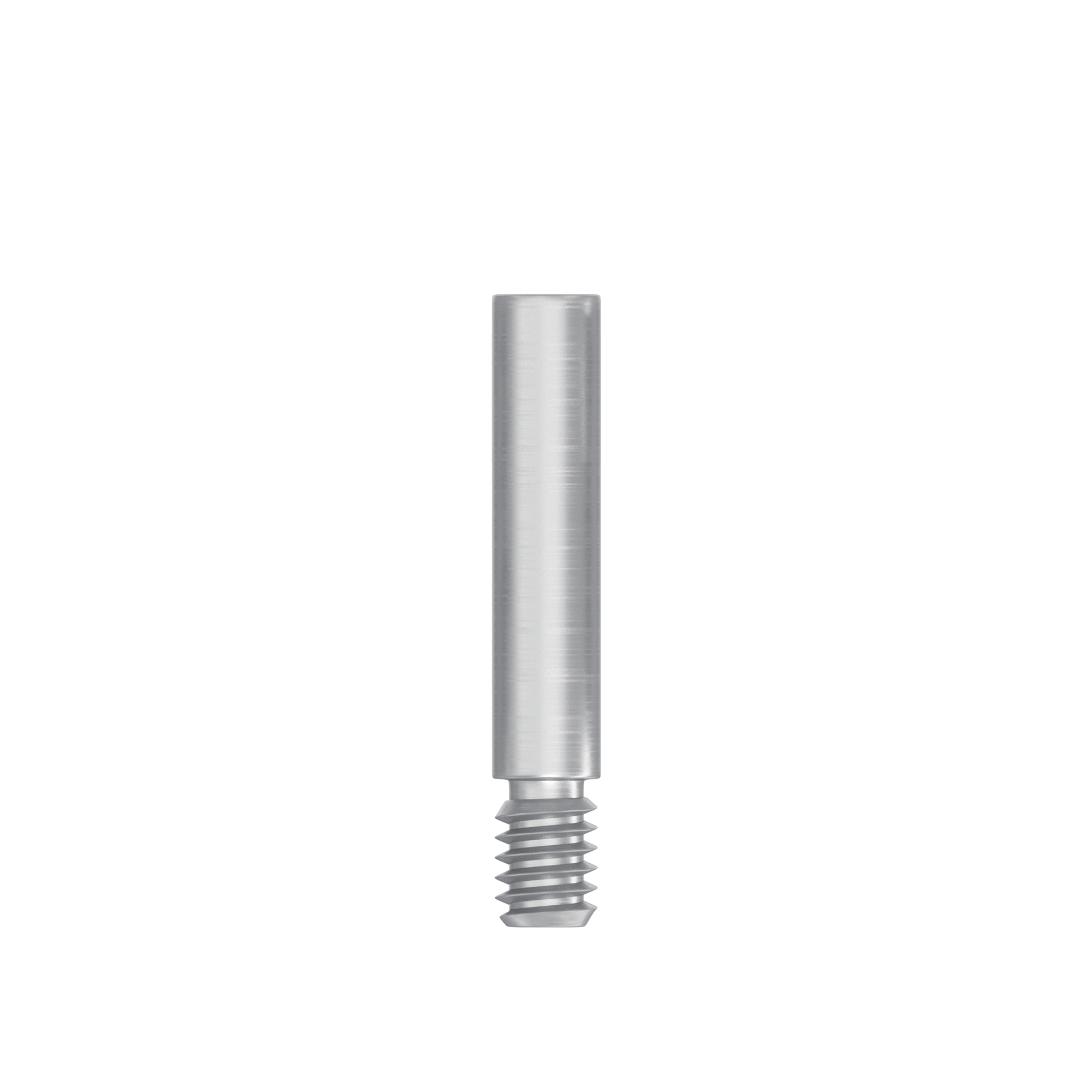

- MU-S-ST: Short Transfer Screw Ø 2.0mm , L=9.0mm, H=11.0mm x 1

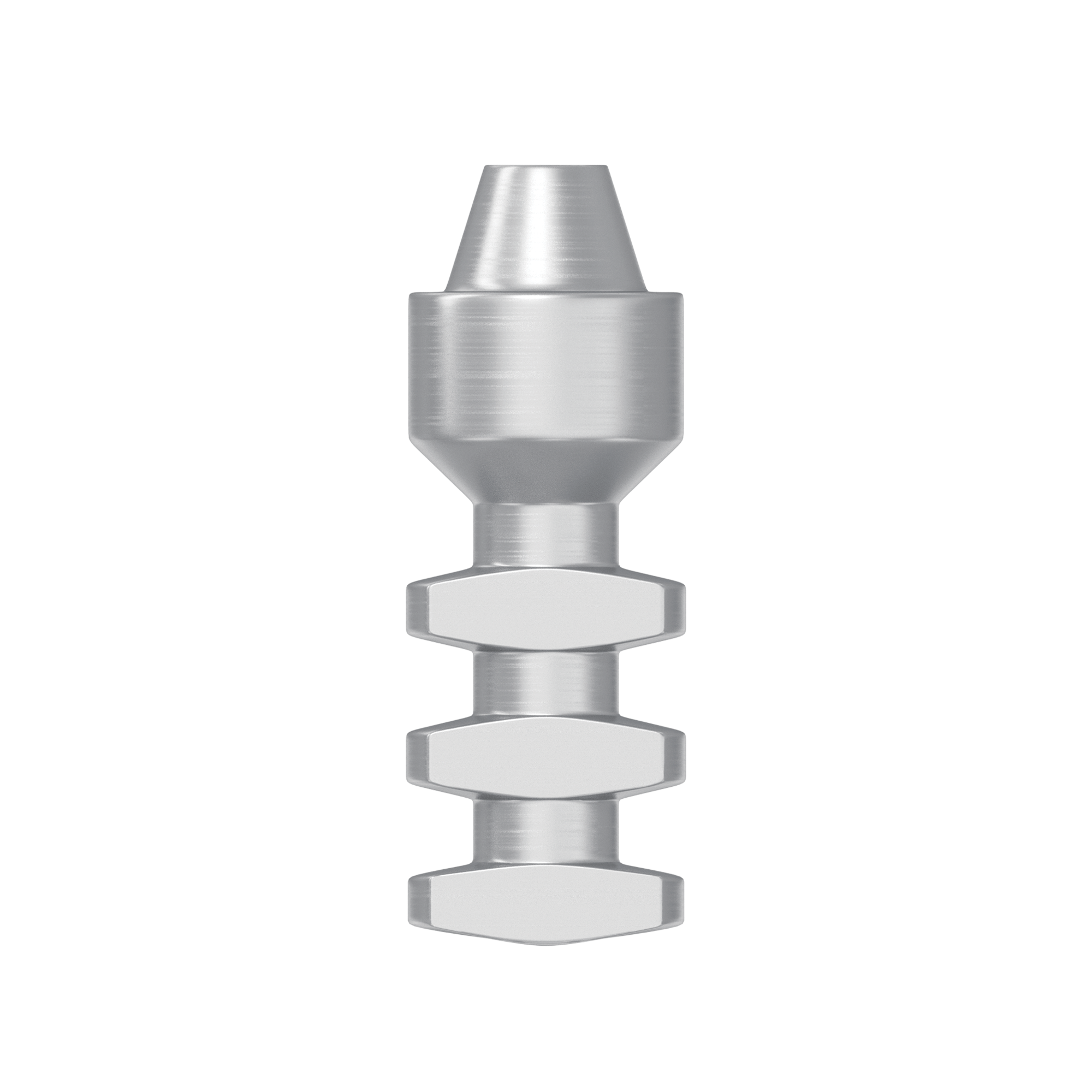

- MU-S-AN: Titanium Analog Ø 5.0mm , L=7.3mm, H=13.5mm x 1

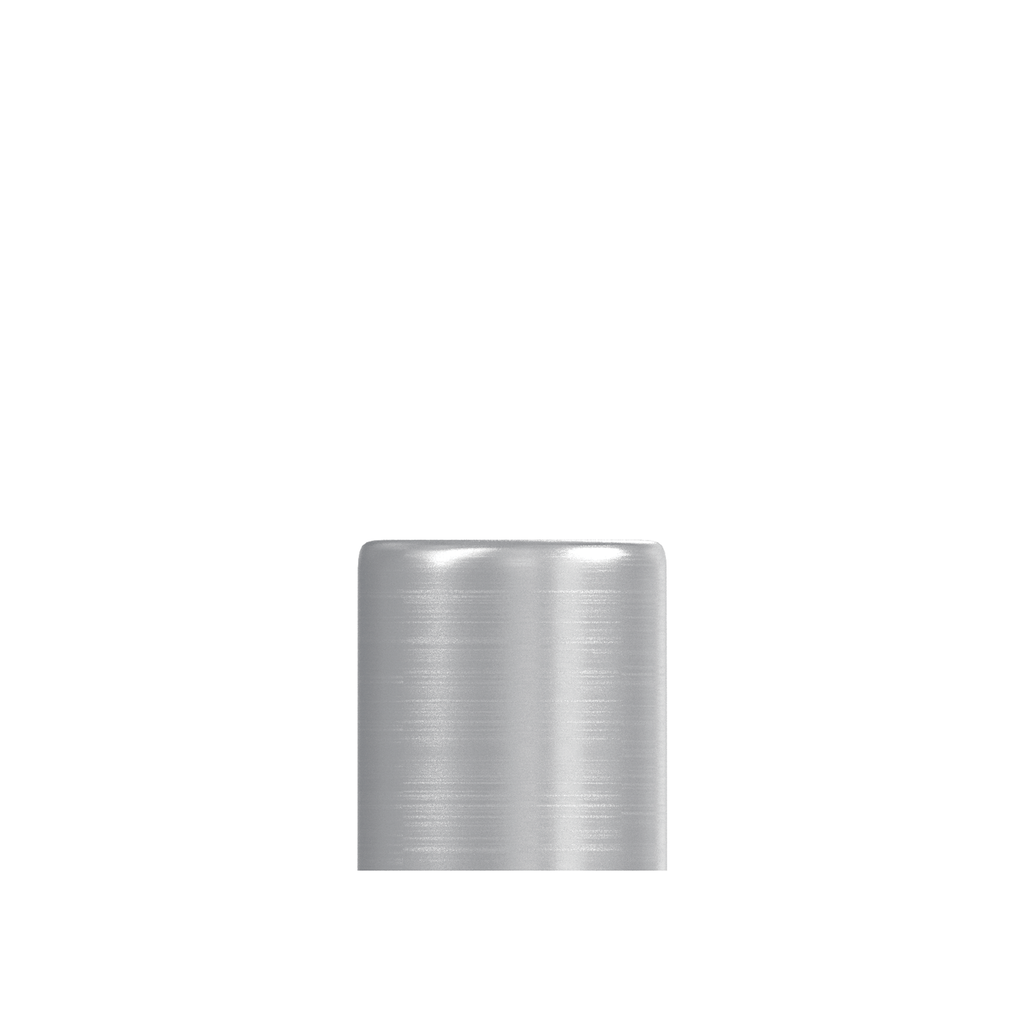

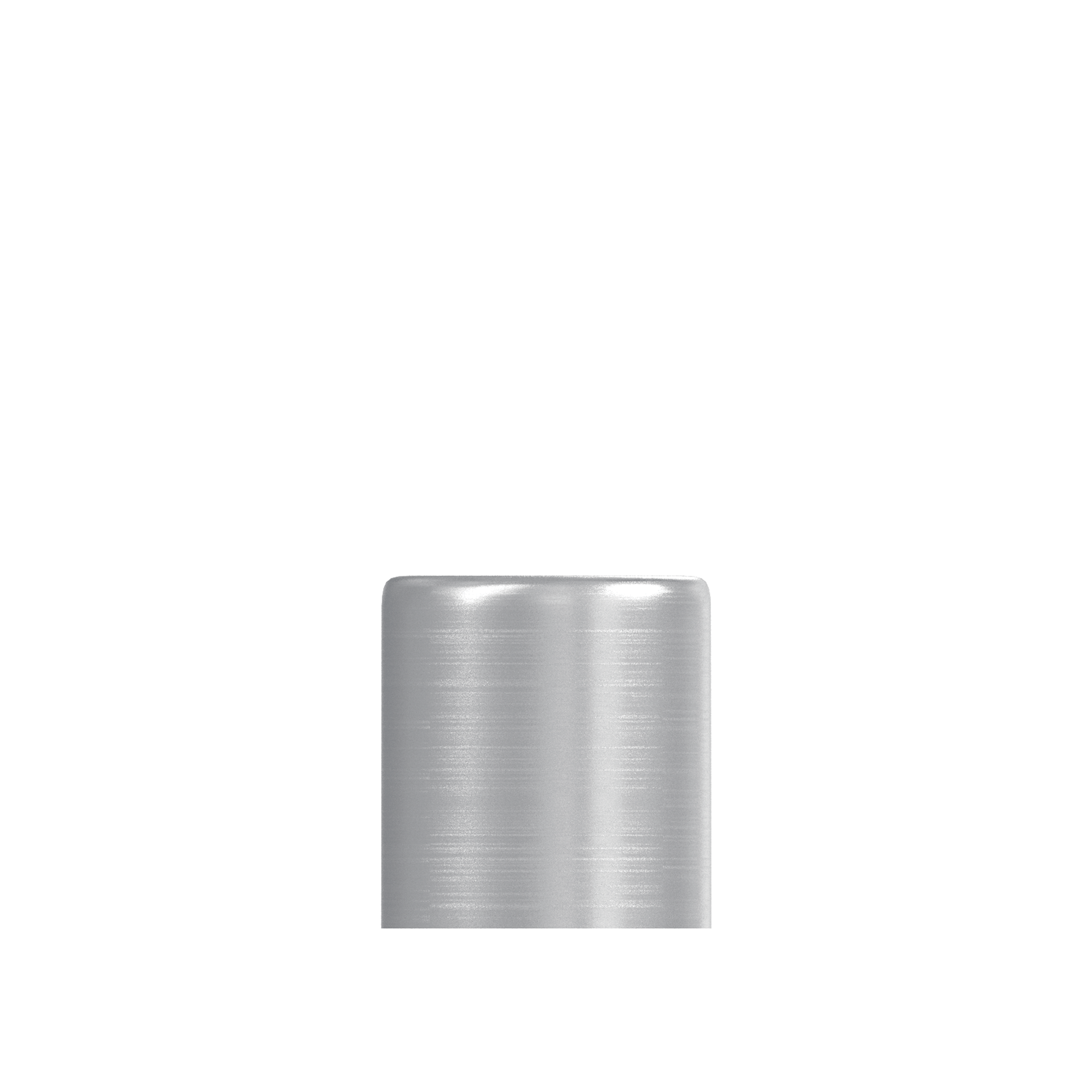

- MU-S-HC: Healing Cap Ø 4.9mm , L=2.35mm, H=5.0mm x 1

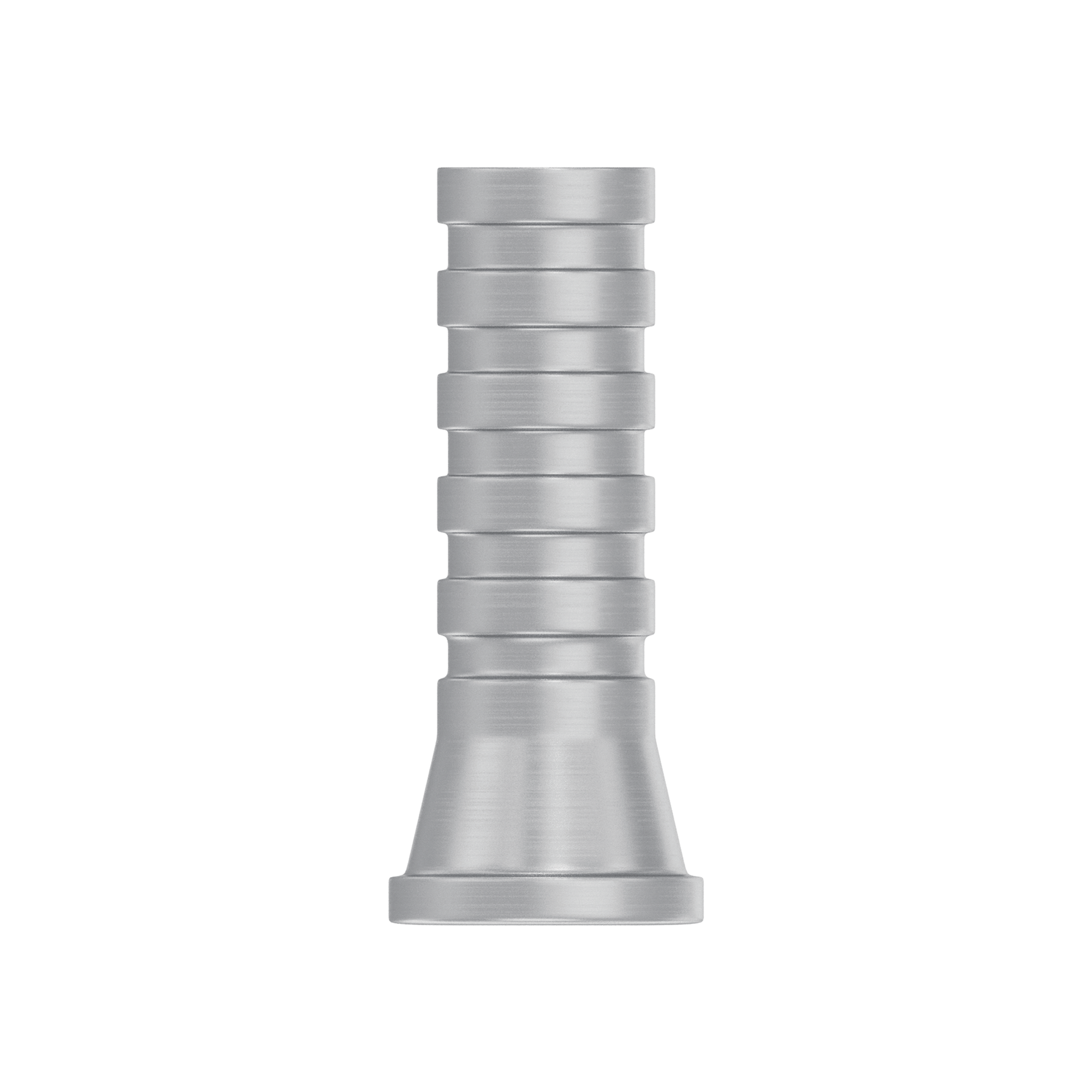

- MU-S-TS: Titanium Sleeve Abutment Ø 5.0mm , L=9.0mm, H=12.0mm x 1

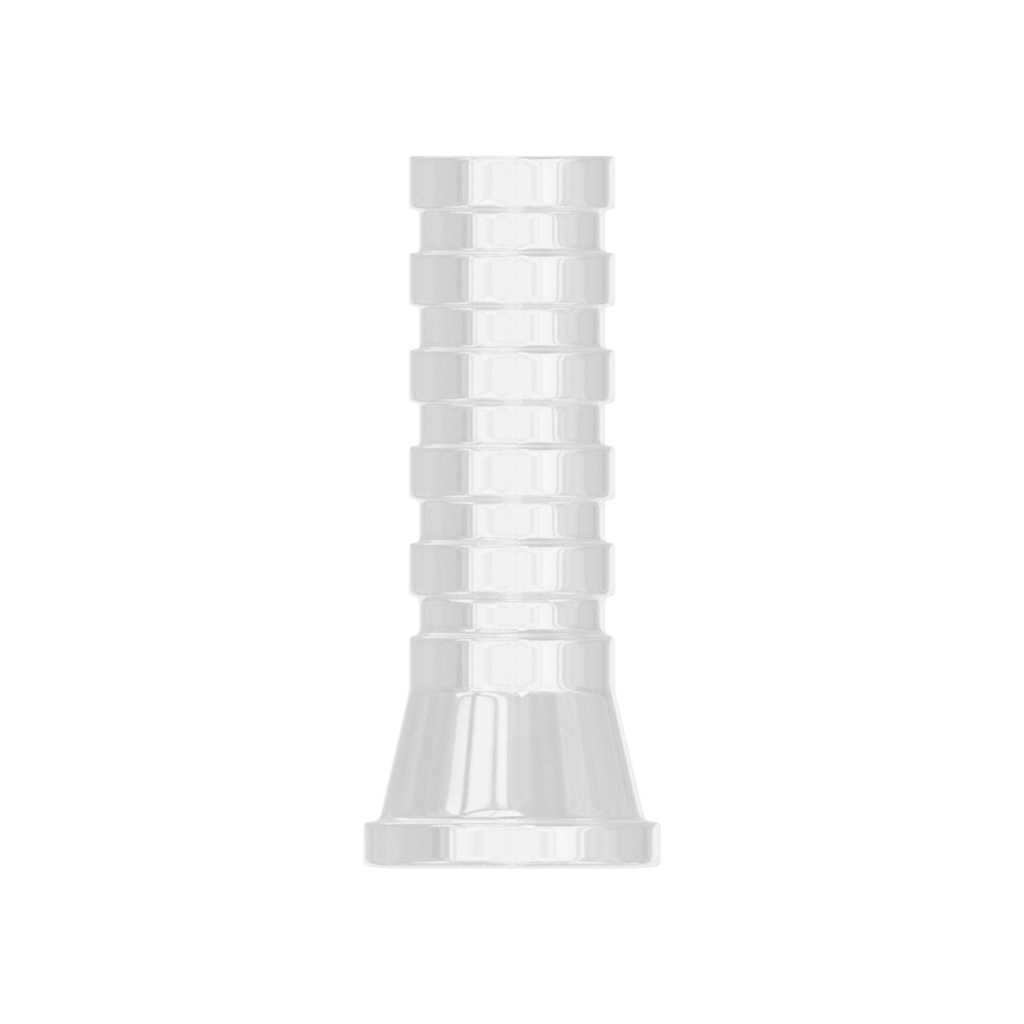

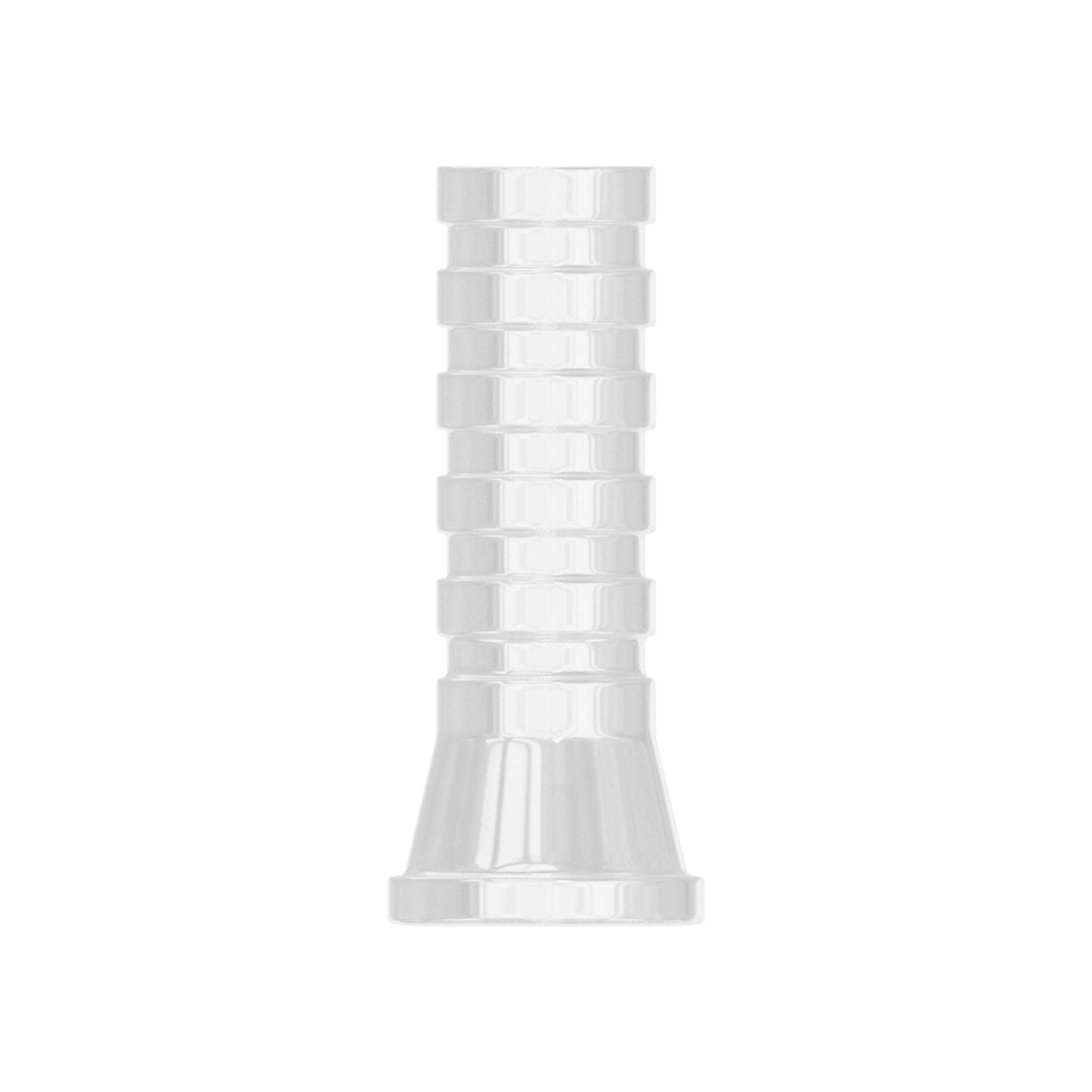

- MU-S-SP: Castable Sleeve Abutment(for Lab) Ø 5.0mm , L=9.0mm, H=12.0mm x 1

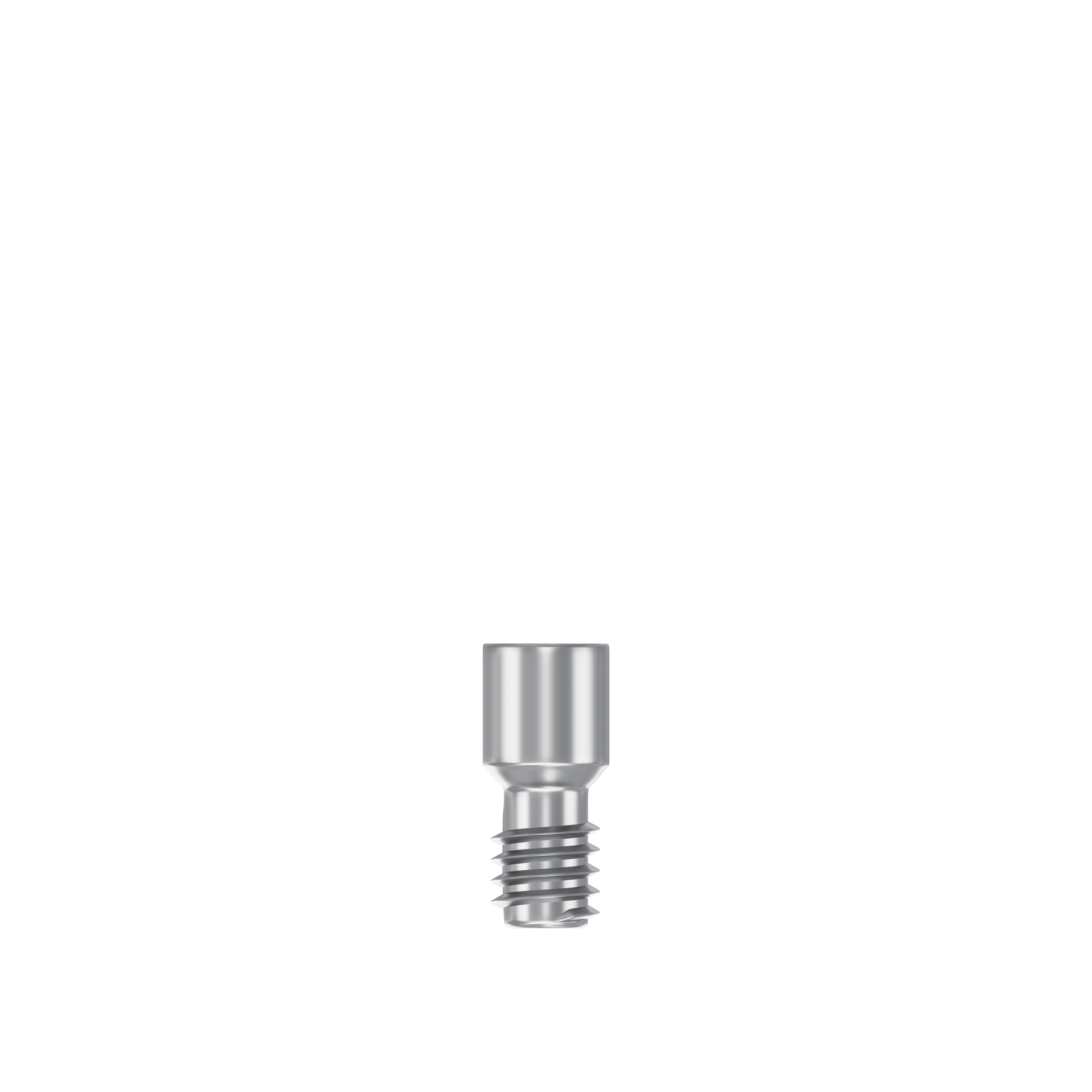

- MU-S-FX: Fixation Short Screws Ø 1.72mm , L=2.5mm, H=5.0mm x 2

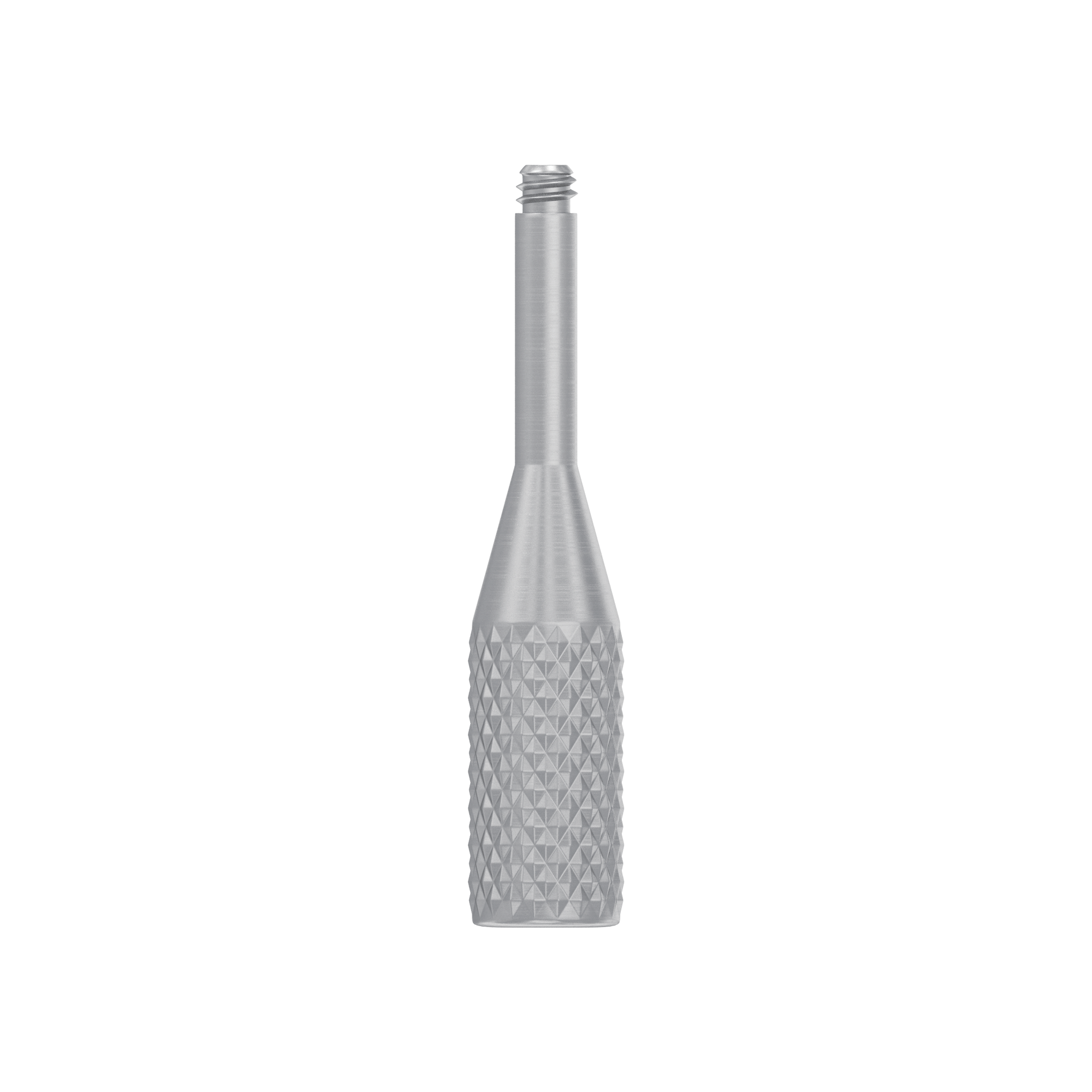

- MUIH: Metal Position Holder Ø 1.72mm , L=14.0mm, H=20.0mm x 1
DSI Next-Gen multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case. DSI Next-gen Multi-Unit abutment is one of the only systems that allows torquing the restoration to 30 Ncm, including angulated versions. This ensures the stability of the restoration.
Indications:
- Multiple teeth
- Complete bridges
- Fabrication of long-term/permanent restorations
- All-on-4,All-on-6
- For non-parallel implant alignment cases
Features:
- Excellent biocompatibility, no risk of abruption.
- Precise, non-rotational, functional.
- Simple, fast, and accurate positioning.
- Outstanding stability for the crowns and bridges
- Superior aesthetic results.
Technical information:
- Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
- Standard platform - regular body Ø5.0mm / collar height 1-3mm
- Implant Level Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
- Multi Unit level Connection M1.7 Compatible with : Paltop, Surcam
- 17° Degrees
- 30° Degrees
- 45° Degrees
- Titanium fixation screw included with every abutment
- Titanium alloy Ti-6Al-4V grade 23 ELI
- Acetal (Delrin®)
- 1 Angulated MUA + Accessories (see description)
Collar 1-3mm and Angle 17,30,45 Selection
